Product Description

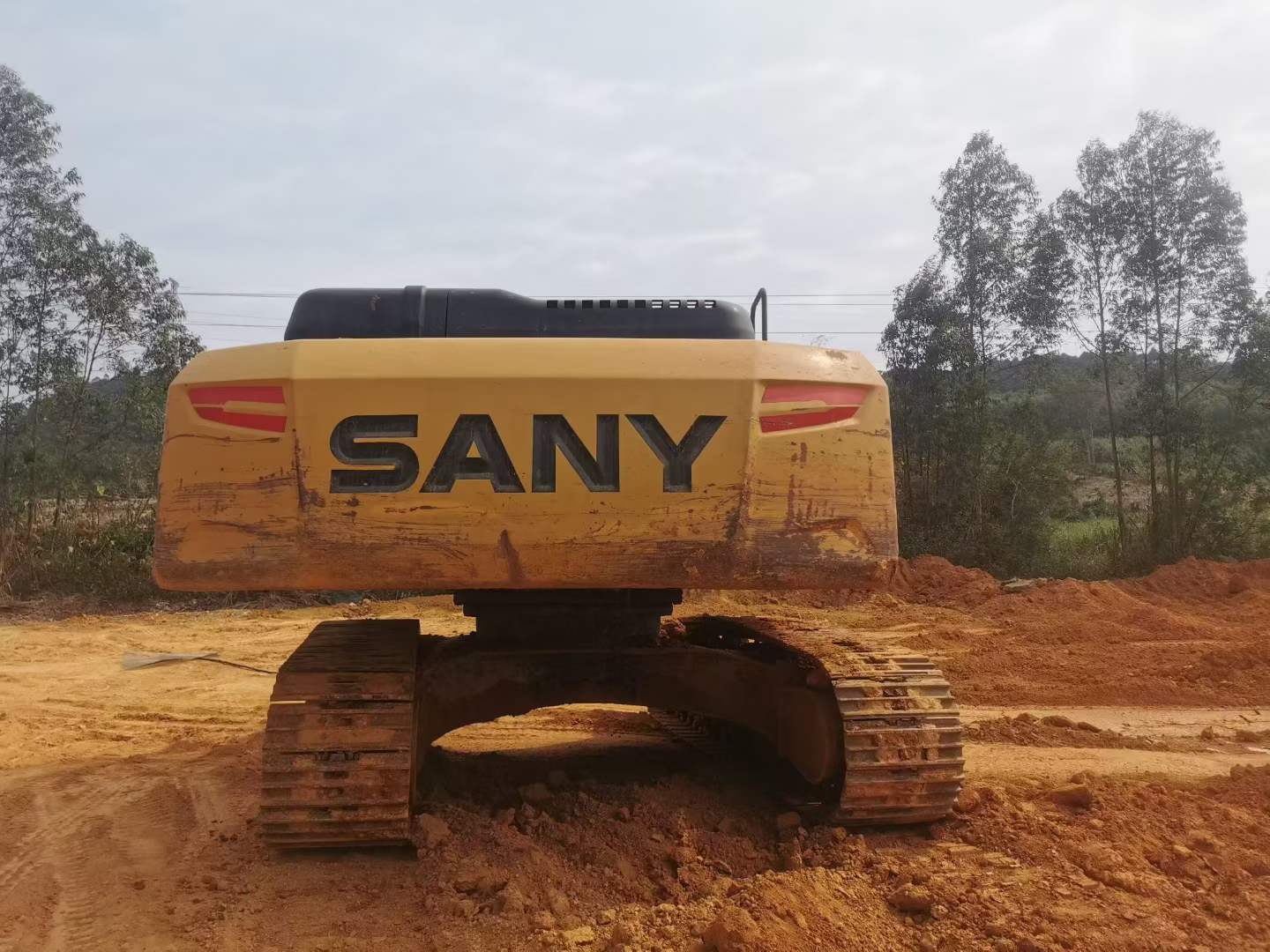

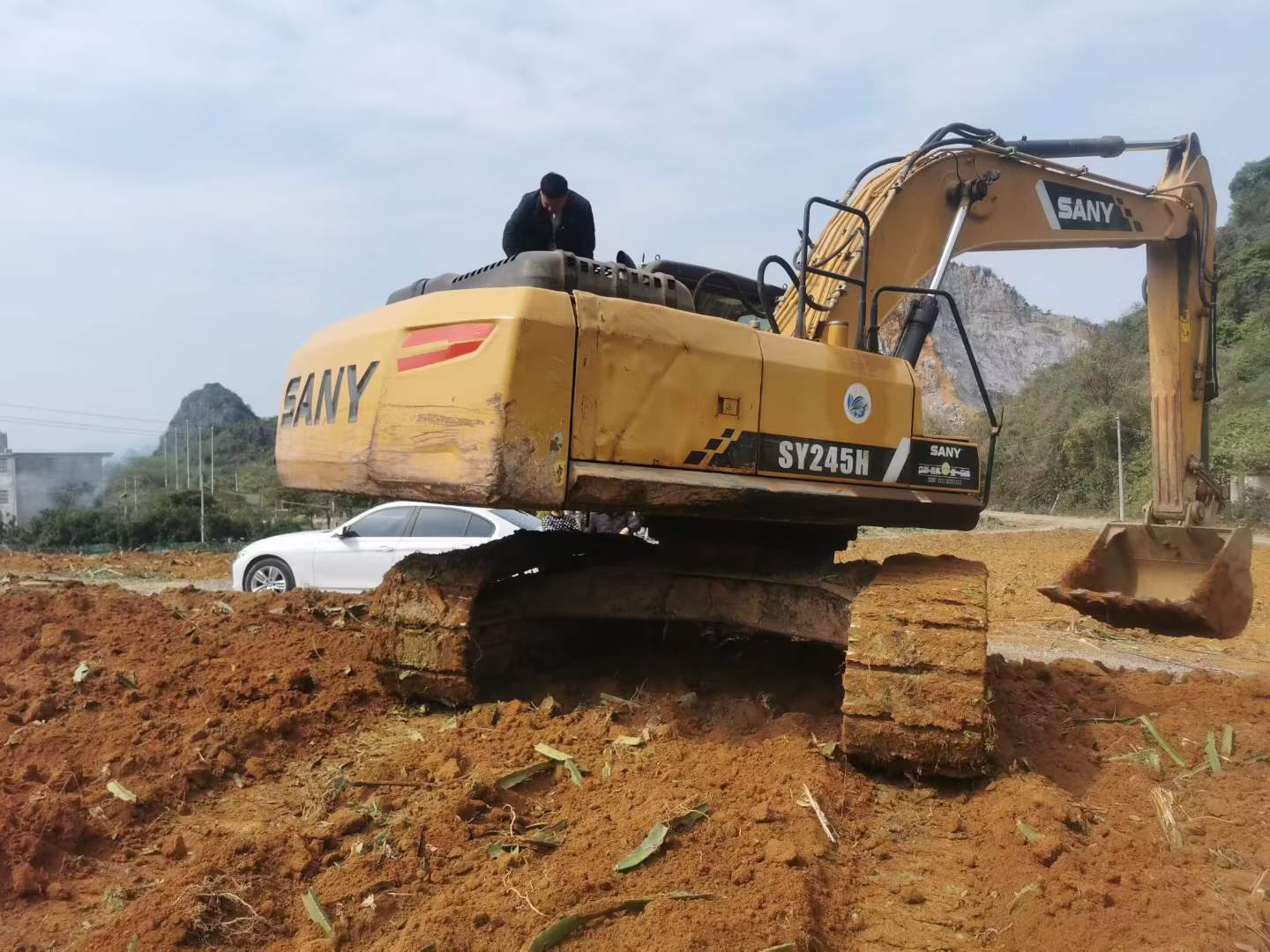

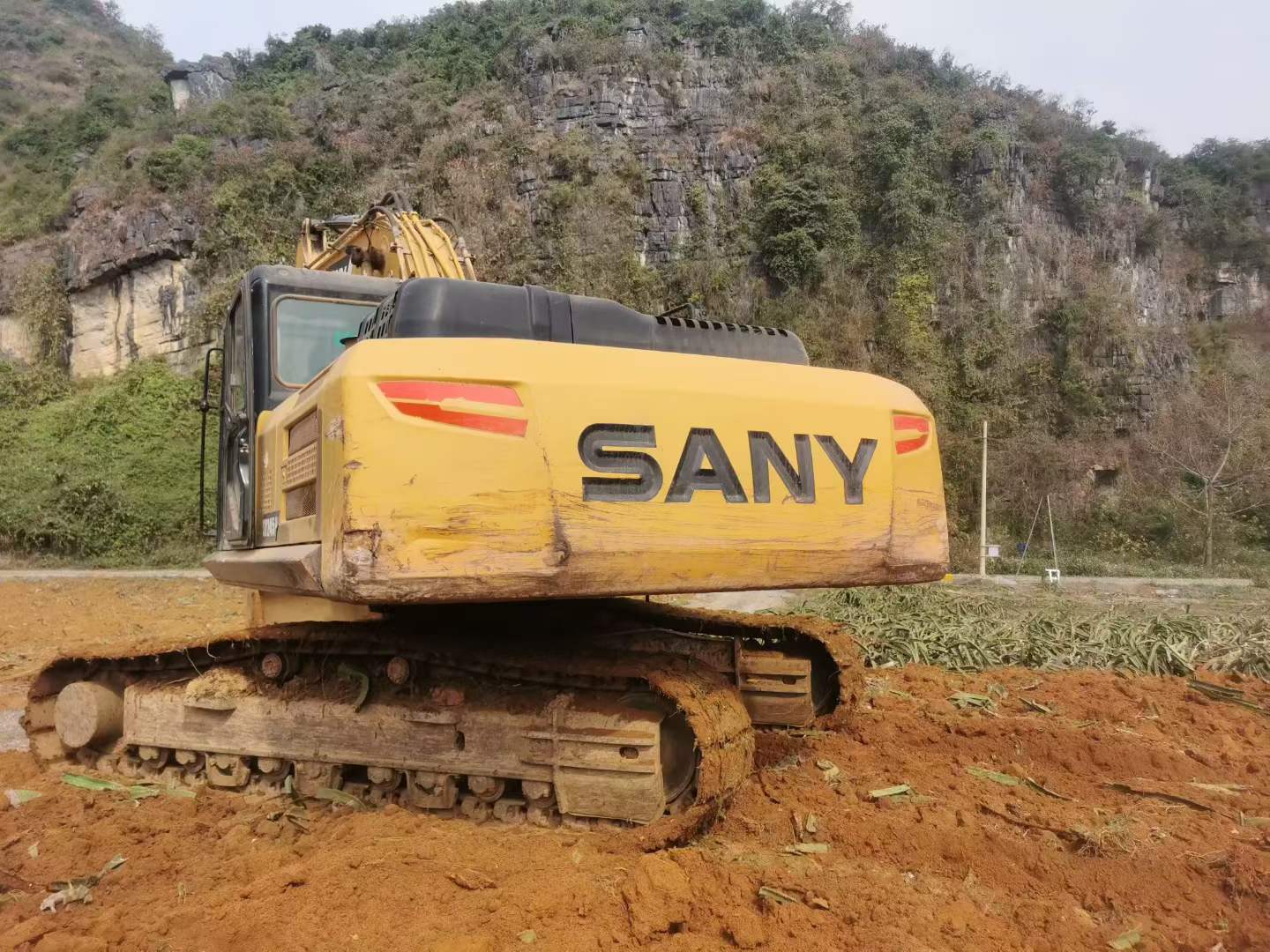

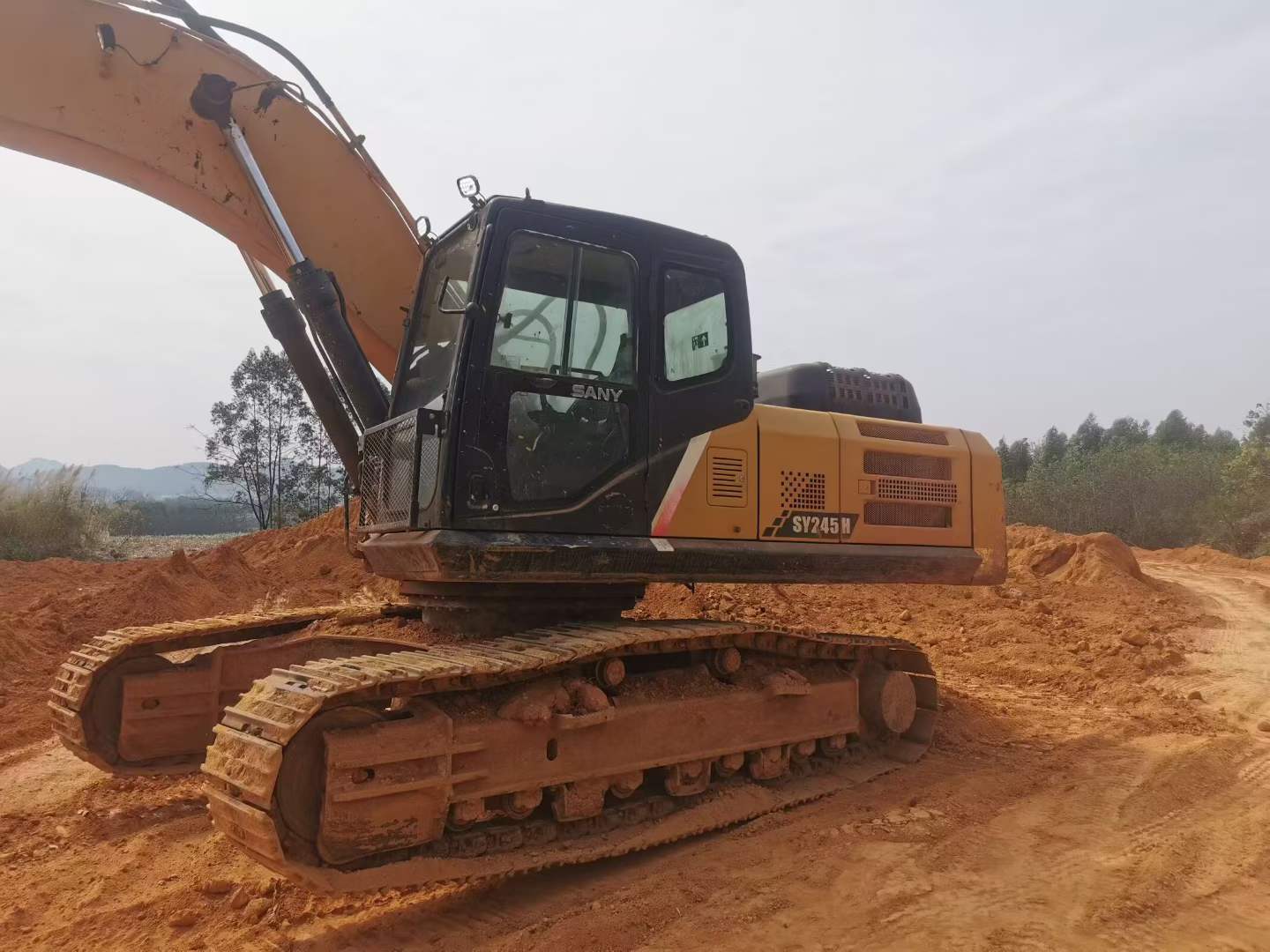

Engineered for precision and daily productivity, this 2017 Sany SY245H excavator delivers 24-ton performance with operator-focused design. Powered by a D06FRC engine producing 147 kW at 2100 rpm, it combines reliable water-cooled technology with a robust 6-cylinder configuration for consistent output across demanding applications.
Operators benefit from enhanced stability during operation, supported by a 25,500 kg working weight and optimized 53.2 kPa ground pressure that minimizes surface disturbance. The spacious cabin provides commanding visibility across the 10,225 mm maximum digging radius, while intuitive controls manage the 175 kN bucket digging force and 120 kN arm force with responsive precision.
- Bucket capacity: 1.3–1.5 m³ for versatile material handling
- Maximum digging depth: 6,705 mm
- 10.6 rpm rotation speed enables efficient positioning
- Dual-speed travel: 5.4/3.4 km/h for job site mobility
- 475 L fuel capacity reduces downtime
- Currently located in Fujian Putian, China
Built to Chinese manufacturing standards, this backhoe-configured machine offers proven durability for construction, mining, and infrastructure projects worldwide.
| Specifications | Value |
|---|---|
| No. | 1018986 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
