Product Description

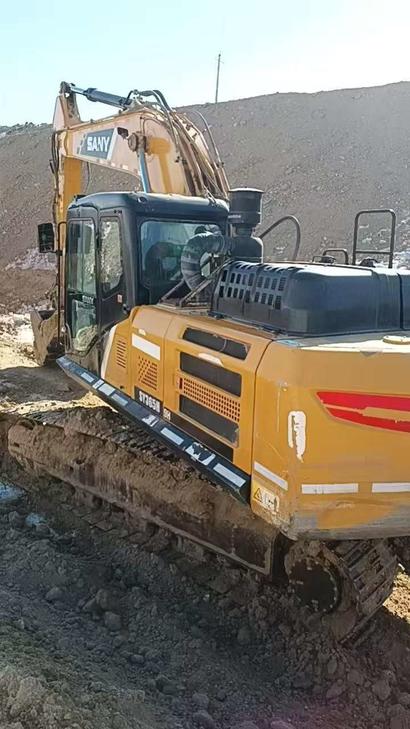

Proven in demanding conditions since 2017, this Sany SY245H crawler excavator demonstrates exceptional durability through years of reliable operation. Built with Sany's robust engineering standards in China, this 24-ton workhorse features a powerful D06FRC engine delivering 147kW at 2100rpm, paired with a water-cooled system designed for sustained heavy-duty performance. Operating weight of 25,500kg provides the stability needed for challenging excavation projects.
Performance credentials include impressive reach specifications: 10,225mm maximum digging radius and 6,705mm maximum digging depth. The 1.3-1.5m³ backhoe bucket generates 175kN of digging force, while the hydraulic system delivers consistent power through a 277L tank capacity. Track dimensions of 600mm width across 3,640mm ground contact length ensure superior traction and minimal ground pressure of just 53.2kPa.
Key specifications:
- Rated Power: 147kW (2100rpm) with 750N.m maximum torque
- Working Range: 10,225mm radius / 6,705mm depth / 9,745mm height
- Fuel Capacity: 475L for extended operation
- Transport Dimensions: 10,290mm × 3,190mm × 3,190mm
- Current Location: Shanghai, Chin
| Specifications | Value |
|---|---|
| No. | 1045317 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
