2017 Sany SY245H

1/9

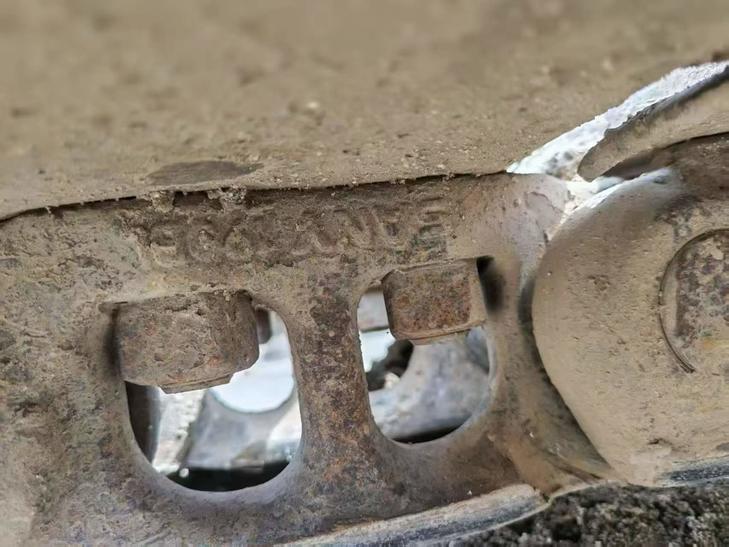

Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2

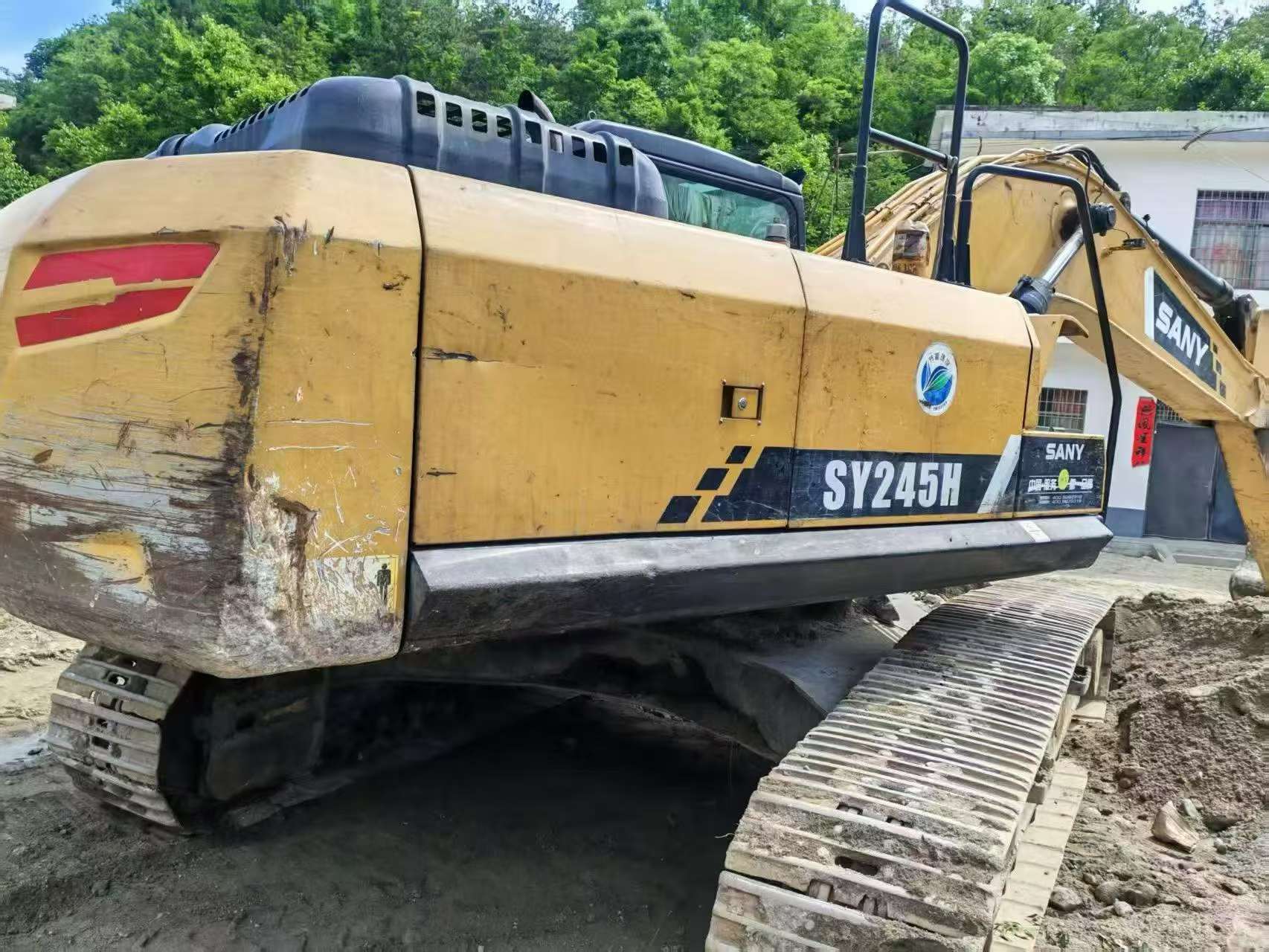

Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4

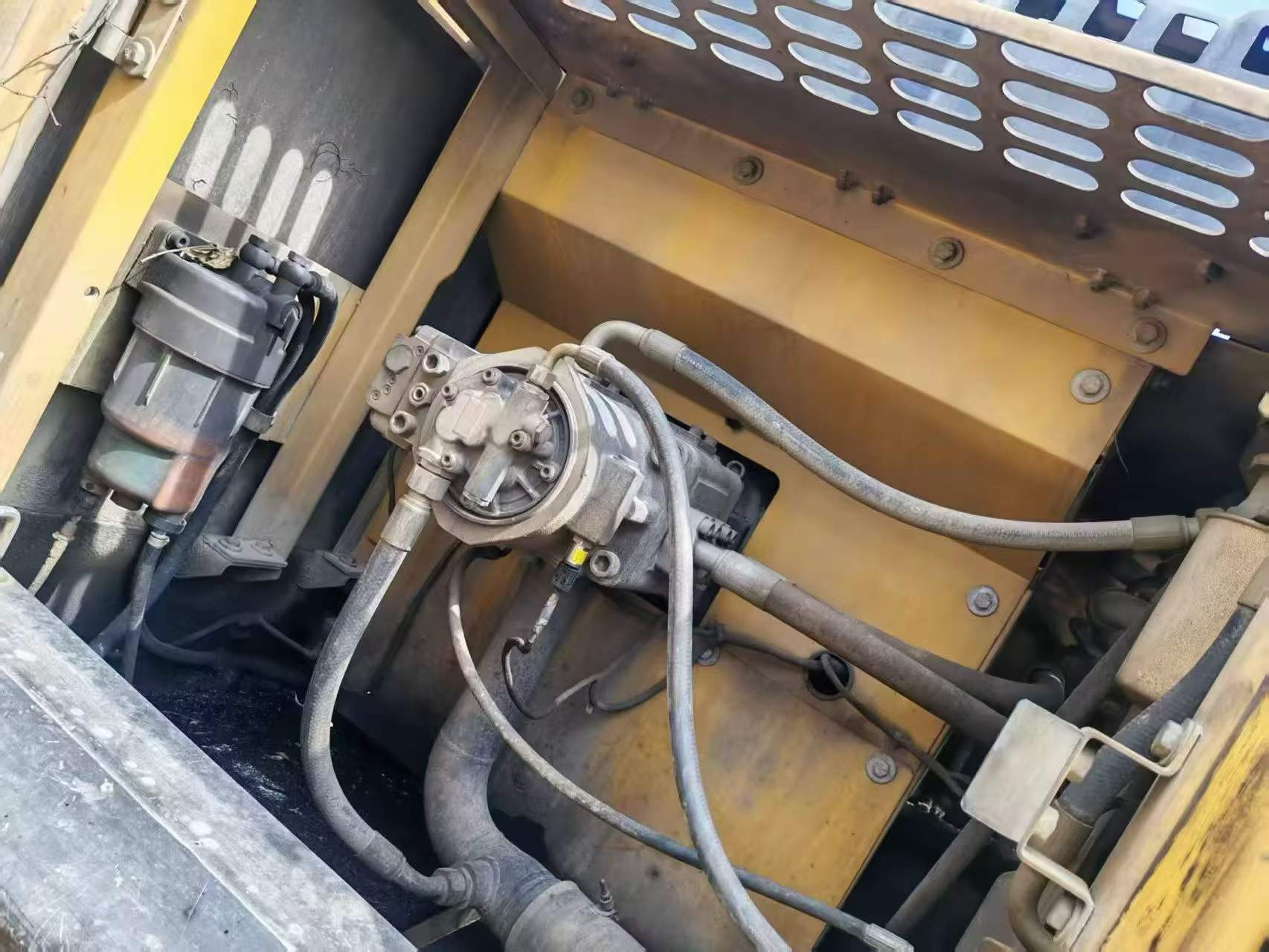

Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6

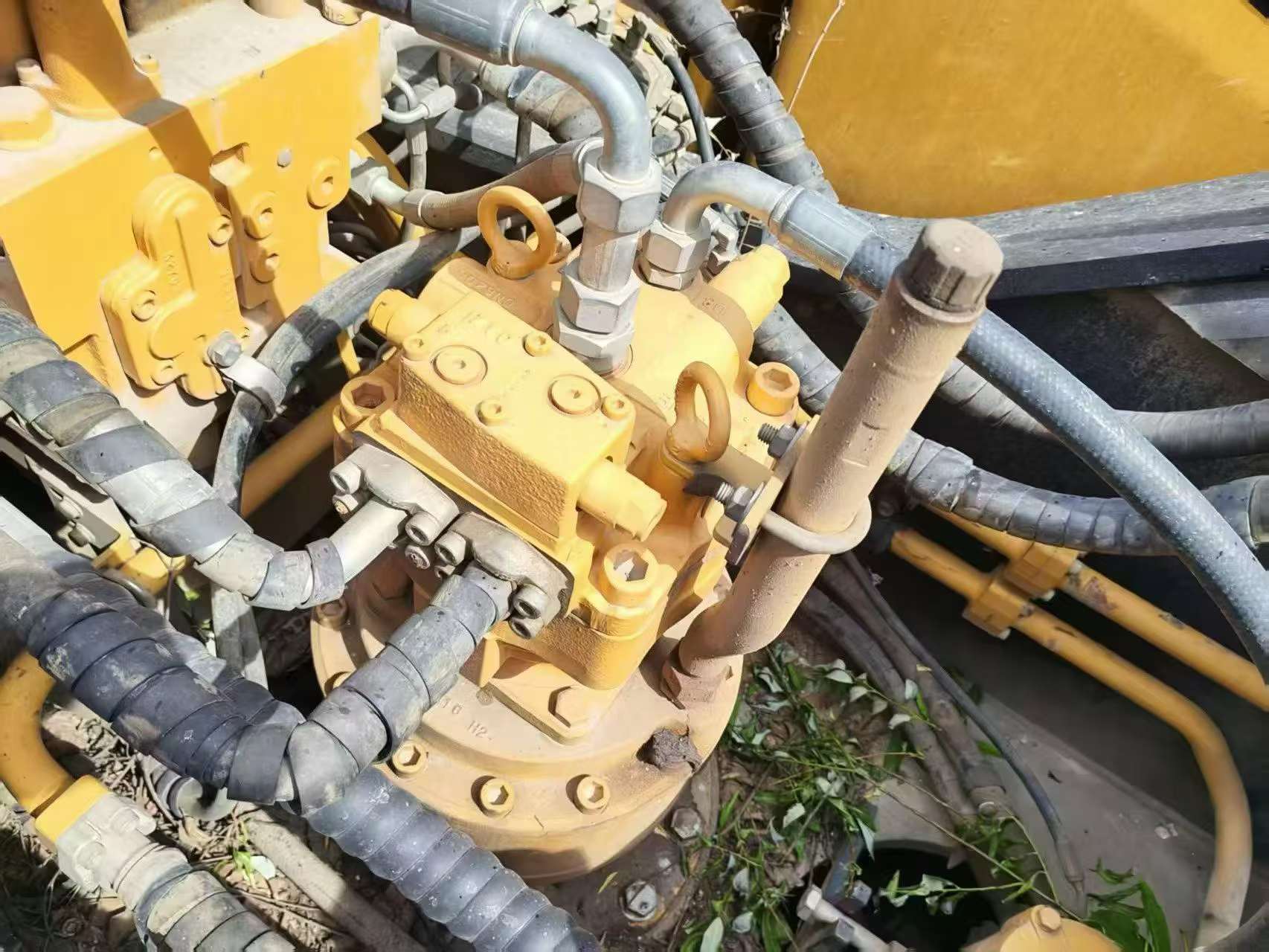

Buy Sany SY245H Used Excavator / 7
Buy Sany SY245H Used Excavator / 8

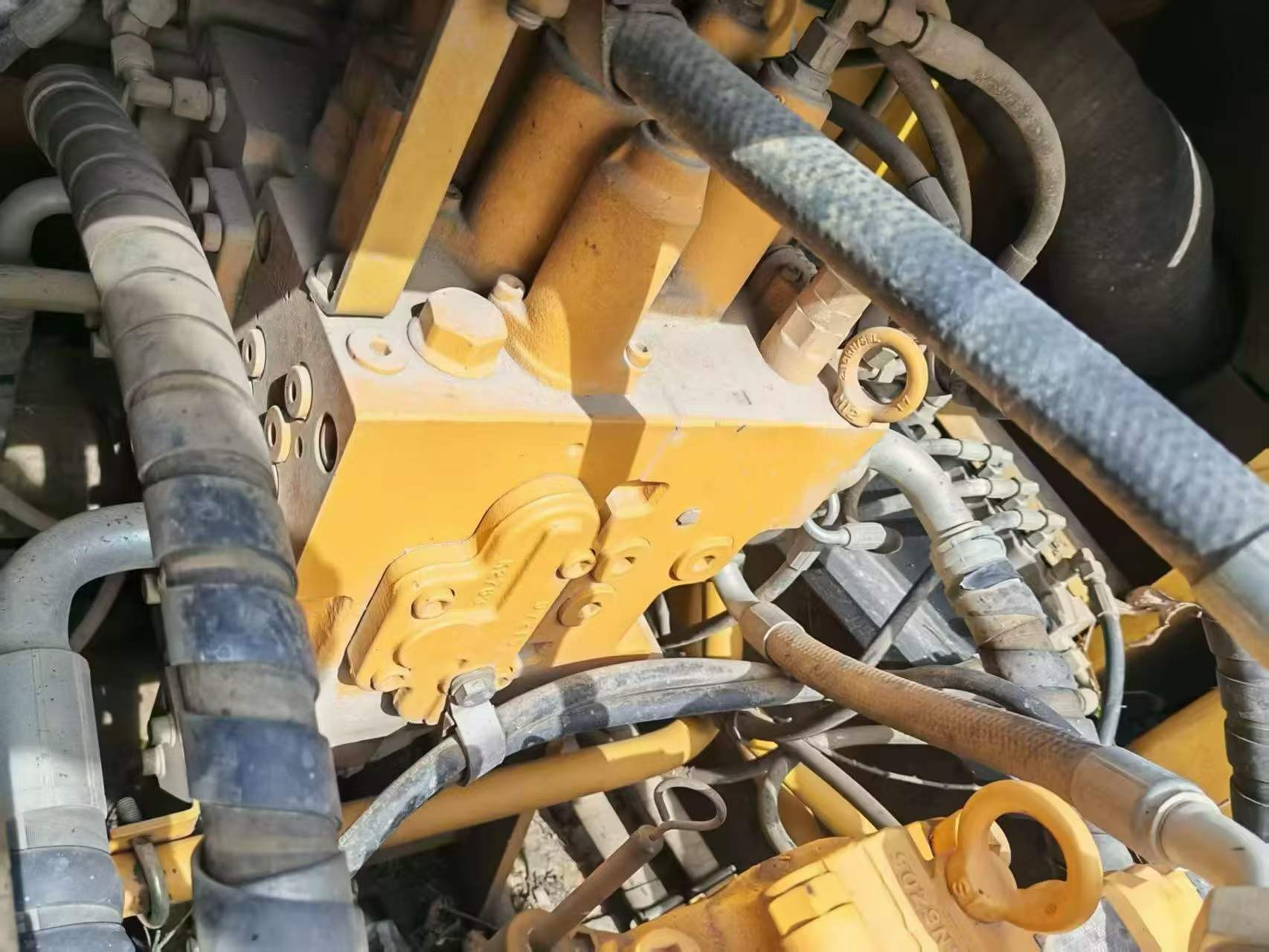

Buy Sany SY245H Used Excavator / 9

Product Description

This 2017 Sany SY245H hydraulic excavator offers reliable performance for demanding earthmoving applications. With comprehensive documentation and maintenance records, this machine has been well-maintained throughout its operational life. The SY245H is known for its robust build quality and efficient fuel consumption, making it a cost-effective choice for contractors and construction firms.

Key features include:

  • Proven Sany hydraulic system for smooth operation
  • Durable undercarriage designed for extended service life
  • Spacious operator cabin with ergonomic controls
  • Complete service history and documentation available
  • Currently located in Fujian, China

This excavator is ready for immediate deployment on your next project. Ideal for general excavation, trenching, and material handling tasks. Contact us for detailed specifications, current hour meter reading, and shipping arrangements to your location.

SpecificationsValue
No.1075563
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1075563

Brand Name:

Sany

Model Number:

SY245H

Year:

2017

Location:

Fujian China

Pub Date
