2017 Sany SY245H

1/7

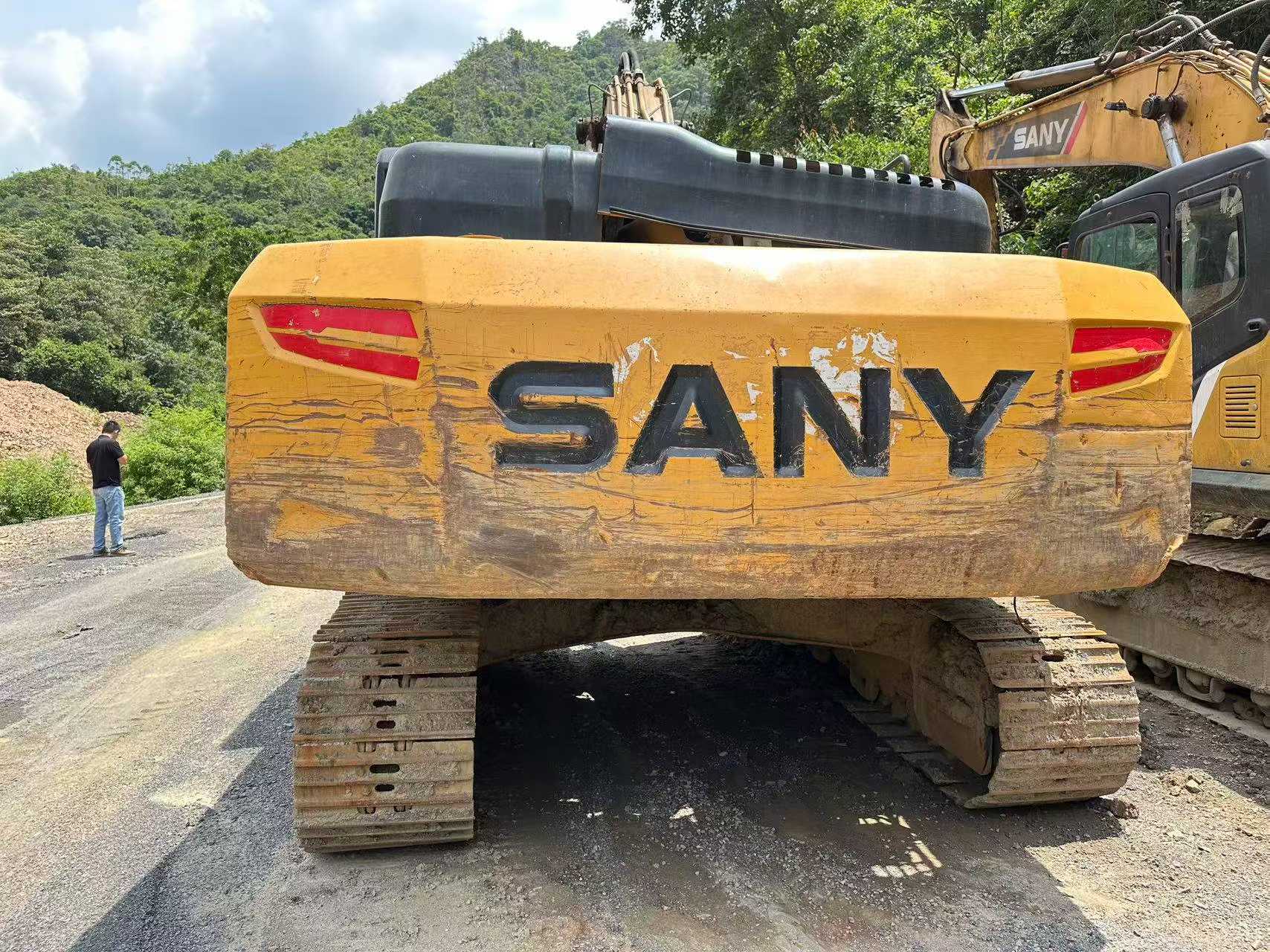

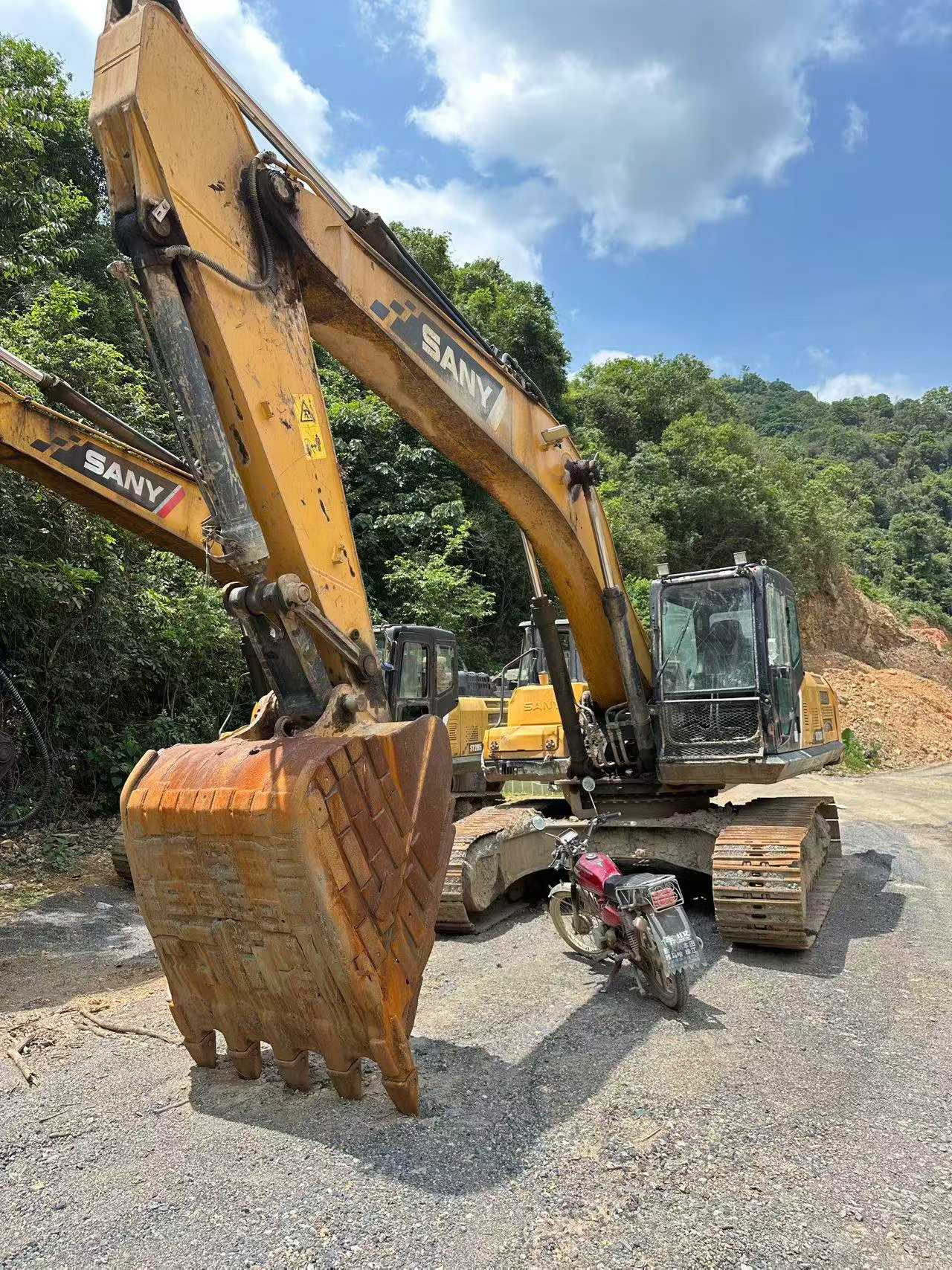

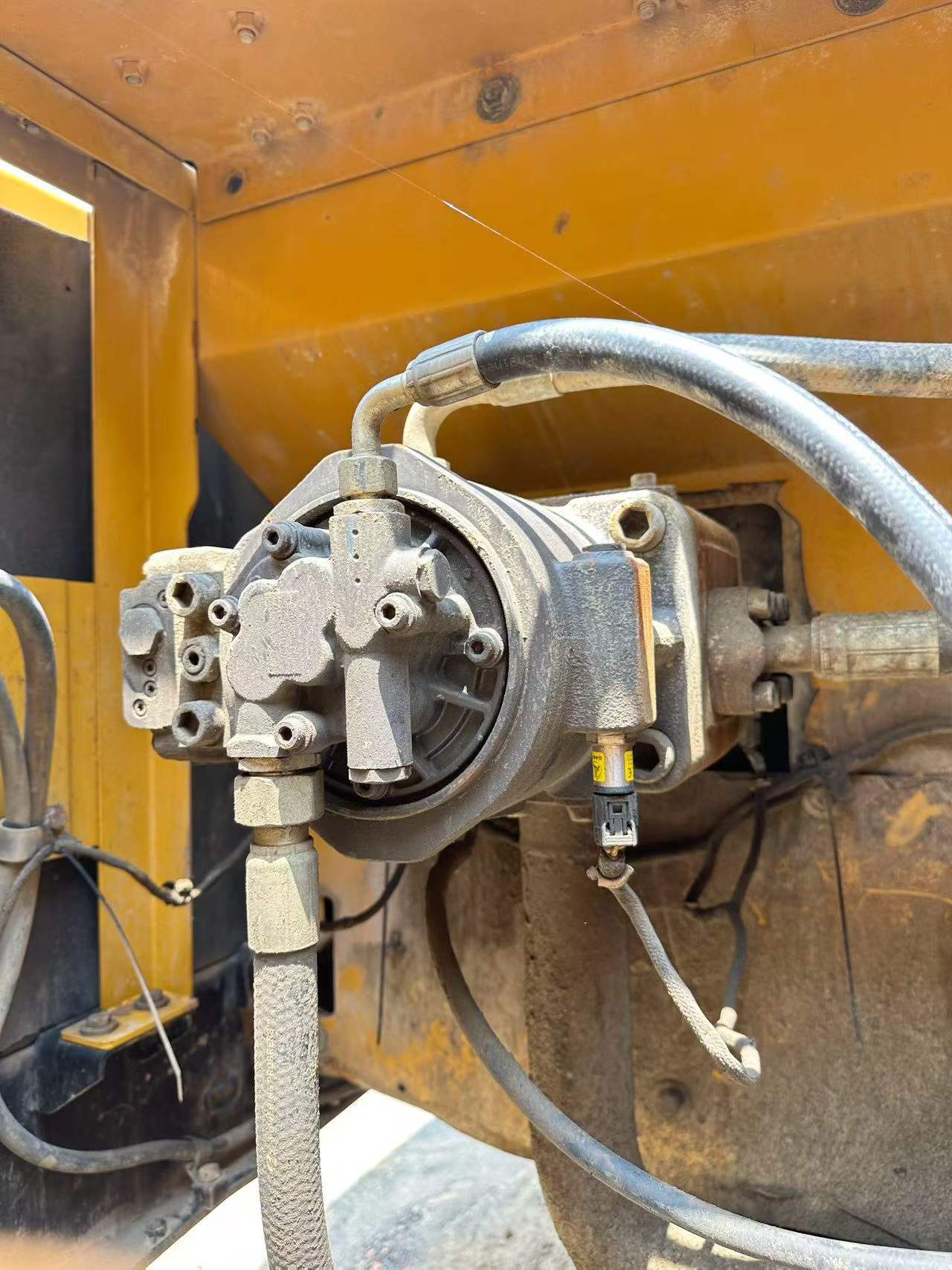

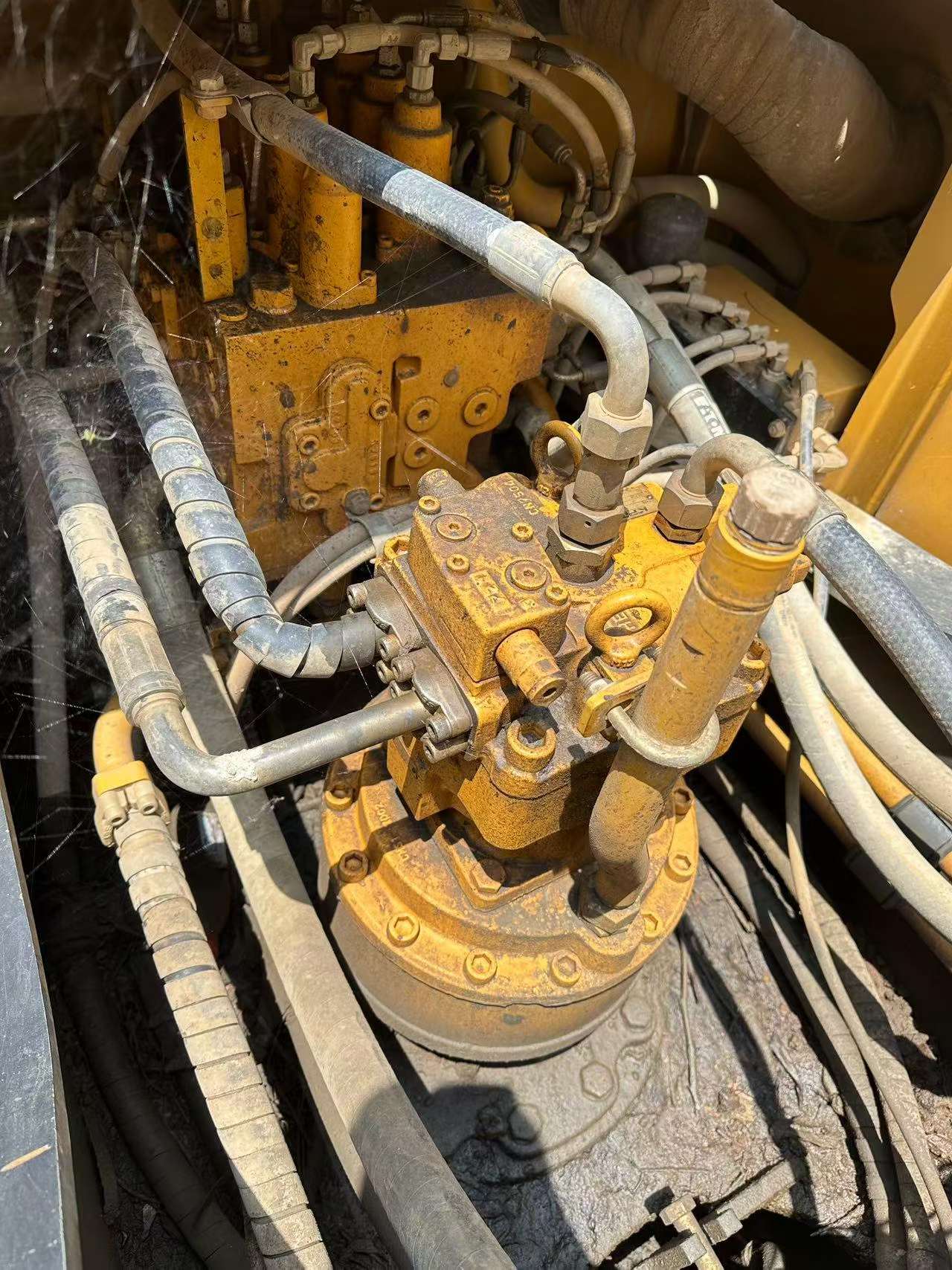

Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7

Product Description

This 2017 Sany SY245H hydraulic excavator represents a solid mid-size solution for contractors seeking reliable earthmoving capacity. With over 160,000 operational hours logged, this machine demonstrates the durability that Sany's engineering is known for in demanding applications. Currently located in Zhejiang, China, this unit is available for immediate deployment and comes with transfer support included.

The SY245H series is designed for versatility across construction, infrastructure, and material handling projects. Key features include:

  • Proven hydraulic system for efficient digging and lifting operations
  • Robust undercarriage suitable for varied terrain conditions
  • Spacious operator cabin with standard ergonomic controls
  • Well-documented service history from Chinese market operation

This excavator offers international buyers an opportunity to acquire tested Chinese manufacturing at competitive valuations. Inspection and shipping arrangements can be coordinated to global destinations.

SpecificationsValue
No.1084019
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe

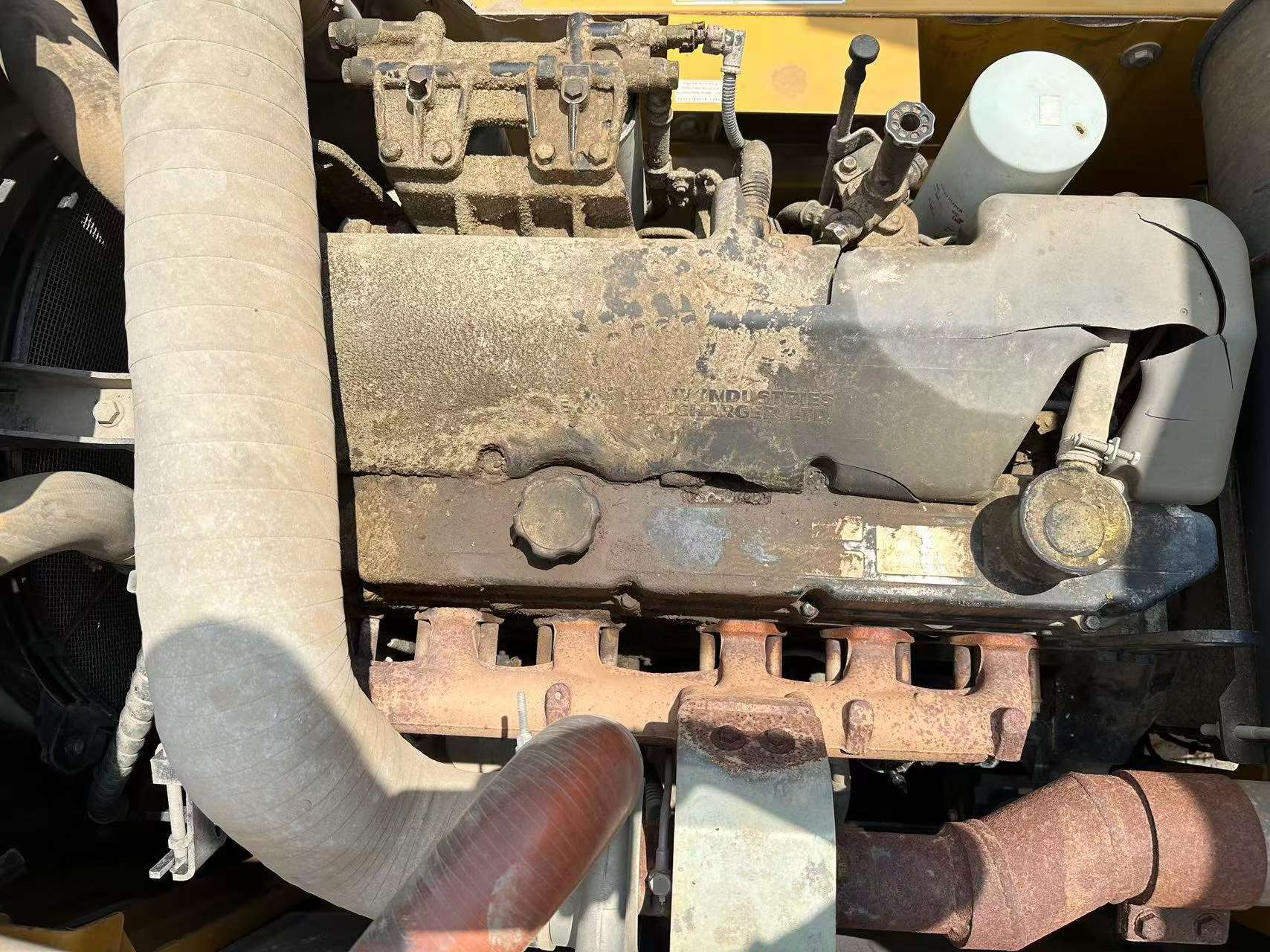

Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1084019

Brand Name:

Sany

Model Number:

SY245H

Year:

2017

Location:

Zhejiang China

Pub Date
