Product Description

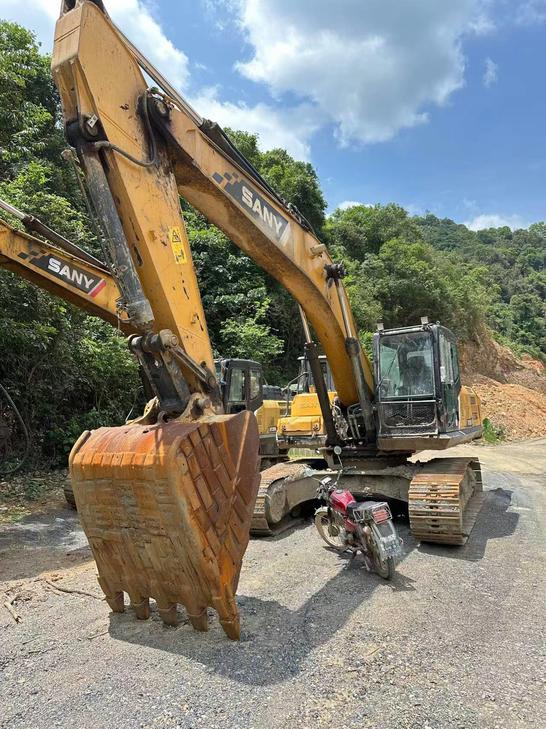

This 2017 Sany SY245H hydraulic excavator represents a solid mid-size solution for contractors and earthmoving operations. With approximately 9 years of service, this machine offers proven reliability from one of China's leading heavy equipment manufacturers. Currently located in Guangxi, China, this excavator comes with complete documentation and is available for immediate delivery.
The SY245H is designed for demanding applications including excavation, loading, and material handling across construction and mining sites. Its 24-ton class operating weight provides excellent stability while maintaining maneuverability on varied terrain.
Key highlights include:
- Complete ownership documentation ready for transfer
- Immediate availability with delivery support
- Competitive pricing for the mid-size excavator segment
- Suitable for infrastructure development and general construction projects
Contact our team to arrange inspection or discuss logistics for international shipping.
| Specifications | Value |
|---|---|
| No. | 1084120 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
