Product Description

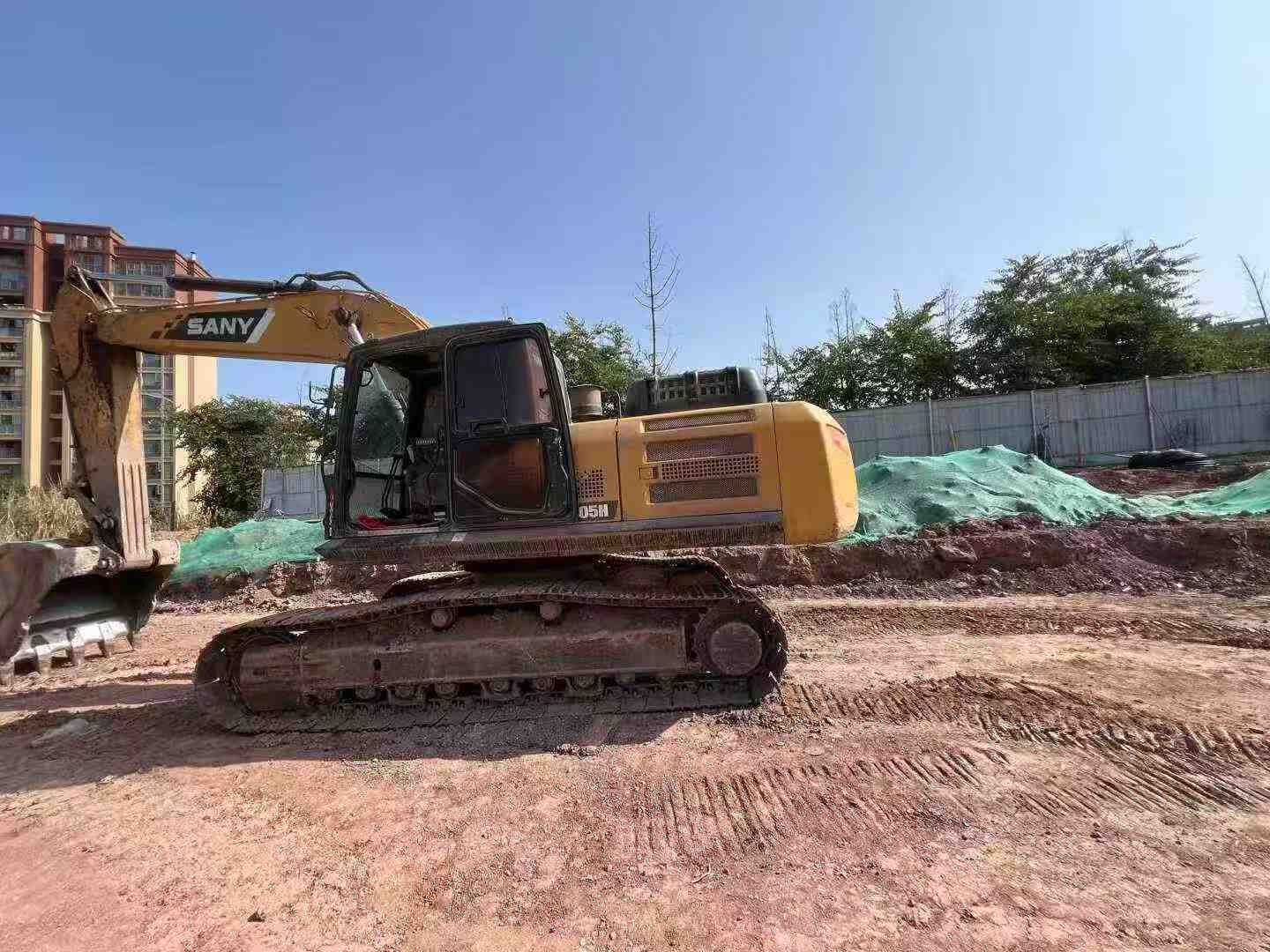

Engineered for precision and all-day productivity, this 2018 Sany SY245H excavator delivers exceptional operator comfort and control in demanding earthmoving applications. Equipped with China IV emission standards, this 24-ton class machine combines fuel efficiency with robust hydraulic performance. The spacious cabin features enhanced visibility angles, allowing operators to monitor bucket positioning and surrounding worksite activity with minimal blind spots. Ergonomic controls reduce fatigue during extended shifts, while the reinforced undercarriage provides stability on uneven terrain common to infrastructure and mining projects.
- Year & Model: 2018 Sany SY245H (China IV Emission Standard)
- Operator Advantages: Wide-angle cabin glass, adjustable seating, intuitive joystick layout
- Stability Features: Heavy-duty track frame, optimized center of gravity for slope work
- Current Location: Luzhou, Sichuan Province, China
- Ideal Applications: Road construction, trenching, material handling, site preparation
Currently positioned in Luzhou, Sichuan, this machine is ready for inspection and inte
| Specifications | Value |
|---|---|
| No. | 1015081 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
