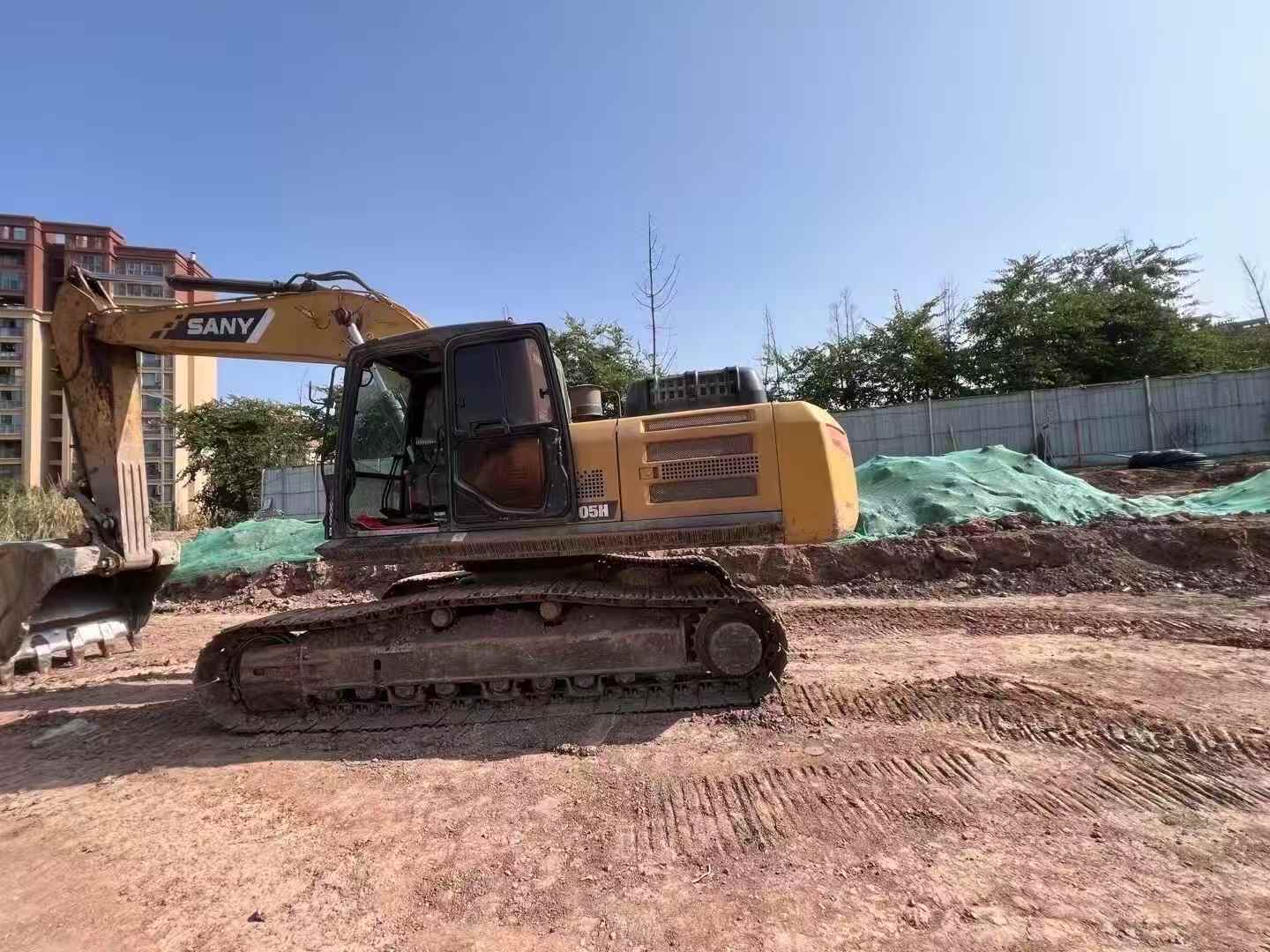

Engineered for precision and operator confidence, this 2018 Sany SY245H delivers reliable performance across demanding job sites. Operating at 24 tons with a 25,500 kg working weight, this Chinese-manufactured excavator combines power and control for medium to heavy-duty applications. The D06FRC engine generates 147 kW at 2100 rpm with 750 N.m maximum torque, providing consistent hydraulic response through water-cooled efficiency.
Operators benefit from exceptional visibility and ergonomic cabin design standard to this model year. With a 3,255 mm full cab height and 470 mm ground clearance, the machine offers commanding sightlines to bucket positioning and surrounding terrain. Stability remains consistent thanks to 53.2 kPa ground pressure distribution across 600 mm track plates and a 2,590 mm track gauge.
- Bucket digging force: 175 kN with 1.3–1.5 m³ capacity
- Maximum digging reach: 10,225 mm; depth: 6,705 mm
- Travel speeds: 5.4/3.4 km/h for responsive repositioning
- Fuel capacity: 475 L for extended operation
- 70% gradeability for challenging terrain
Currently located in Guizhou, this backhoe-configured excavator is ready for immediate deployment in construction,
| Specifications | Value |
|---|---|
| No. | 1024256 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
