Product Description

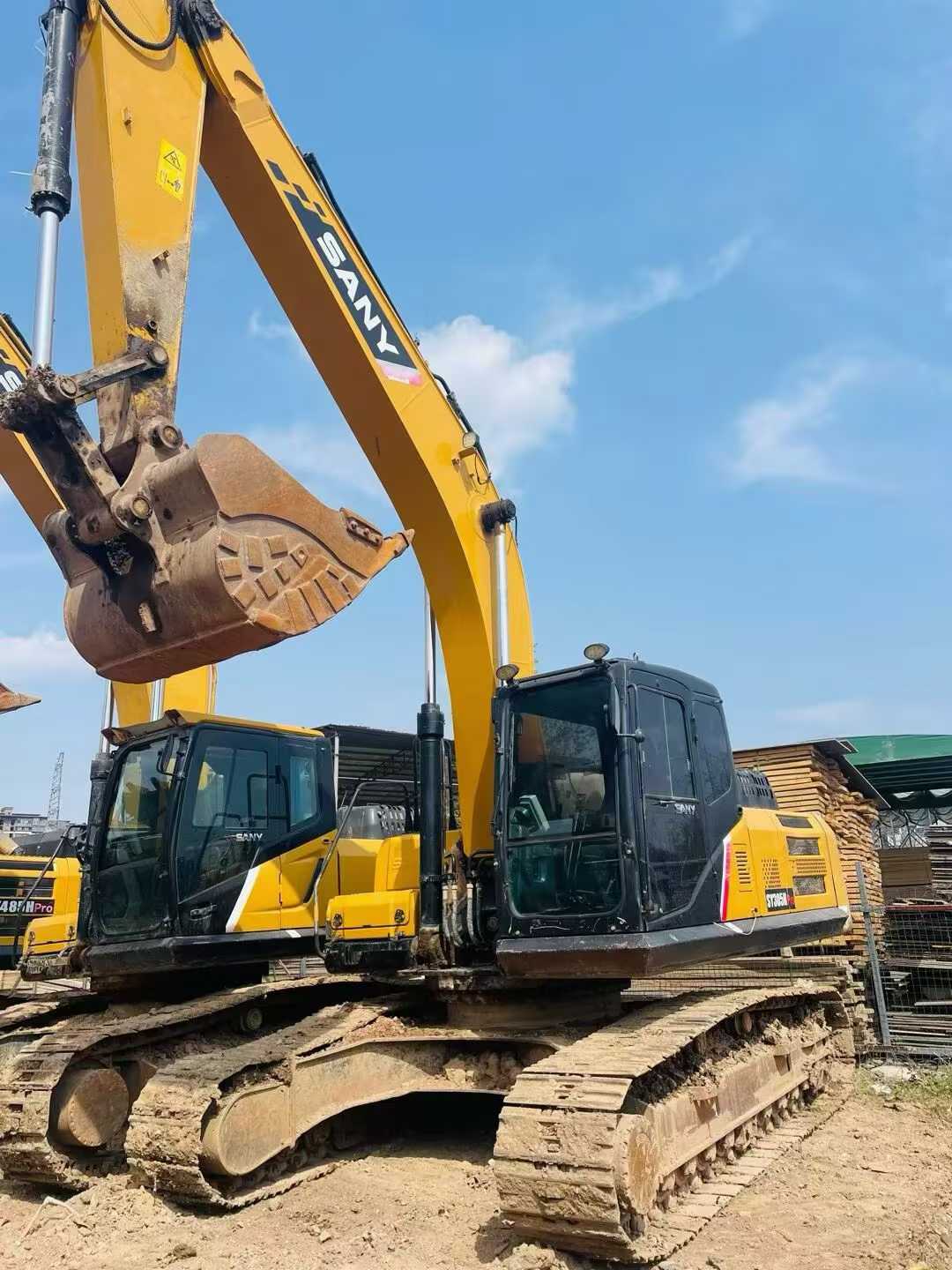

Proven performance meets lasting value in this 2018 Sany SY245H excavator, now available from our Sichuan location. With 24 tons of working capacity and a robust 147kW D06FRC engine delivering 750 N.m of torque, this machine handles demanding excavation tasks with consistent reliability. The 1.3-1.5m³ bucket capacity and 10,225mm maximum digging radius provide the reach and productivity mid-sized operations require.
Sany's position as China's leading construction equipment manufacturer translates directly into lower operating costs for used buyers. Parts availability remains excellent across global markets, keeping your machine operational without extended downtime. The brand's strong resale retention protects your investment, while service networks continue expanding worldwide. This particular unit features comprehensive hydraulics with 175kN bucket digging force and 120kN rod force, paired with efficient water-cooling systems and a substantial 475L fuel capacity for extended shifts.
Key Specifications:
- Operating Weight: 25,500kg | Engine: D06FRC (147kW @ 2100rpm)
- Maximum Digging Depth: 6,705mm | Maximum Reach: 10,225mm
- Track Dimensions: 600mm width, 3,640mm ground con
| Specifications | Value |
|---|---|
| No. | 1033153 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
