2018 Sany SY245H

1/7
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7

Product Description

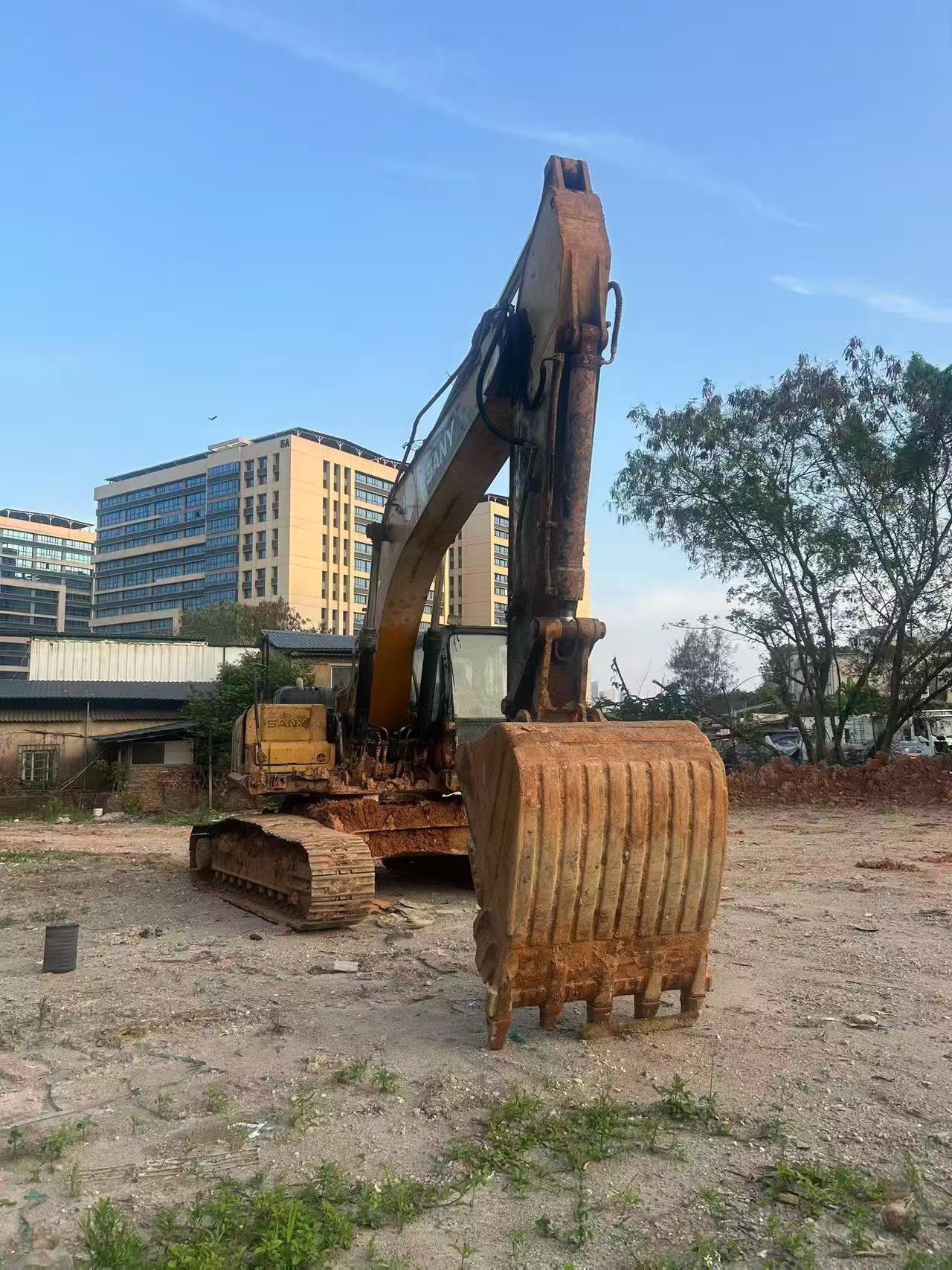

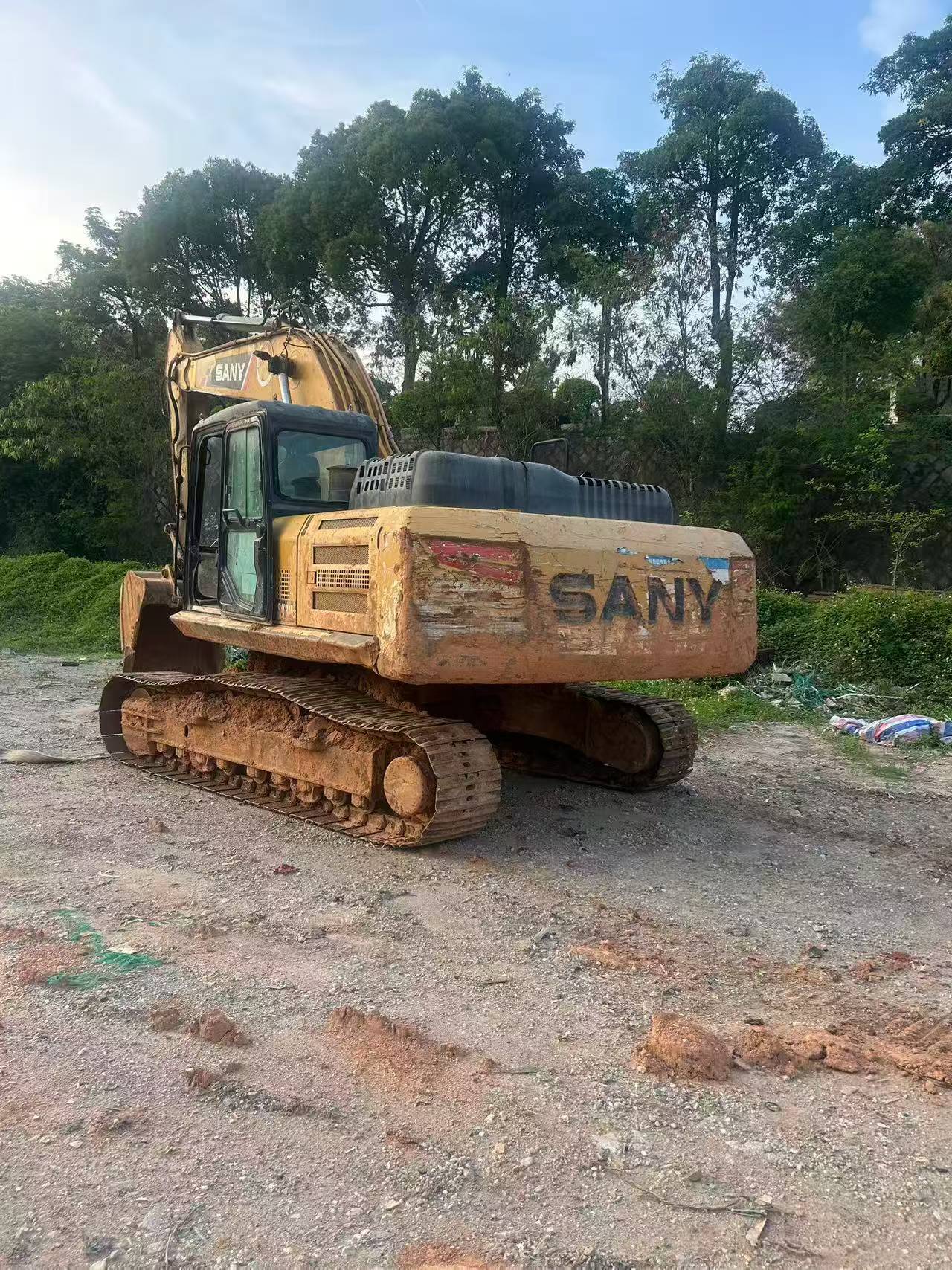

This 2018 Sany SY245H hydraulic excavator is currently available in Guangdong, China. With over 170,000 RMB in value, this mid-sized crawler excavator represents a solid investment for contractors seeking reliable earthmoving equipment from a leading Chinese manufacturer.

The machine is in good working condition with comprehensive documentation including detailed photos and operational videos available upon request. Please note that this unit is sold without a bucket attachment, allowing buyers to configure the machine with their preferred tooling for specific applications.

  • Year of Manufacture: 2018
  • Model: Sany SY245H
  • Location: Guangdong Province, China
  • Condition: Good operational status
  • Documentation: Detailed imagery and video available
  • Configuration: Sold without bucket

Contact us directly for additional specifications, inspection arrangements, and shipping logistics.

SpecificationsValue
No.1074563
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe

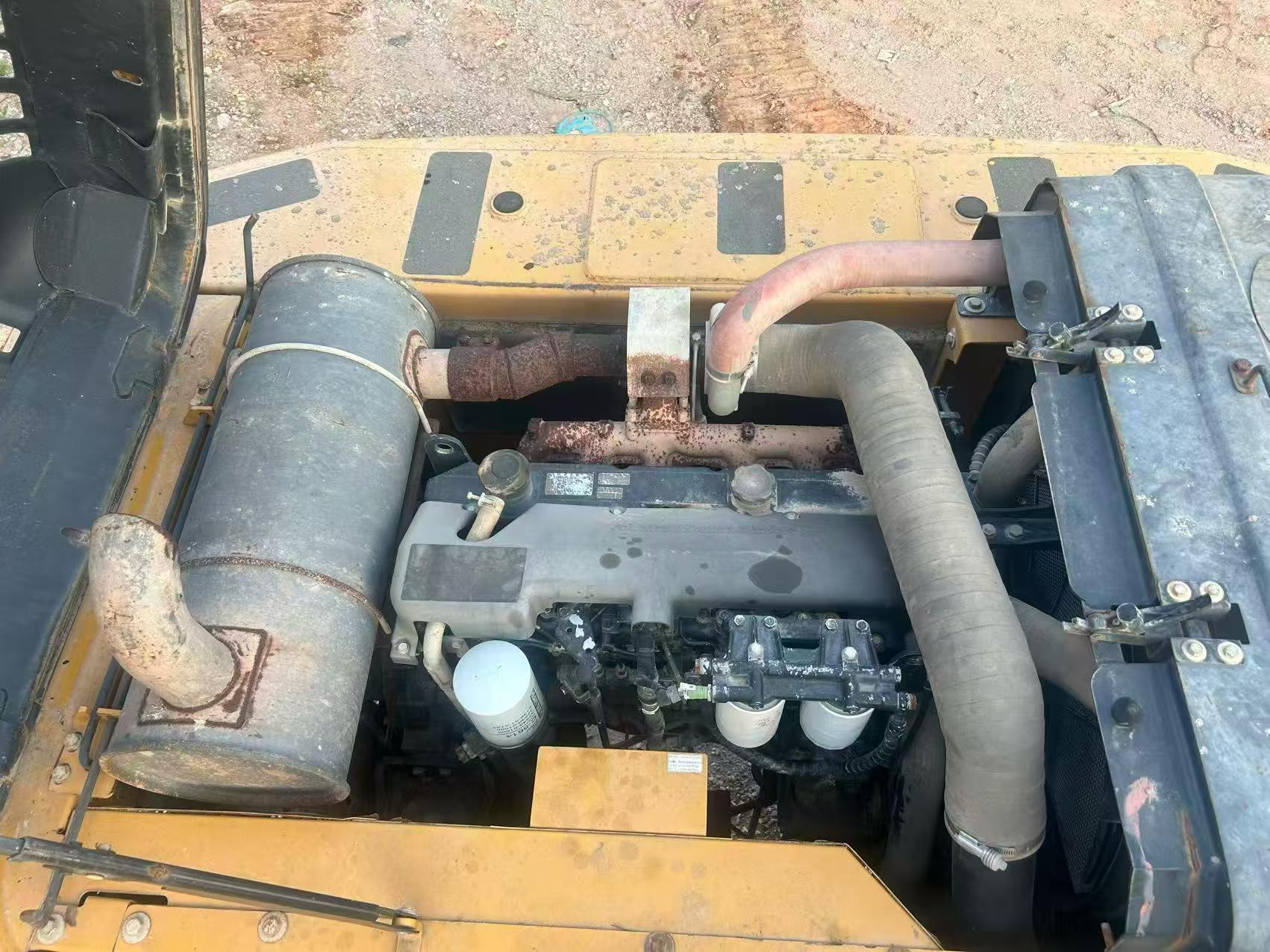

Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1074563

Brand Name:

Sany

Model Number:

SY245H

Year:

2018

Location:

Guangdong China

Pub Date
