2018 Sany SY245H

1/7
Buy Sany SY245H Used Excavator / 1

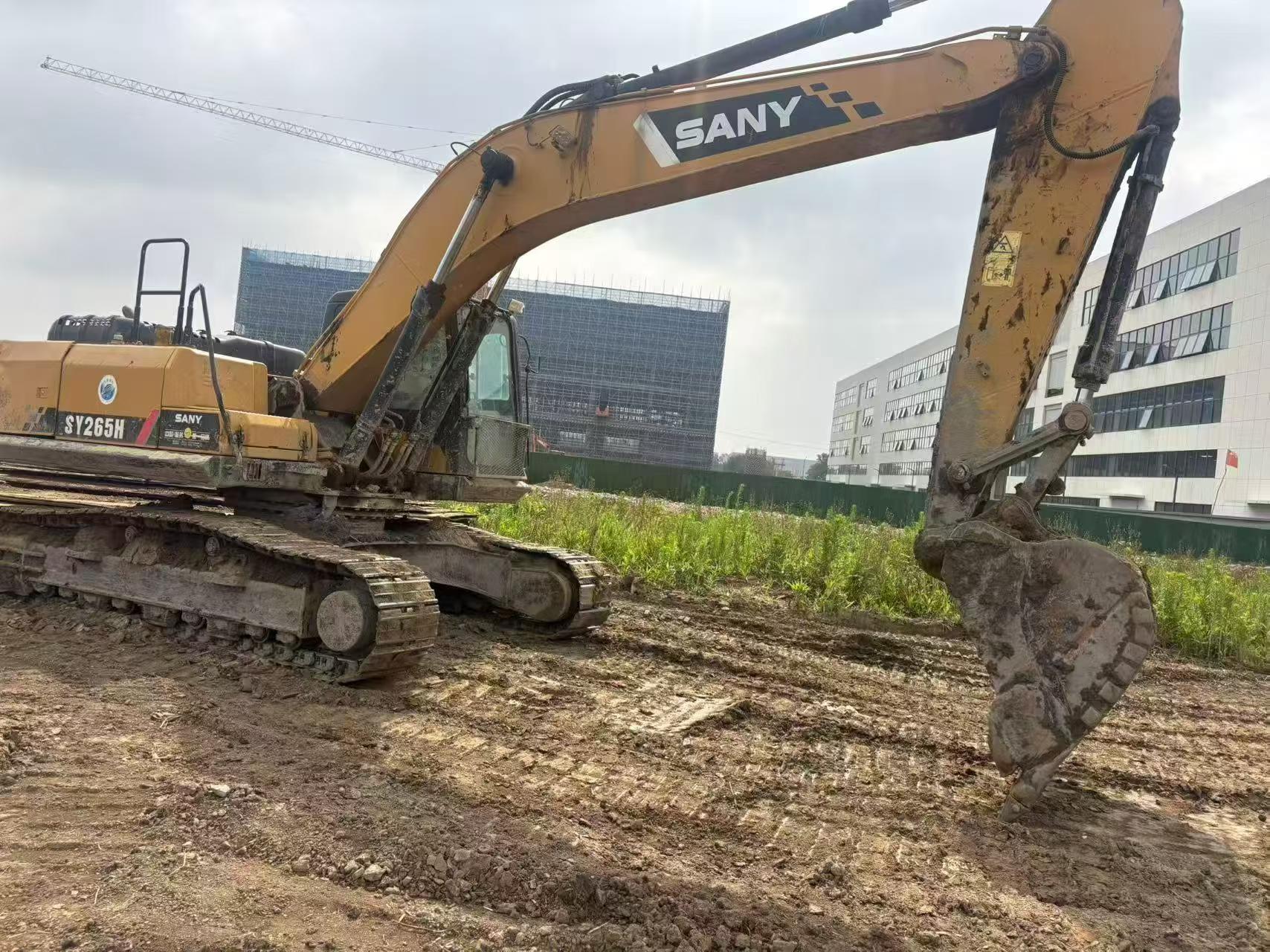

Buy Sany SY245H Used Excavator / 2

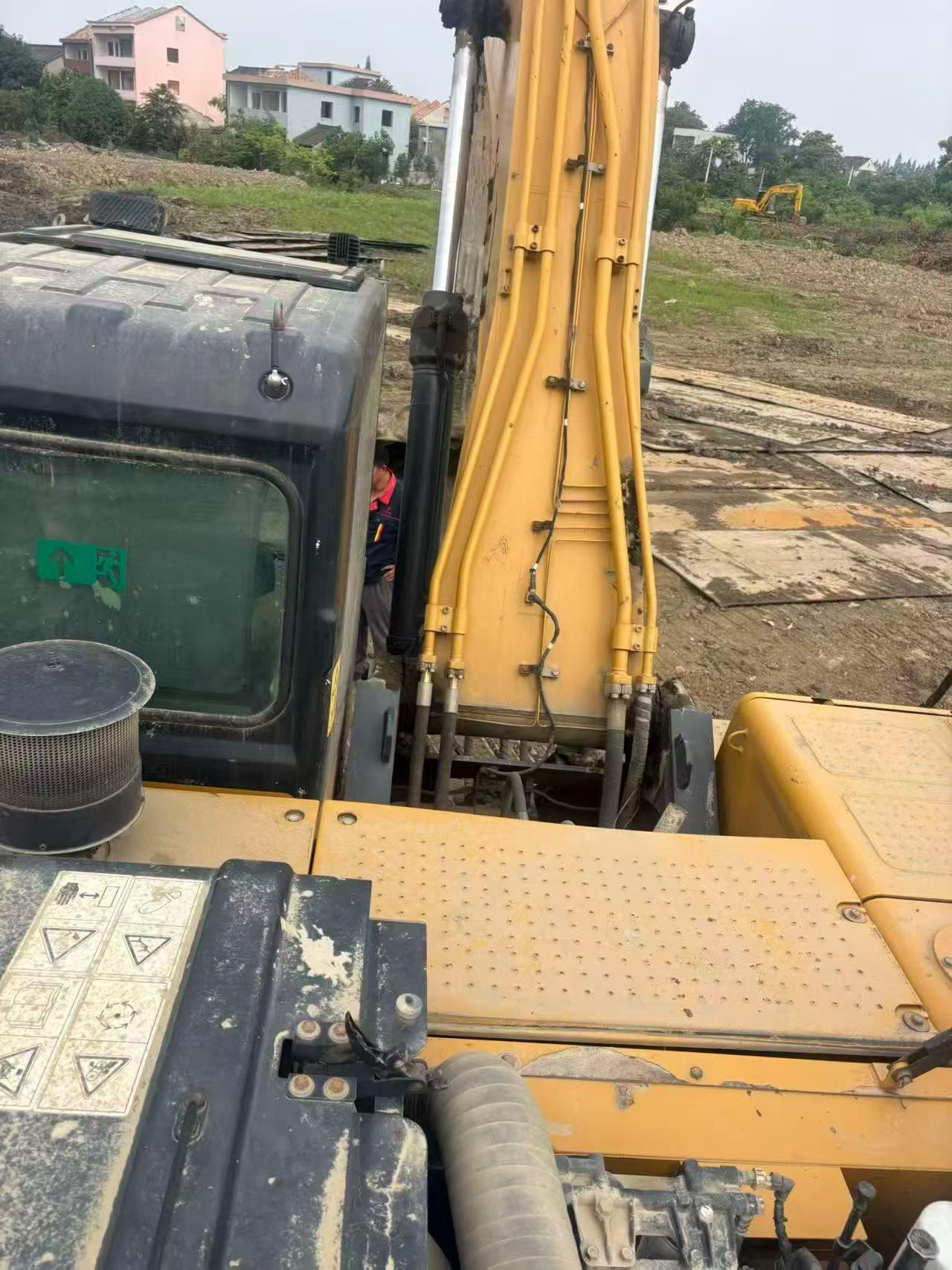

Buy Sany SY245H Used Excavator / 3

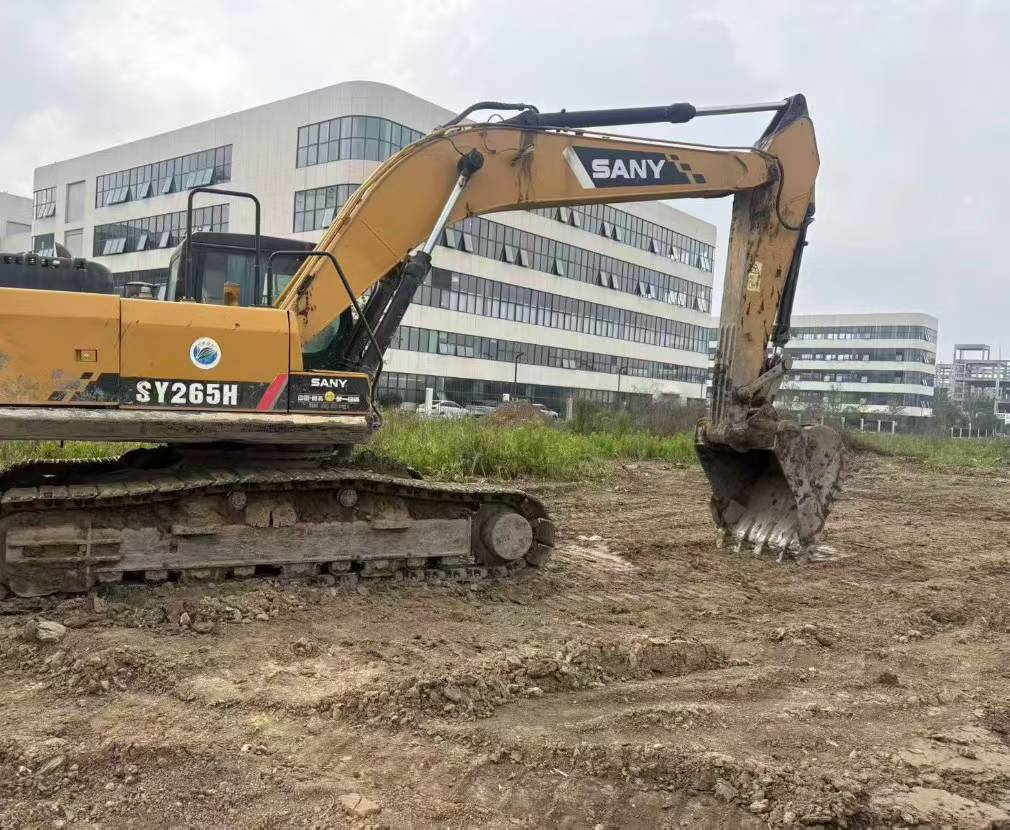

Buy Sany SY245H Used Excavator / 4

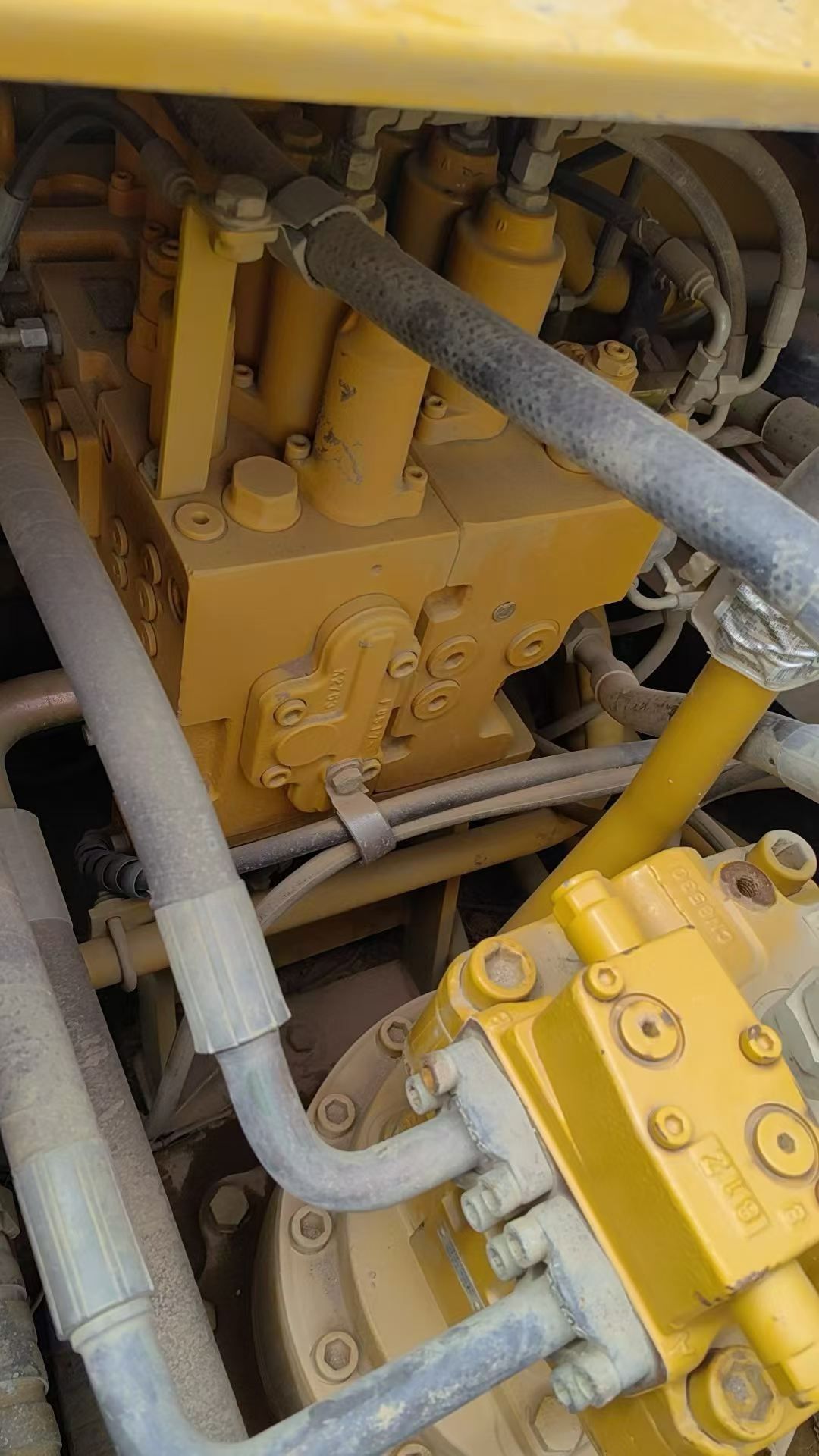

Buy Sany SY245H Used Excavator / 5

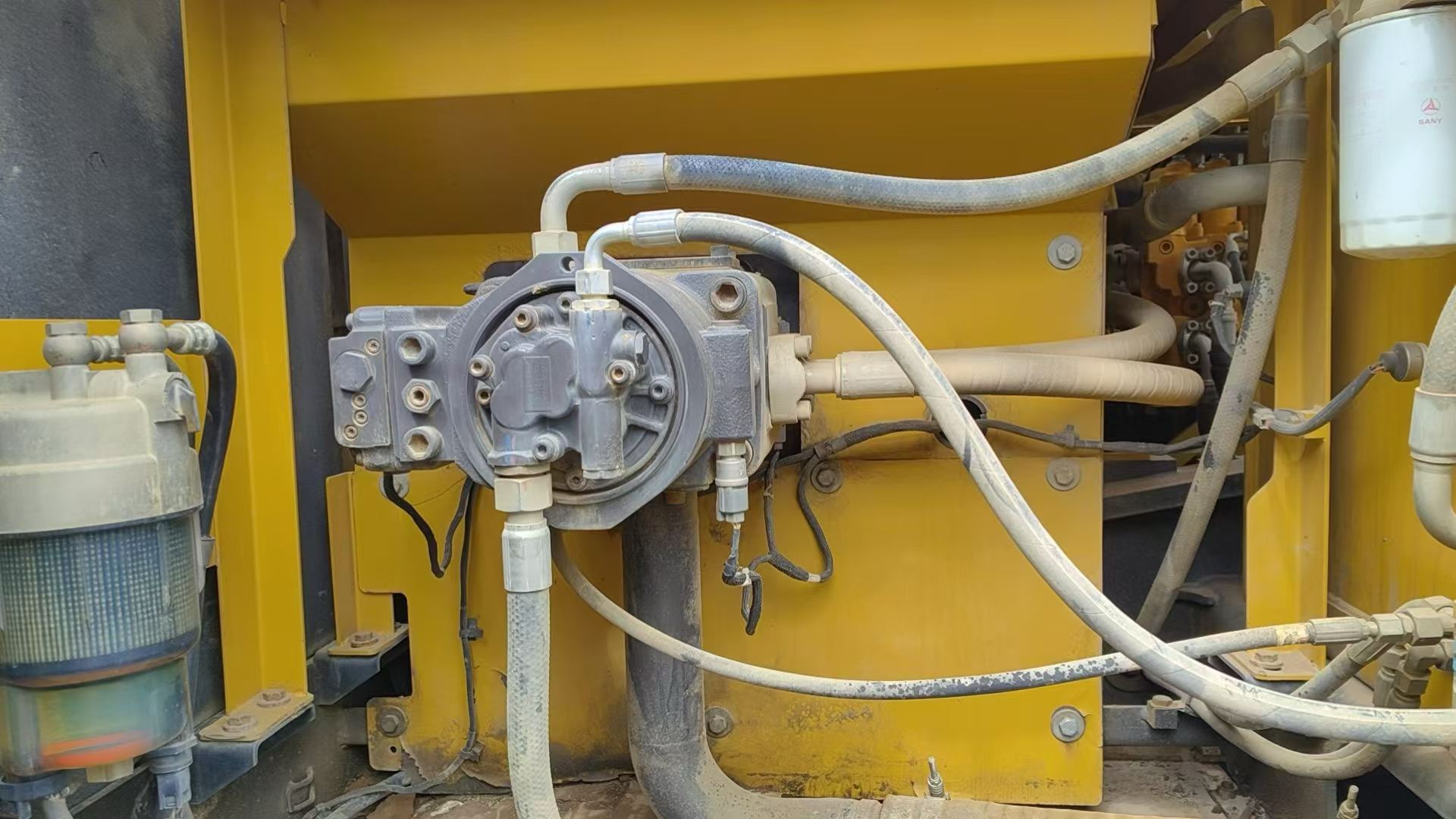

Buy Sany SY245H Used Excavator / 6

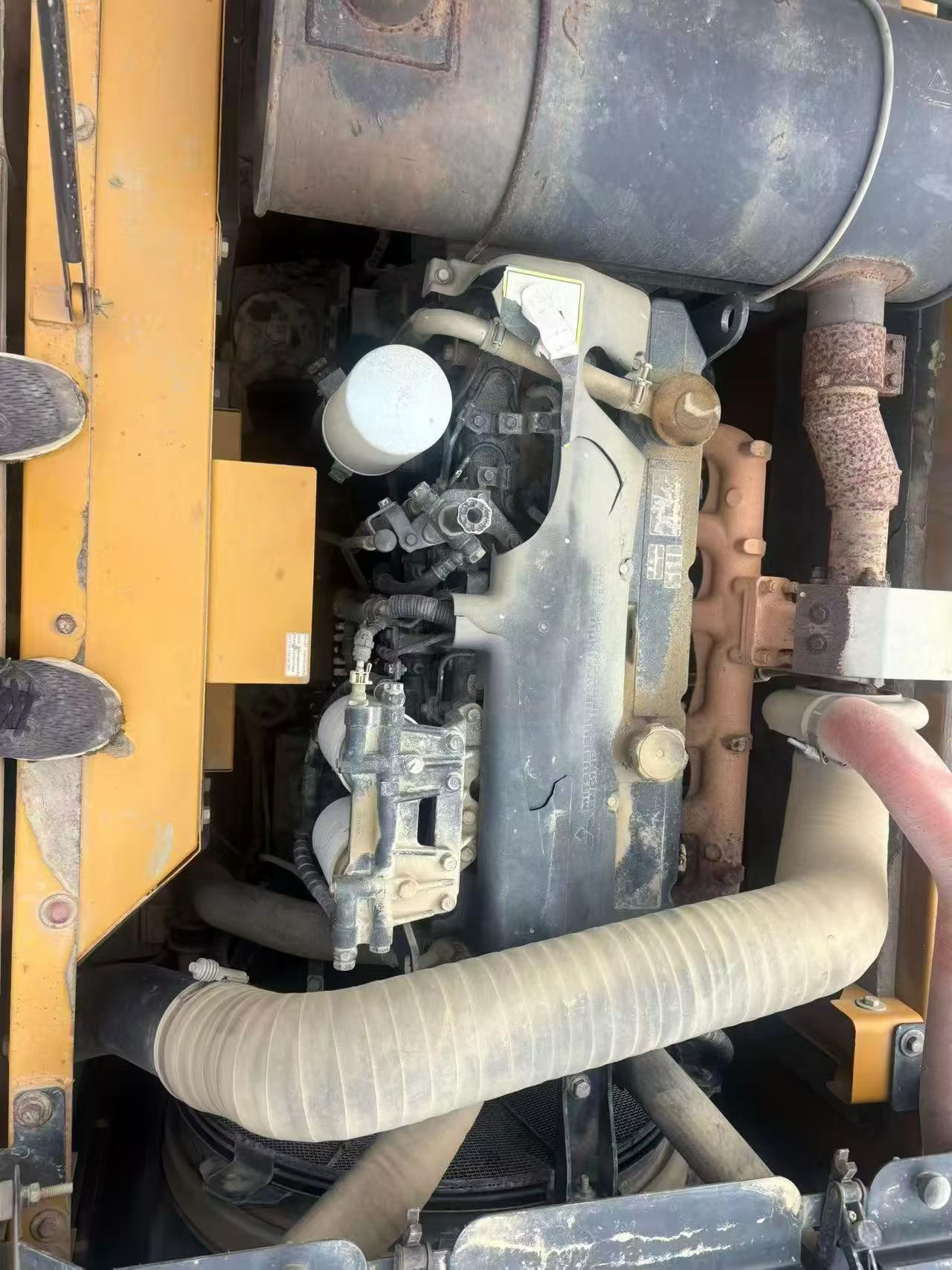

Buy Sany SY245H Used Excavator / 7

Product Description

This 2018 Sany SY245H excavator represents a robust mid-range solution for demanding earthmoving operations. Manufactured by one of China's leading heavy equipment producers, this 24-ton class hydraulic excavator combines proven reliability with competitive operating economics.

Key features include:

  • Late 2018 production year ensuring modern design standards
  • Sany's established SY245H platform with strong bucket breakout force
  • Fuel-efficient powertrain suitable for extended workdays
  • Currently located in Sichuan, China for inspection and loading
  • Appropriate for construction, excavation, and material handling applications

This machine offers international buyers an opportunity to acquire proven Japanese-influenced Chinese engineering at competitive pricing. Suitable for contractors seeking reliable performance in medium-duty applications. Export documentation and loading assistance available upon request.

SpecificationsValue
No.1095604
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1095604

Brand Name:

Sany

Model Number:

SY245H

Year:

2018

Location:

Sichuan China
