Product Description

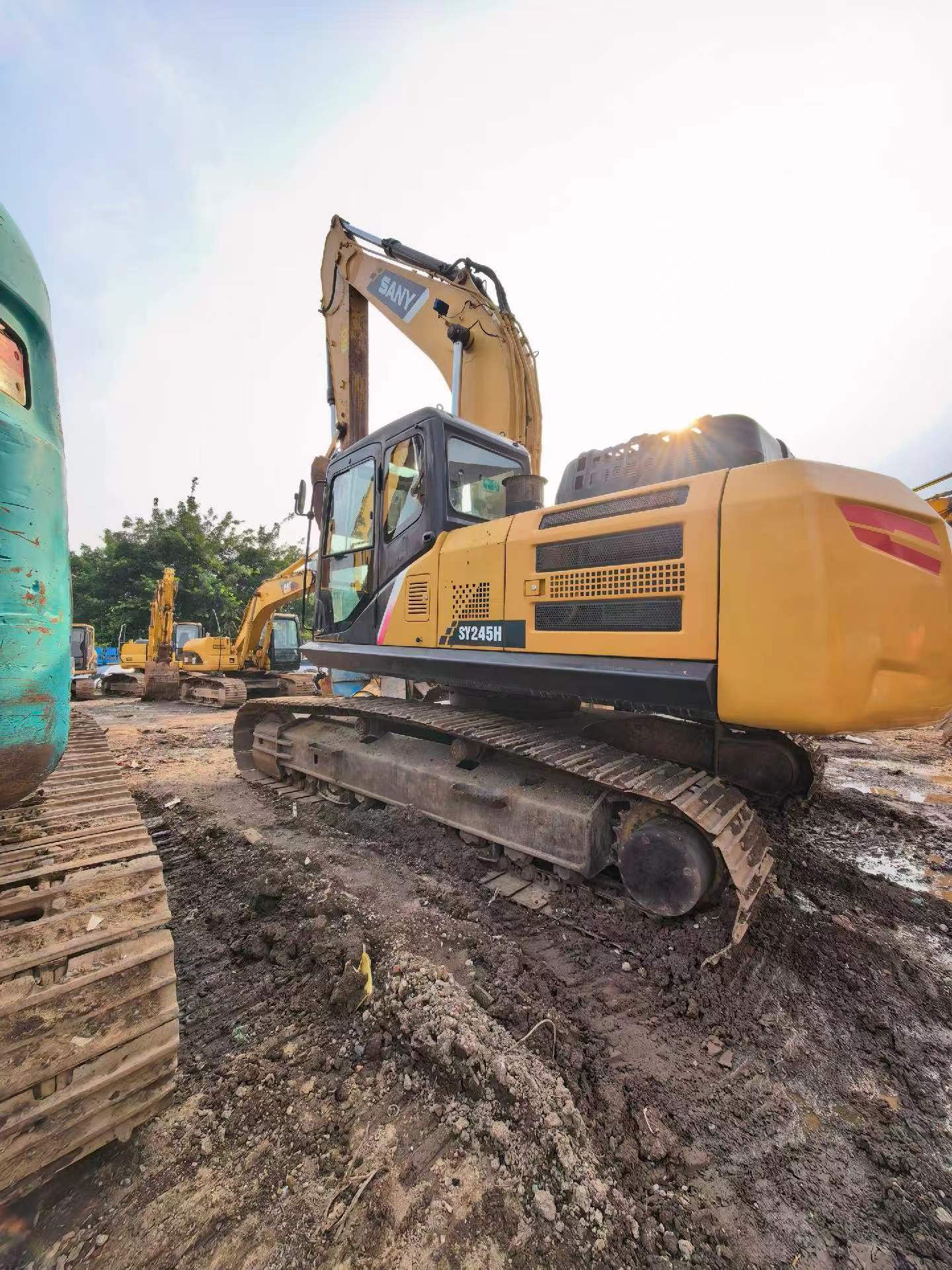

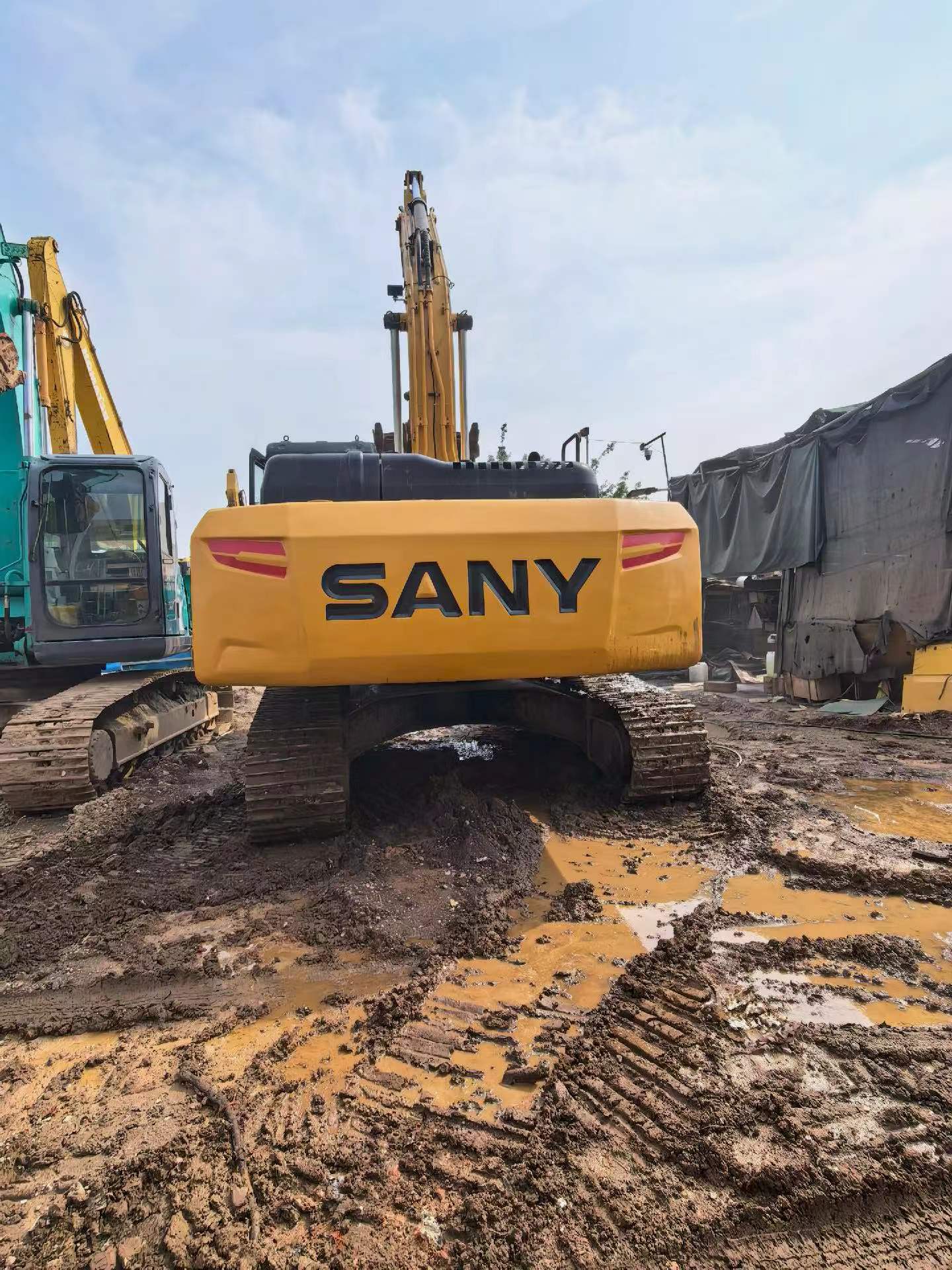

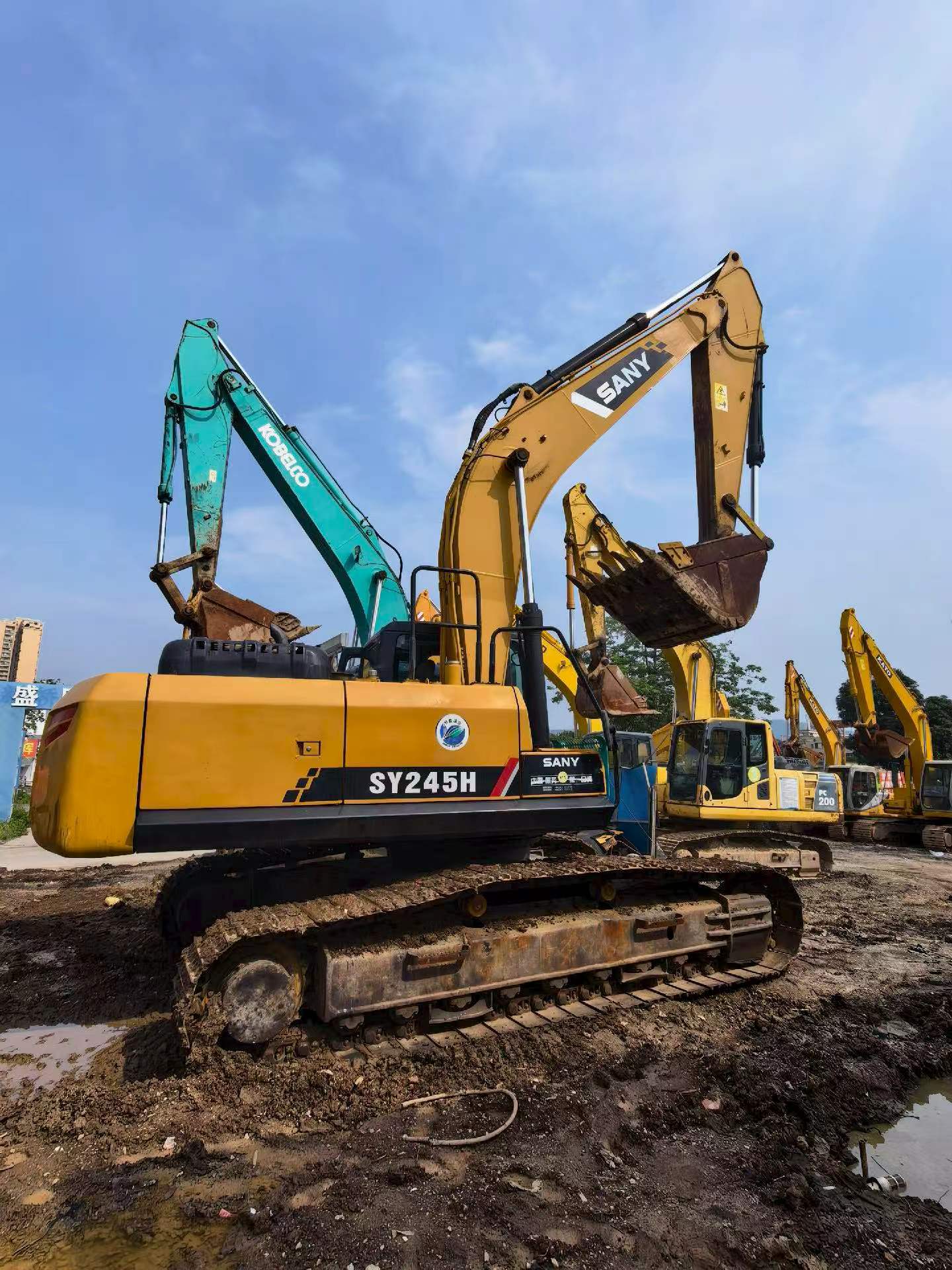

This 2018 Sany SY245H hydraulic excavator offers reliable performance for medium to heavy-duty earthmoving applications. Located in Guangdong, China, this machine represents solid value in the used equipment market.
The SY245H is a proven workhorse in Sany's mid-size excavator lineup, designed for durability and operational efficiency. With approximately six years of field service, this unit has demonstrated the robust engineering Sany is known for in construction and infrastructure projects.
- Year: 2018
- Manufacturer: Sany
- Model: SY245H
- Location: Guangdong Province, China
- Category: Hydraulic Excavator
- Condition: Used
Suitable for contractors and fleet operators seeking dependable excavation equipment. Inspection recommended prior to purchase. Contact us for current machine hours, maintenance records, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1139447 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

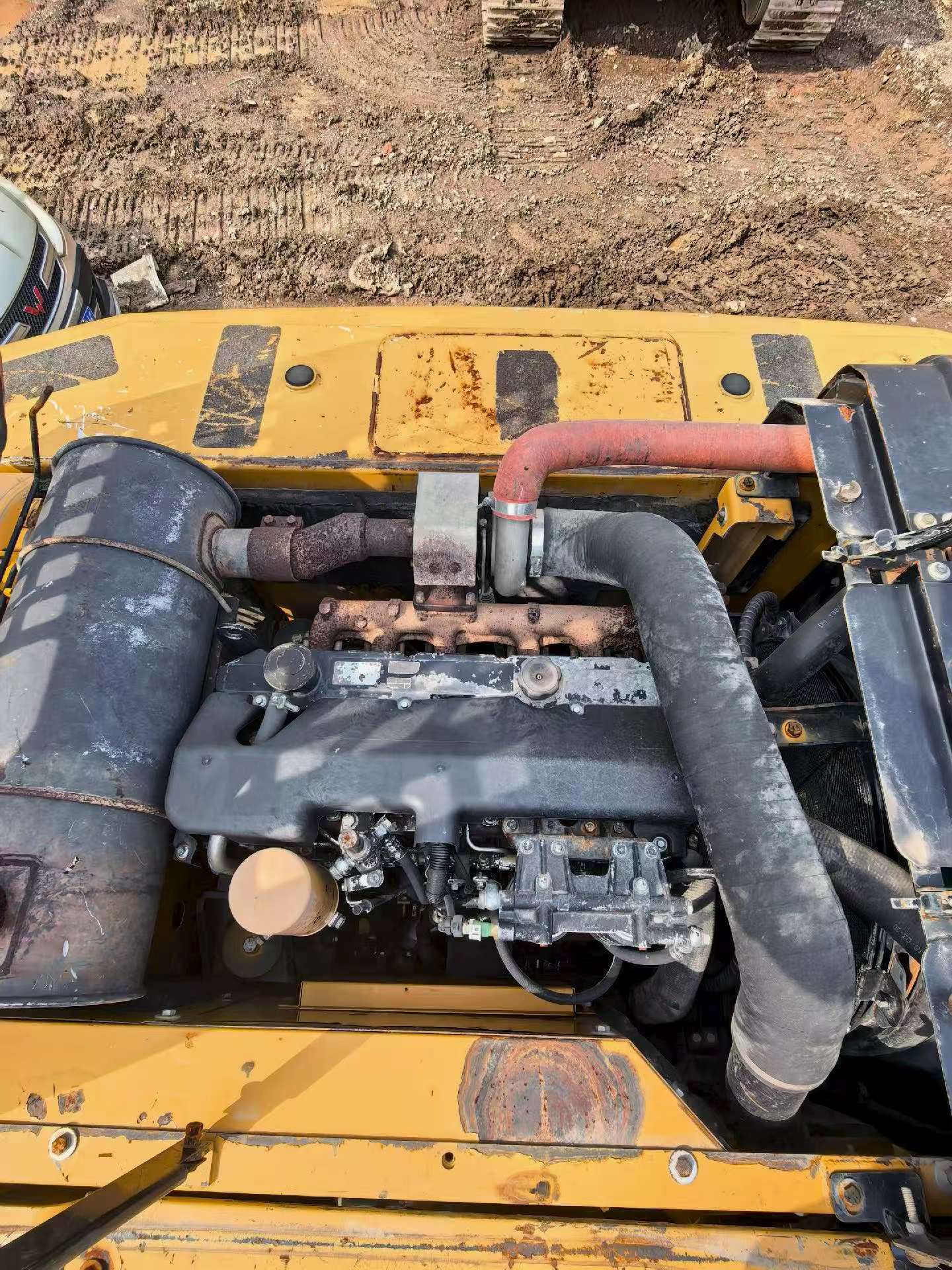

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
