Product Description

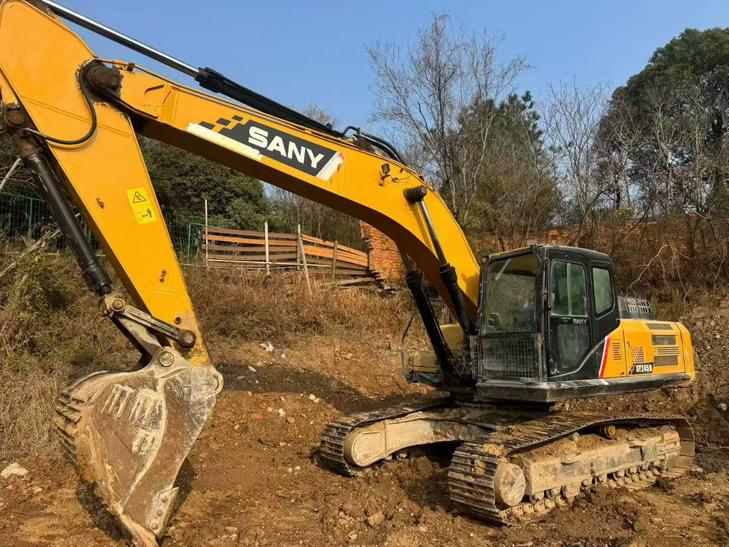

Maximize your equipment budget with this 2019 Sany SY245H excavator, delivering flagship performance at a fraction of new-machine cost. Powered by a robust 147kW D06FRC engine generating 750N·m of torque, this 24-ton workhorse combines Chinese manufacturing efficiency with proven hydraulic power. Operating from our Huizhou, Guangdong facility, this machine offers immediate deployment capability for contractors seeking reliable production without premium pricing.
Performance specifications that justify the investment:
- 25,500kg operating weight with 1.3-1.5m³ bucket capacity for versatile material handling
- 175kN bucket digging force and 10,225mm maximum reach handle demanding excavation tasks
- 6,705mm digging depth and 9,745mm maximum excavation height expand jobsite versatility
- 475L fuel tank and water-cooled system ensure extended operational uptime
- 70% grading ability and 10.6rpm rotation speed maintain productivity on challenging terrain
Acquire proven hydraulic excavation capability while preserving capital for fleet expansion. This well-maintained unit represents smart procurement for operations prioritizing value retention and immediate ROI.
| Specifications | Value |
|---|---|
| No. | 1019591 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
