2019 Sany SY245H

1/8
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7
Buy Sany SY245H Used Excavator / 8

Product Description

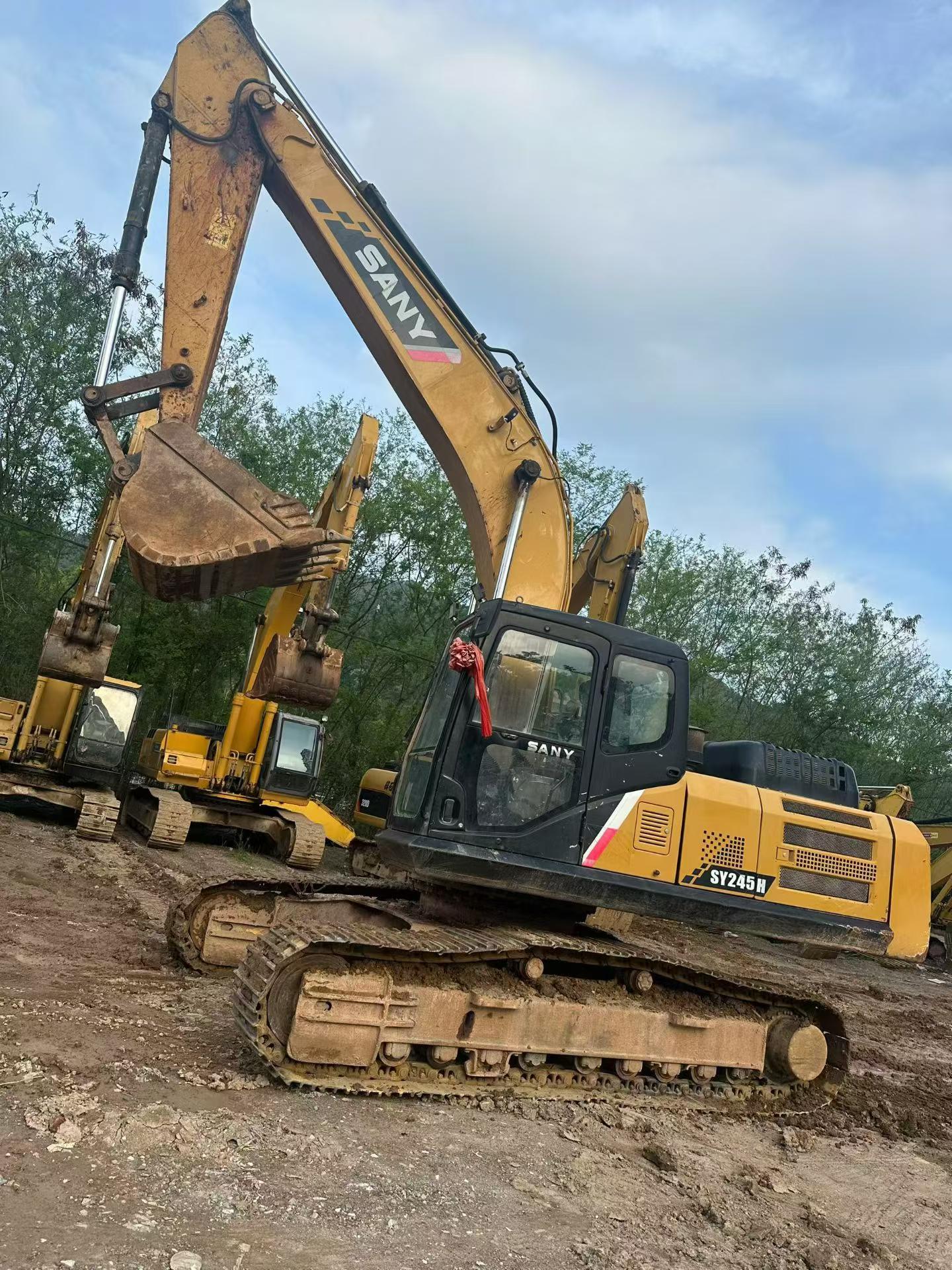

With a tonnage of 24 tons and a working weight of 25,500 kg, the 2019 Sany SY245H excavator offers high performance at a fraction of the cost of new equipment. Equipped with a D06FRC engine, this machine delivers 147 kW of power at 2100 rpm, ensuring efficient operation. The water-cooled engine, combined with a maximum torque of 750 N.m, provides reliable and consistent performance. Featuring a bucket capacity of 1.3 to 1.5 m³, it excels in various digging tasks with a bucket digging force of 175 kN and a rod digging force of 120 kN. Traveling at speeds up to 5.4 km/h, the SY245H is both versatile and agile. Its 475-liter fuel tank and 277-liter hydraulic tank ensure long operational hours without frequent refueling. This used excavator, located in Guangdong, China, is a smart investment for any construction or excavation project, offering robust performance and significant cost savings.

SpecificationsValue
No.1056945
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1056945

Brand Name:

Sany

Model Number:

SY245H

Year:

2019

Location:

Guangdong China
