Product Description

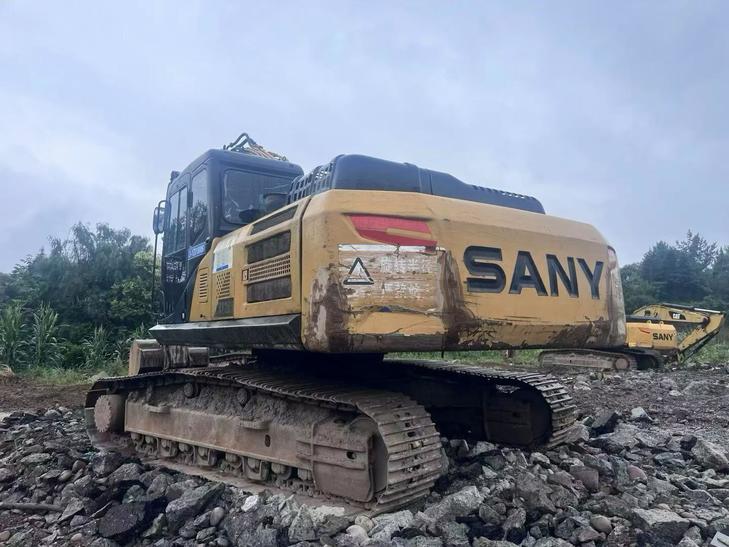

This 2019 Sany SY245H hydraulic excavator represents a reliable mid-size solution for demanding construction and earthmoving applications. Currently located in Chongqing, China, this machine offers proven performance from one of Asia's leading heavy equipment manufacturers.
The SY245H is engineered for versatility across site development, foundation work, and material handling operations. With its robust hydraulic system and durable undercarriage, this model delivers consistent productivity in challenging jobsite conditions.
- Year of Manufacture: 2019
- Manufacturer: Sany Heavy Industry
- Model: SY245H
- Location: Chongqing, China
- Equipment Type: Hydraulic Excavator
- Condition: Used
This excavator is available for immediate inspection and acquisition. Contact our sales team for detailed specifications, current operating hours, service records, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1086257 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
