Product Description

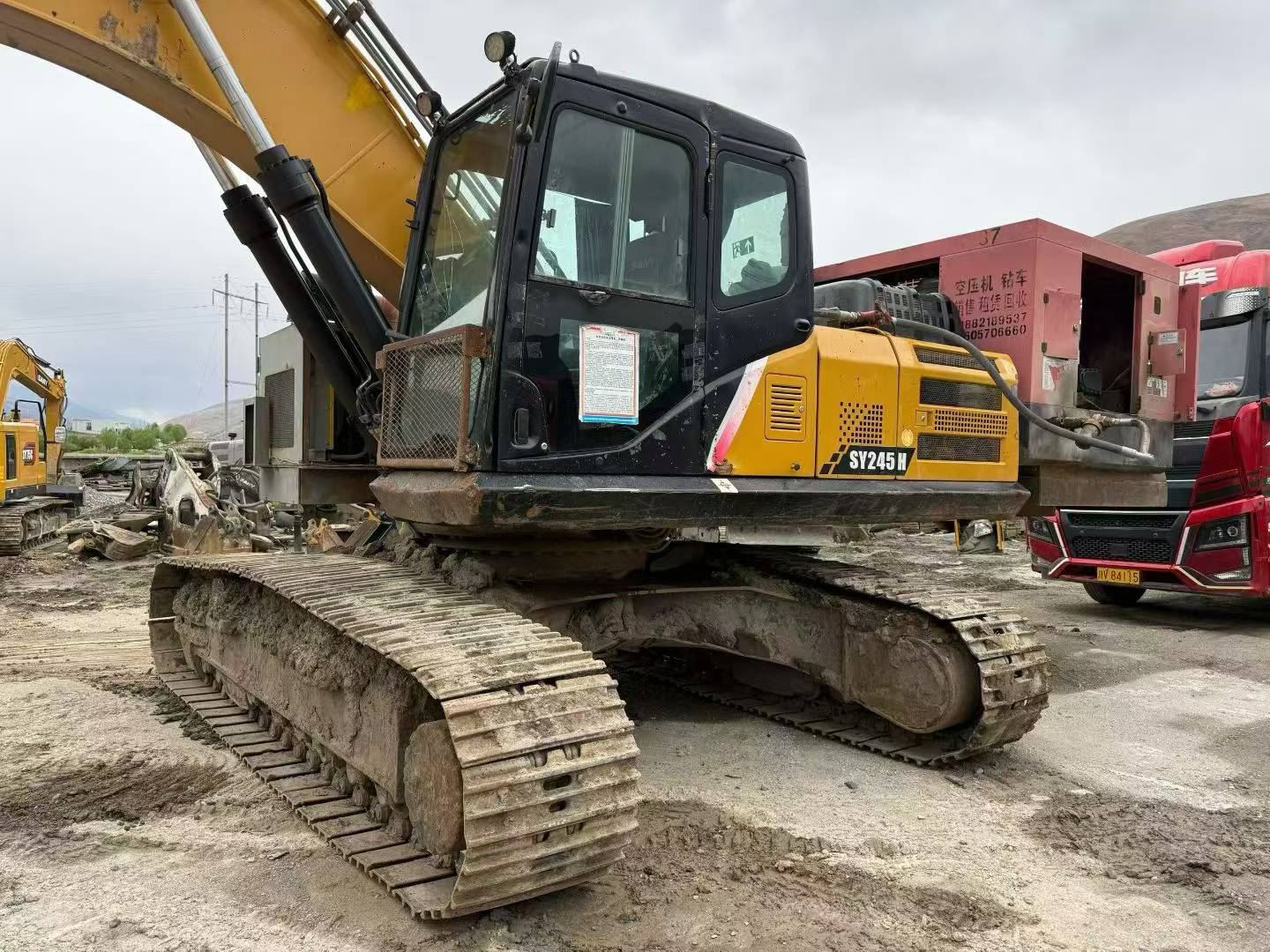

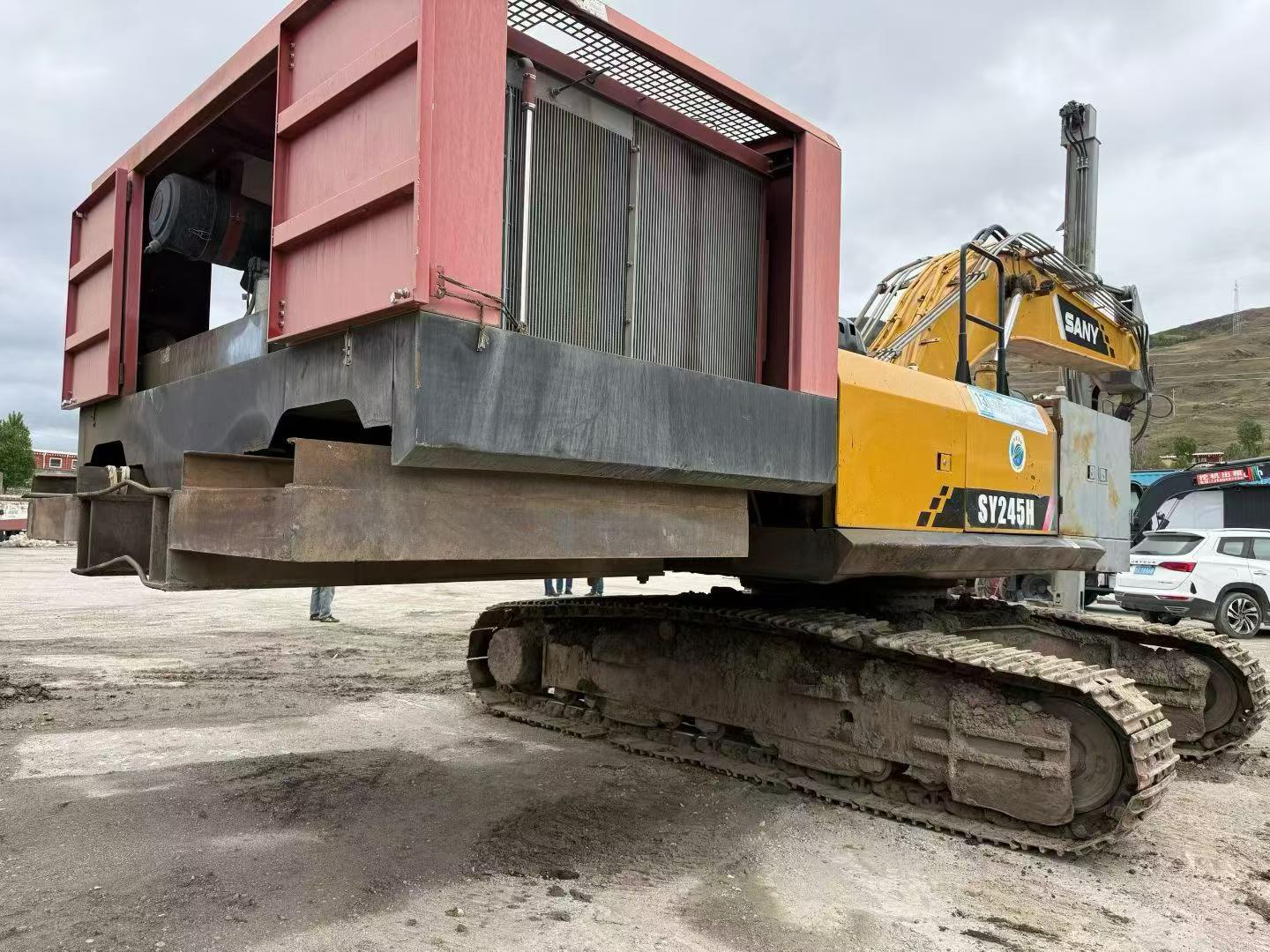

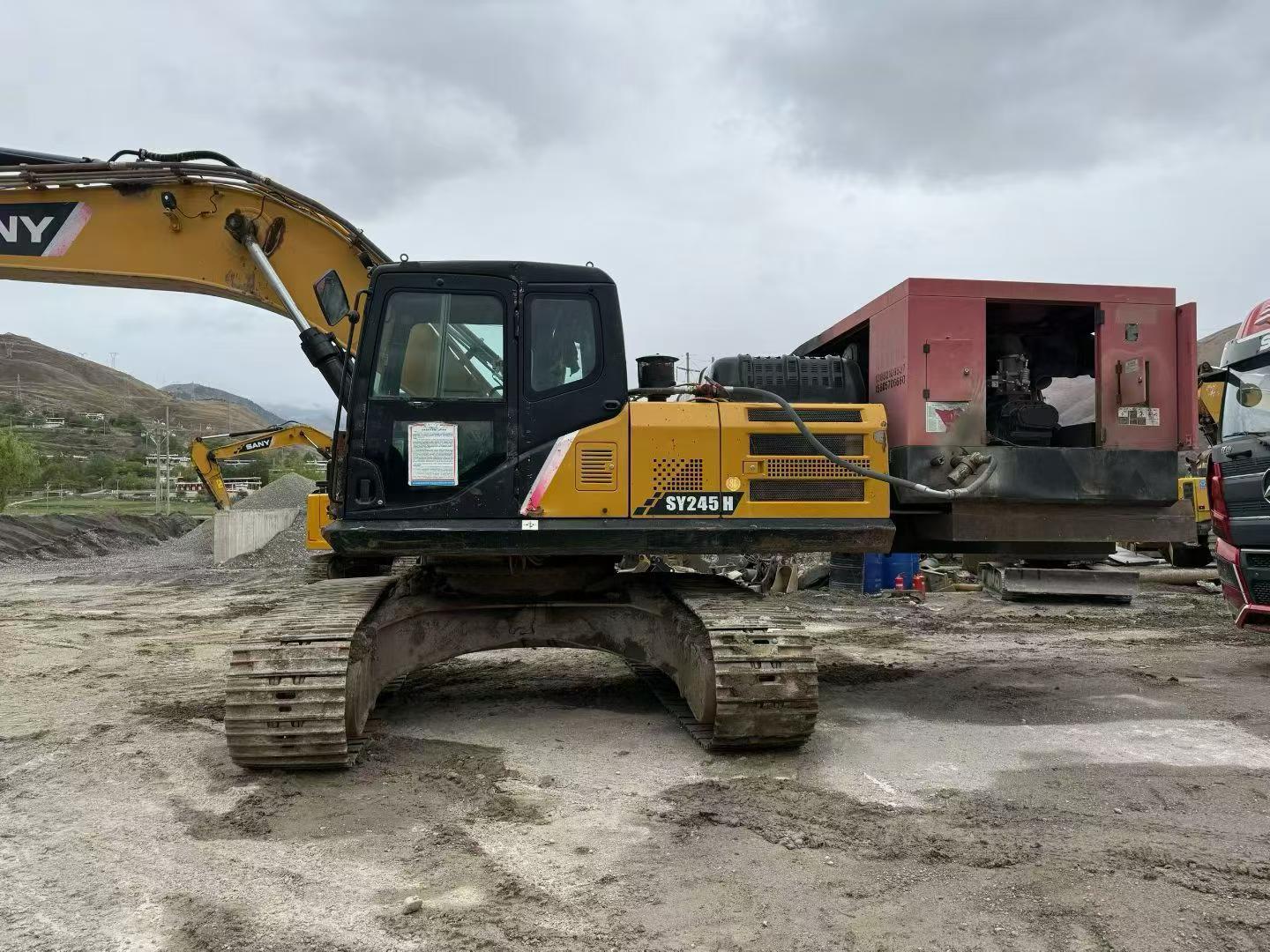

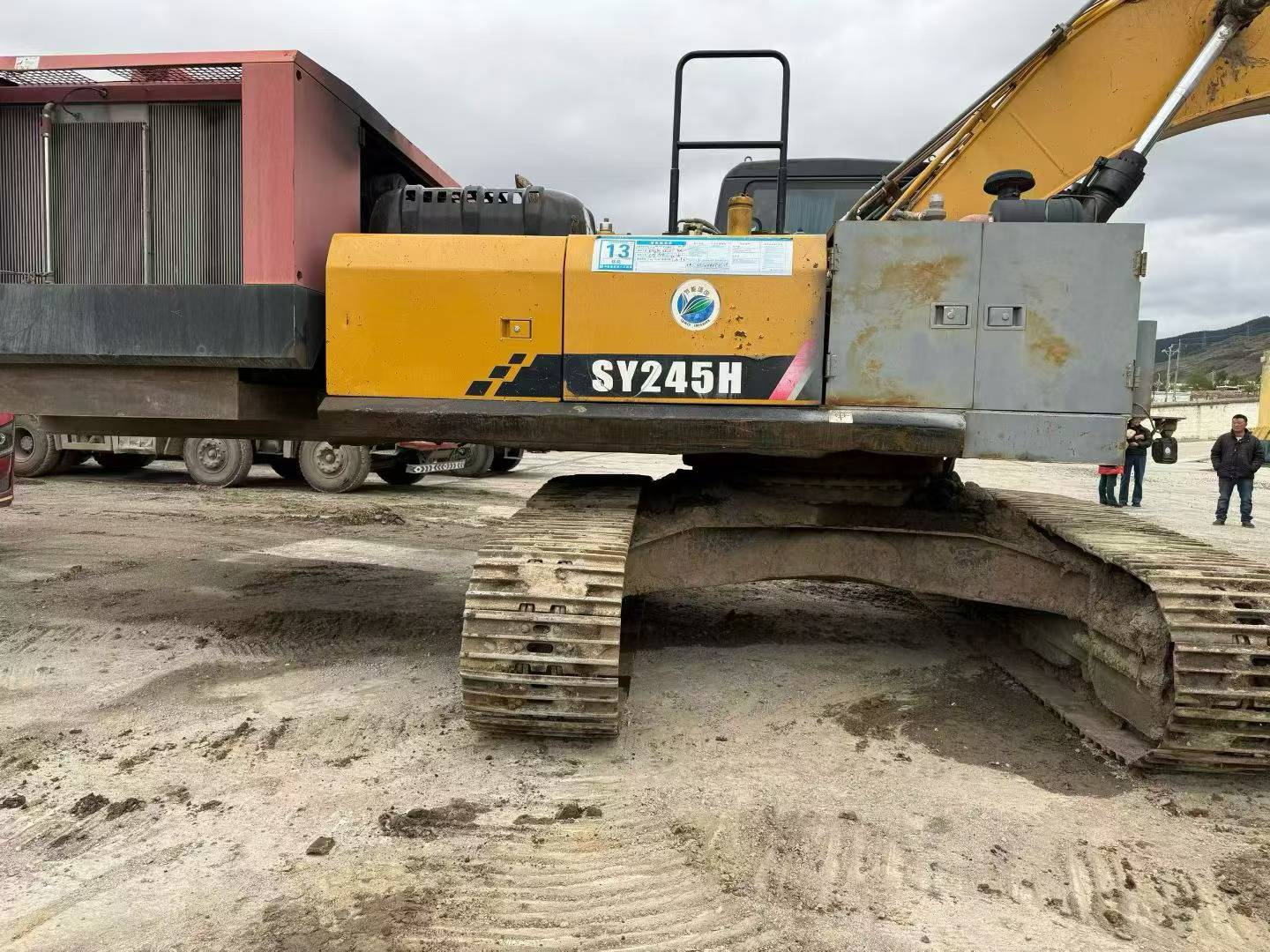

This 2019 Sany SY245H excavator, currently located in Yunnan, China, has been professionally modified for piling operations with comprehensive ancillary equipment. The machine features extensive upgrades valued at over 200,000 RMB, making it a turnkey solution for foundation and piling contractors.
The SY245H platform is known for its robust hydraulic system and reliable performance in demanding applications. This unit comes complete with all necessary piling attachments and modifications, eliminating the need for additional equipment purchases.
- Year of Manufacture: 2019
- Model: Sany SY245H
- Configuration: Piling-ready with full accessory package
- Location: Yunnan Province, China
- Condition: Professionally modified, operational
Competitively priced for immediate acquisition, this machine offers significant value for operators seeking a proven piling solution without the lead time of new equipment.
| Specifications | Value |
|---|---|
| No. | 1093192 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

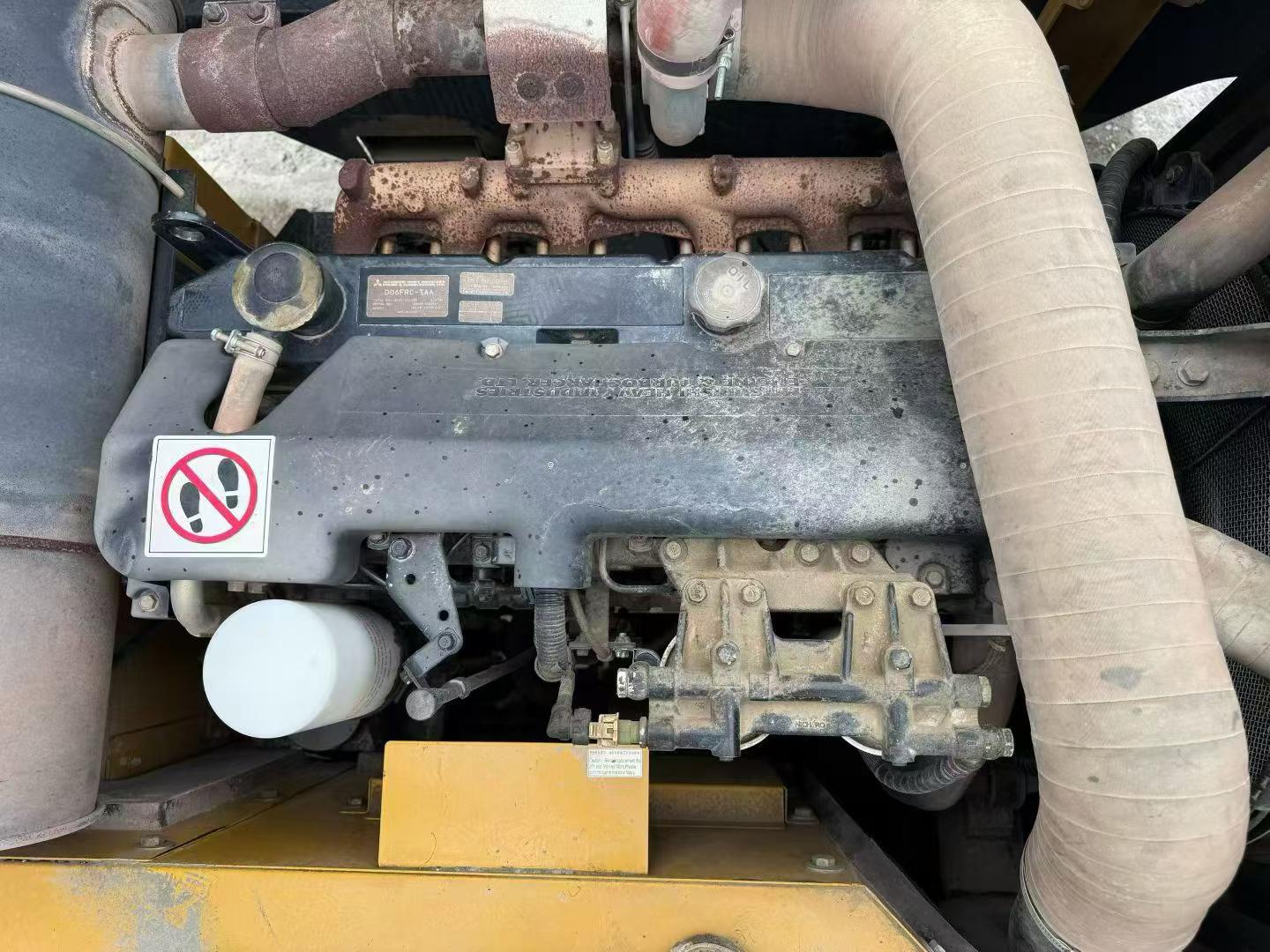

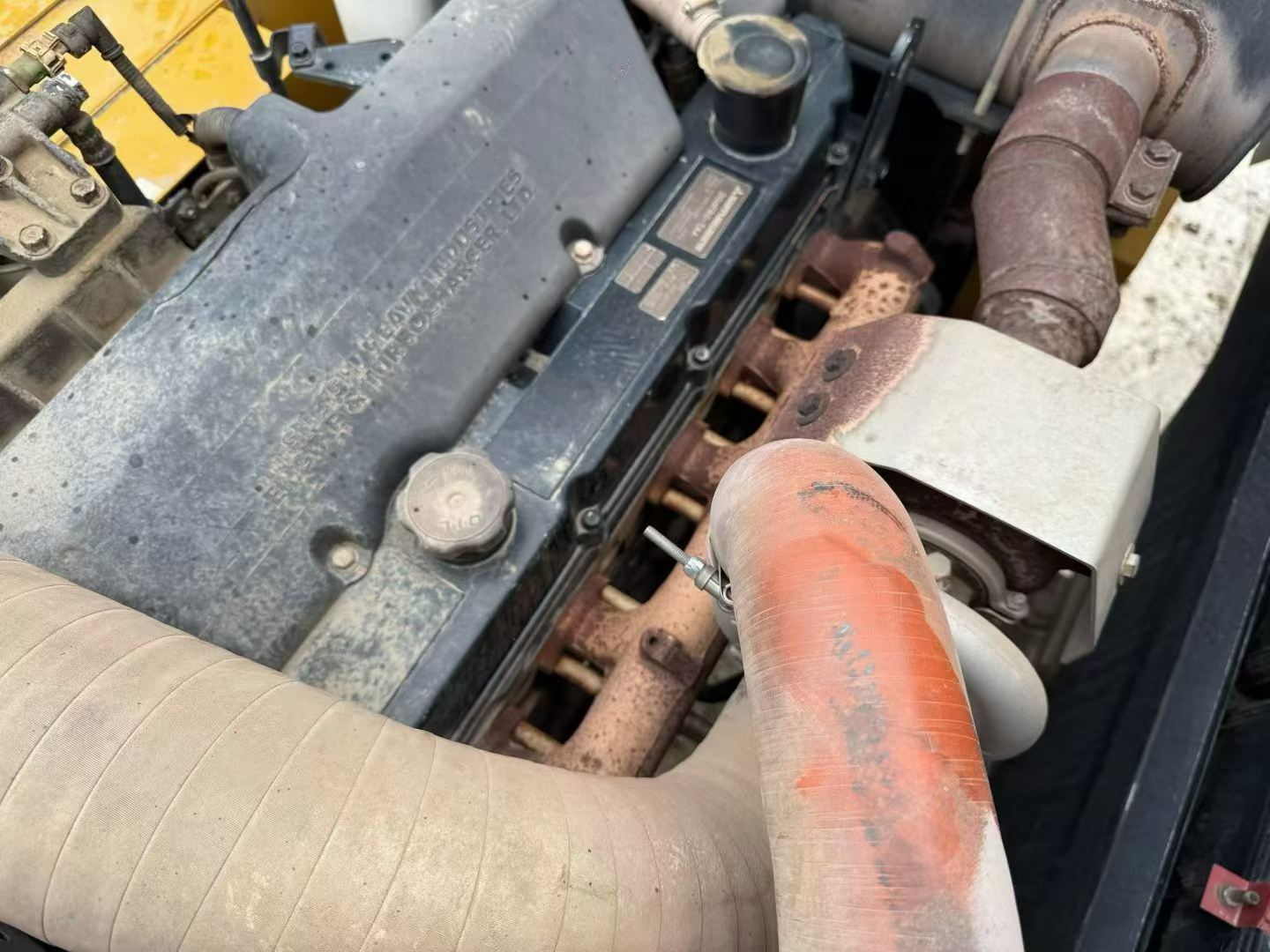

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
