2019 Sany SY245H

1/9

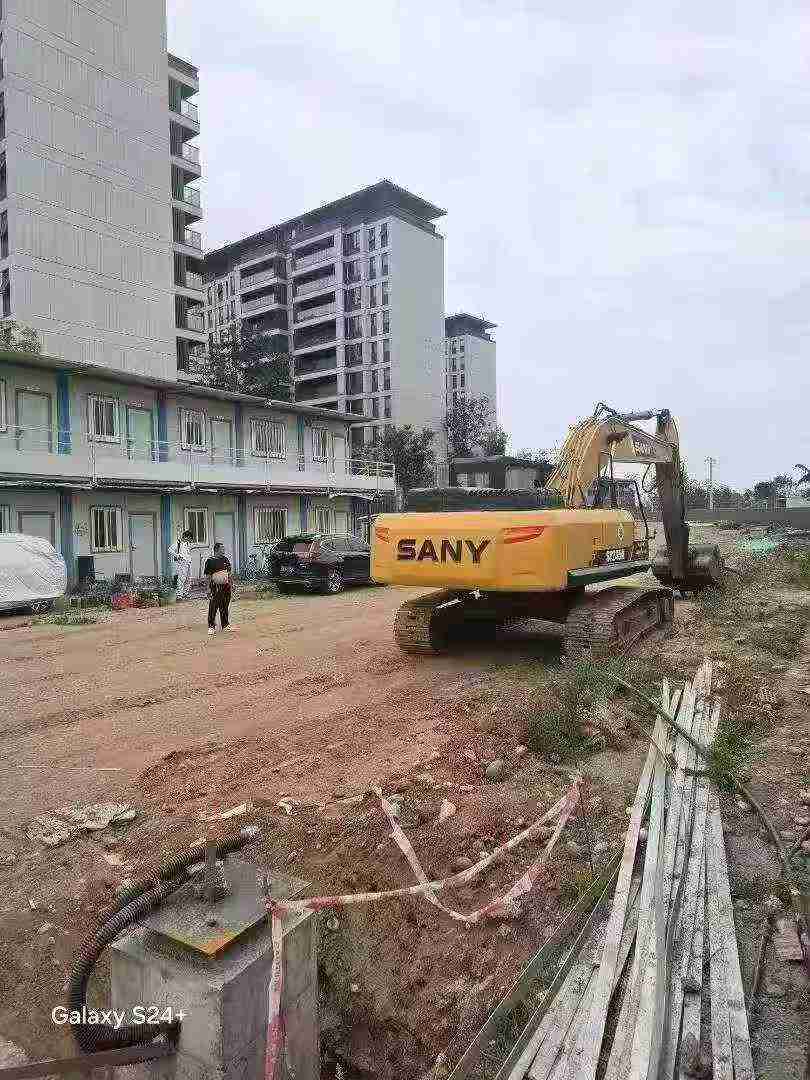

Buy Sany SY245H Used Excavator / 1

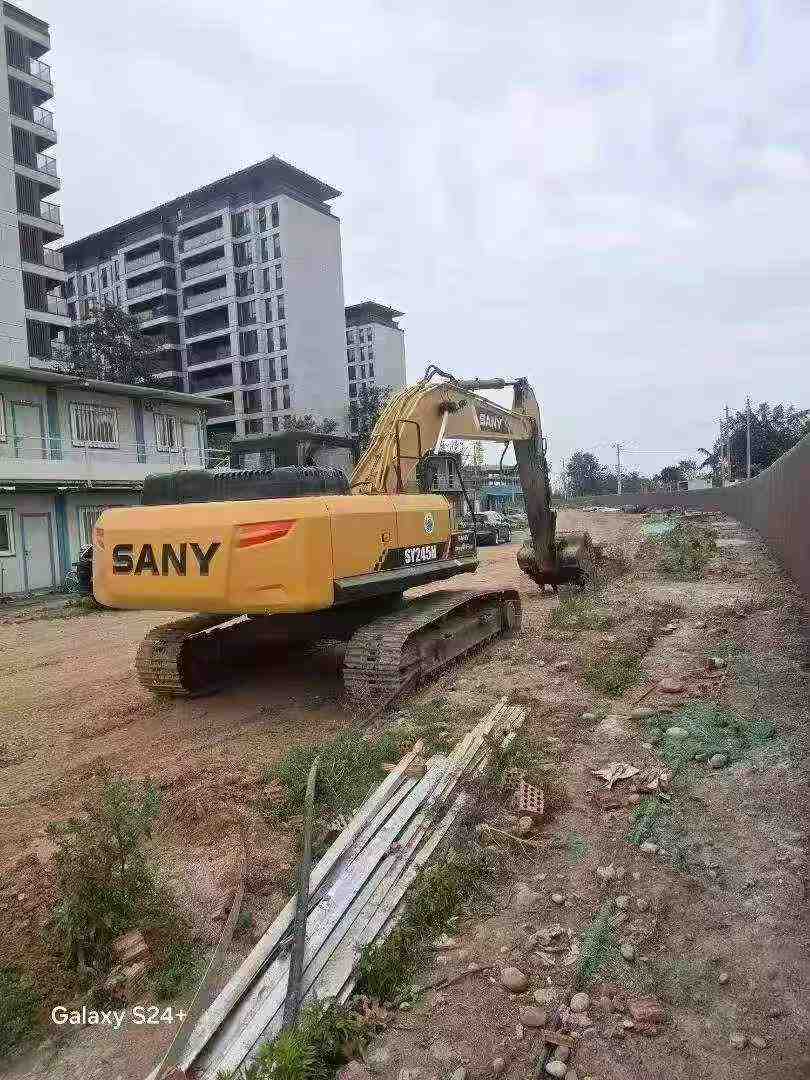

Buy Sany SY245H Used Excavator / 2

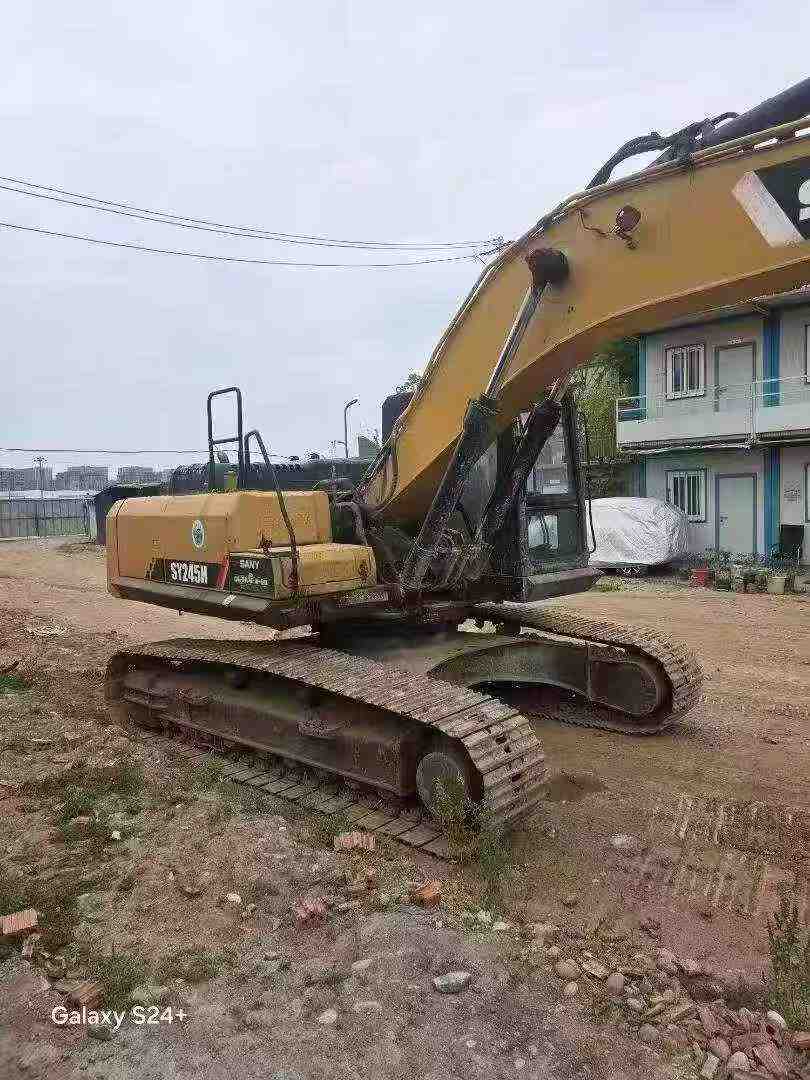

Buy Sany SY245H Used Excavator / 3

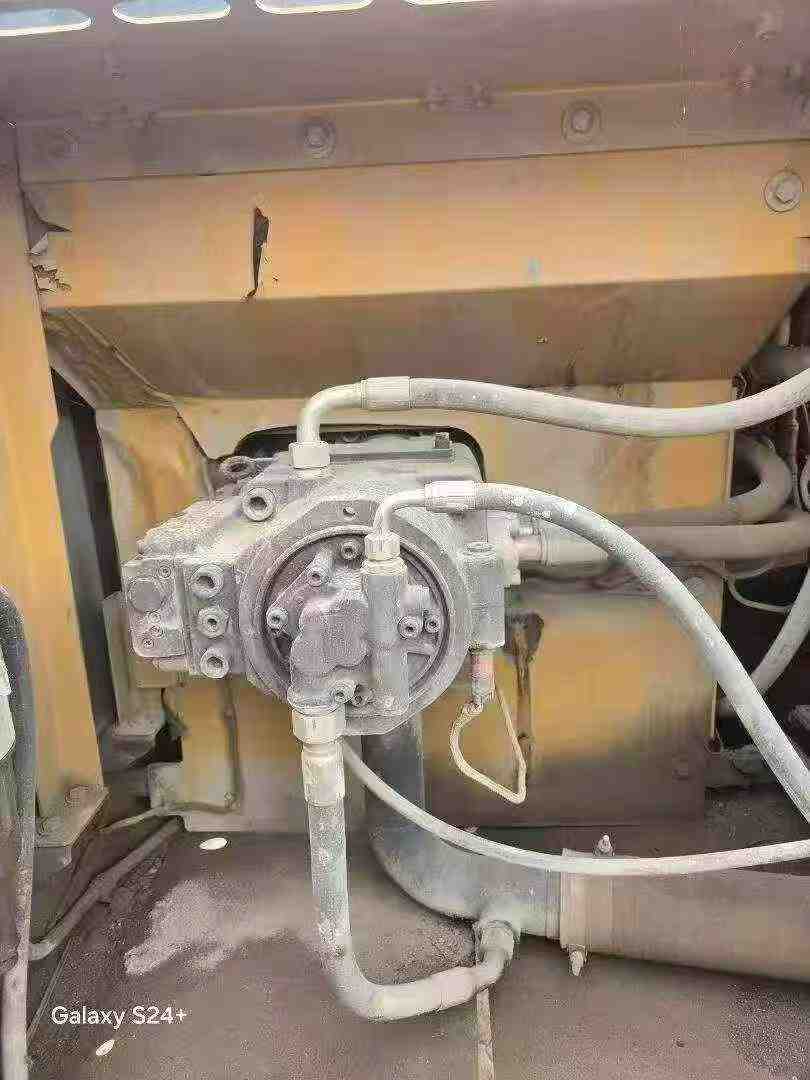

Buy Sany SY245H Used Excavator / 4

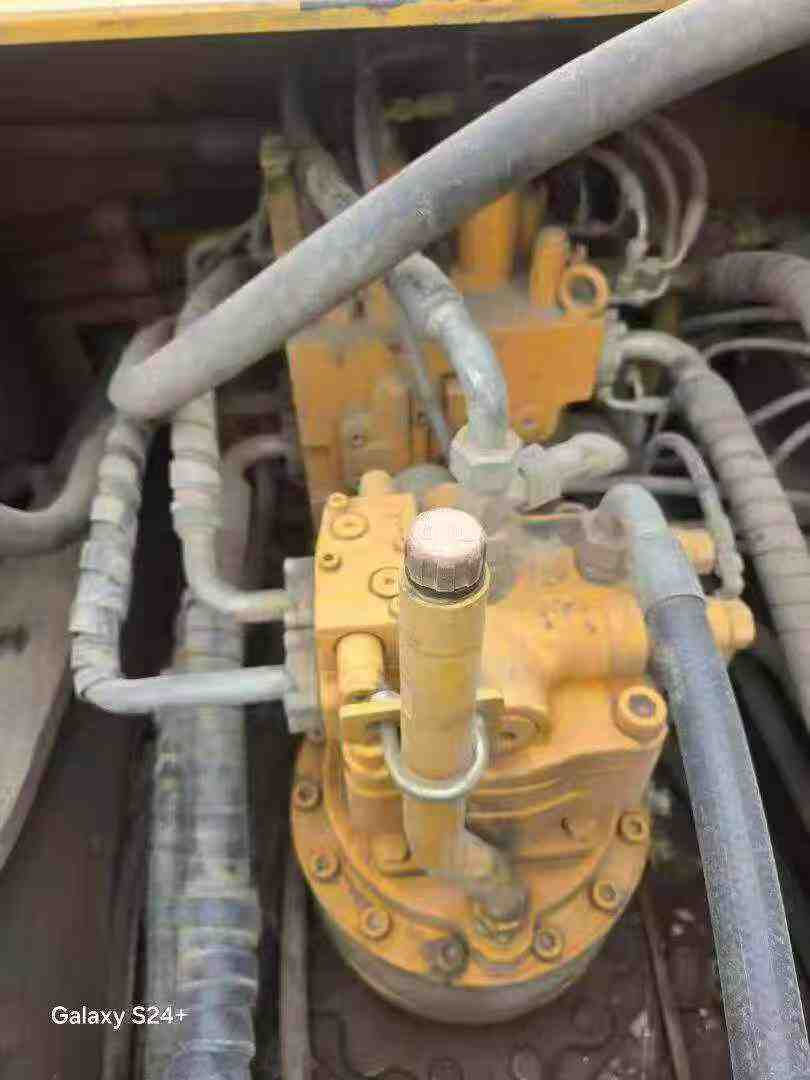

Buy Sany SY245H Used Excavator / 5

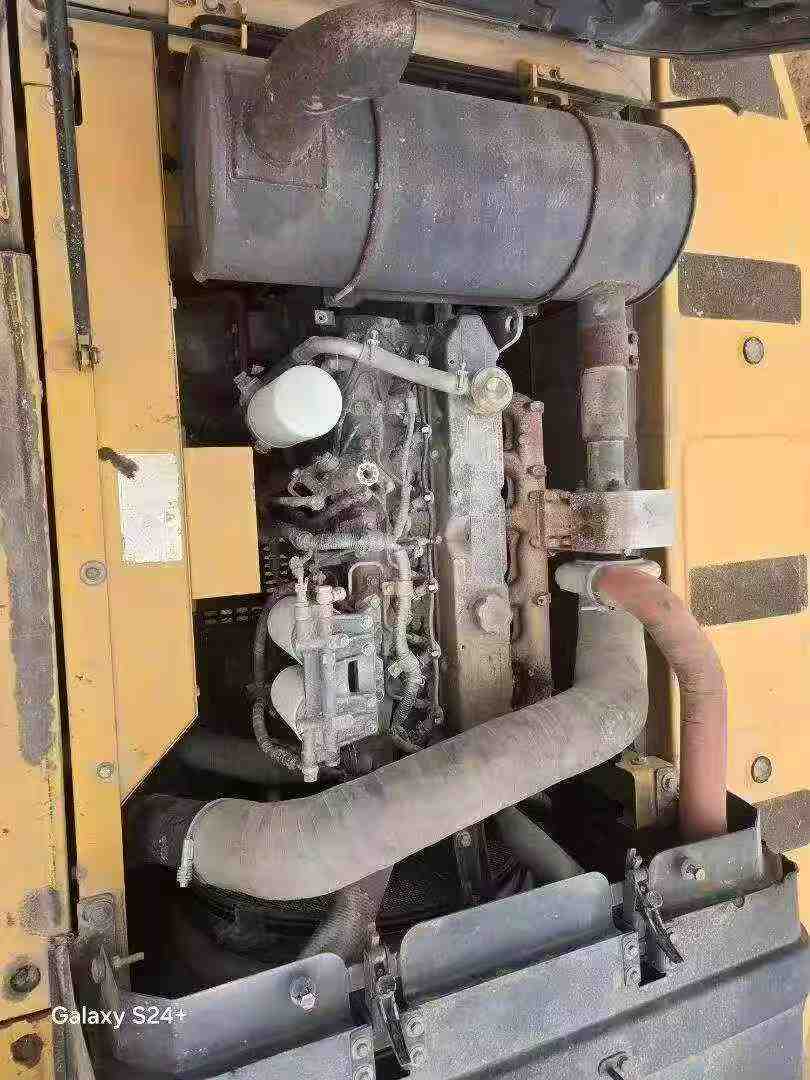

Buy Sany SY245H Used Excavator / 6

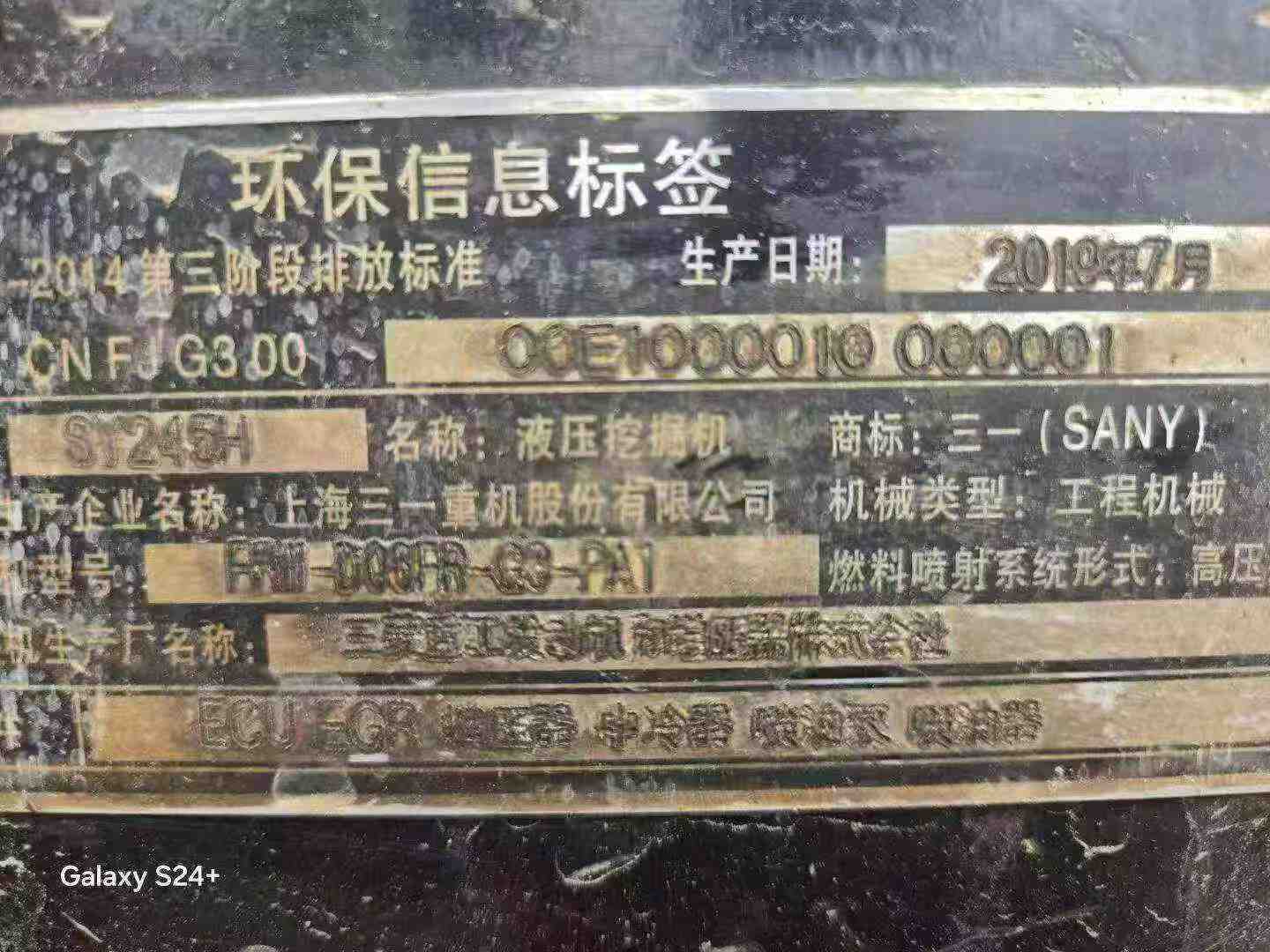

Buy Sany SY245H Used Excavator / 7

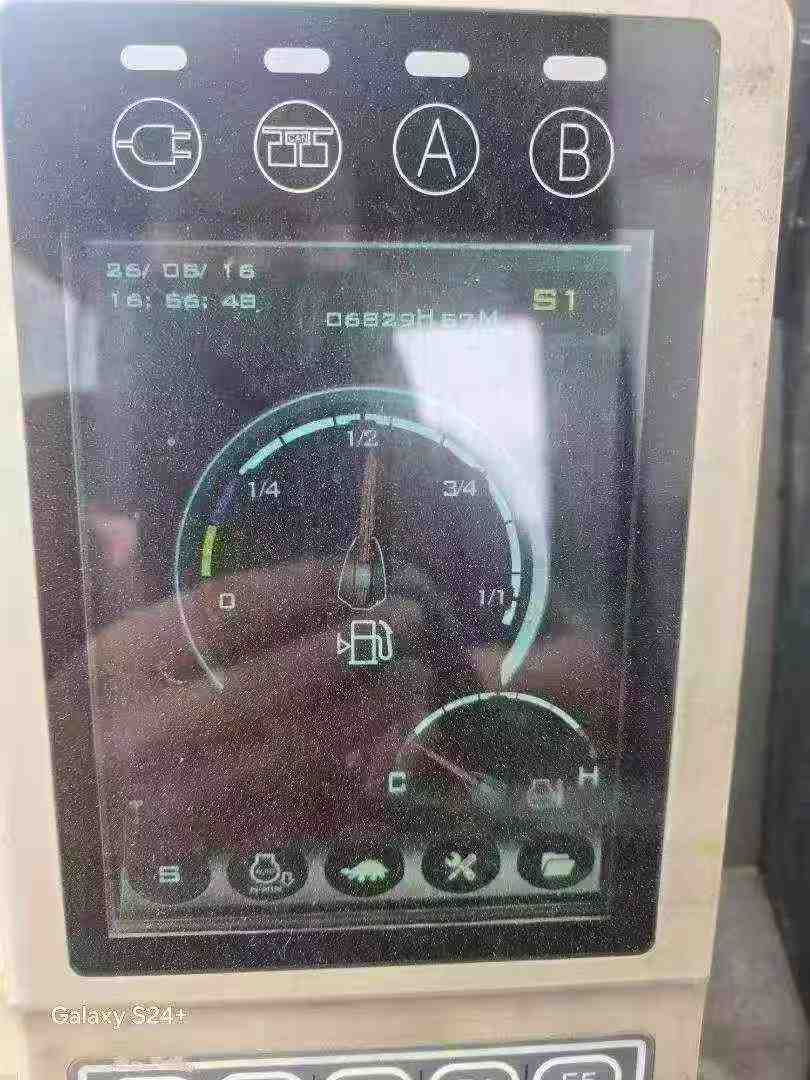

Buy Sany SY245H Used Excavator / 8

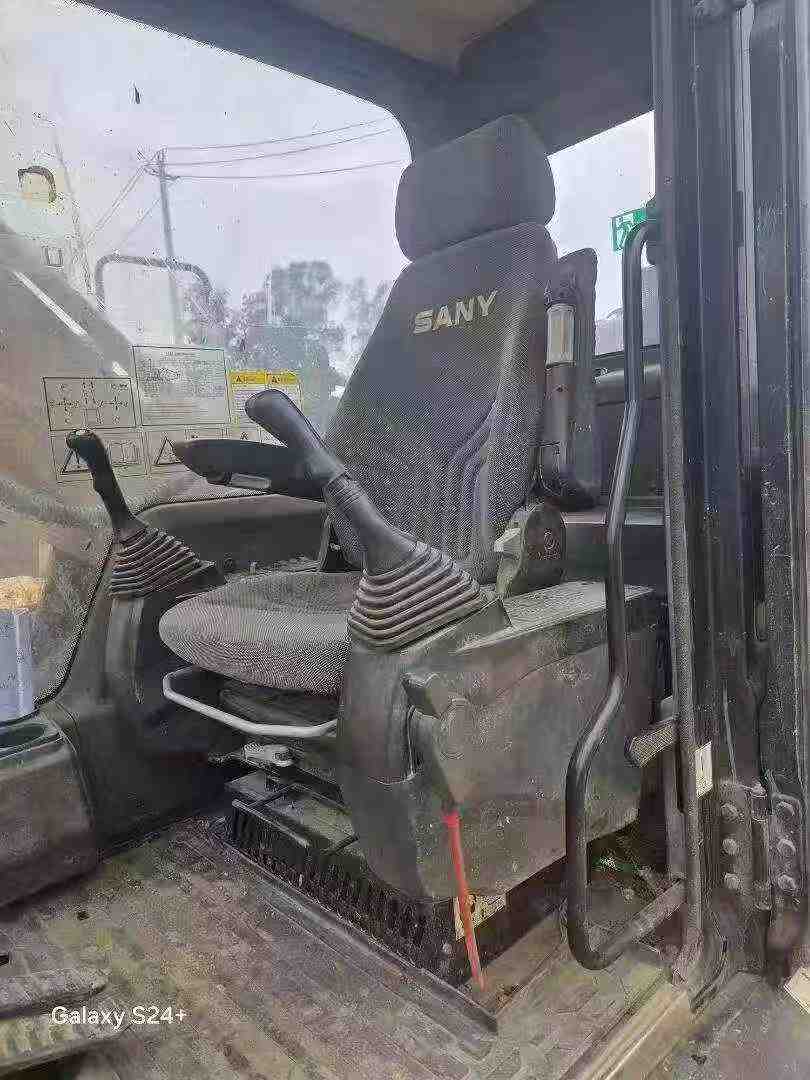

Buy Sany SY245H Used Excavator / 9

Product Description

This 2019 Sany SY245H excavator represents a reliable mid-size solution for construction and earthmoving operations. Currently located in Sichuan, China, this machine offers proven performance from one of Asia's leading heavy equipment manufacturers.

The SY245H is engineered for demanding job sites, delivering consistent productivity in excavation, trenching, and material handling applications. With approximately five years of operational history, this unit provides an opportunity to acquire established Sany quality at a competitive value point.

  • Year of Manufacture: 2019
  • Make and Model: Sany SY245H
  • Location: Sichuan Province, China
  • Machine Class: Medium Excavator
  • Direct sourcing available

Ideal for contractors seeking dependable equipment with known service records. Contact us for detailed inspection reports, operational hours, and logistics coordination to your facility.

SpecificationsValue
No.1140099
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1140099

Brand Name:

Sany

Model Number:

SY245H

Year:

2019

Location:

Sichuan China

Pub Date
