Product Description

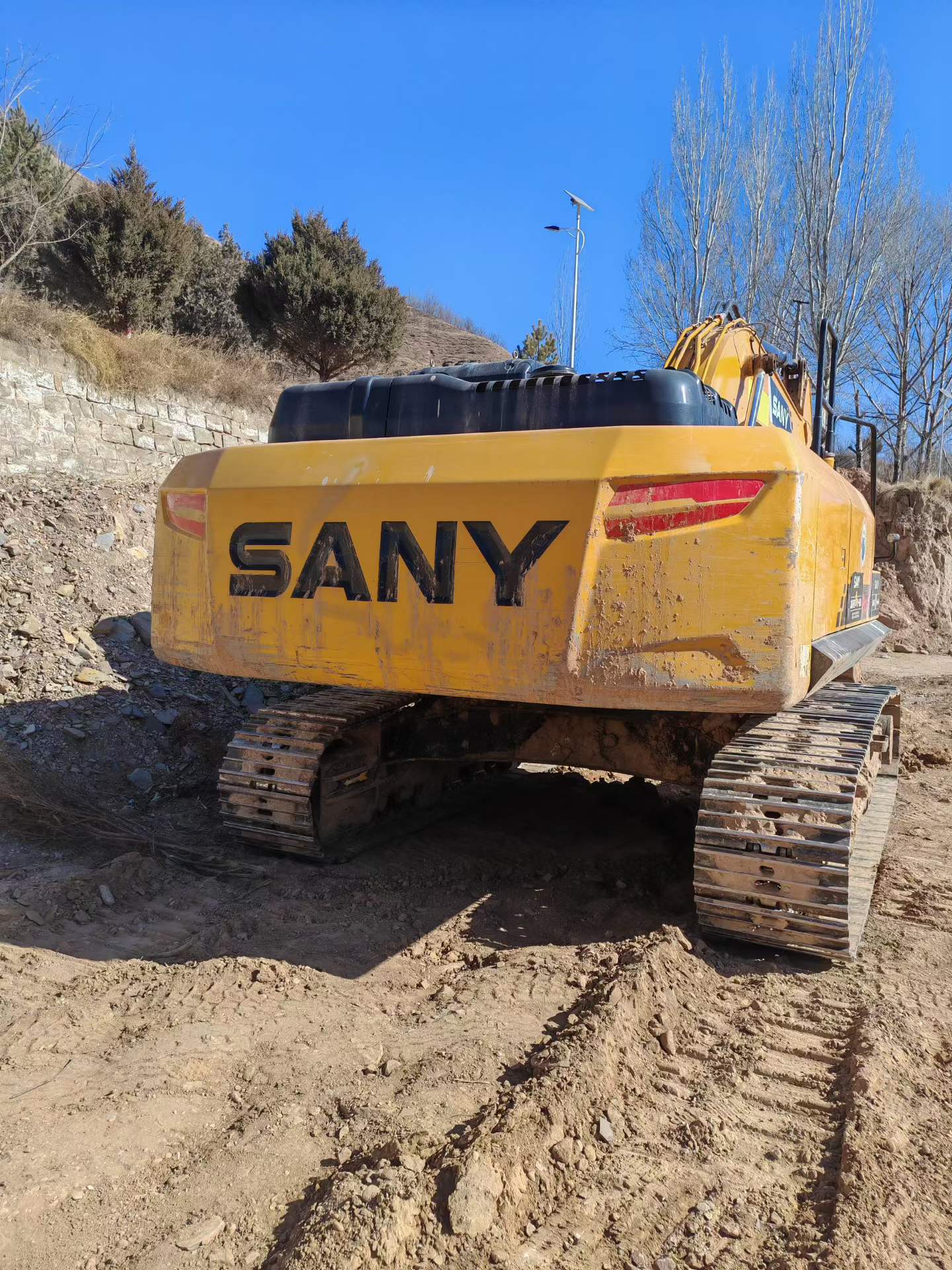

Engineered for demanding excavation work, this 2020 Sany SY245H delivers operator-centered performance in a proven 24-ton platform. Equipped with China IV emission standards, this model combines regulatory compliance with field-tested reliability. Currently located in Shaanxi Province, this machine offers immediate availability for regional operations.

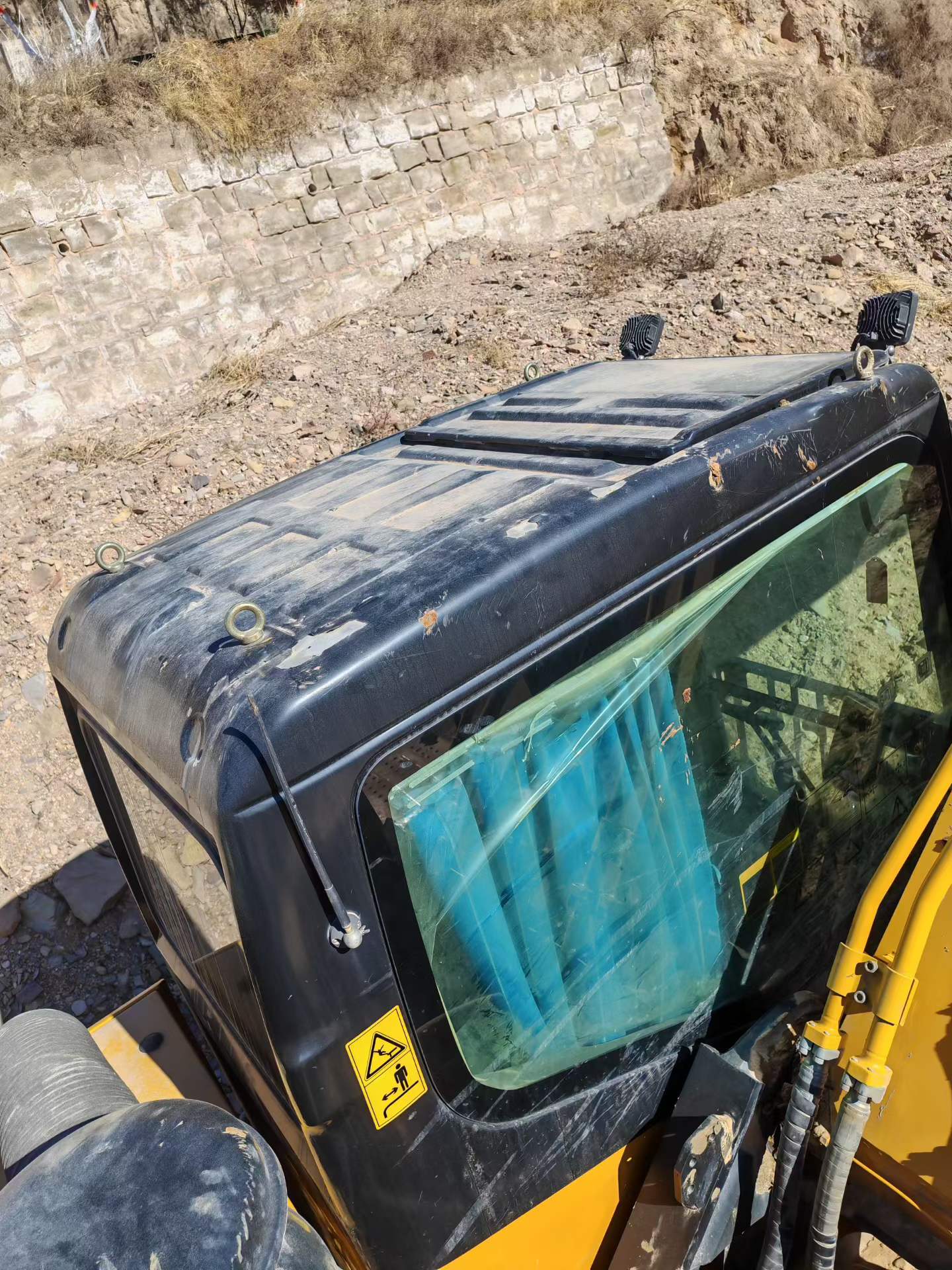

Operator efficiency drives productivity on every job site. The SY245H features a spacious cabin designed for extended shifts, with optimized sight lines that provide comprehensive visibility of the work area and attachment points. Ergonomic controls reduce fatigue during repetitive cycles, while the stable undercarriage maintains precision during grading and trenching operations.
- Enhanced cabin visibility for improved safety and accuracy
- Responsive hydraulic controls for precise material handling
- Stable platform design minimizes body roll during swing operations
- Comfortable operator station supports all-day productivity
- China IV compliant engine meets environmental standards
Built for contractors who prioritize operator comfort alongside machine capability, this SY245H represents a practical solution for construc
| Specifications | Value |
|---|---|
| No. | 1010260 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

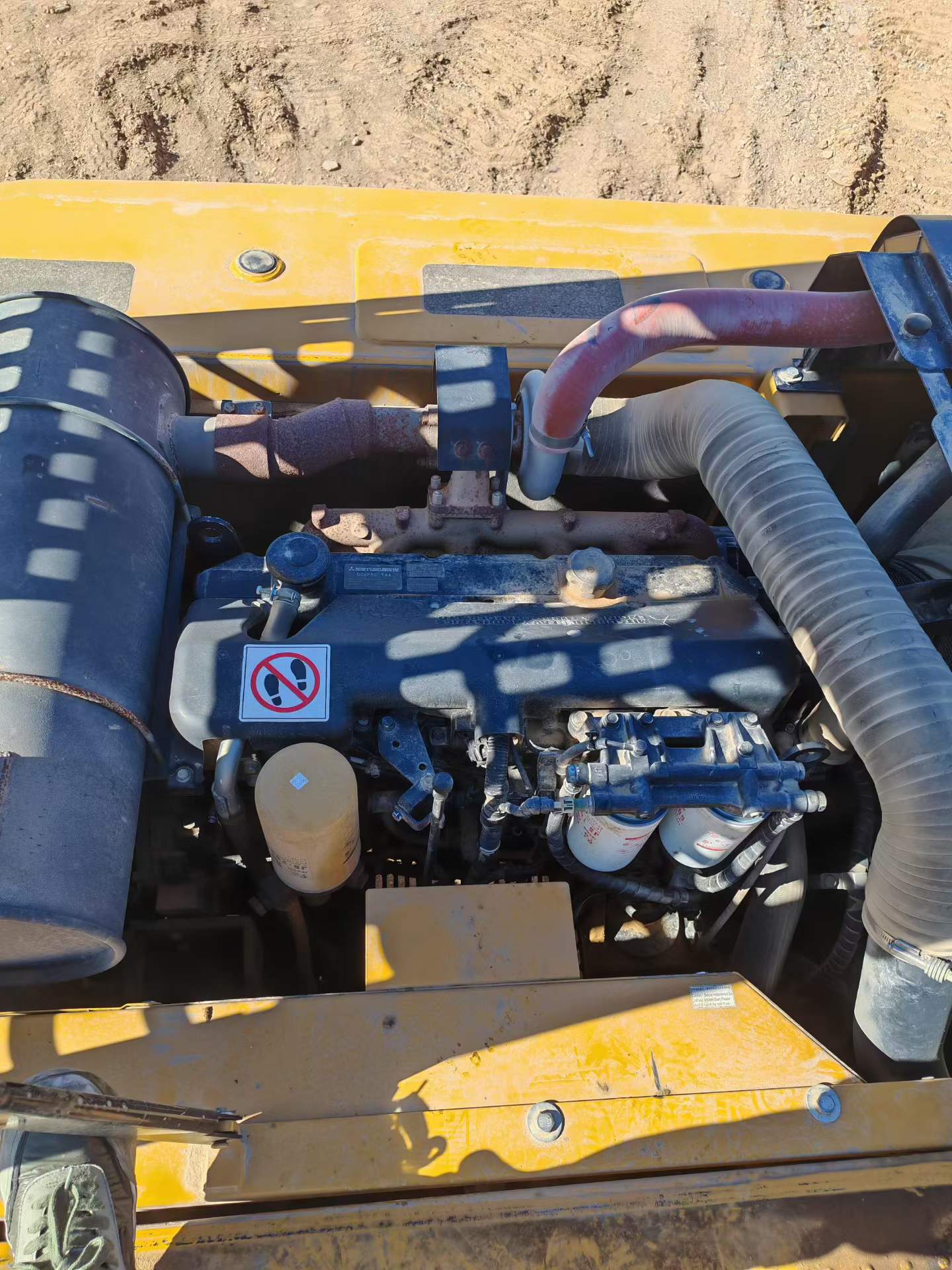

| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
