Product Description

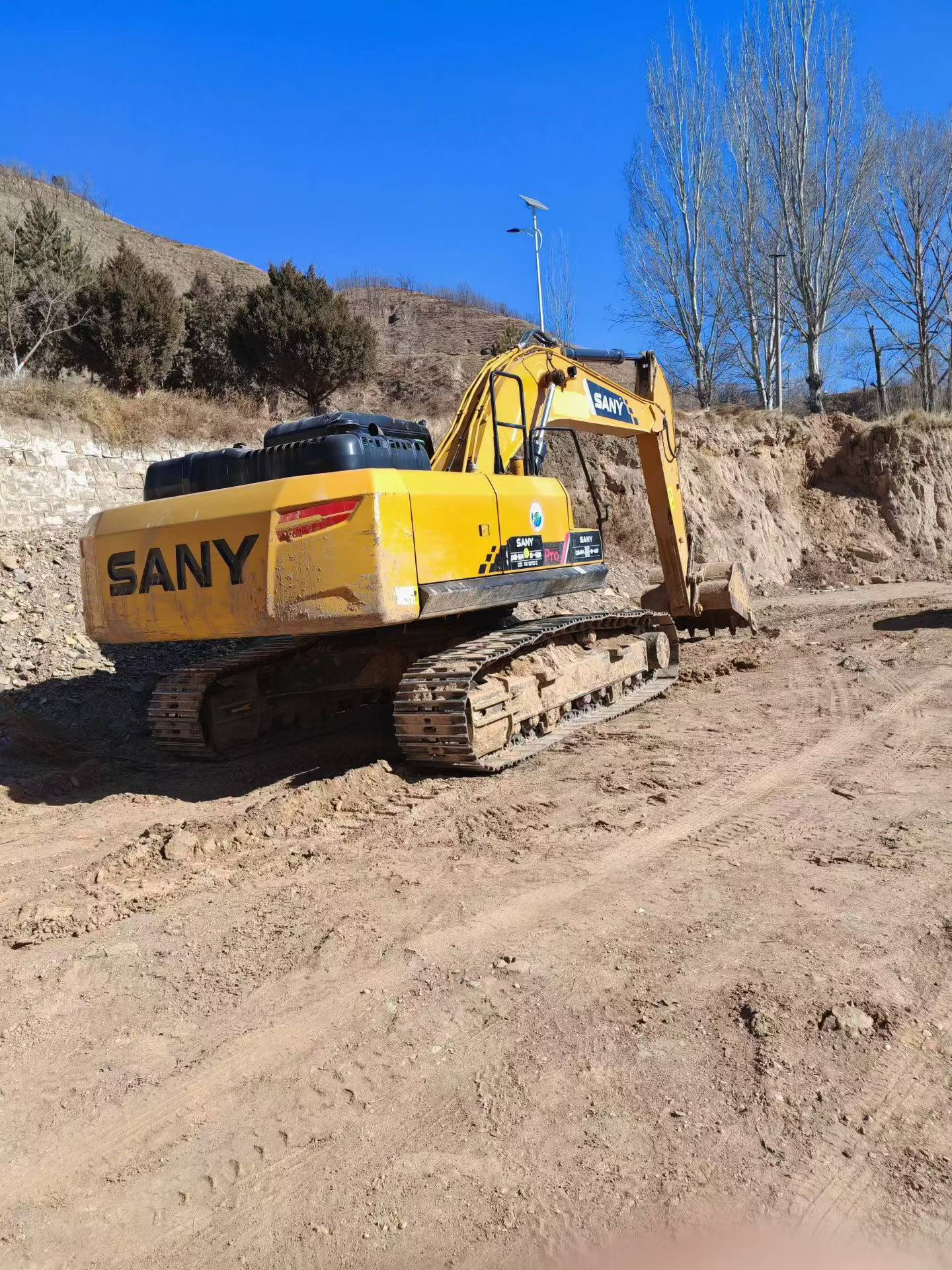

Sourced from Shandong Heze, this 2020 Sany SY245H (China IV emission standard) combines proven mid-size performance with the aftermarket support that defines Sany's competitive edge. As one of China's largest equipment manufacturers, Sany maintains extensive parts networks across Asia, Africa, and beyond—critical infrastructure that protects your investment when components need replacement. This model delivers 24-ton operating weight with fuel efficiency engineered for extended duty cycles, backed by a brand whose resale values consistently outperform lesser-known competitors.
- Year: 2020
- Model: SY245H (China IV Emission Compliant)
- Location: Shandong Heze, China
- Brand Advantage: Global parts availability and strong secondary market demand
- Service Network: Authorized Sany dealers in 150+ countries
Buying used Sany equipment means access to OEM components without the premium pricing or lead times associated with Western brands. Contact Fair Trade Machinery for inspection reports, shipping quotes, and documentation to your port.
| Specifications | Value |
|---|---|
| No. | 1011660 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
