Product Description

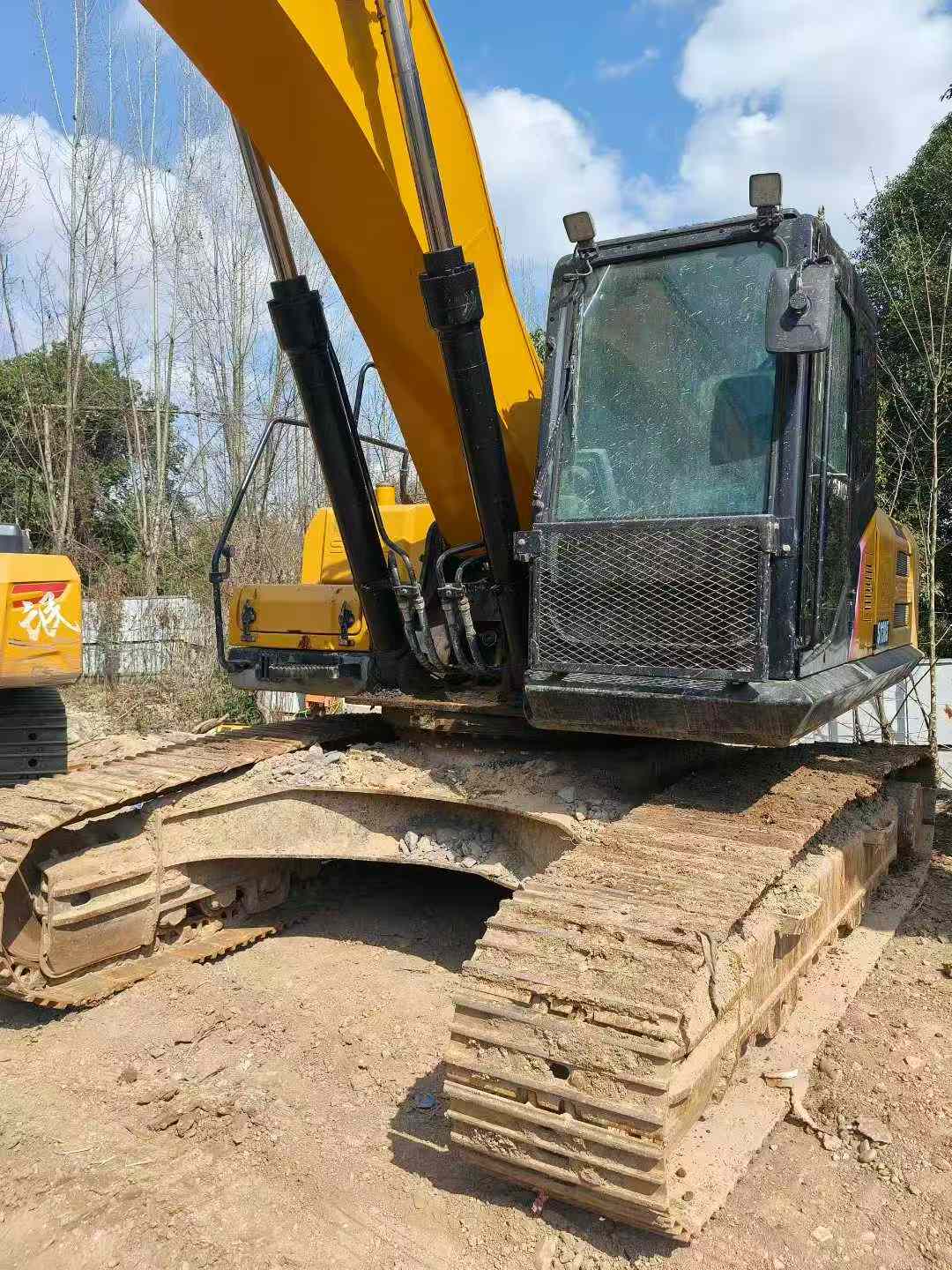

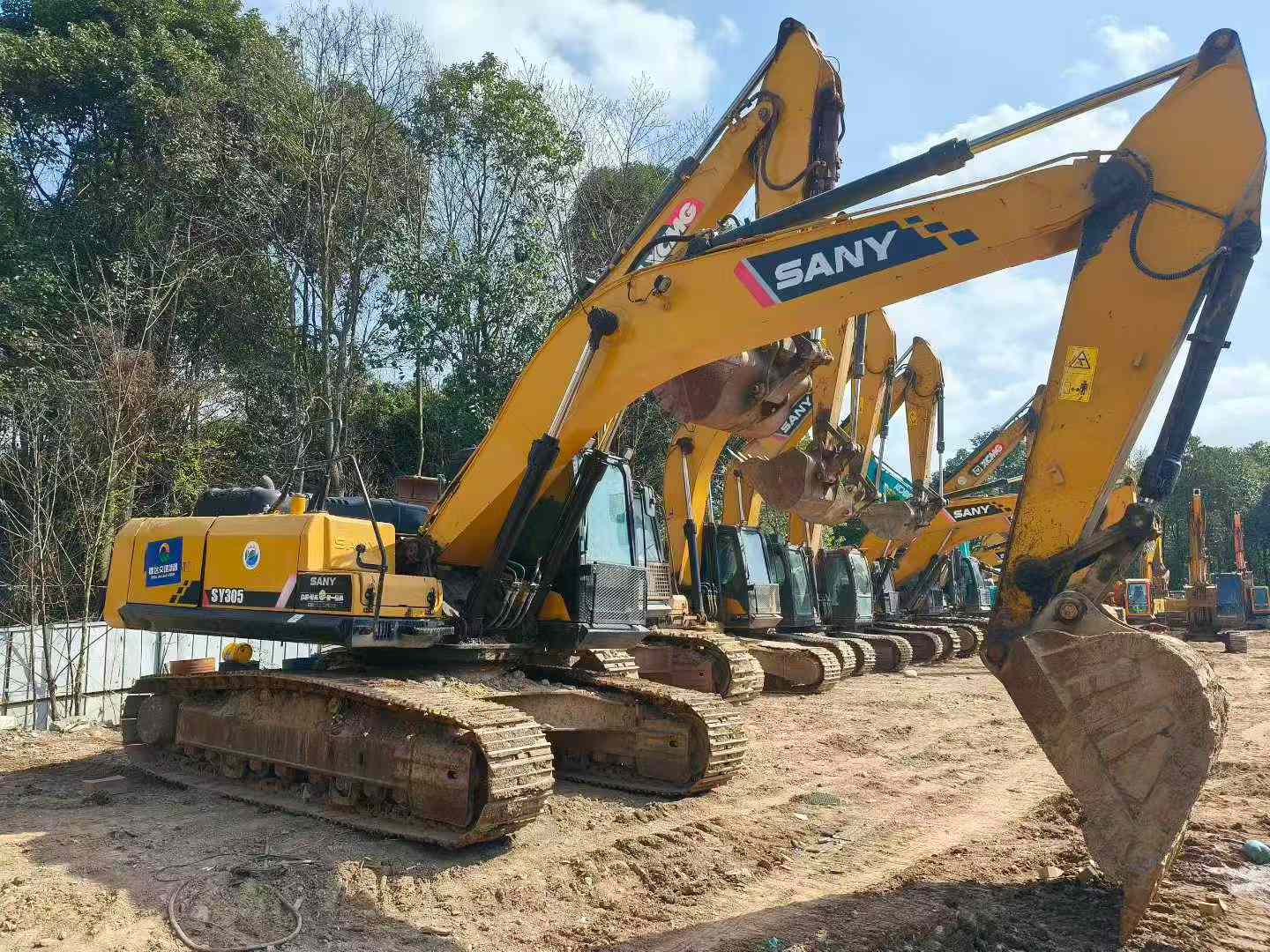

Engineered for relentless performance, this 2020 Sany SY245H excavator delivers proven reliability across demanding jobsites. With 147 kW of rated power from its robust D06FRC 6-cylinder engine and a 25,500 kg working weight, this 24-ton workhorse demonstrates the build quality that has made Sany a trusted name in heavy equipment. Its impressive 175 kN bucket digging force and 10,225 mm maximum digging radius tackle tough excavation tasks with consistent efficiency.

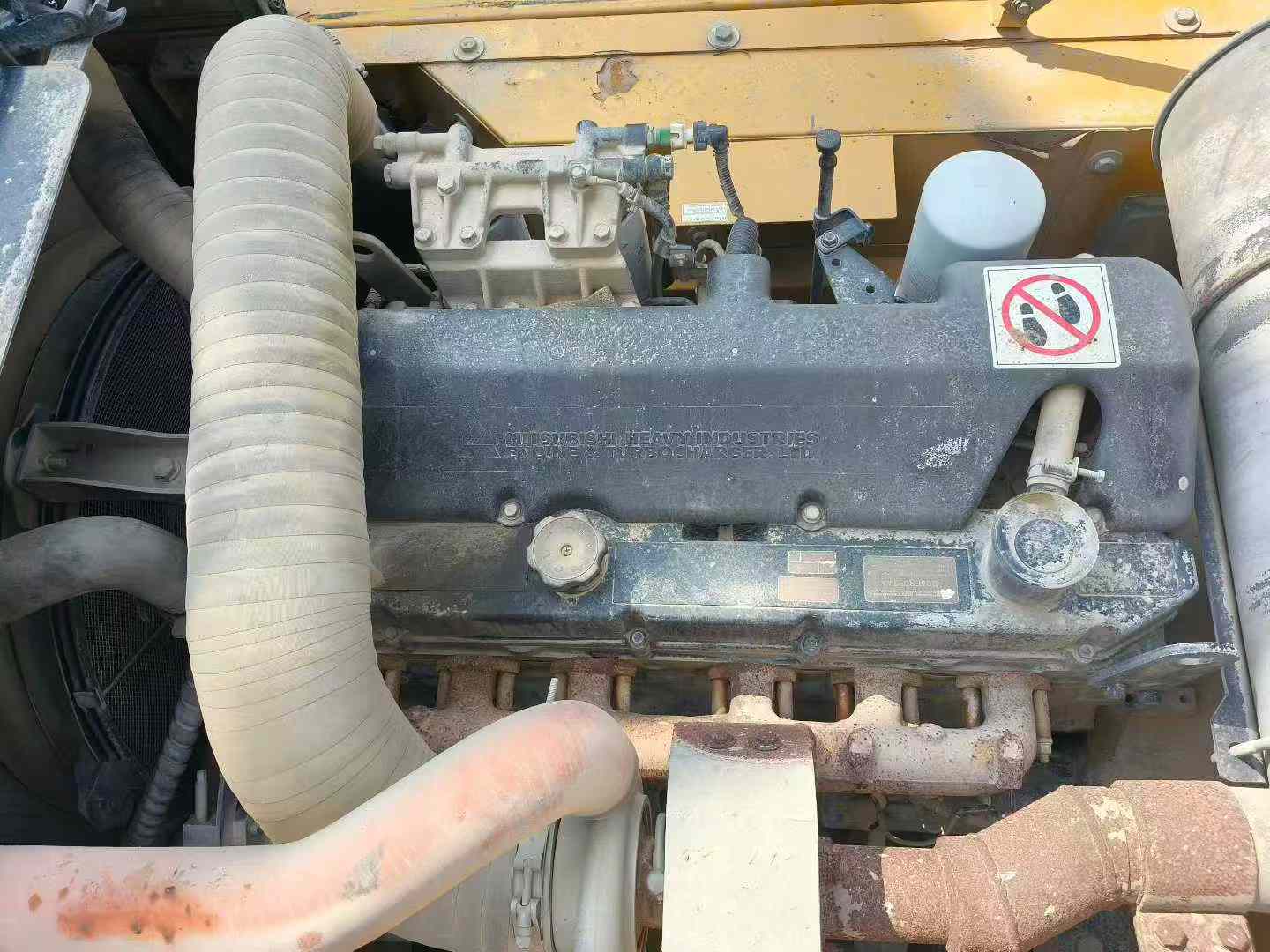

- Power System: 147 kW/2100 rpm D06FRC water-cooled engine with 750 N·m maximum torque
- Performance: 1.3-1.5 m³ bucket capacity, 6,705 mm maximum digging depth

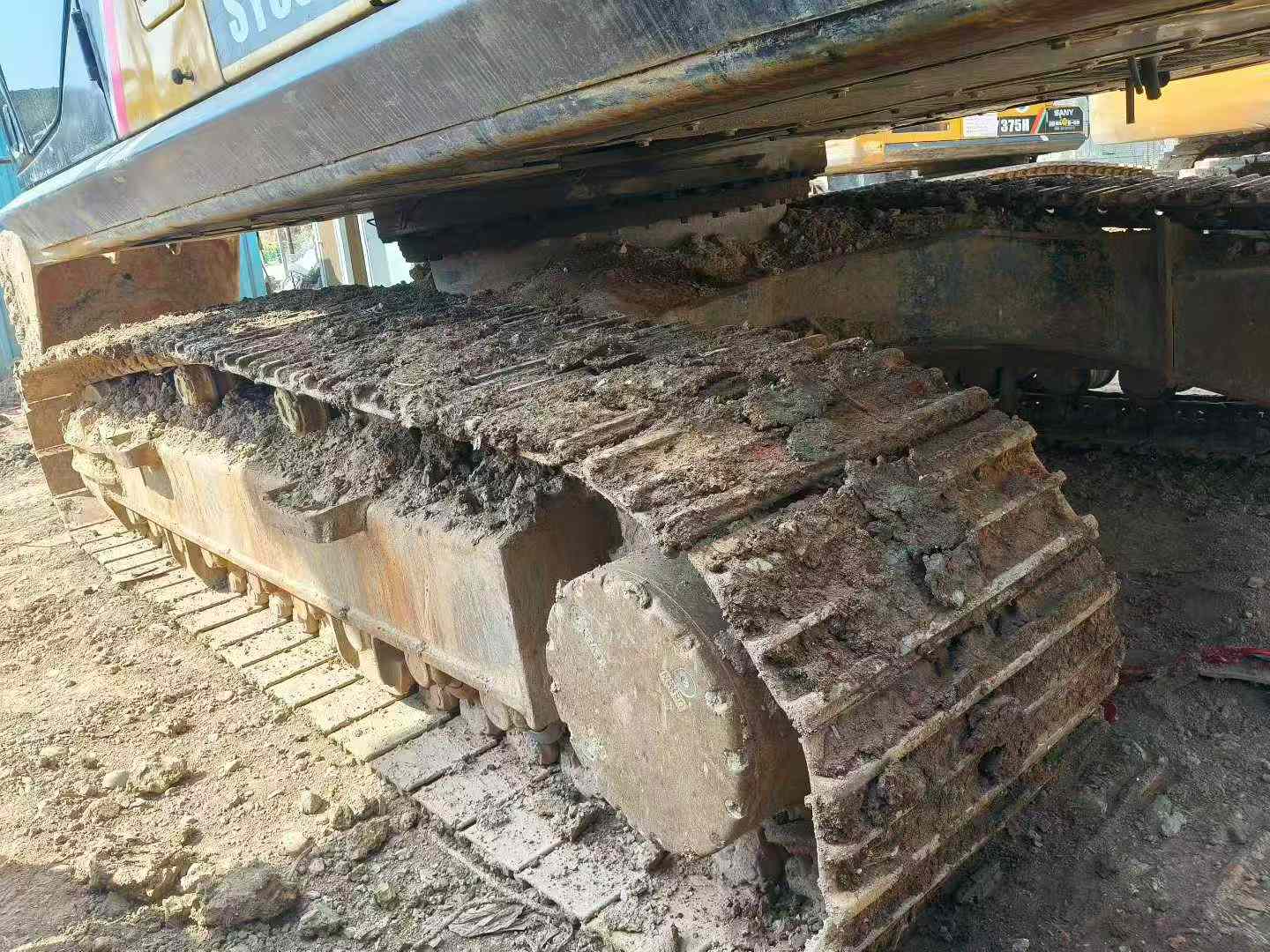

- Durability: Heavy-duty undercarriage with 49 track plates per side, 600 mm track width
- Capacity: 475 L fuel tank for extended operation cycles
- Stability: 70% climbing ability, 53.2 kPa ground pressure distribution
- Location: Currently available in Sichuan, China
Built to withstand years of intensive work, this machine represents exceptional value for operators seeking dependable productivity without compromise.
| Specifications | Value |
|---|---|
| No. | 1023714 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
