Product Description

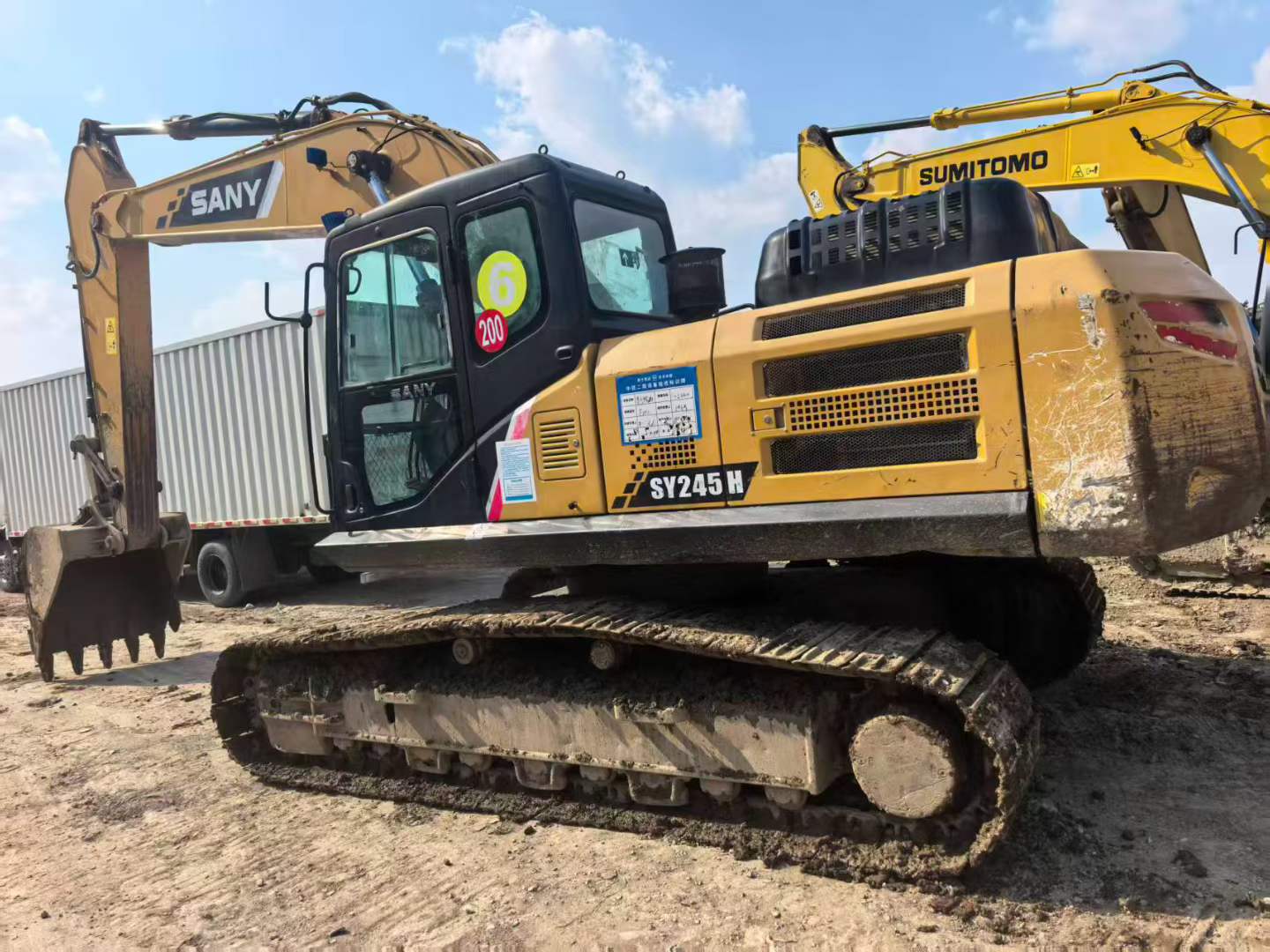

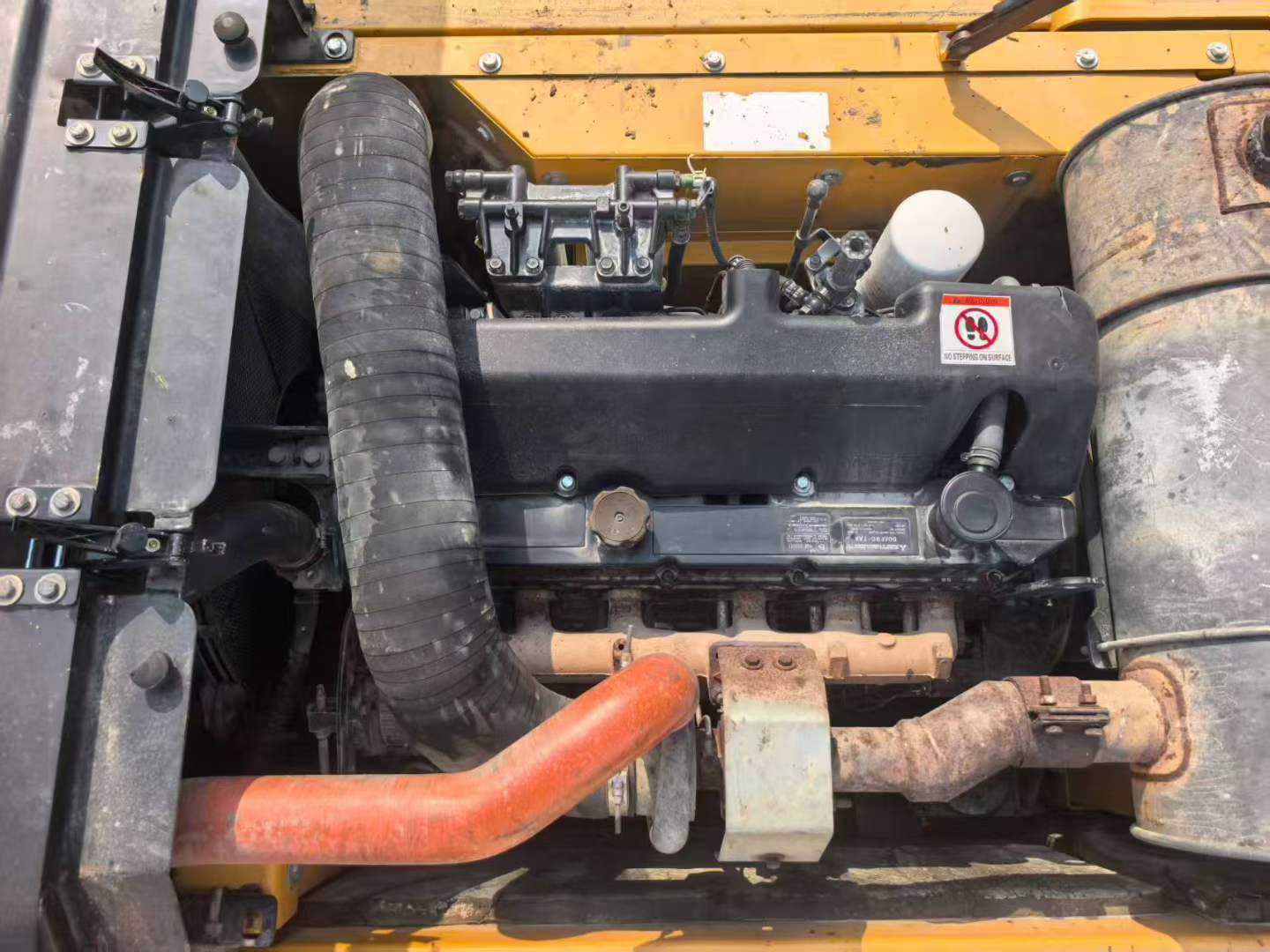

Engineered for the long haul, this 2020 Sany SY245H excavator demonstrates the durability Chinese manufacturers have become known for in the heavy equipment sector. With over four years of proven field performance, this 24-ton workhorse continues to deliver reliable productivity on demanding job sites. Powered by a robust D06FRC engine producing 147kW at 2100 rpm and 750 N.m of torque, this machine maintains consistent performance across varied terrain and applications.
Built to withstand rigorous daily use, key specifications include:
- Operating weight of 25,500 kg with 1.3-1.5 m³ bucket capacity
- Impressive reach: 10,225 mm maximum digging radius and 6,705 mm maximum depth
- Powerful hydraulics: 175 kN bucket digging force, 120 kN arm force
- 475L fuel tank and water-cooled system for extended operation cycles
- 70% climbing ability for challenging gradients
Currently located in Maoming, Guangdong, this proven excavator represents tested reliability rather than unproven potential. Contact Fair Trade Machinery for complete inspection reports and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1029597 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
