Product Description

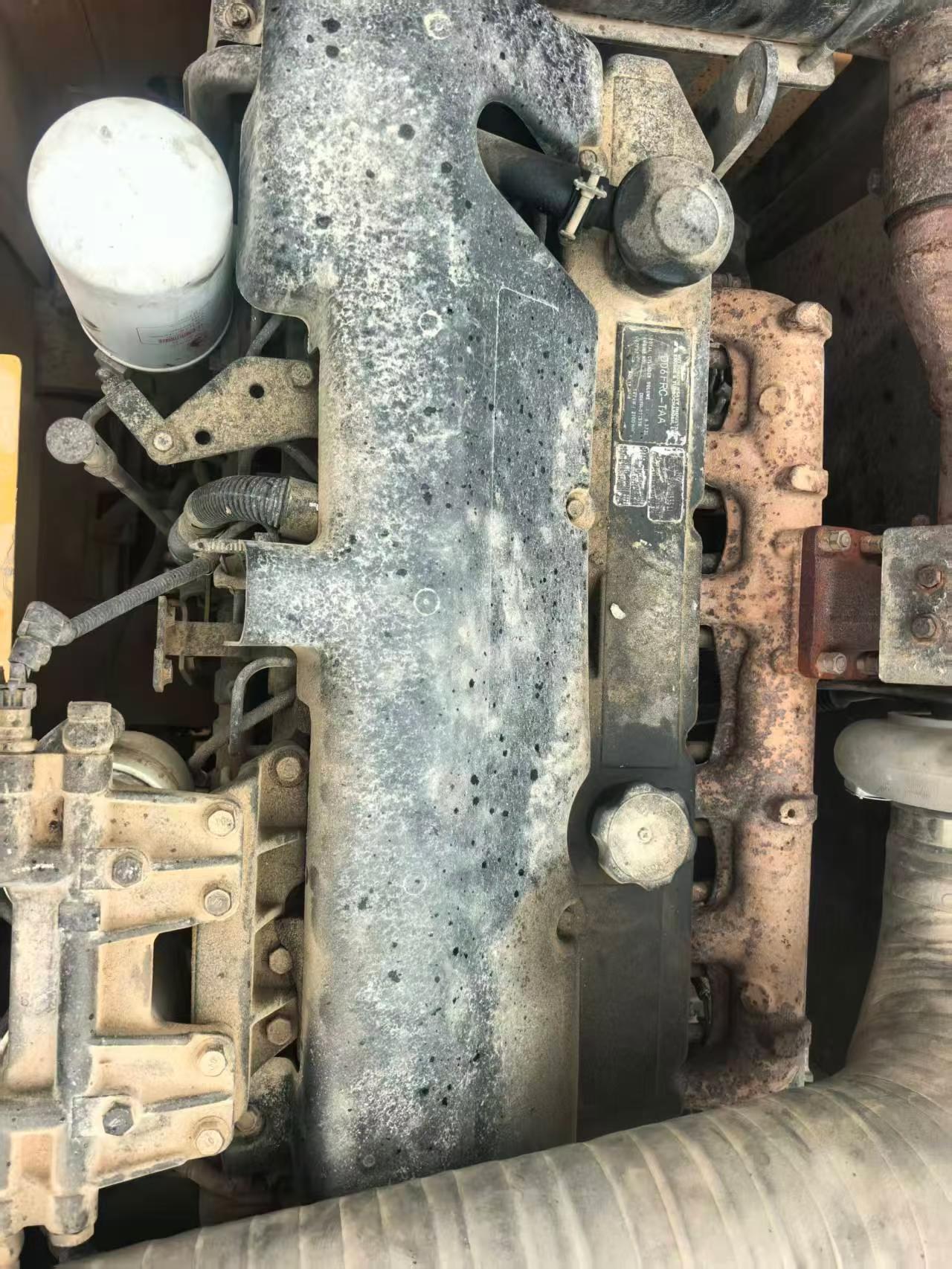

Proven performance defines this 2020 Sany SY245H excavator, a 24-ton workhorse engineered for demanding job sites. With over four years of field operation in Jiangsu Suqian, this machine demonstrates the exceptional build quality that has made Sany a trusted name in heavy construction. Powered by a robust D06FRC engine delivering 147kW at 2100rpm and 750N.m of torque, it combines reliable water-cooled technology with impressive digging capabilities—175kN bucket force and 120kN arm force tackle the toughest materials with confidence.
- 25,500kg working weight provides stable operation
- 1.5m³ bucket capacity maximizes productivity per cycle
- 10,225mm maximum digging radius extends operational reach
- 6,705mm digging depth handles deep excavation requirements
- 70% climbing ability conquers challenging terrain
- 475L fuel tank supports extended work shifts
Built to withstand years of continuous operation, this backhoe excavator represents dependable Chinese manufacturing at its finest. Its comprehensive dimensions and proven mechanical systems make it a cost-effective solution for contractors seeking reliable performance without compromise.
| Specifications | Value |
|---|---|
| No. | 1034154 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
