Product Description

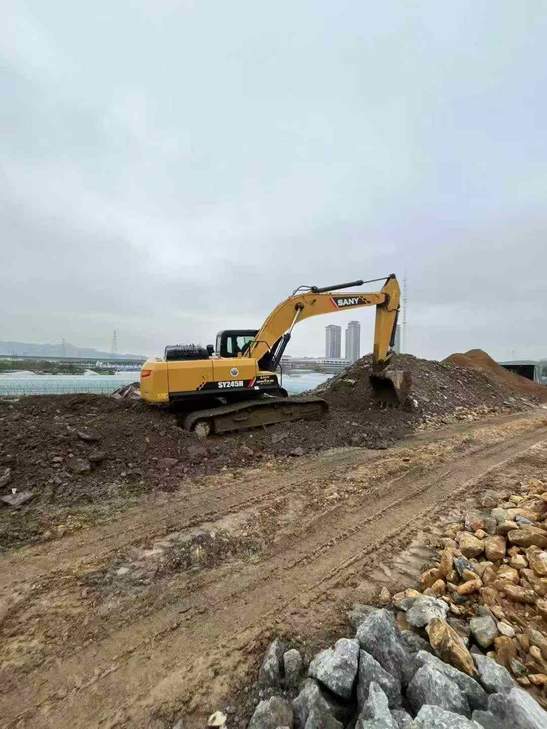

Built in 2020, this Sany SY245H delivers proven 24-ton performance backed by one of the industry's most reliable support networks. Powered by a robust D06FRC engine producing 147kW at 2100 rpm, this excavator handles demanding earthmoving tasks with a 1.5m³ bucket capacity and 175kN digging force. Currently located in Wenzhou, Zhejiang, this machine represents exceptional value in the used equipment market.
Sany's global parts distribution system ensures minimal downtime—critical when purchasing pre-owned machinery. With over 400 service centers worldwide, component availability far exceeds many competitors, protecting your investment and operational continuity. The brand's strong resale values reflect market confidence in their engineering quality and longevity.
- Working weight: 25,500kg with 10,225mm maximum digging radius
- Water-cooled 6-cylinder engine: 750N.m torque, 475L fuel capacity
- Transport dimensions: 10,290mm × 3,190mm × 3,190mm
- Enhanced mobility: 70% climbing ability, 5.4km/h travel speed
- Comprehensive hydraulics: 277L tank, 120kN arm digging force
Purchasing established brands like Sany minimizes risk. Parts obsolescence concerns vanish, technician
| Specifications | Value |
|---|---|
| No. | 1041065 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
