Product Description

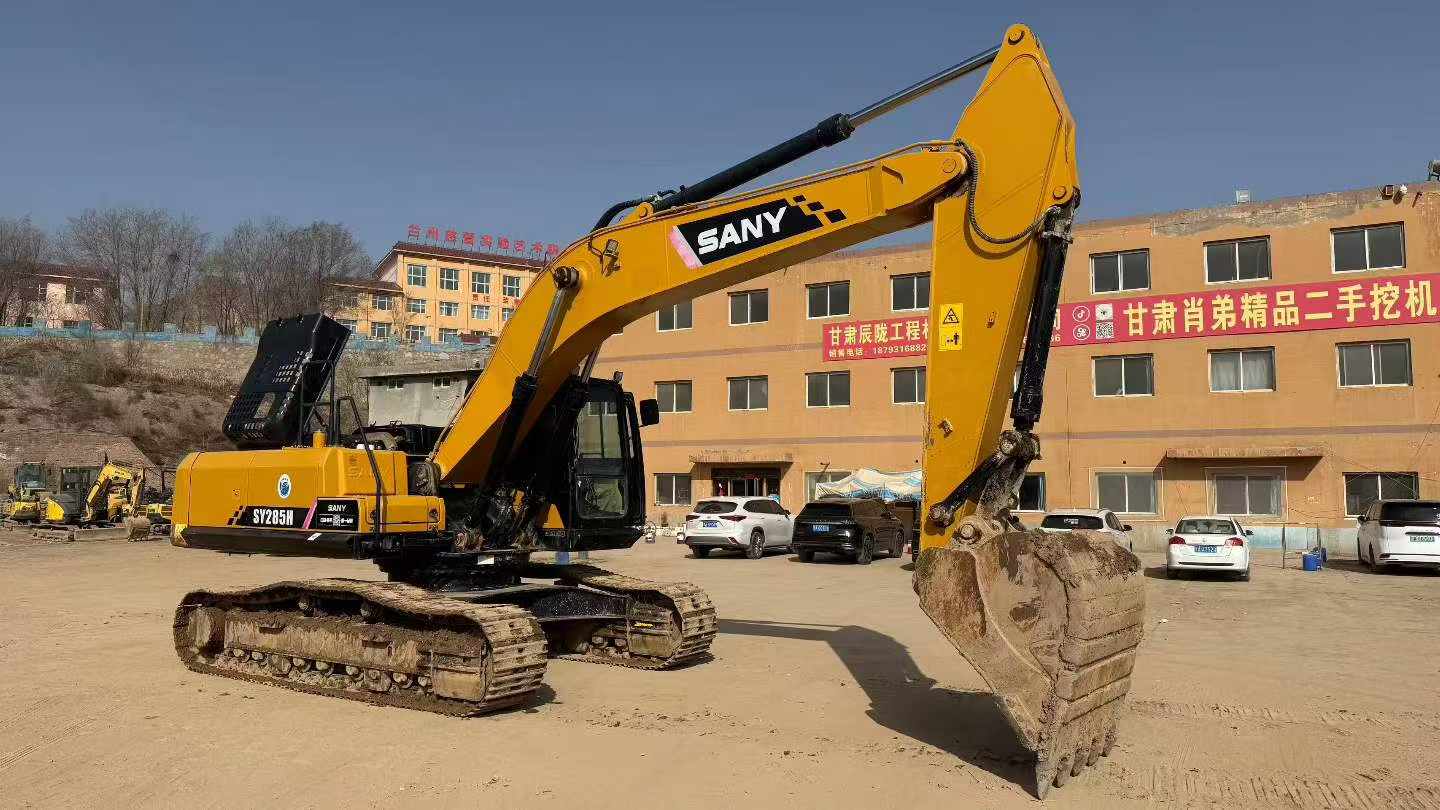

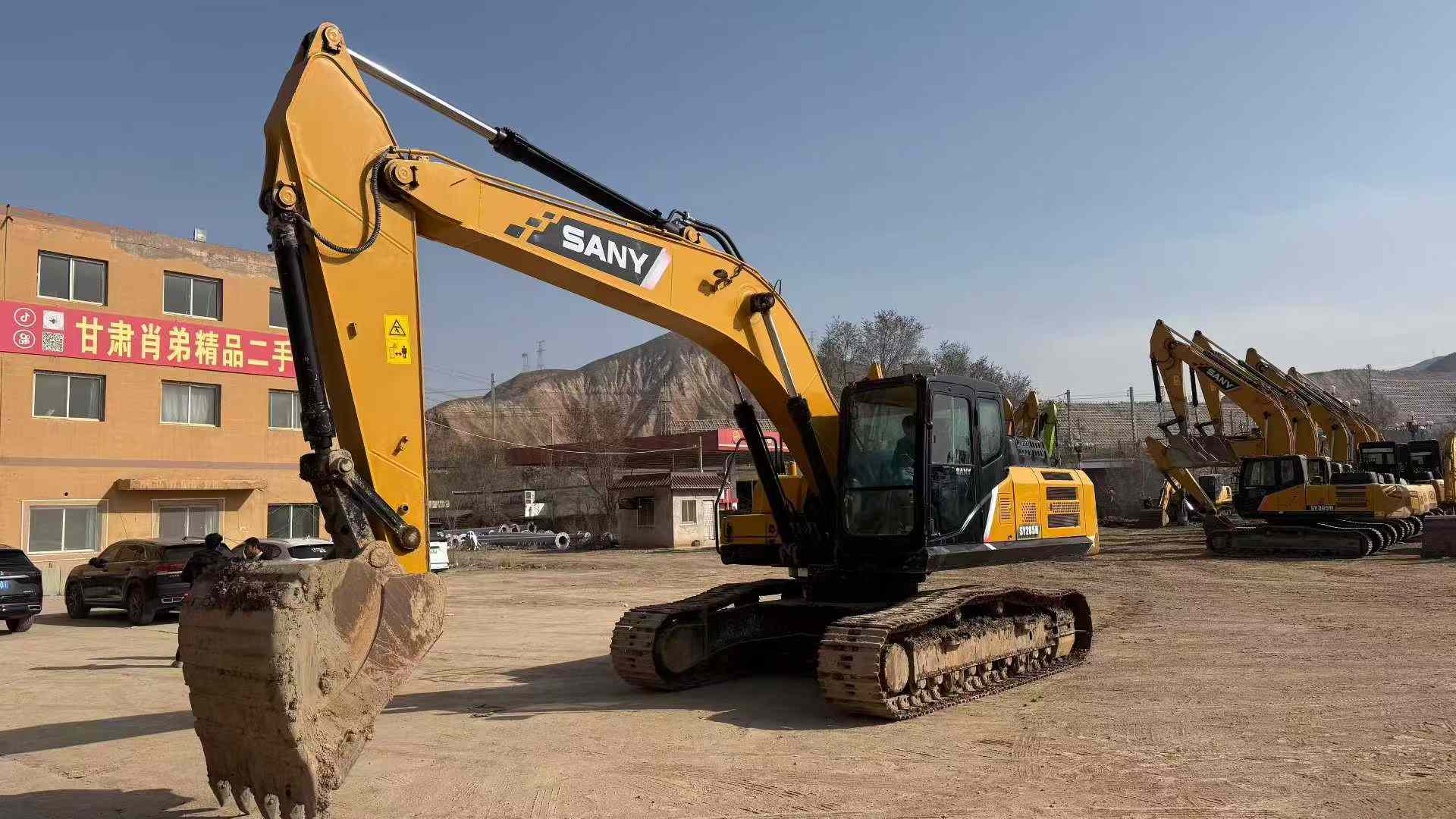

Built in 2020, this Sany SY245H medium-class excavator delivers proven performance with the long-term support infrastructure serious buyers demand. Operating at 24 tons with a robust 147kW D06FRC engine, this machine combines 175kN bucket digging force with a 10,225mm maximum reach—specifications that handle demanding excavation, loading, and grading applications across construction and mining sites.
Sany's global parts network ensures critical components remain accessible years after purchase, protecting your investment against costly downtime. With standardized service protocols and widespread dealer support, maintenance stays predictable and affordable. Strong resale values reflect the brand's reputation for durability, making this SY245H a financially sound choice for fleet expansion or replacement.
Currently located in Gansu, China, this water-cooled excavator features:
- 1.3–1.5m³ backhoe bucket capacity with 120kN arm force

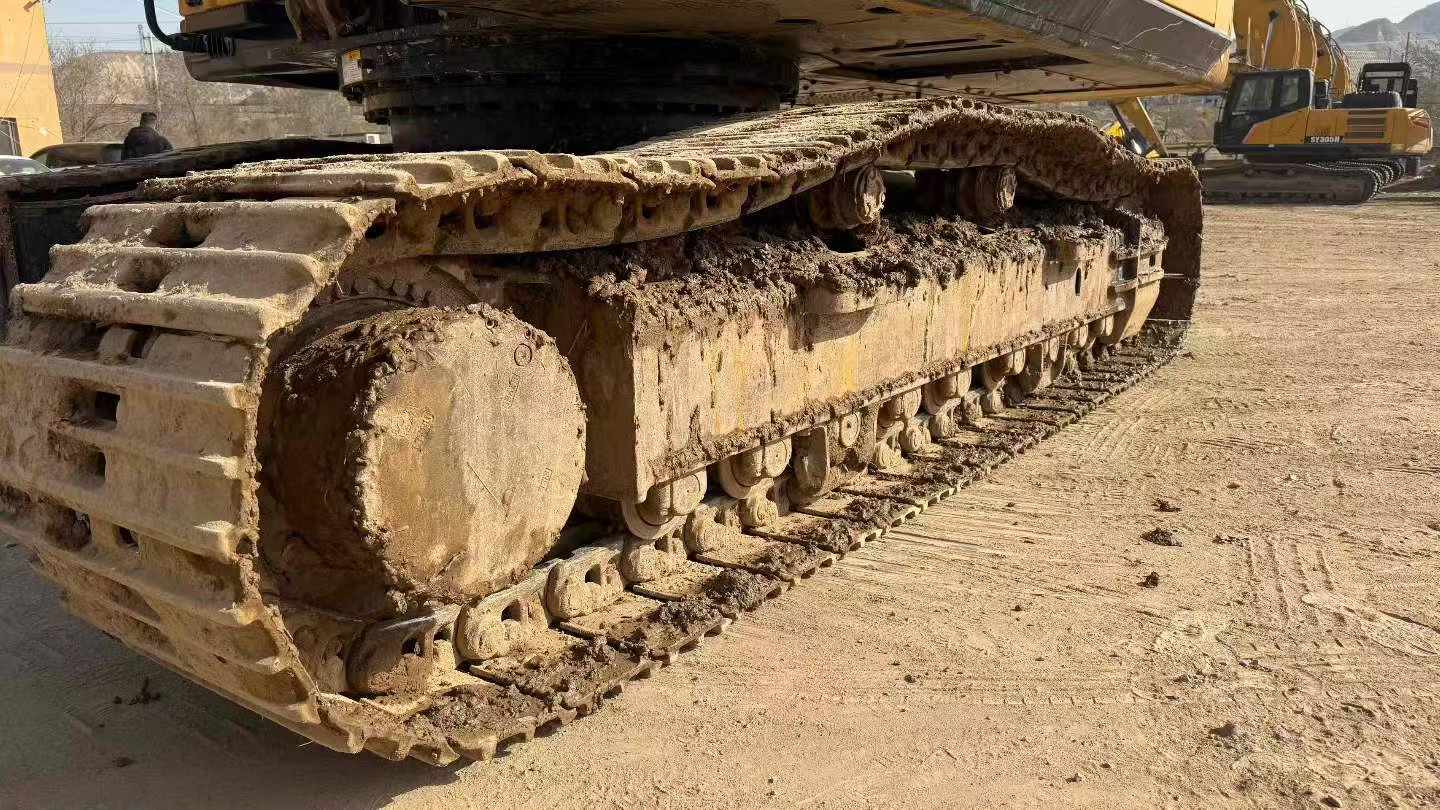

- 3,640mm track ground contact for 53.2kPa ground pressure and 70% gradeability
- 475L fuel tank supporting extended operational shifts
- Compact 3,190mm transport width for efficient relocation
Invest in equipment backed by manufacturer reliab
| Specifications | Value |
|---|---|
| No. | 1043426 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

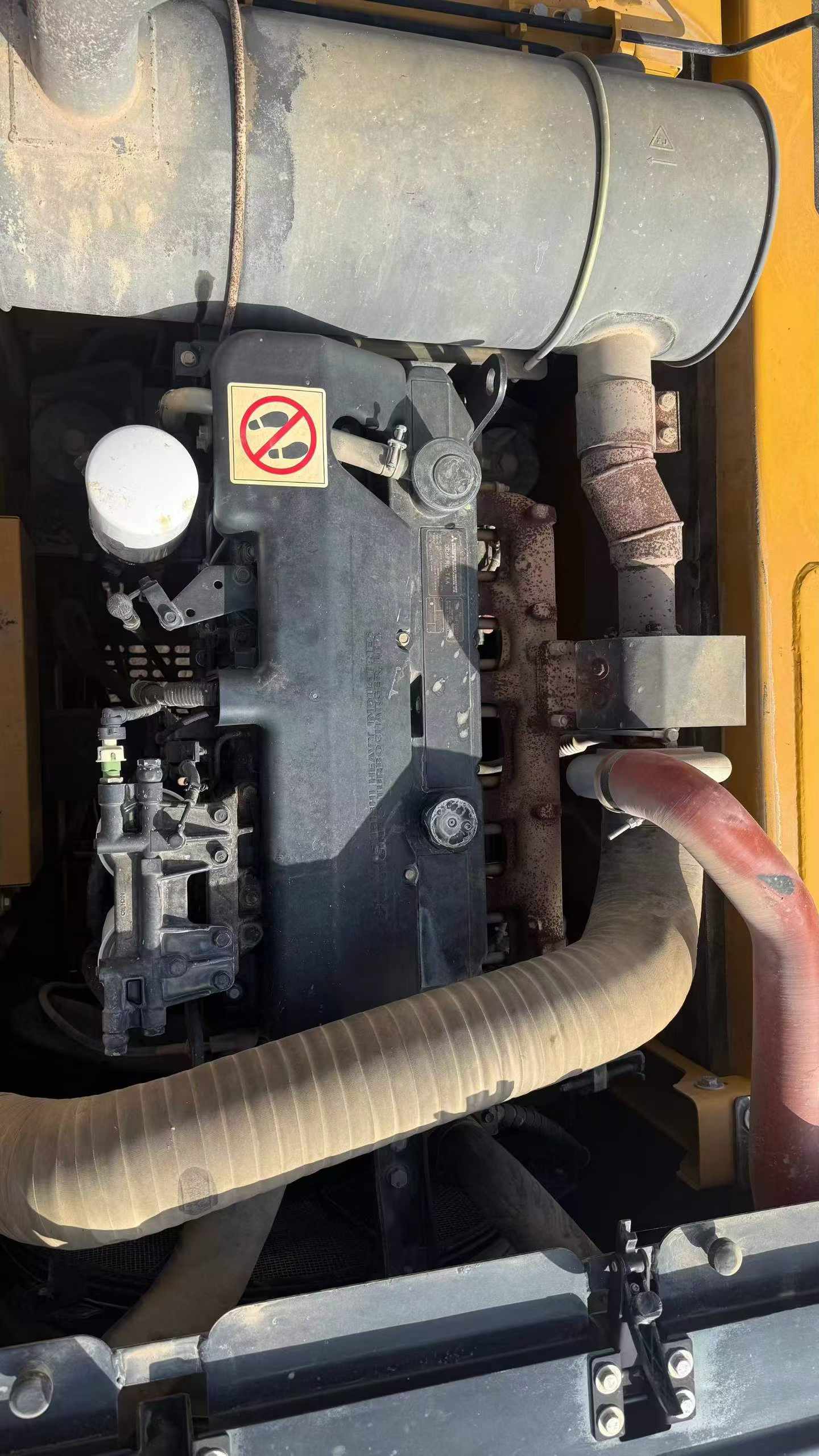

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
