2020 Sany SY245H

1/3
Buy Sany SY245H Used Excavator / 1

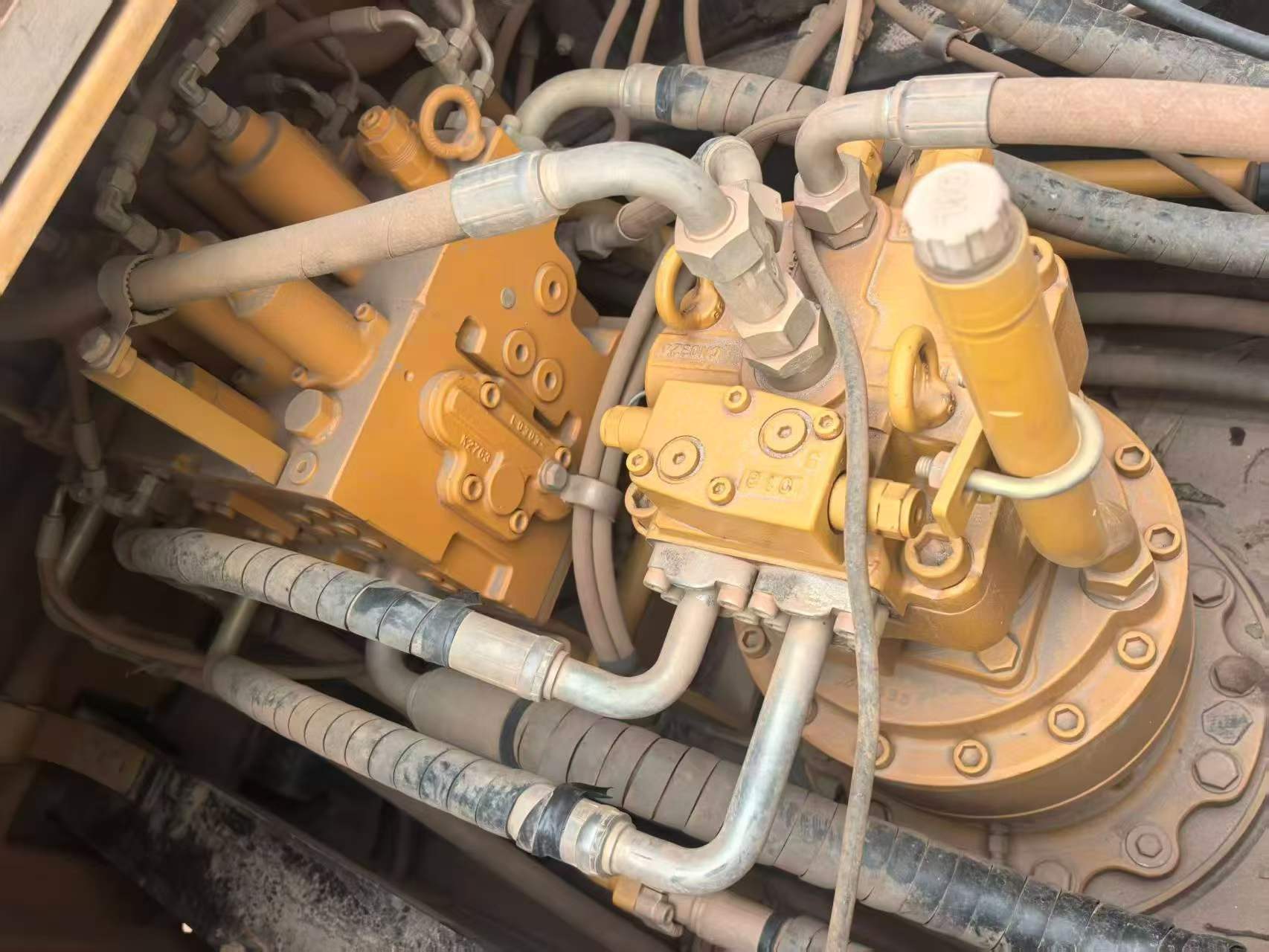

Buy Sany SY245H Used Excavator / 2

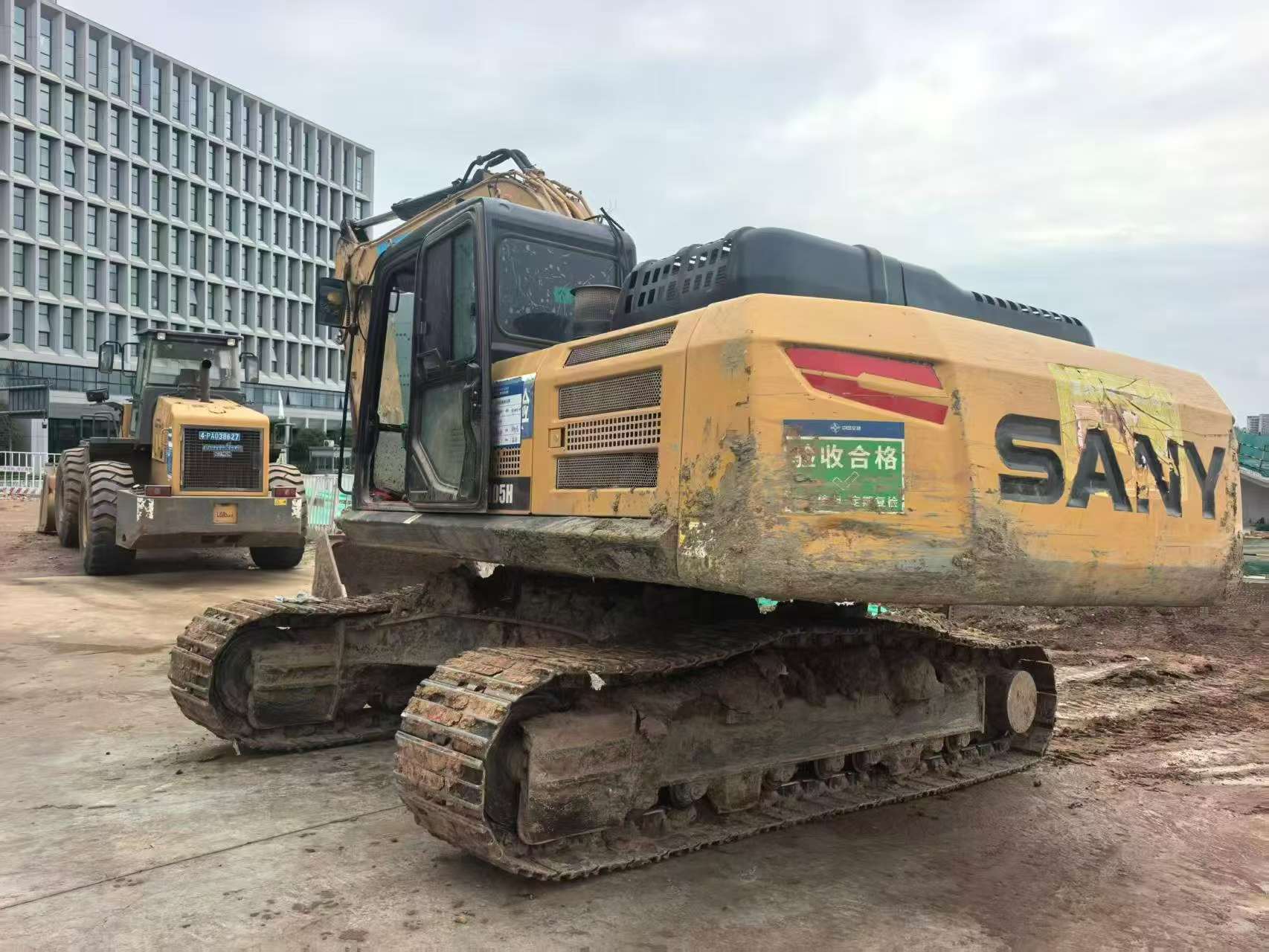

Buy Sany SY245H Used Excavator / 3

Product Description

This 2020 Sany SY245H hydraulic excavator is available from Sichuan, China. Originally deployed for local earthmoving operations in Chengdu, this machine represents a solid mid-size excavator option for contractors seeking reliable performance in excavation, grading, and material handling applications.

The SY245H is part of Sany's proven 24-ton class excavator lineup, designed for durability in demanding construction and earthwork environments. This unit has been maintained for local earthmoving projects and is now available for resale.

  • Year of Manufacture: 2020
  • Model: Sany SY245H
  • Location: Sichuan Province, China
  • Application History: Earthmoving operations
  • Condition: Used, operational

Suitable for contractors requiring a mid-range excavator with established service support throughout China. Inspection recommended prior to purchase.

SpecificationsValue
No.1074594
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1074594

Brand Name:

Sany

Model Number:

SY245H

Year:

2020

Location:

Sichuan China

Pub Date
