2020 Sany SY245H

1/9

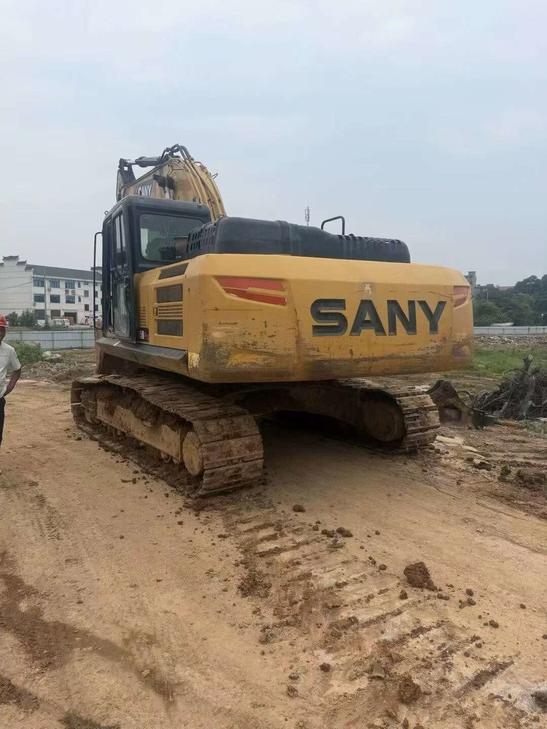

Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2

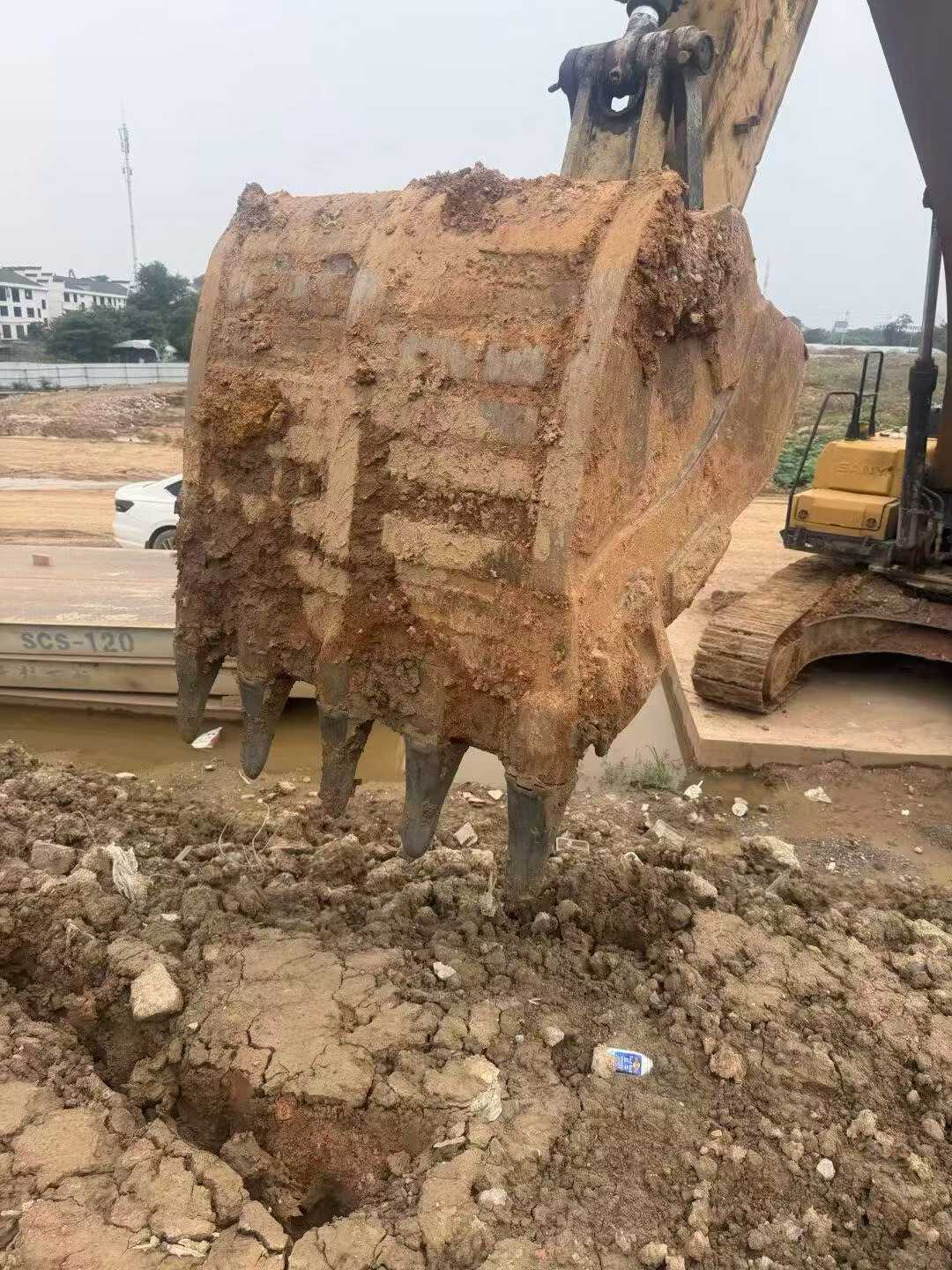

Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4

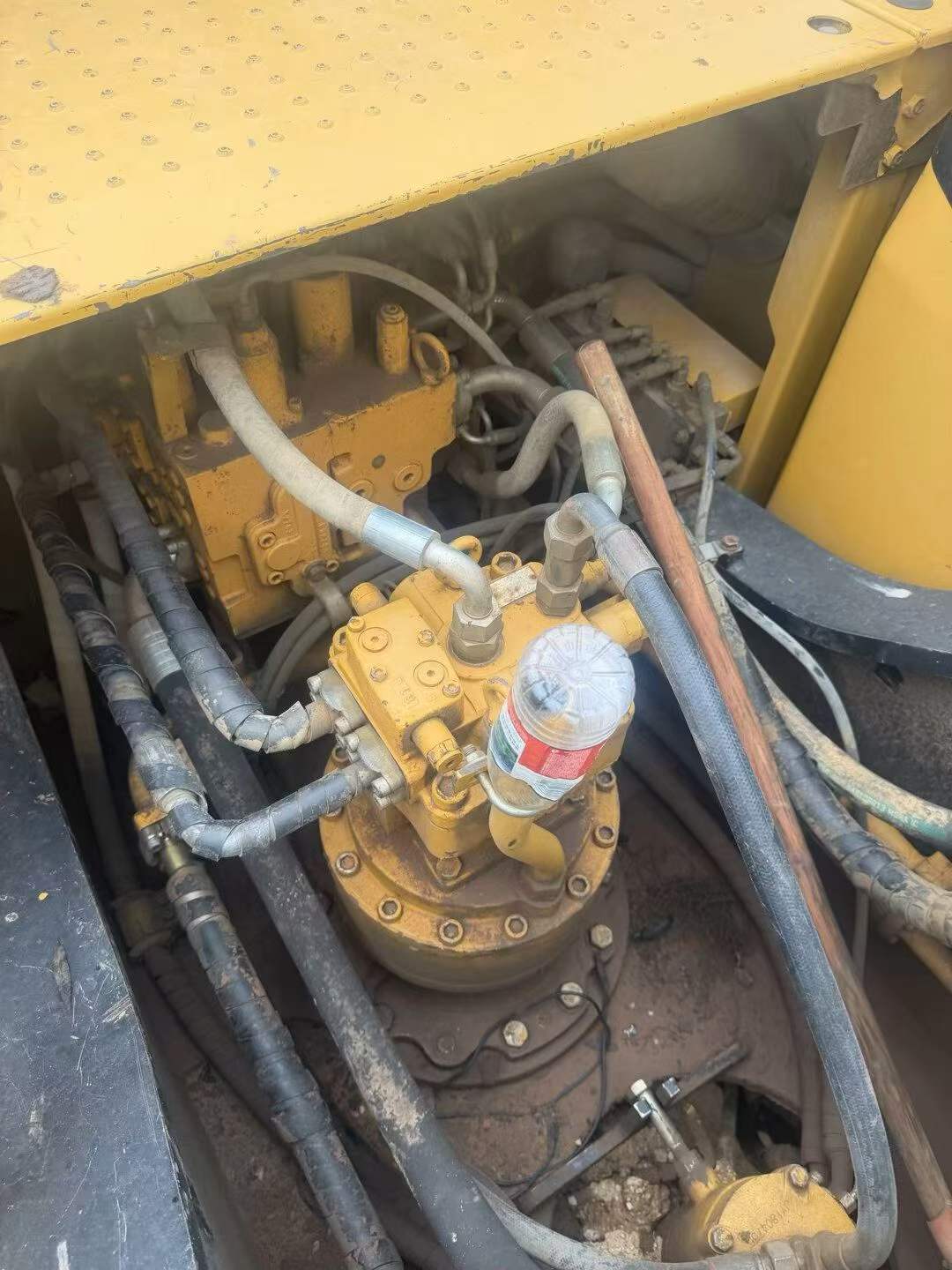

Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6

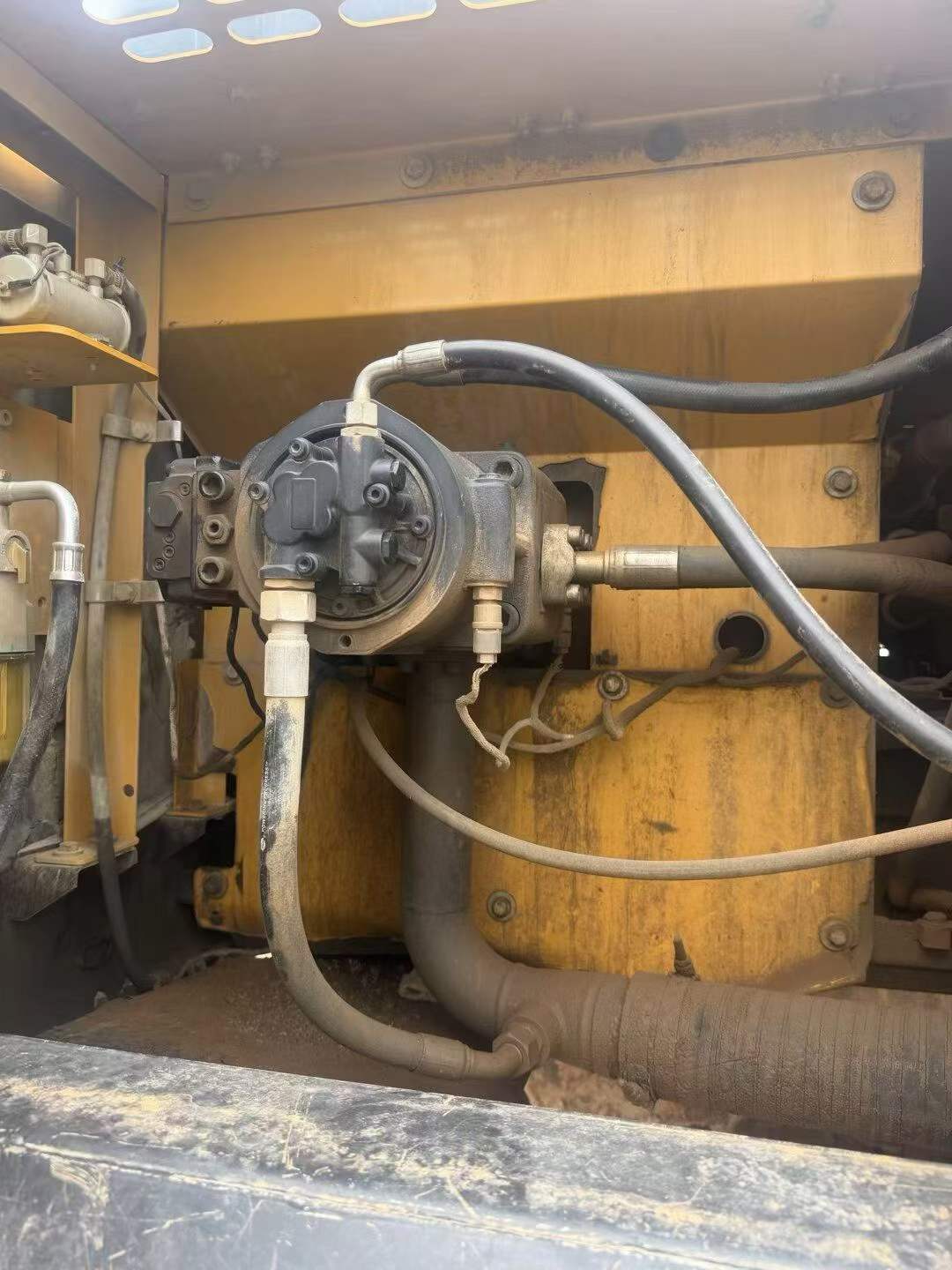

Buy Sany SY245H Used Excavator / 7

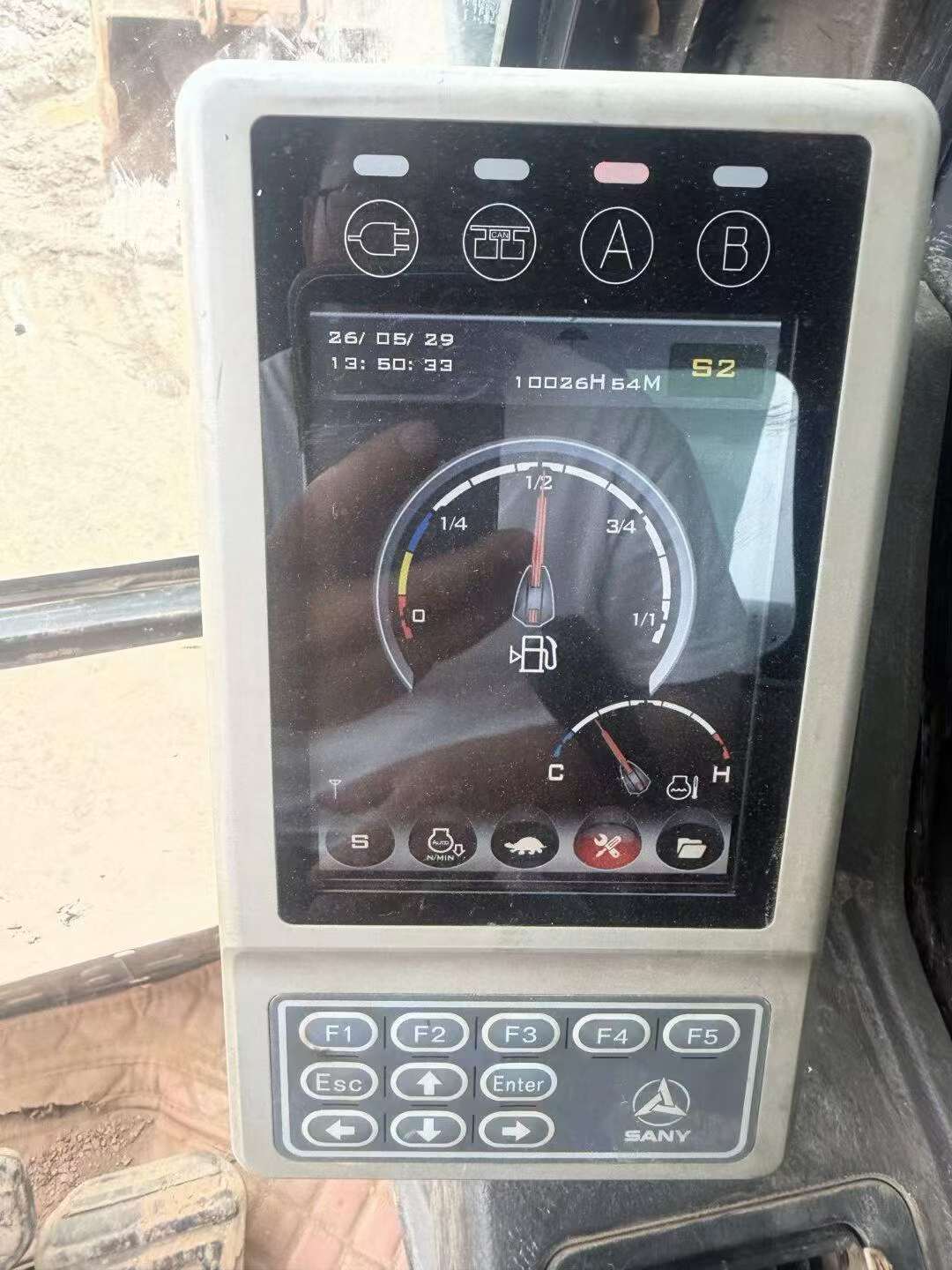

Buy Sany SY245H Used Excavator / 8

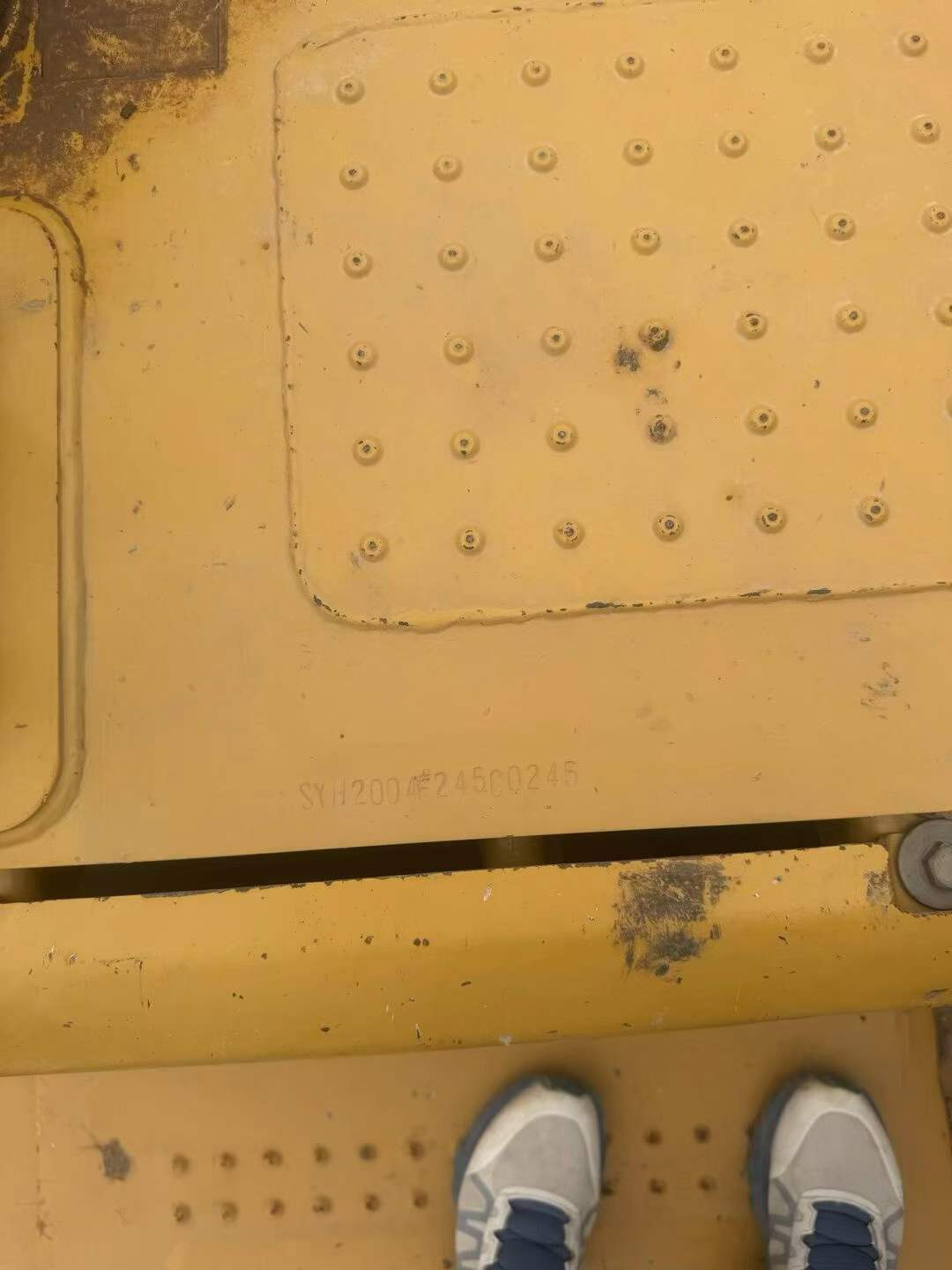

Buy Sany SY245H Used Excavator / 9

Product Description

This 2020 Sany SY245H hydraulic excavator offers reliable performance for medium to heavy-duty earthmoving applications. With approximately four years of operational history, this machine represents proven Sany engineering in the 24-ton class. The SY245H is designed for versatility across construction, mining, and infrastructure projects.

Currently located in Zhejiang, China, this excavator is available for inspection and export coordination. The unit has been maintained in working condition and is ready for deployment.

  • Manufacturer: Sany Heavy Industry
  • Model: SY245H
  • Year of Manufacture: 2020
  • Operating Weight Class: ~24 tons
  • Location: Zhejiang Province, China
  • Condition: Used, operational

Suitable for contractors and operators seeking dependable mid-range excavation capacity. Contact us for detailed specifications, current machine hours, and shipping arrangements.

SpecificationsValue
No.1074951
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1074951

Brand Name:

Sany

Model Number:

SY245H

Year:

2020

Location:

Zhejiang China

Pub Date

Are you interested in this machine?

Please contact us
