Product Description

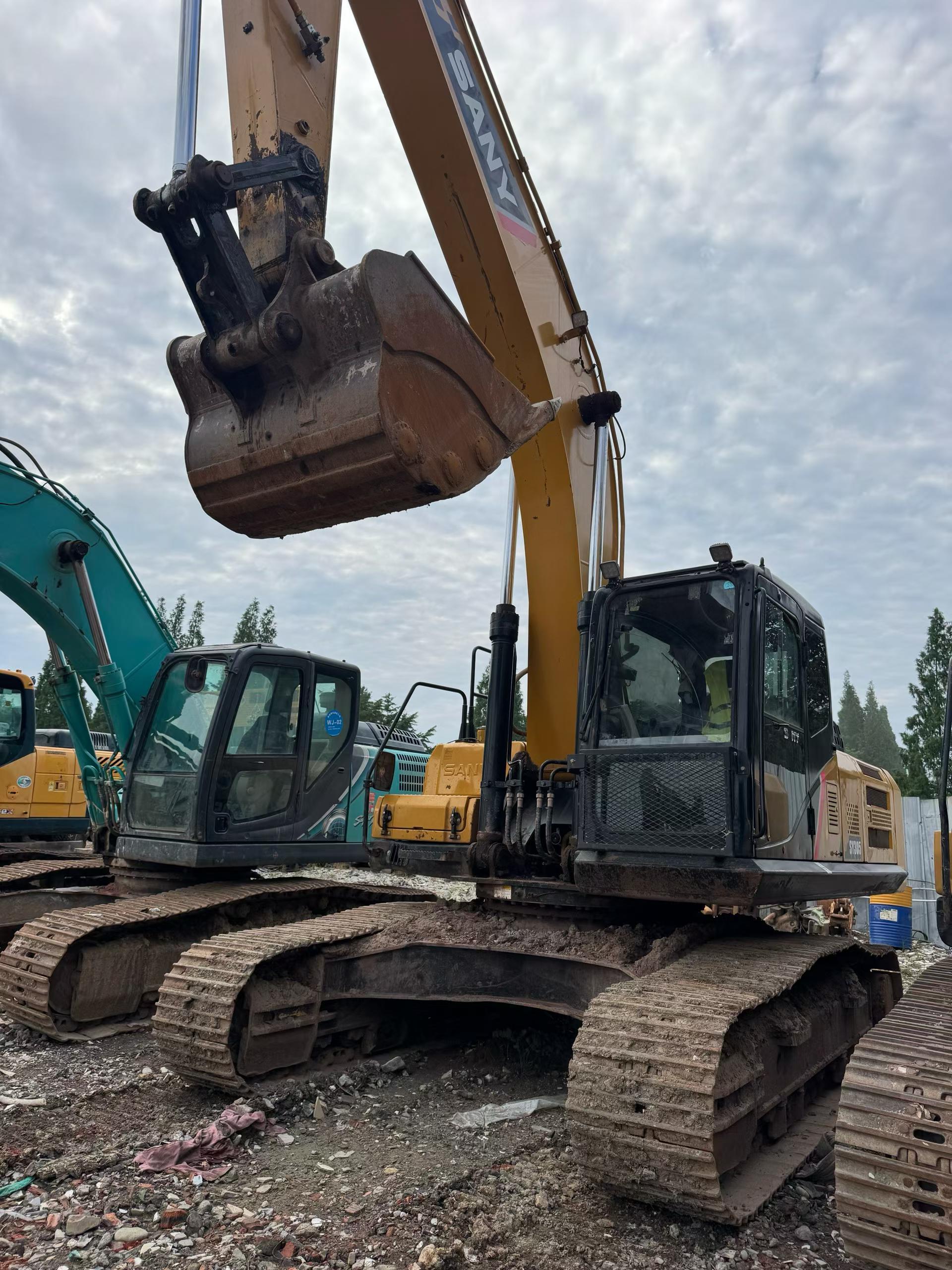

Well-maintained 2020 Sany SY245H hydraulic excavator available for immediate acquisition. This 24-ton class machine was manufactured in May 2020 and demonstrates exceptional operational condition with comprehensive maintenance history. Currently located in Sichuan Province, China, this unit represents excellent value for contractors seeking reliable performance in earthmoving, demolition, and general construction applications.

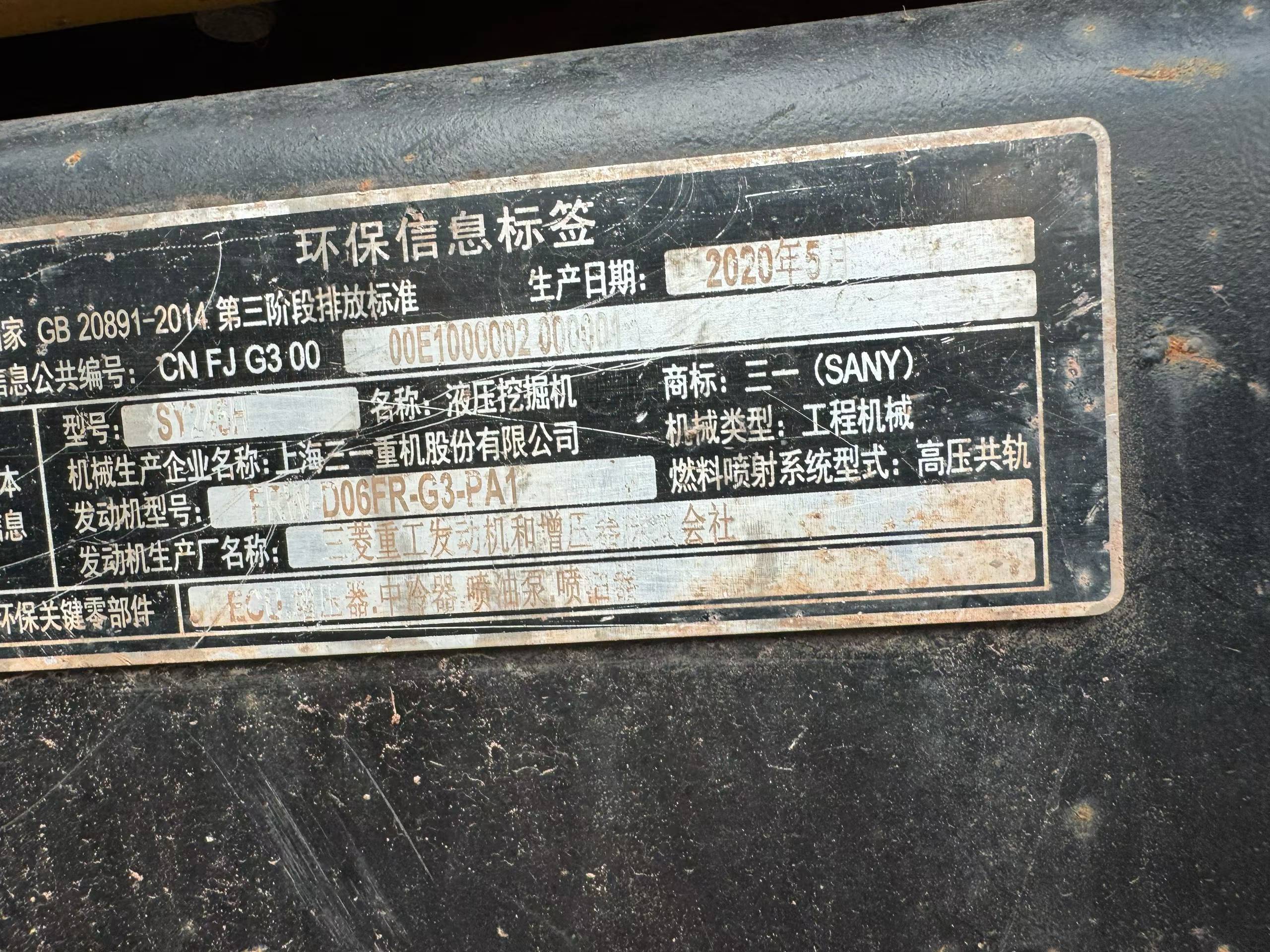

- Year of Manufacture: May 2020
- Model: Sany SY245H
- Operating Weight: Approximately 24,500 kg
- Location: Sichuan, China
- Condition: Inspection-ready, verified working order
- Competitive pricing for immediate sale

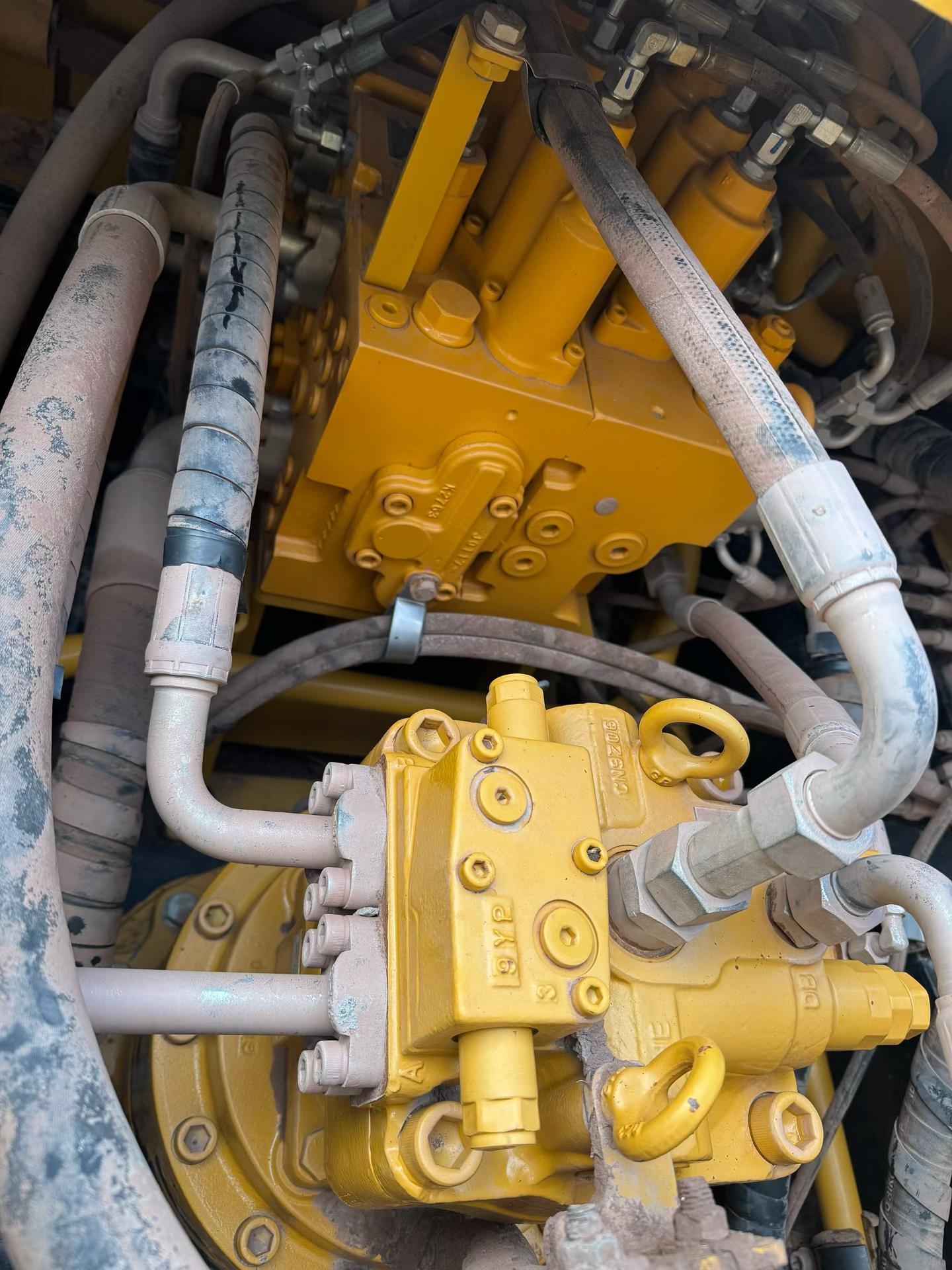

This excavator features Sany's proven hydraulic system and fuel-efficient engine design. Suitable for medium to heavy-duty operations. All major components operational. Ideal for buyers seeking cost-effective used equipment with remaining service life. Contact for detailed specifications and viewing arrangements.
| Specifications | Value |
|---|---|
| No. | 1081384 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

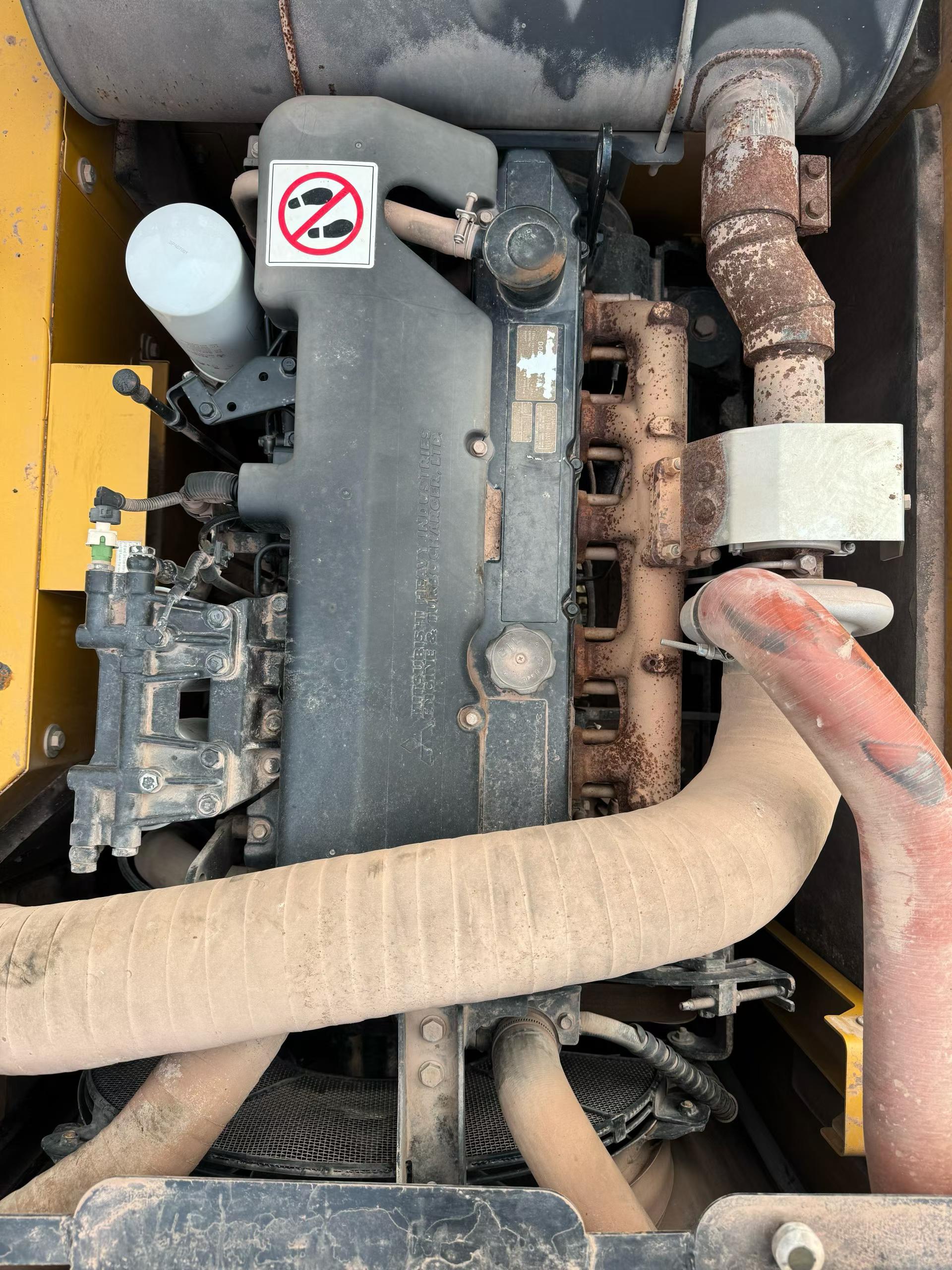

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
