Product Description

2020 Sany SY245H hydraulic excavator available in Zhejiang, China. This 24-ton class machine represents one of Sany's most proven mid-size excavator platforms, widely recognized for earthmoving efficiency and loading operations. The SY245H combines reliable hydraulic performance with fuel economy, making it suitable for general construction, site development, and material handling applications.

Key features include:

  • Proven track record in high-volume earthwork projects
  • Efficient loading cycle times for truck operations
  • Robust undercarriage designed for extended service life
  • Sany's proprietary hydraulic system for responsive control
  • Well-maintained unit from original purchase year

This excavator offers a practical balance of digging force, reach, and operating weight for contractors seeking dependable performance in demanding work environments. Inspection welcome.

SpecificationsValue
No.1085315
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe

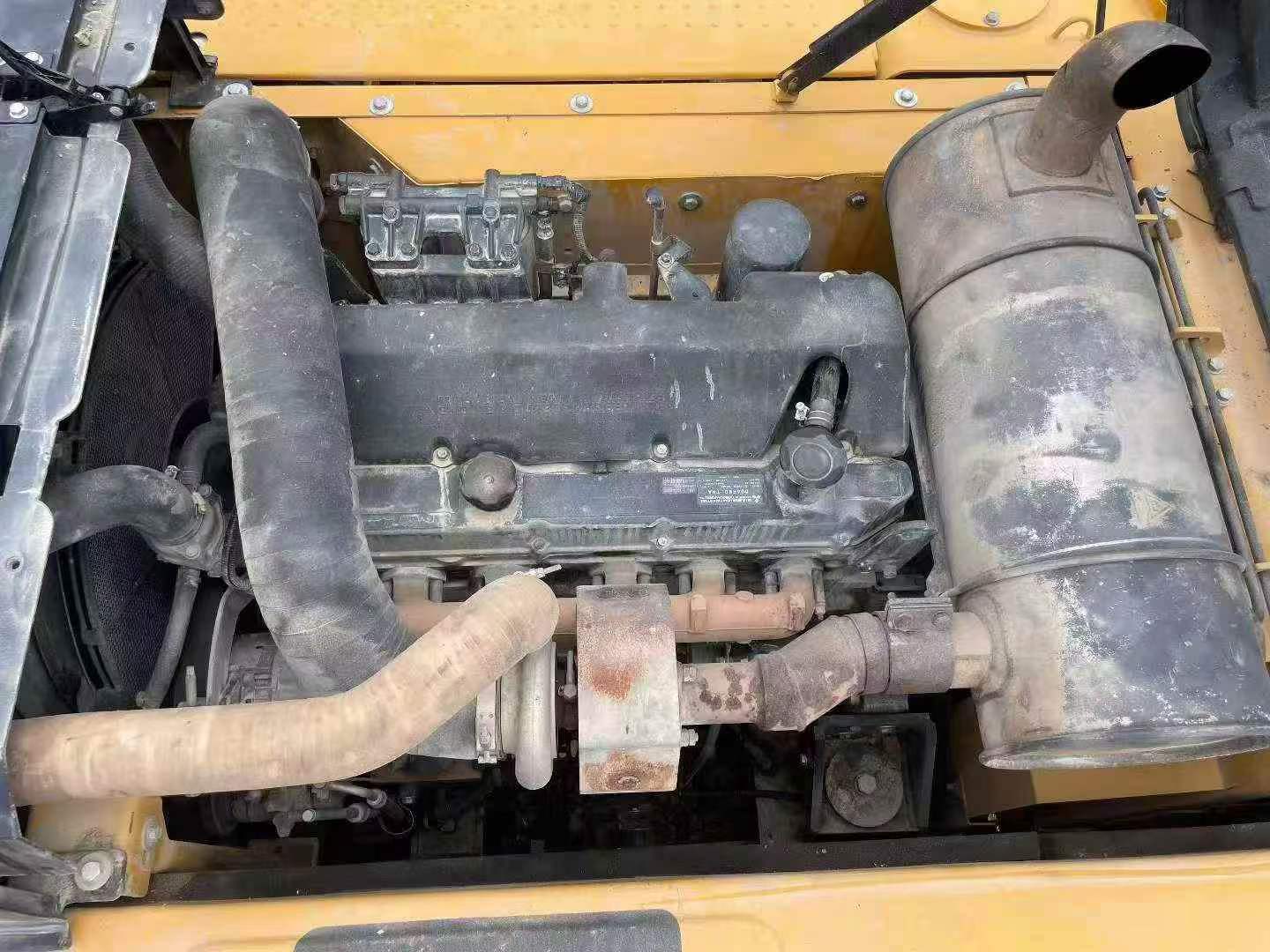

Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
