Product Description

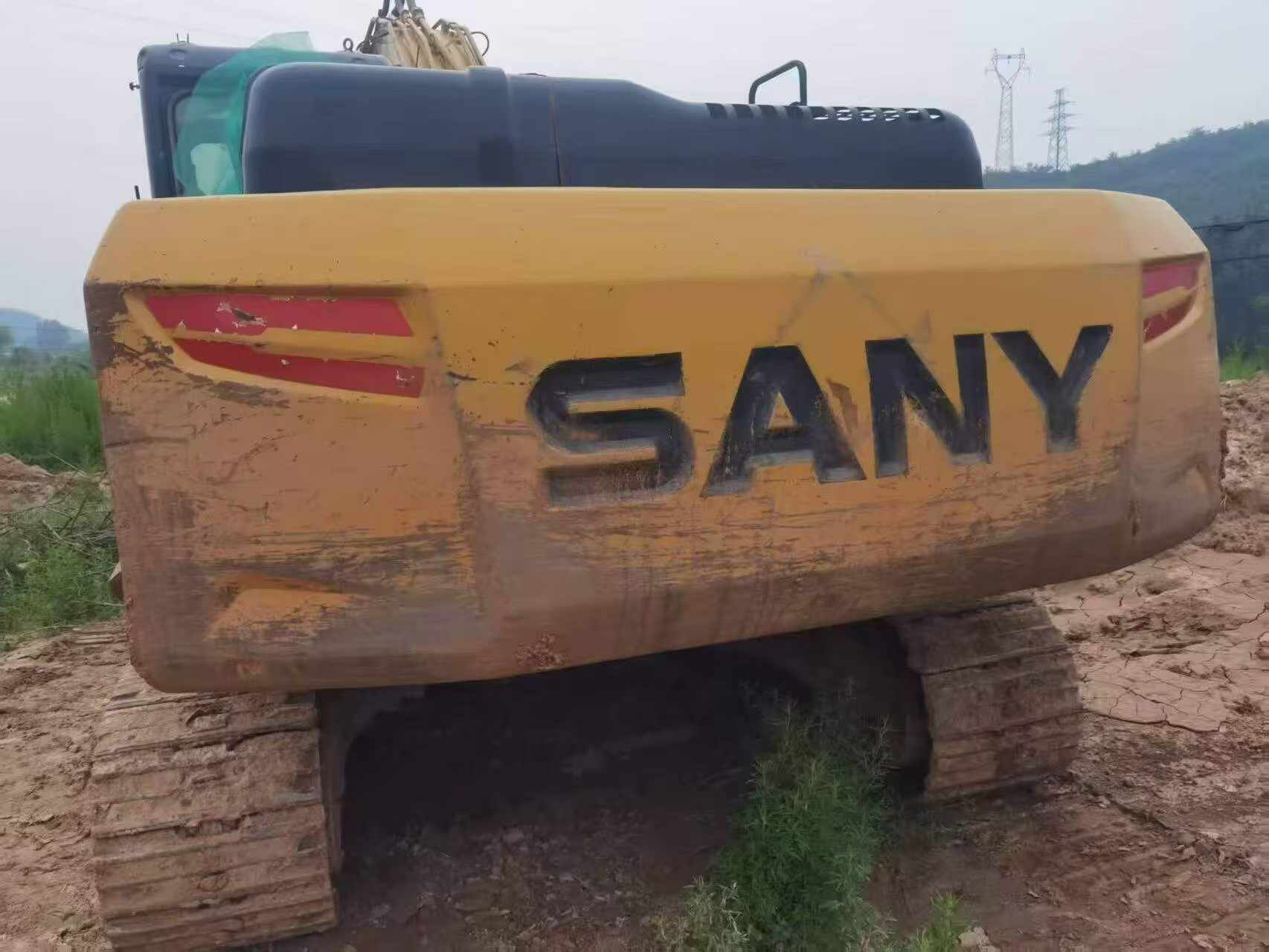

This 2020 Sany SY245H hydraulic excavator represents a solid mid-size solution for heavy-duty construction and earthmoving operations. With approximately 223,000 RMB in documented usage value, this machine from Sany's proven H-series lineup delivers reliable performance for contractors and industrial operators. Currently located in Zhejiang, China, this unit offers good access to regional shipping routes and logistics networks.
The SY245H is designed for demanding applications including excavation, trenching, material handling, and site development. As a 2020 model, this excavator benefits from Sany's modern engineering standards and component quality.
- Year of Manufacture: 2020
- Model: Sany SY245H
- Category: Medium Hydraulic Excavator
- Current Location: Zhejiang Province, China
- Operational Value: 223,000 RMB
Ideal for construction companies seeking dependable excavation equipment with established manufacturer support throughout Asia-Pacific markets.
| Specifications | Value |
|---|---|
| No. | 1088483 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

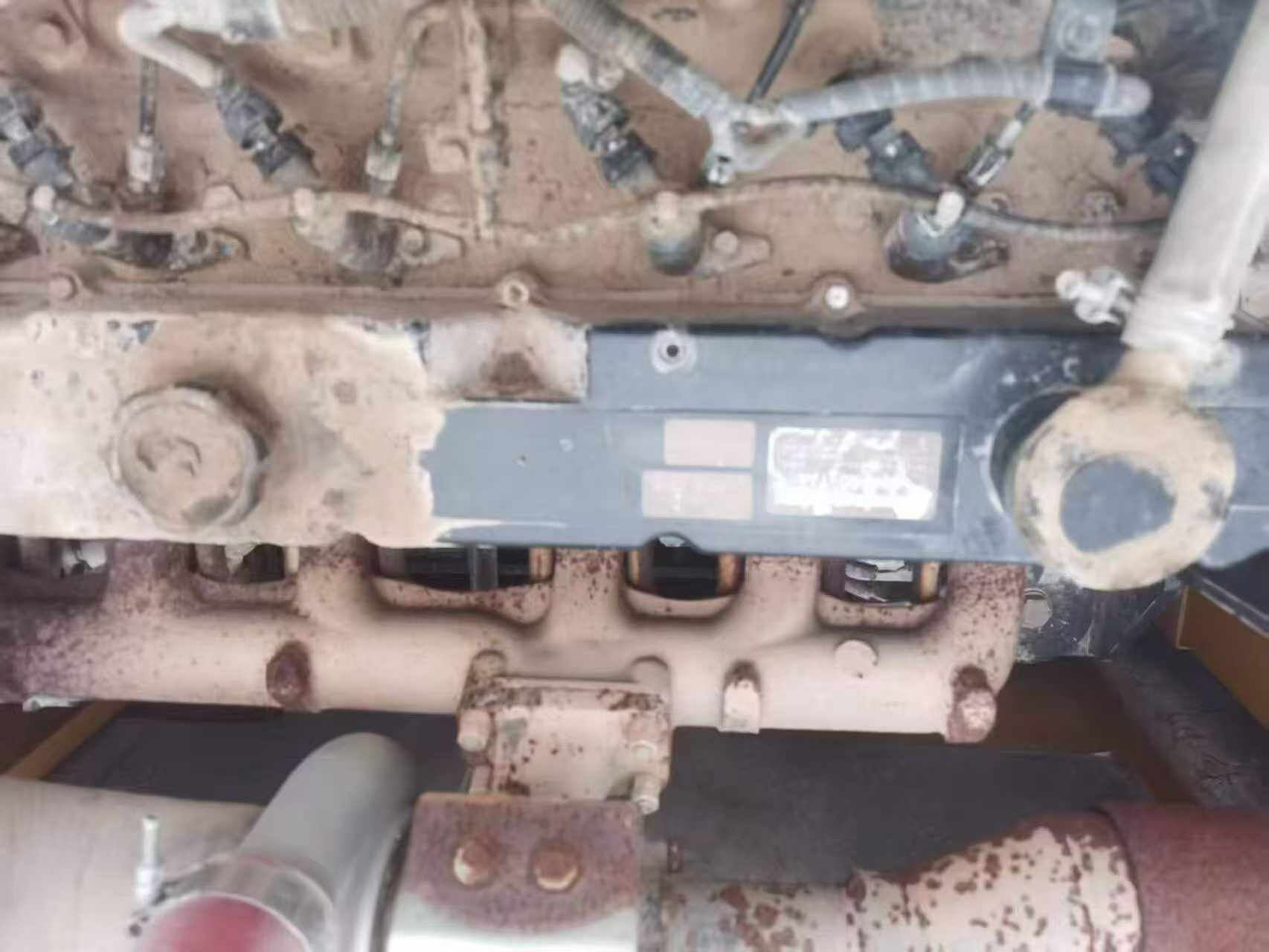

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
