Product Description

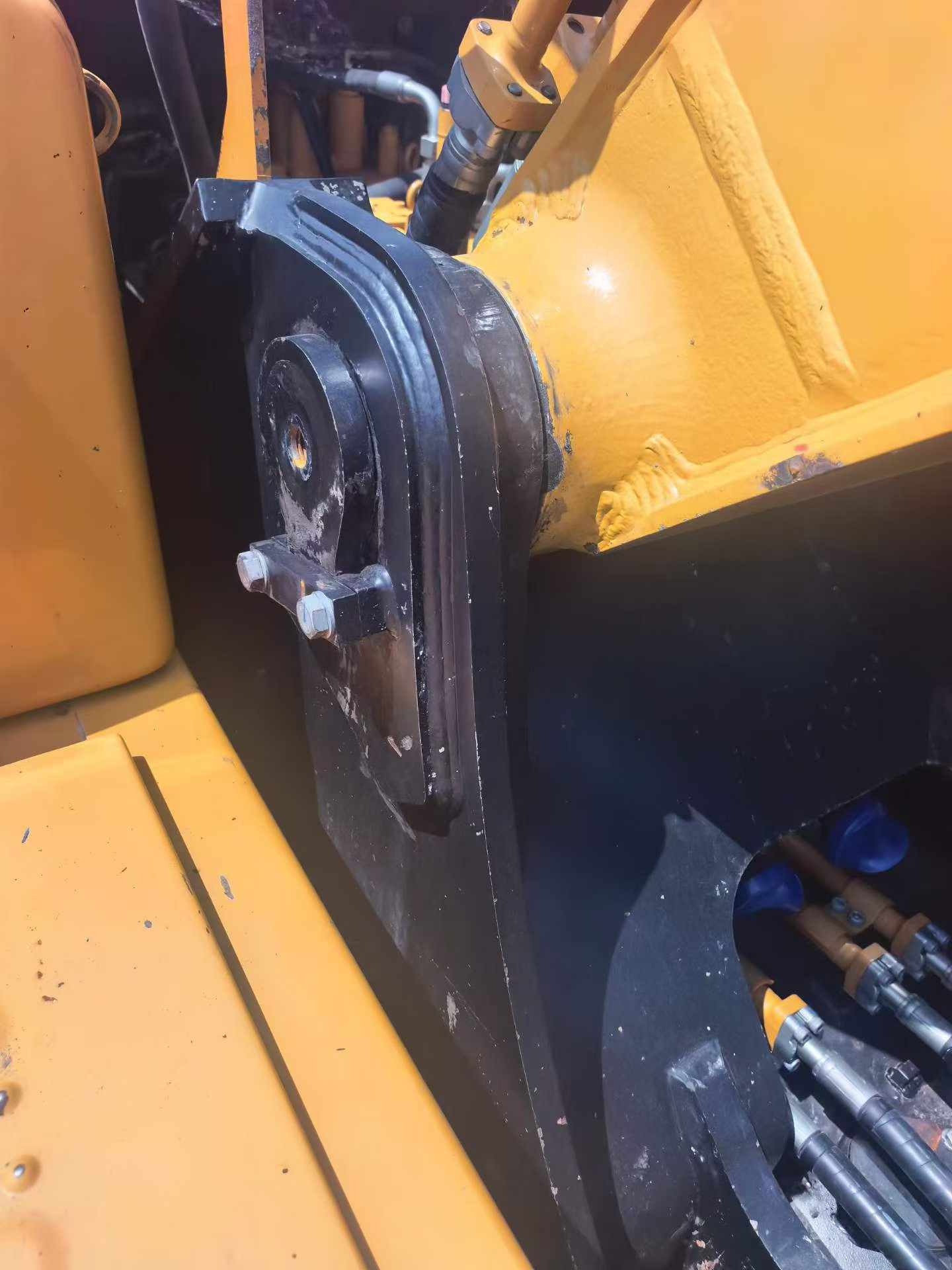

This 2020 Sany SY245H excavator represents a well-maintained mid-size machine from one of China's leading heavy equipment manufacturers. Currently located in Fujian, China, this unit from October 2020 production offers reliable performance for earthmoving, construction, and demolition applications.
The SY245H is recognized in the industry for its robust hydraulic system and fuel efficiency in the 24-ton class. This particular unit has been maintained in excellent condition, making it suitable for contractors seeking dependable equipment without the premium of new machinery.
Key features include:
- 2020 model year with documented maintenance history
- Sany's proven hydraulic technology for consistent performance
- Suitable for medium-scale excavation and material handling
- Available for inspection in Fujian, China
Ideal for buyers seeking quality used equipment from an established manufacturer with strong aftermarket support throughout Asia and emerging markets worldwide.
| Specifications | Value |
|---|---|
| No. | 1093841 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
