2020 Sany SY245H

1/6
Buy Sany SY245H Used Excavator / 1

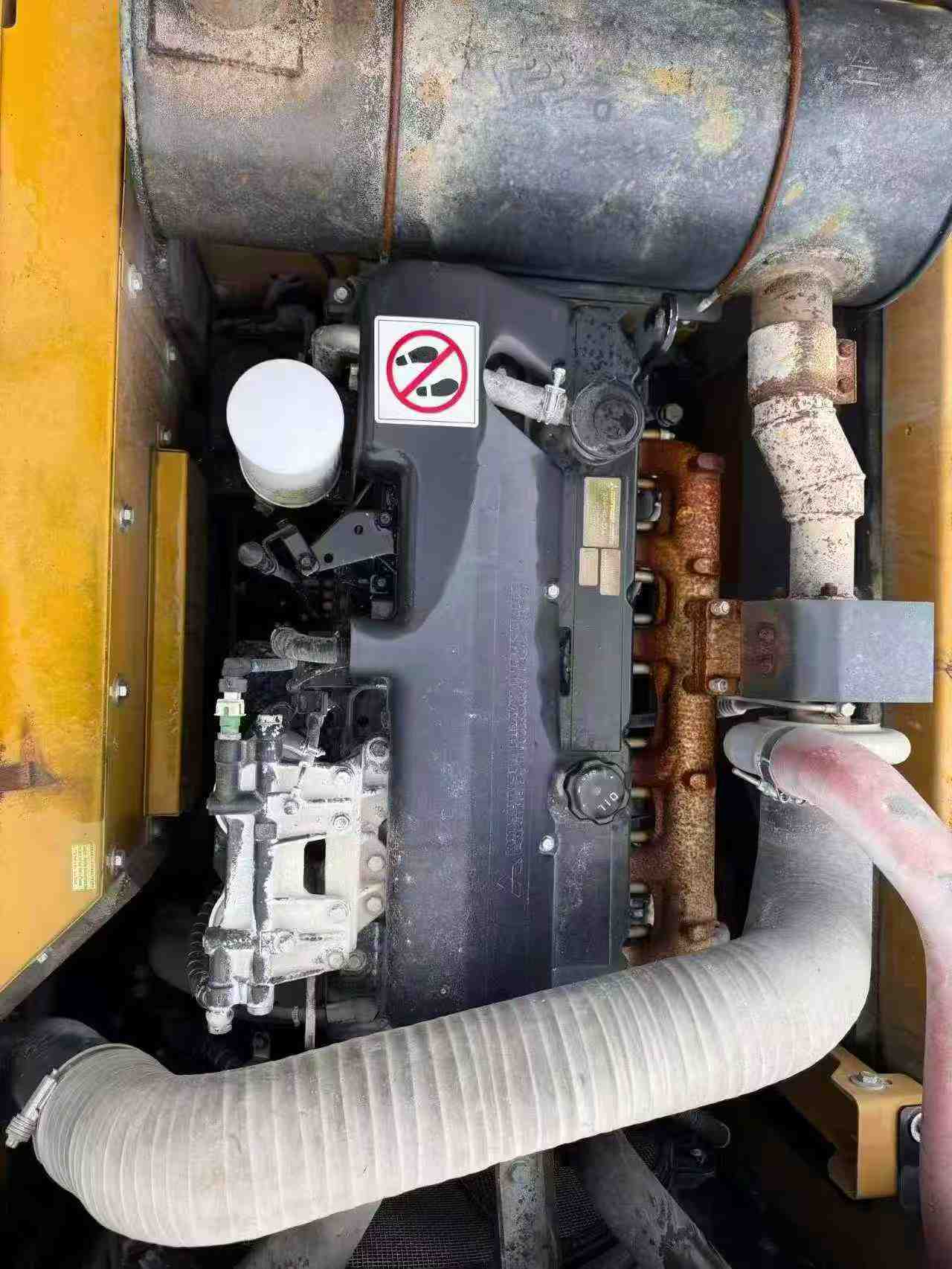

Buy Sany SY245H Used Excavator / 2

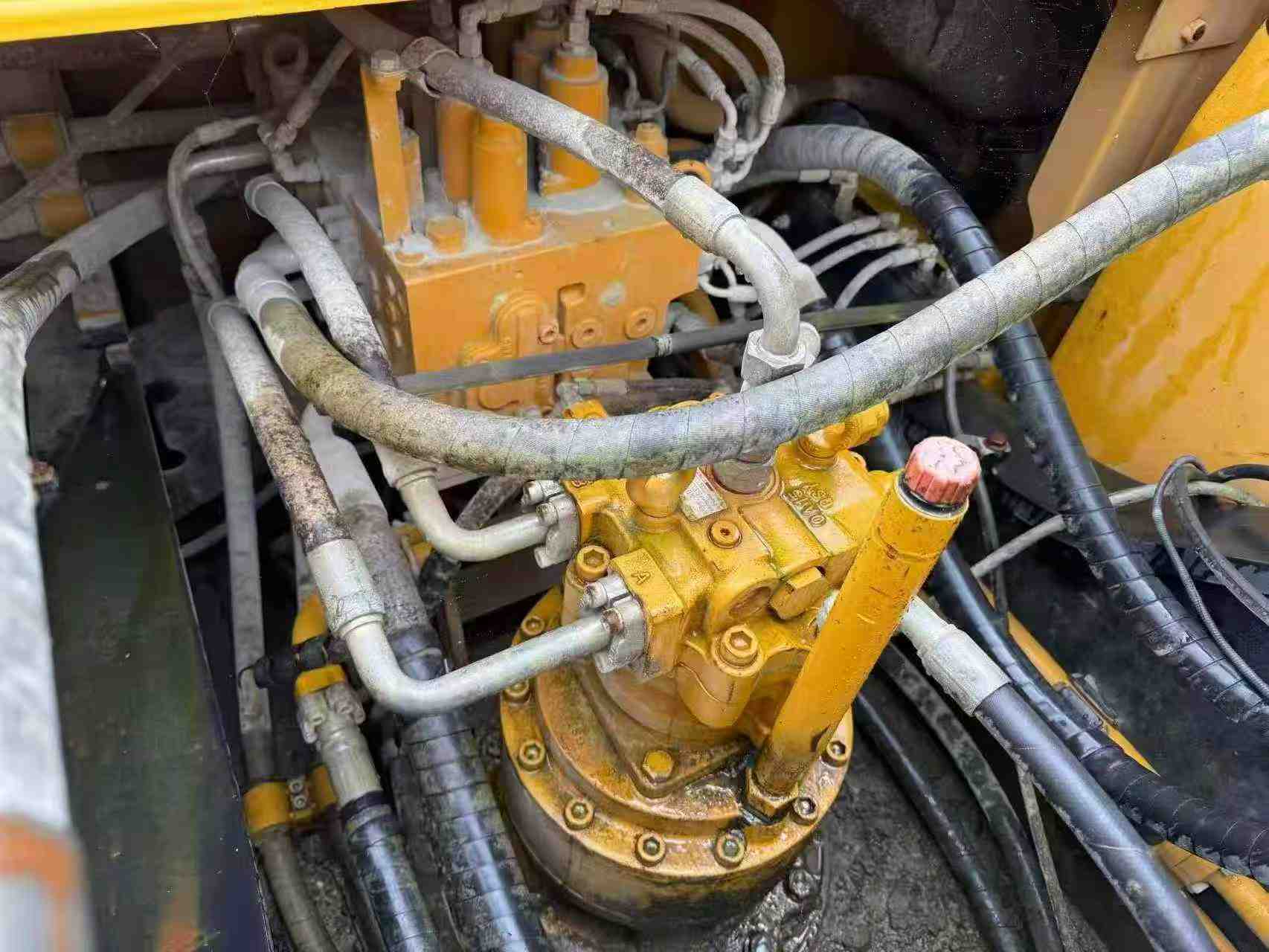

Buy Sany SY245H Used Excavator / 3

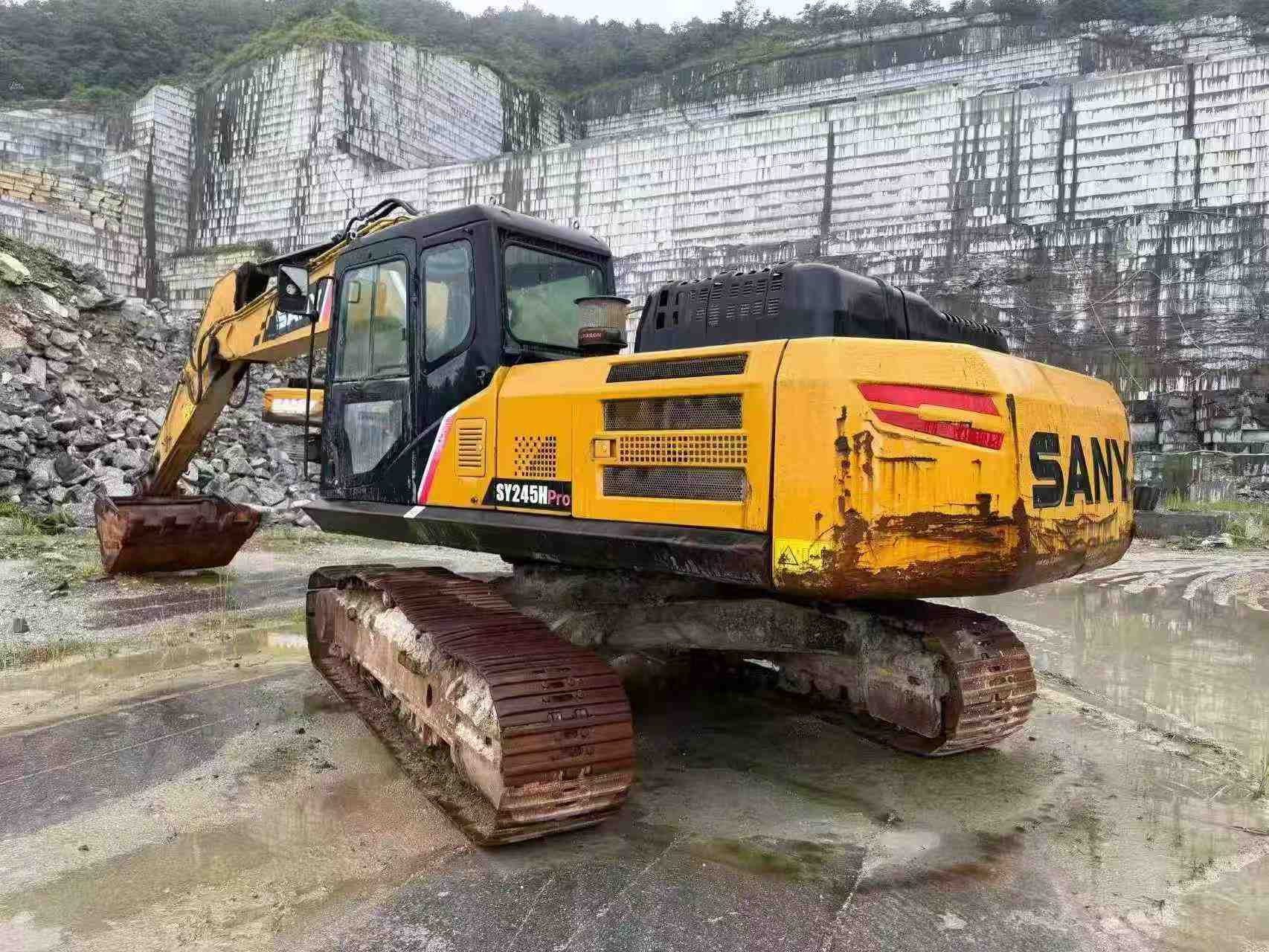

Buy Sany SY245H Used Excavator / 4

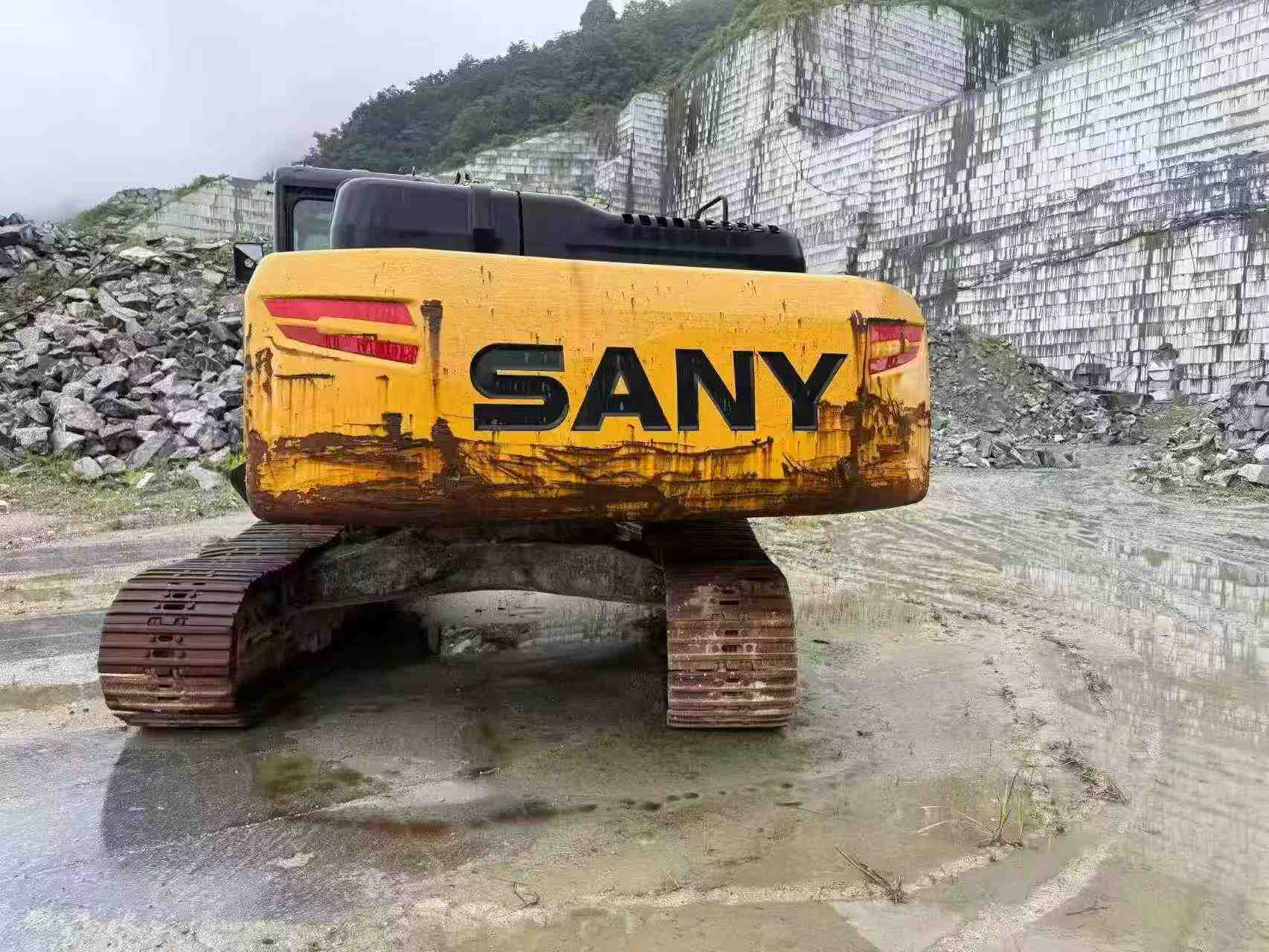

Buy Sany SY245H Used Excavator / 5

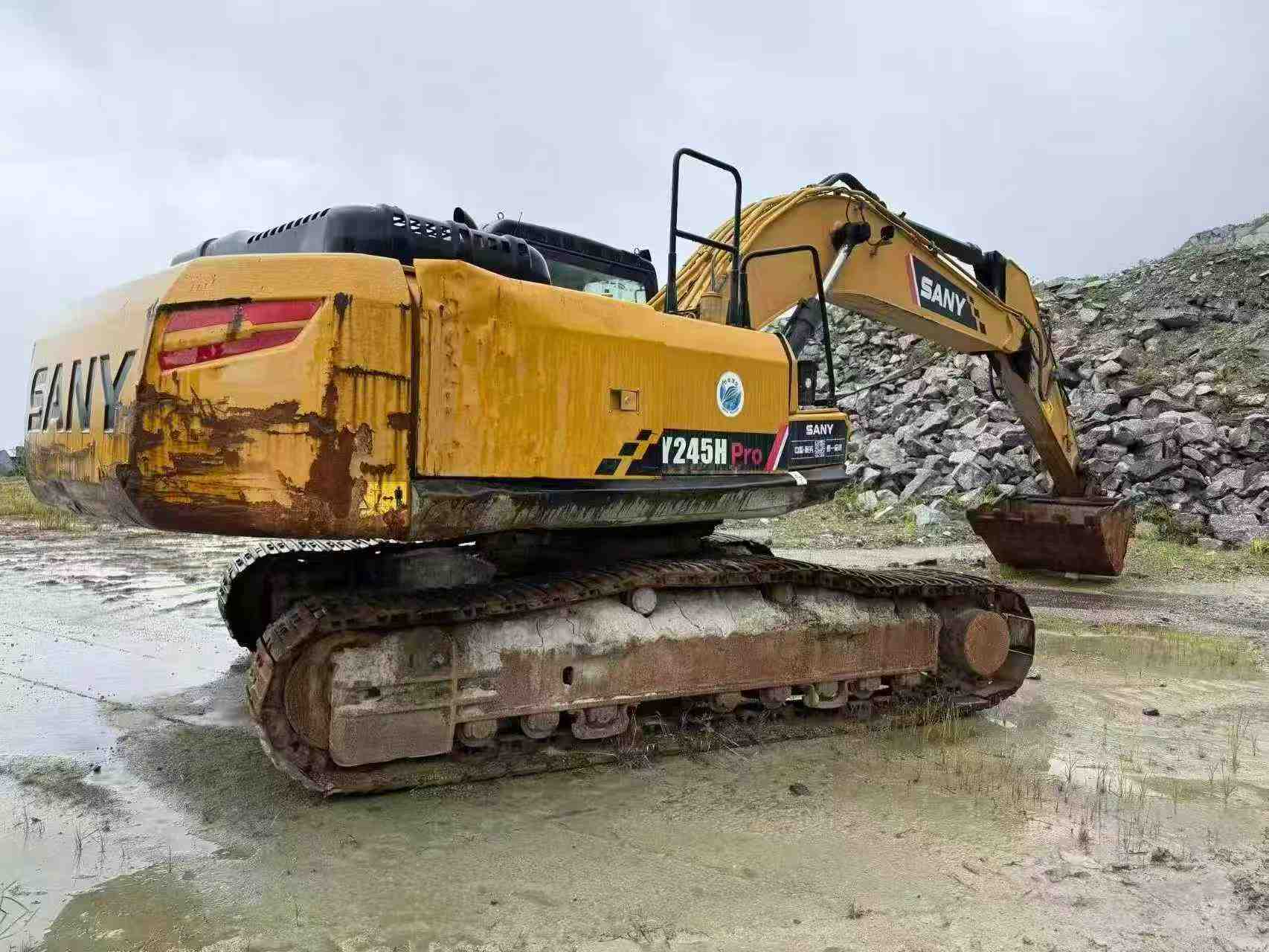

Buy Sany SY245H Used Excavator / 6

Product Description

This 2020 Sany SY245H hydraulic excavator represents a reliable mid-size solution for demanding excavation and earthmoving operations. Manufactured in December 2020, this machine offers approximately four years of operational maturity with substantial service life remaining. The SY245H is engineered with Sany's proven hydraulic systems and robust undercarriage components, making it suitable for construction sites, mining operations, and infrastructure projects.

Currently located in Fujian, China, this excavator has accumulated moderate operating hours and demonstrates the durability expected from Sany's heavy equipment lineup. The SY245H series features efficient fuel consumption, responsive control systems, and excellent digging force in its weight class.

  • Manufacturing Year: December 2020
  • Model: Sany SY245H Hydraulic Excavator
  • Operating Hours: Approximately 200,000+ range
  • Current Location: Fujian Province, China
  • Condition: Used, operational

Ideal for contractors seeking cost-effective equipment with proven performance characteristics and available parts support throughout global markets.

SpecificationsValue
No.1094331
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1094331

Brand Name:

Sany

Model Number:

SY245H

Year:

2020

Location:

Fujian China
