Product Description

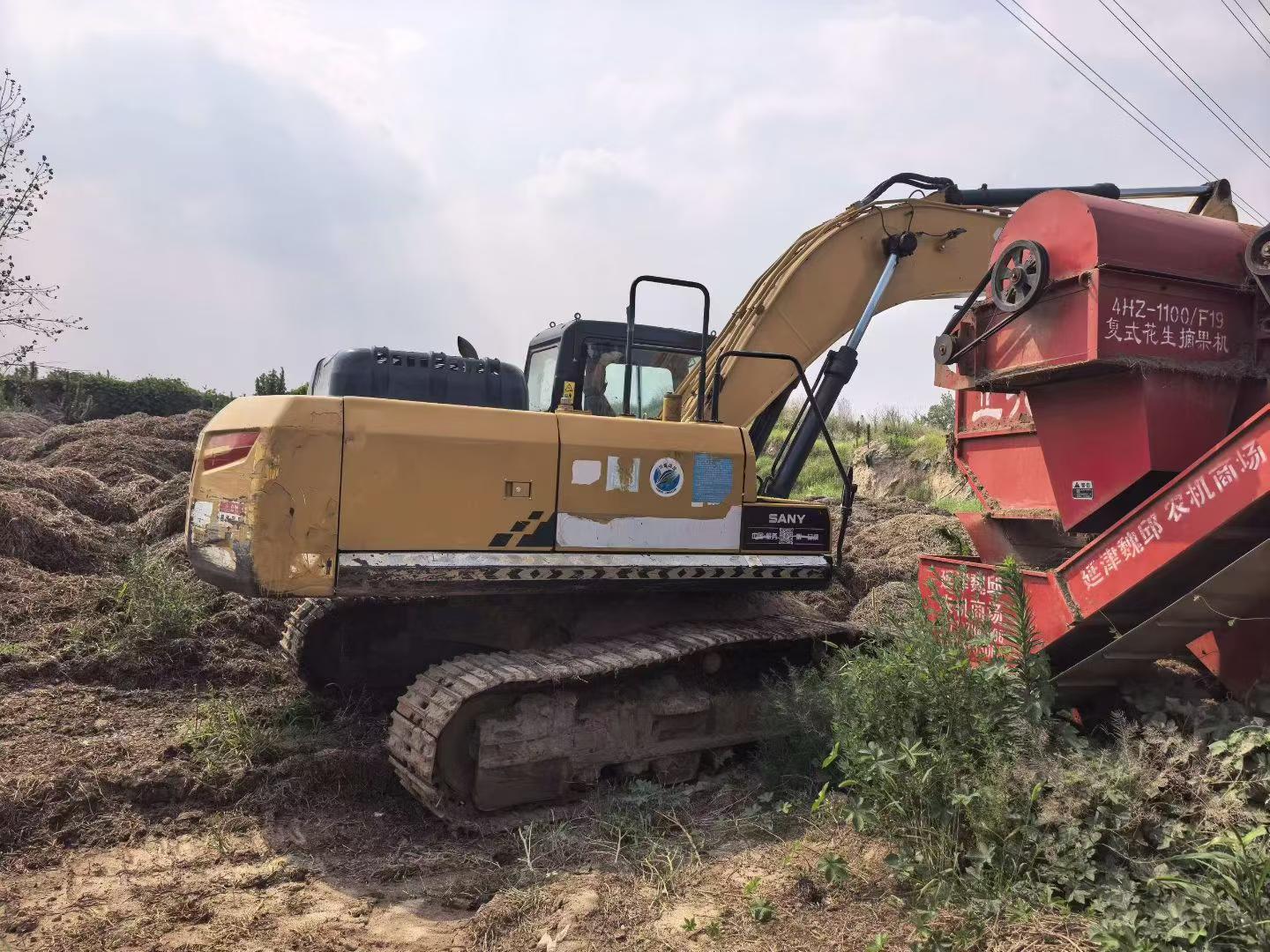

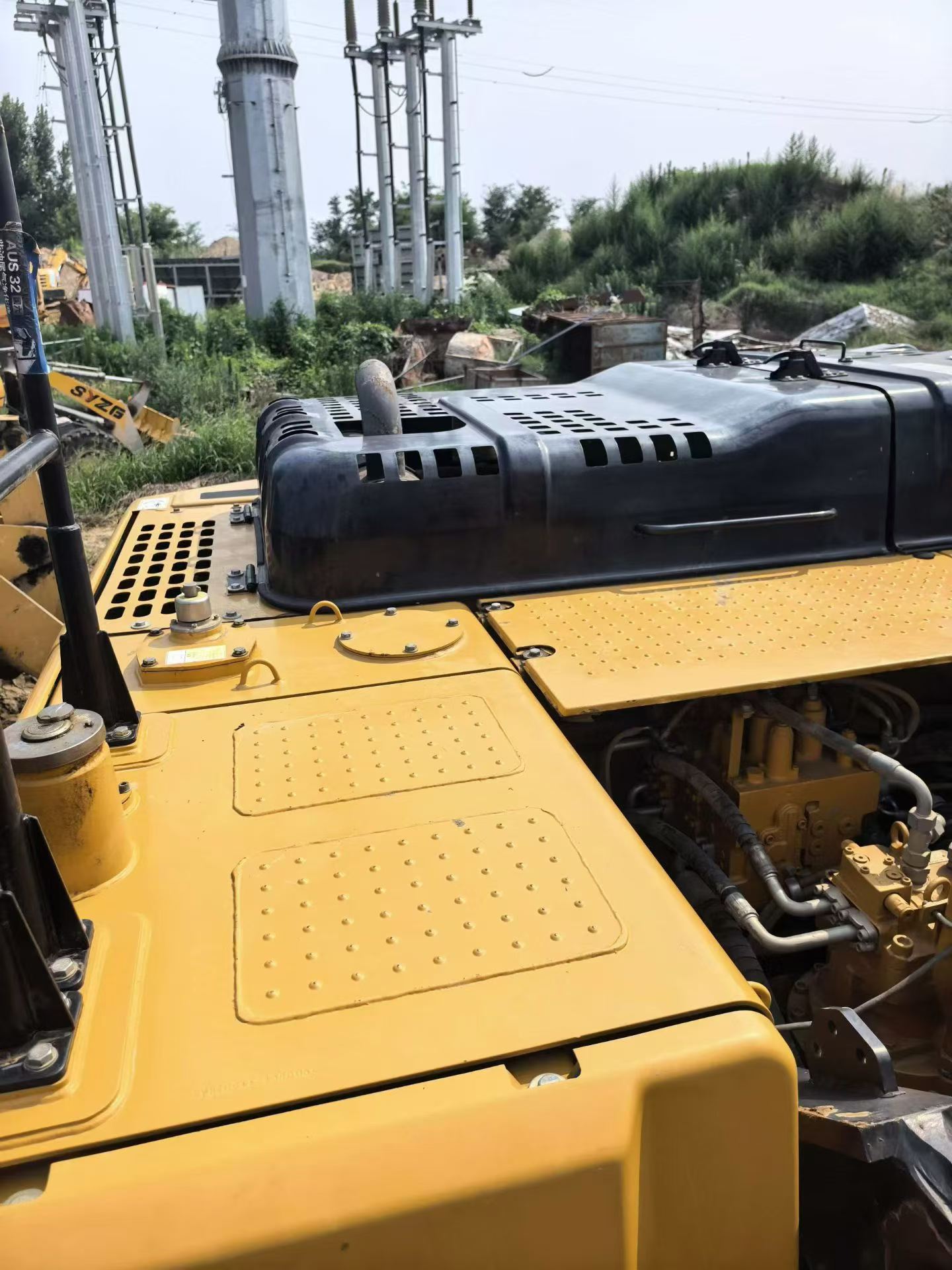

This 2020 Sany SY245H hydraulic excavator represents a reliable mid-size solution for demanding earthmoving operations. With approximately 4 years of operational history, this machine delivers the robust performance Sany is known for in the construction and mining sectors. Currently located in Jiangxi, China, this excavator is available for immediate inspection and acquisition.
The SY245H is engineered for versatility across various applications including site preparation, trenching, and material handling. Key features include:
- 24-ton operating weight class for optimal stability
- Fuel-efficient diesel engine meeting emission standards

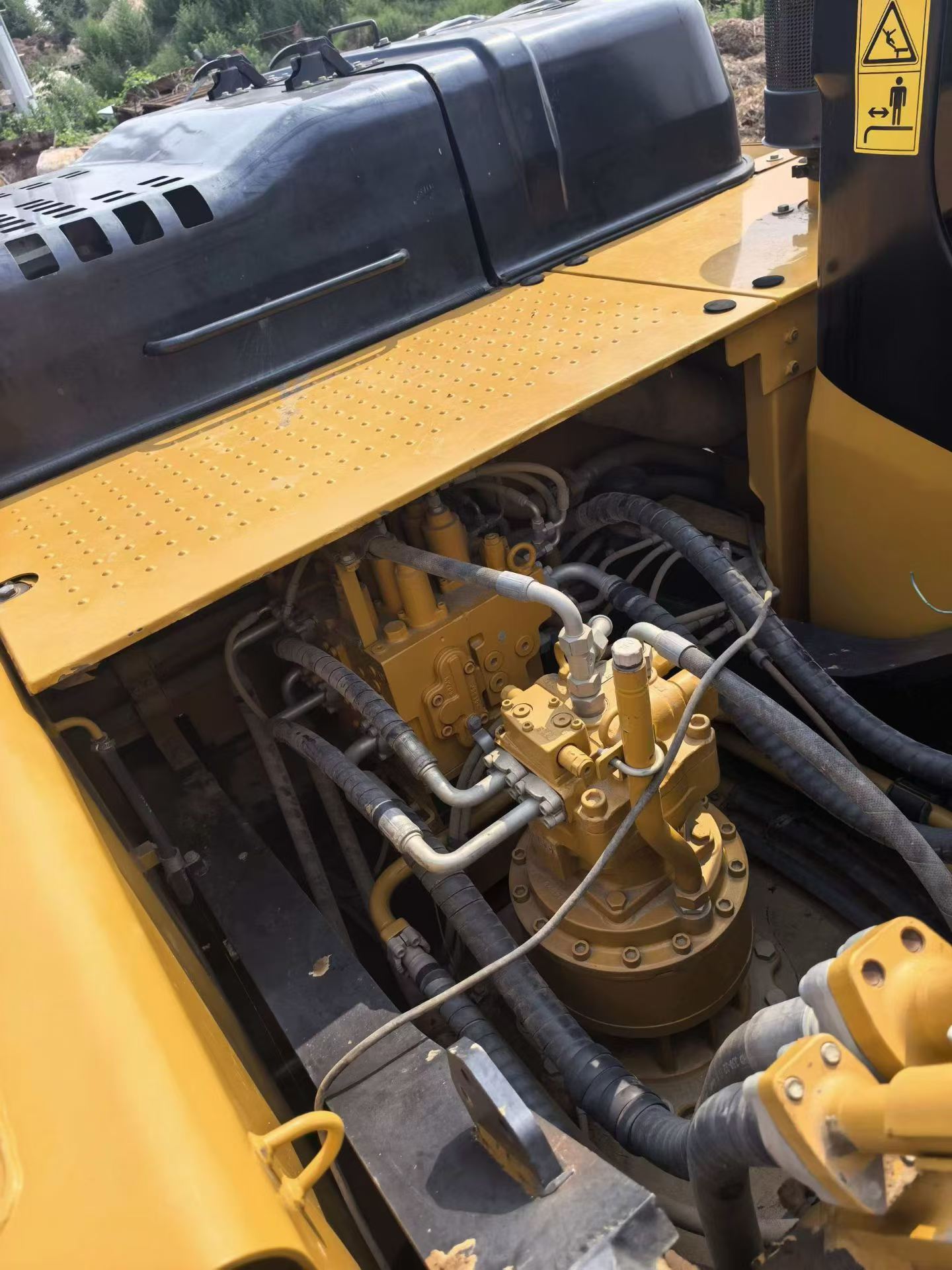

- Advanced hydraulic system for precise control

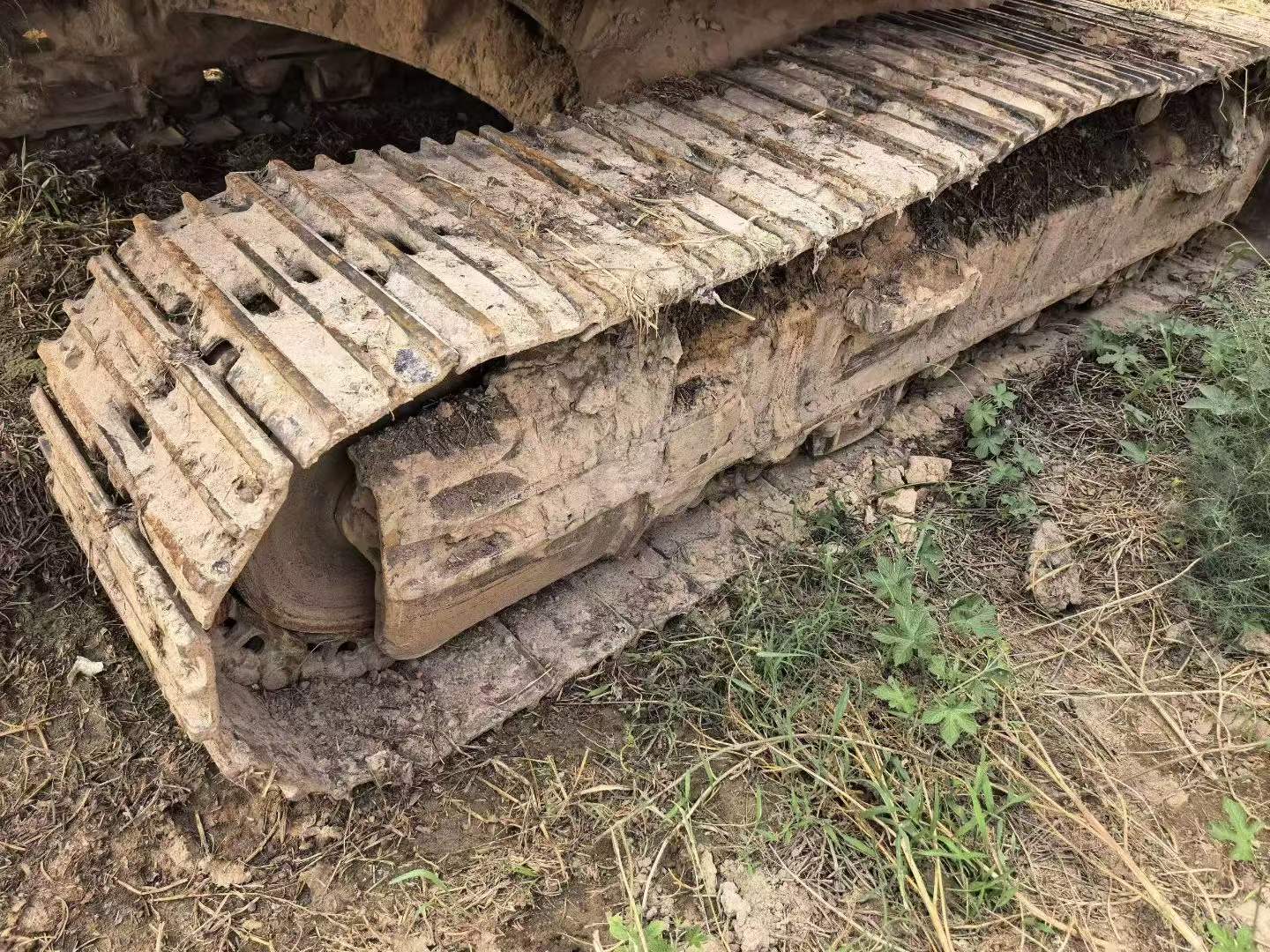

- Reinforced undercarriage for extended service life

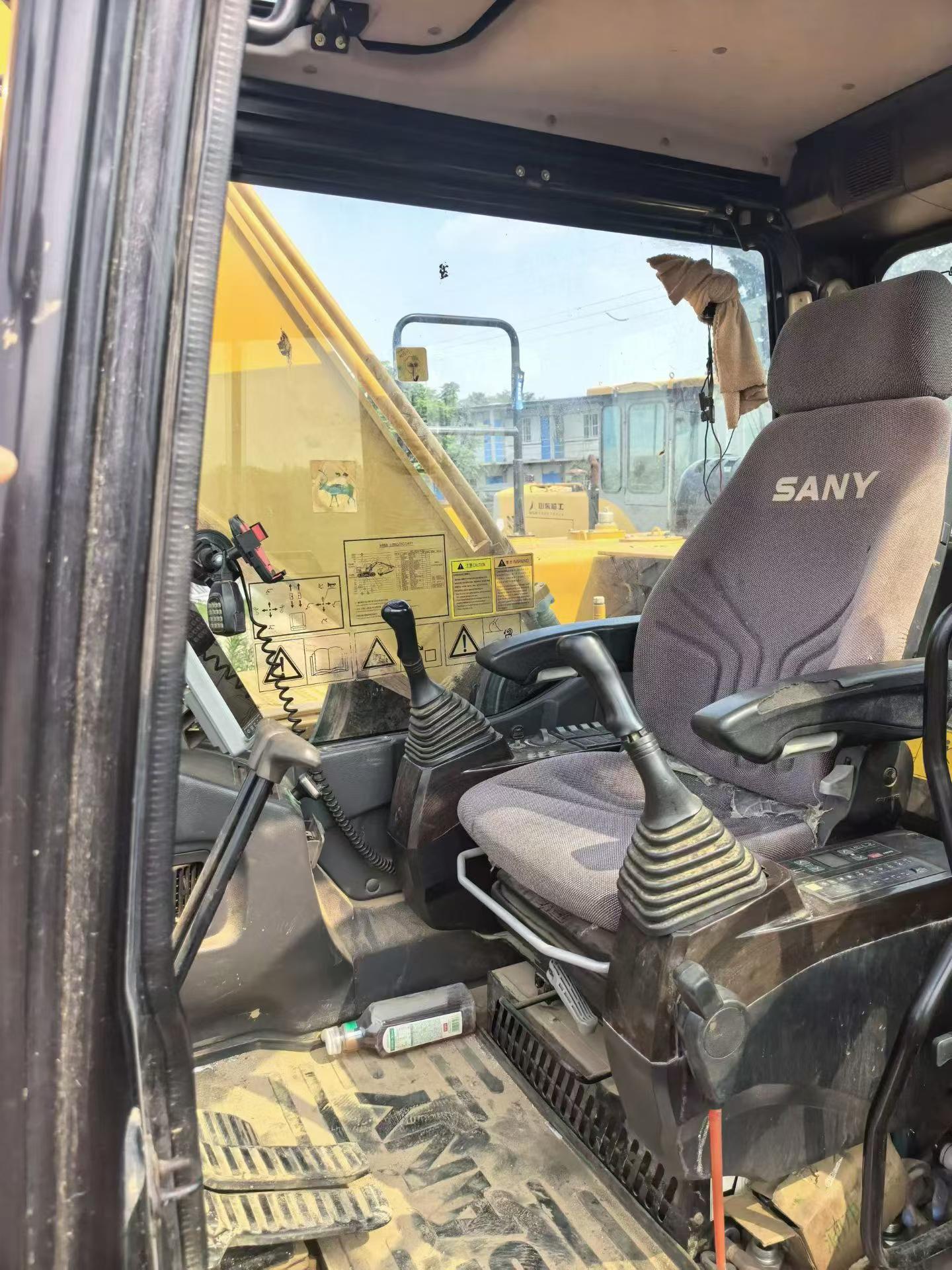

- Spacious ROPS/FOPS certified operator cabin
Ideal for contractors seeking proven performance at competitive value. Contact us for detailed specifications, service records, and competitive pricing on this Sany SY245H excavator.
| Specifications | Value |
|---|---|
| No. | 1094341 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
