2020 Sany SY245H

1/9

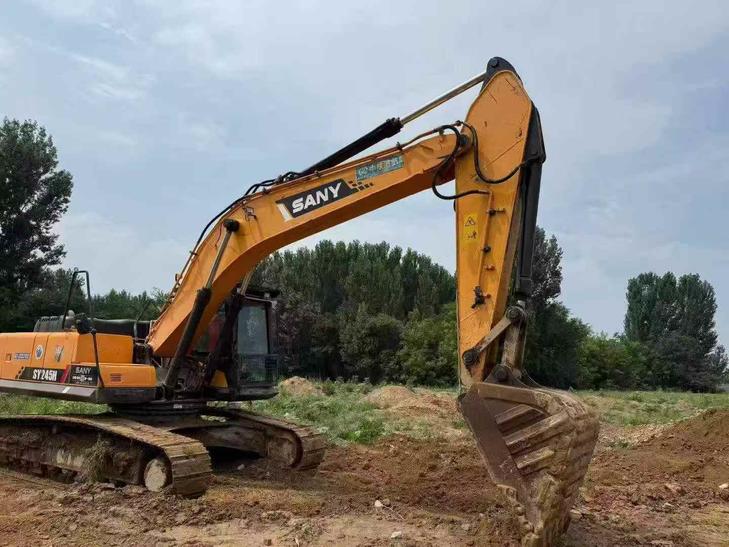

Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3

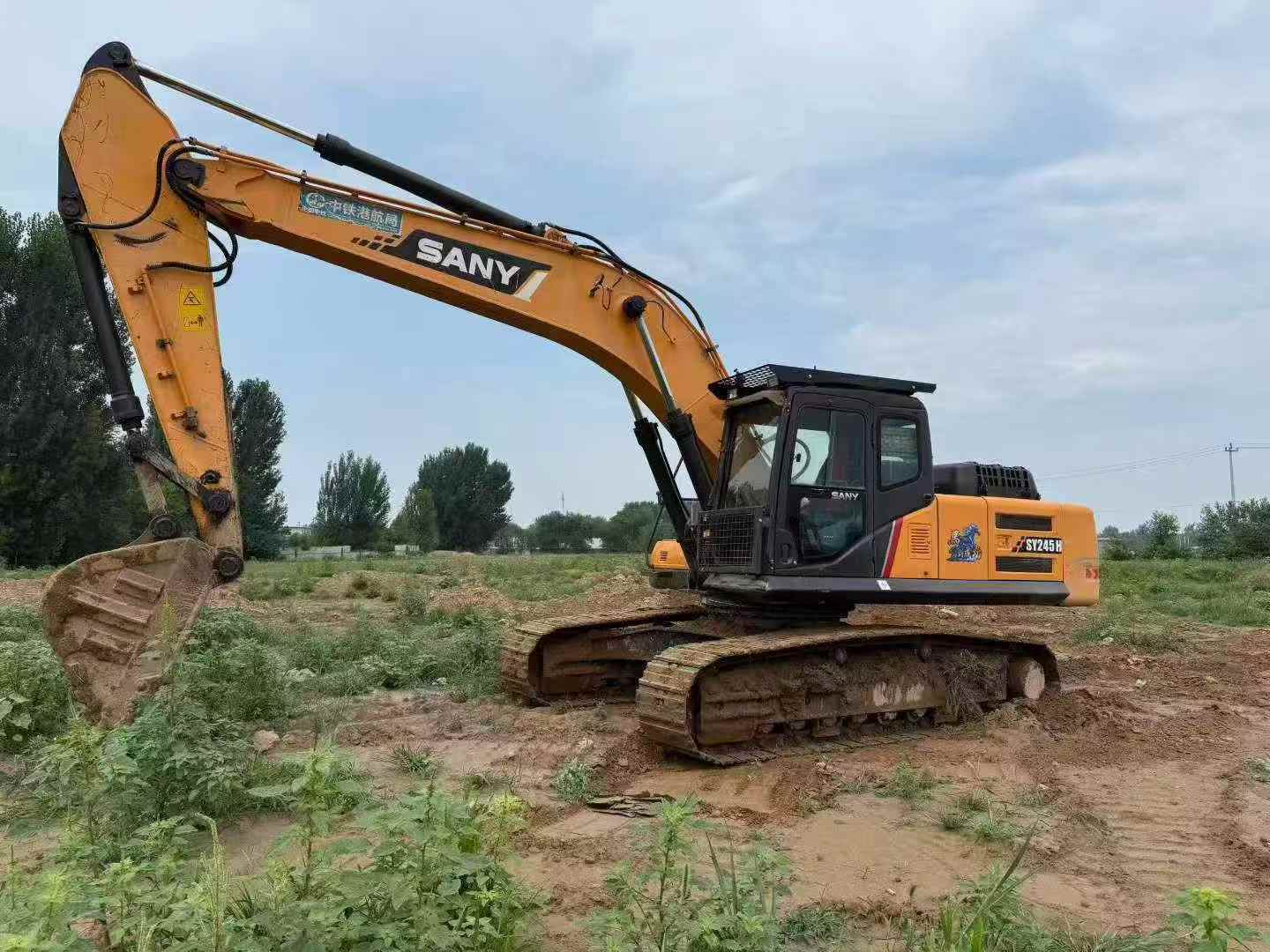

Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5

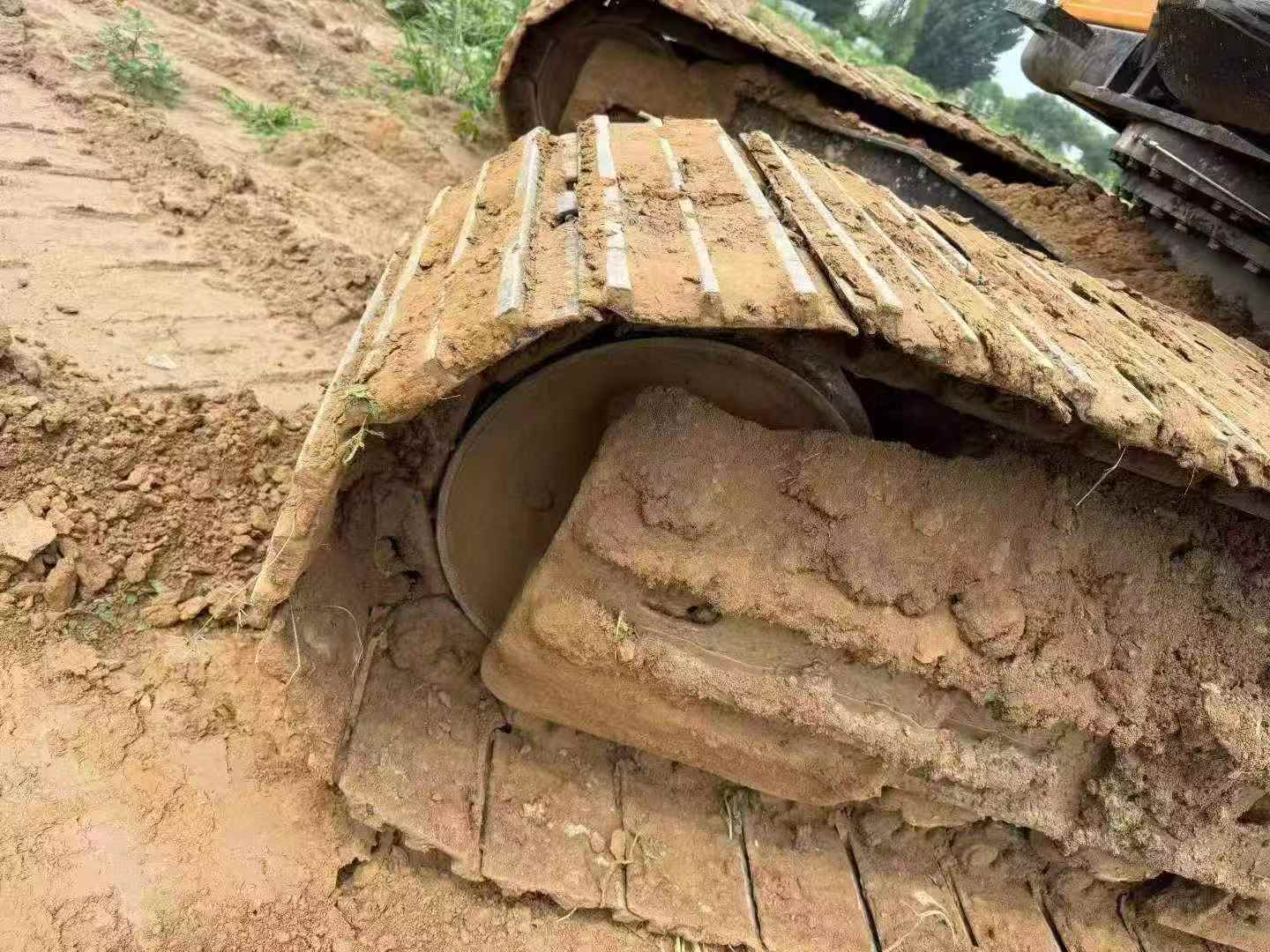

Buy Sany SY245H Used Excavator / 6

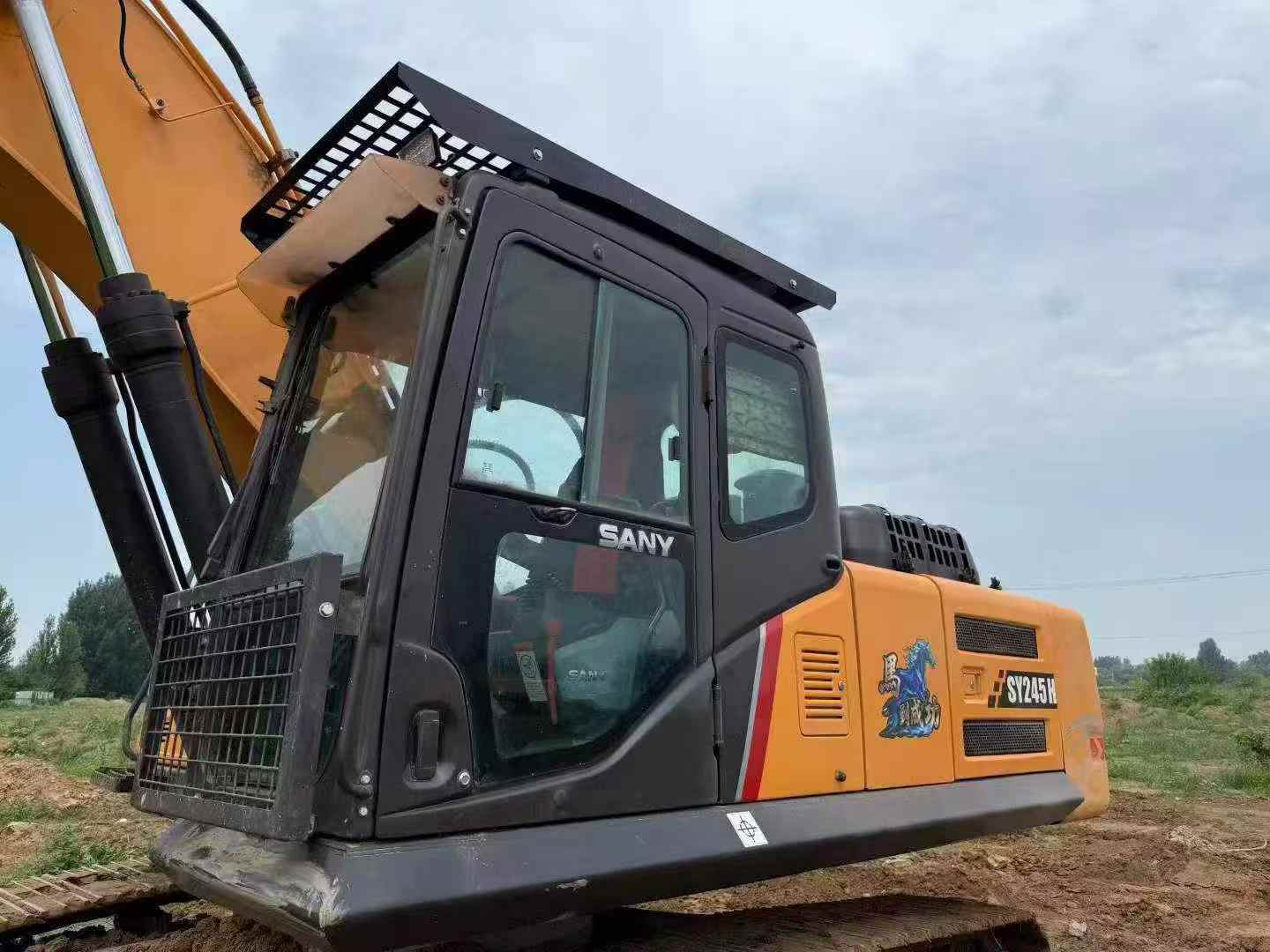

Buy Sany SY245H Used Excavator / 7

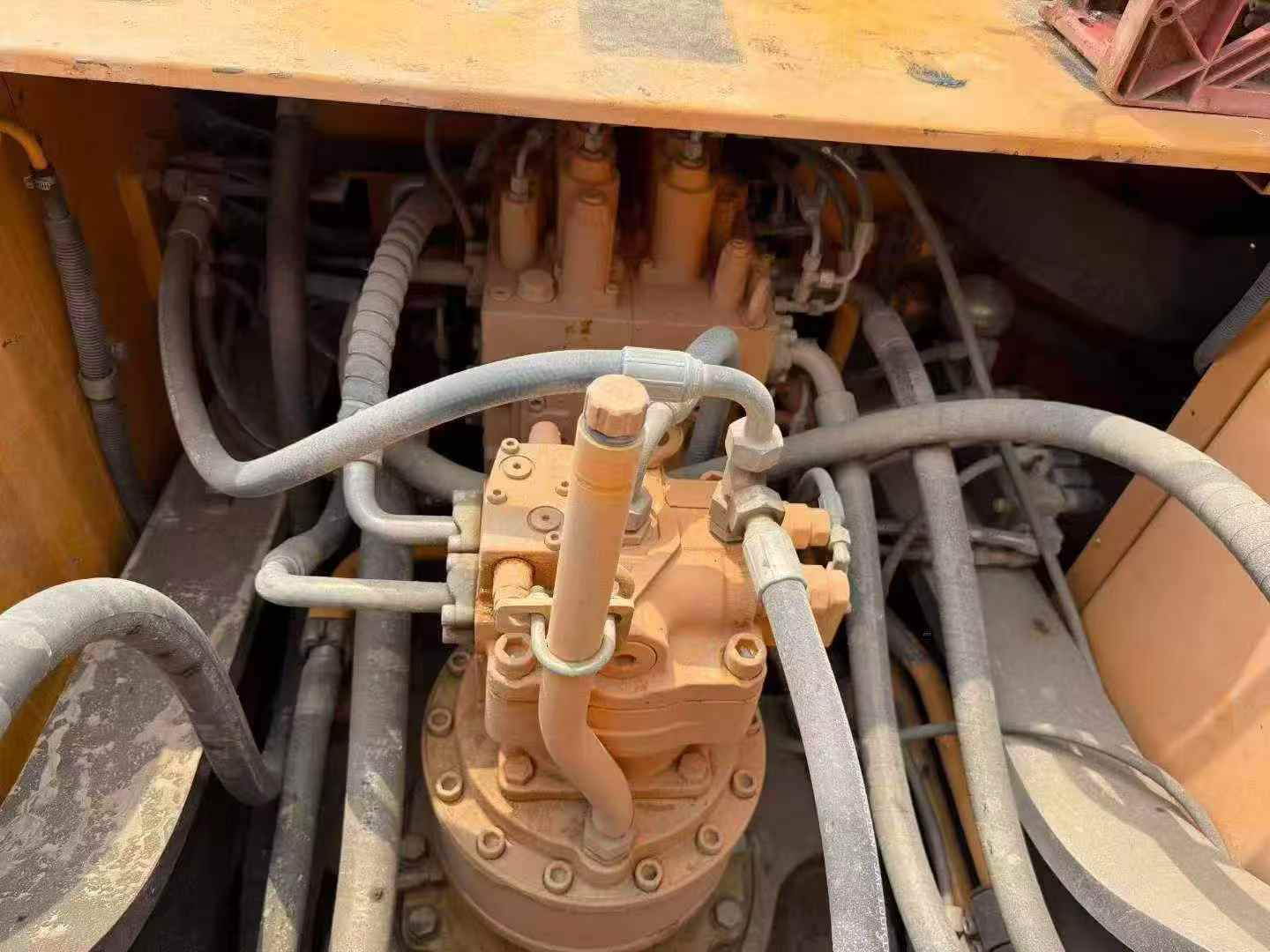

Buy Sany SY245H Used Excavator / 8
Buy Sany SY245H Used Excavator / 9

Product Description

This 2020 Sany SY245H hydraulic excavator represents an excellent opportunity for contractors seeking reliable earthmoving equipment. Located in Hebei, China, this machine has been primarily used for soil excavation work and demonstrates strong operational performance throughout its service life.

The excavator features well-maintained major components with no oil leaks, indicating proper care and regular servicing. Track condition is assessed at approximately 95% remaining life. Recent maintenance has been completed, positioning this machine for immediate deployment to active job sites.

  • Year: 2020
  • Model: Sany SY245H
  • Primary Application: Earthmoving operations
  • Major Components: Clean, leak-free condition
  • Undercarriage: Excellent condition
  • Status: Serviced and work-ready

Suitable for contractors requiring dependable excavation capacity with minimal downtime. Inspection welcomed.

SpecificationsValue
No.1101357
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1101357

Brand Name:

Sany

Model Number:

SY245H

Year:

2020

Location:

Hebei China

Pub Date
