2020 Sany SY245H

1/7

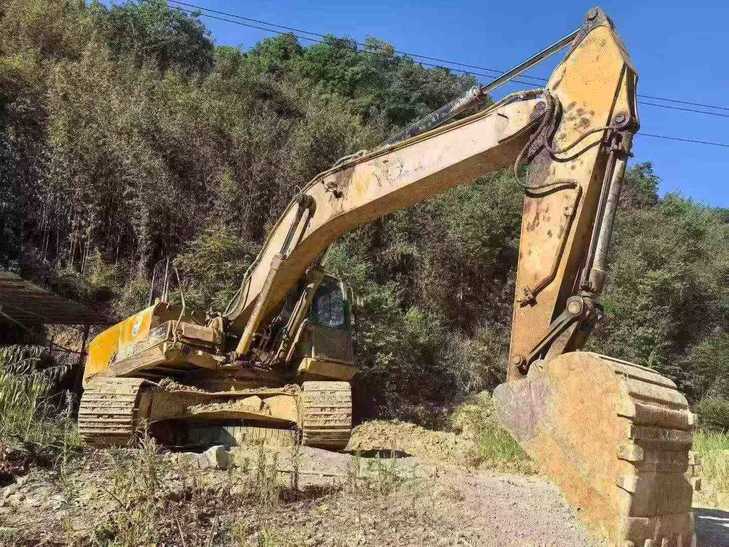

Buy Sany SY245H Used Excavator / 1

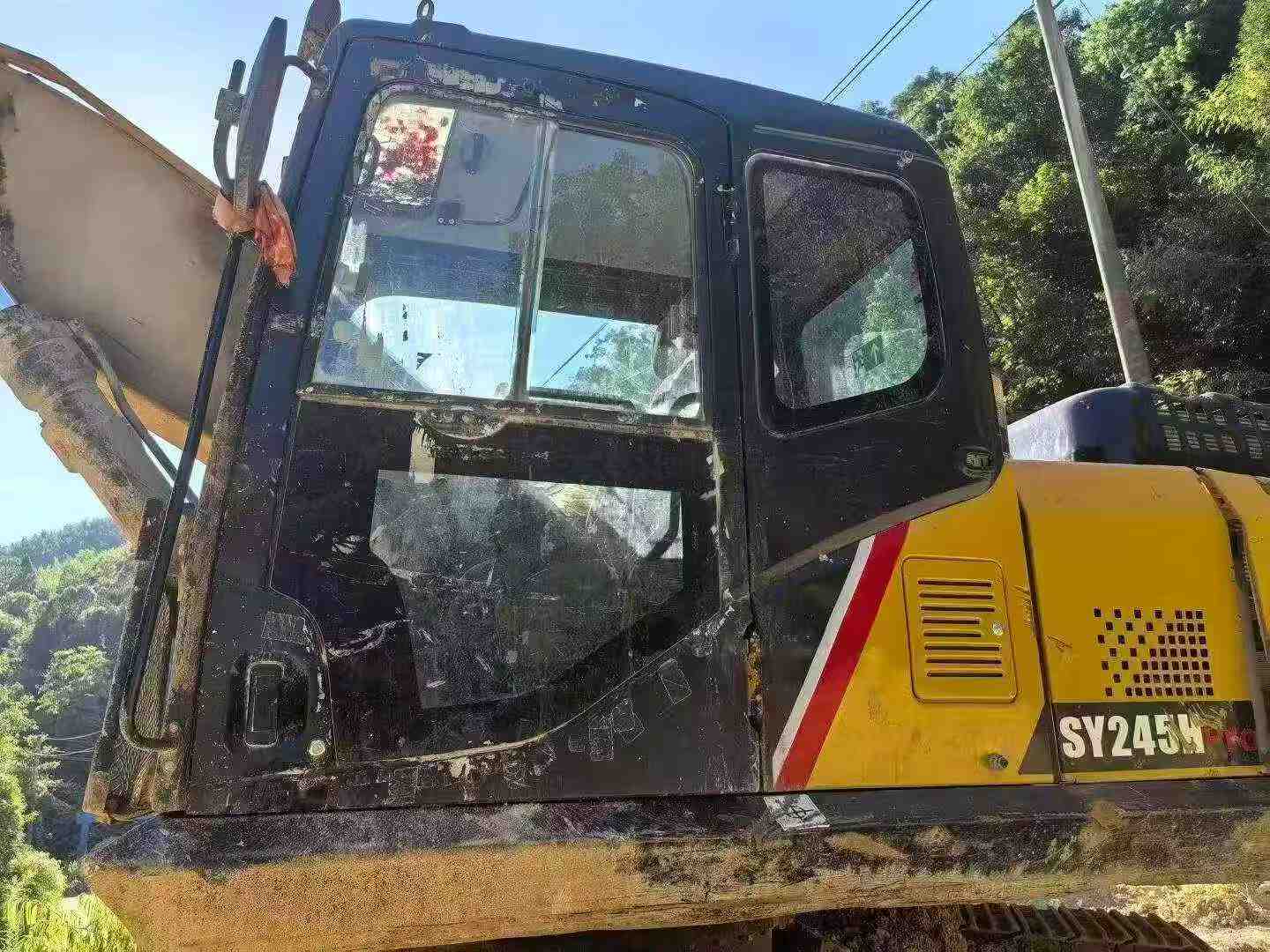

Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3

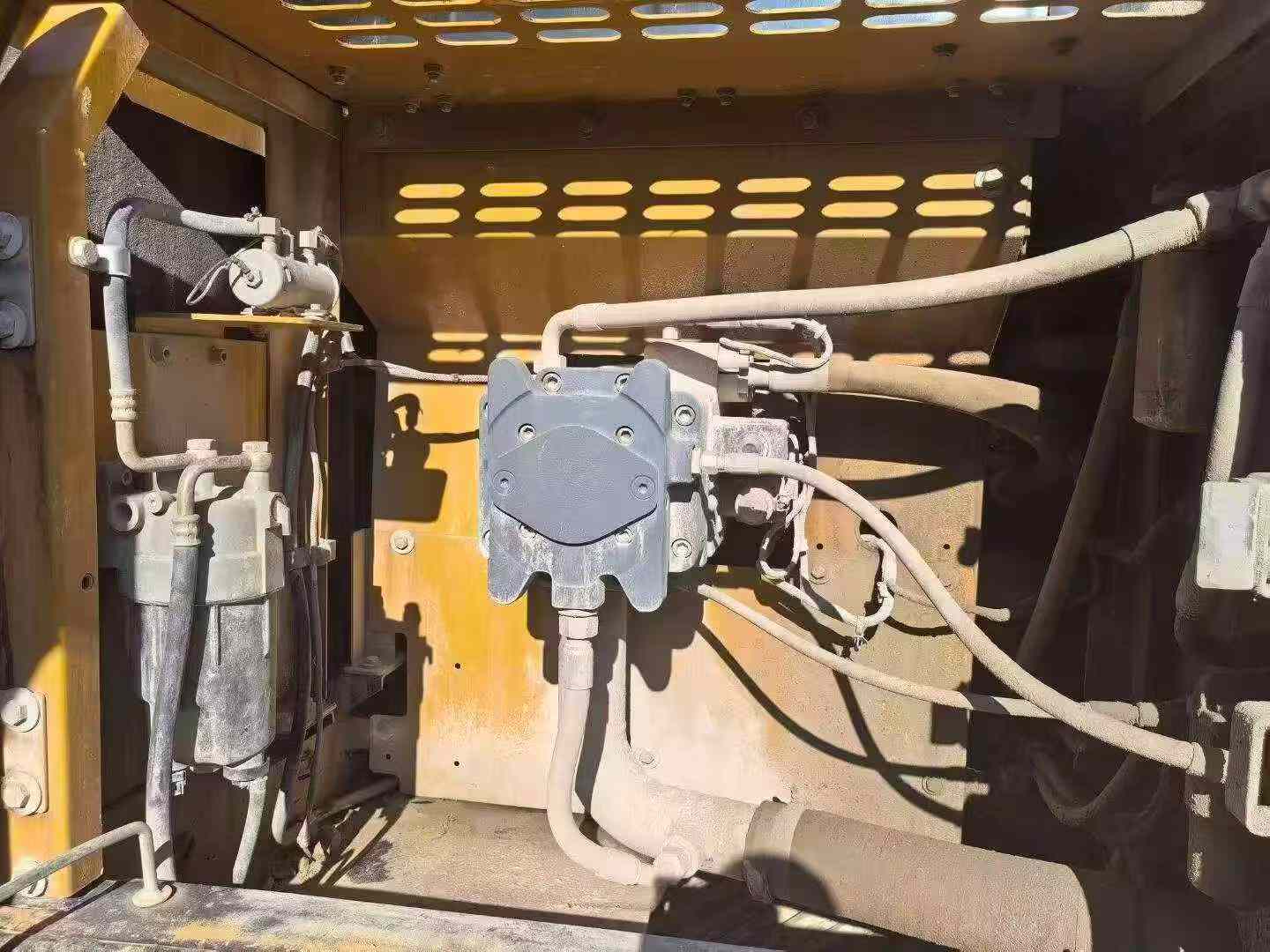

Buy Sany SY245H Used Excavator / 4

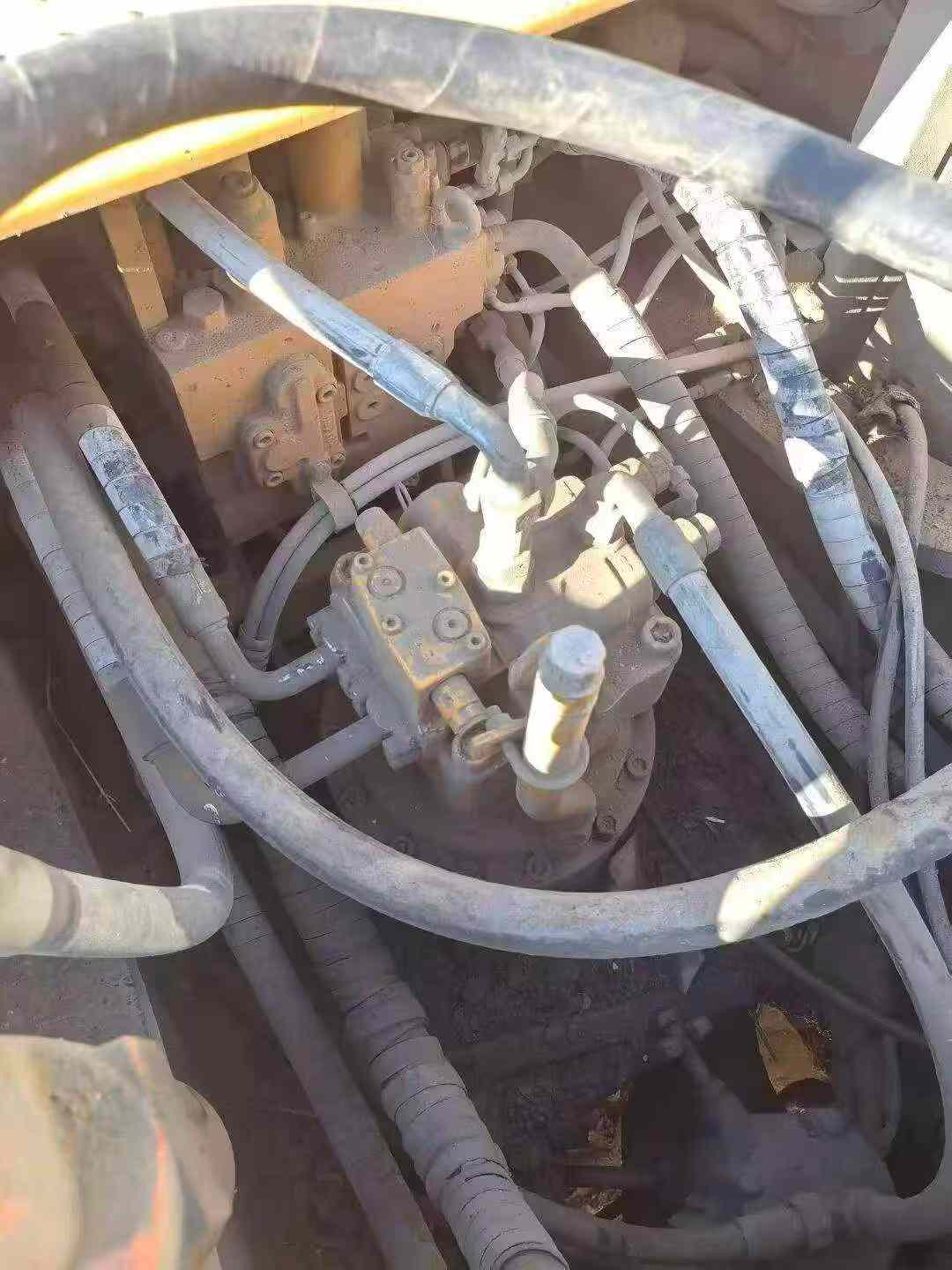

Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6

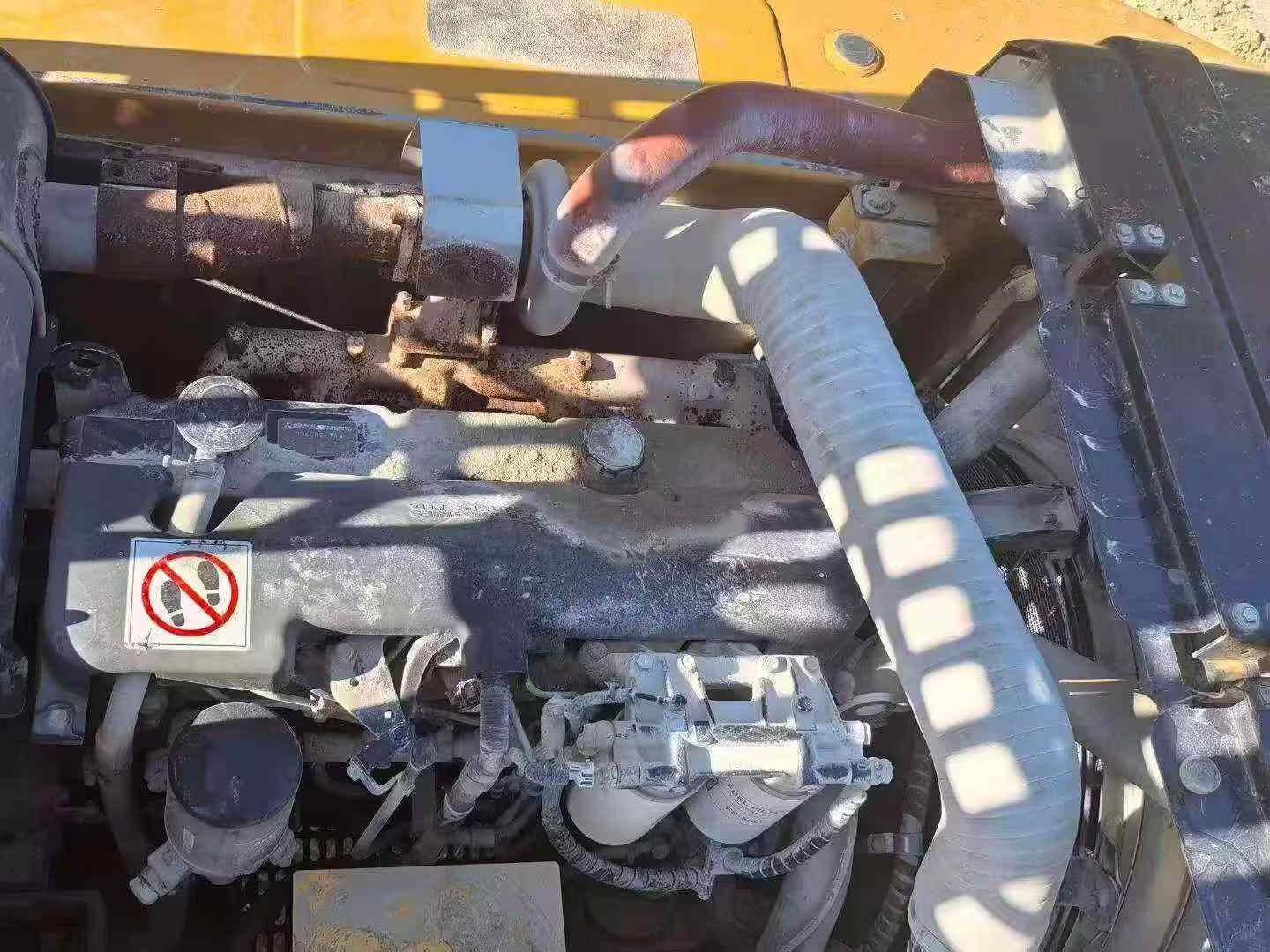

Buy Sany SY245H Used Excavator / 7

Product Description

This 2020 Sany SY245H excavator offers reliable performance for earthmoving and construction applications. Located in Sichuan, China, this used machine represents proven hydraulic excavator technology from one of China's leading heavy equipment manufacturers.

The SY245H is designed for mid-range excavation work, featuring robust build quality and efficient fuel consumption. This unit has been maintained in operational condition and is ready for deployment on your next project.

  • Year: 2020
  • Make: Sany
  • Model: SY245H
  • Location: Sichuan, China
  • Condition: Used, operational

Suitable for contractors, rental fleets, and industrial operators seeking dependable excavation equipment. Contact us for detailed specifications, inspection reports, and export documentation.

SpecificationsValue
No.1104832
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
