Product Description

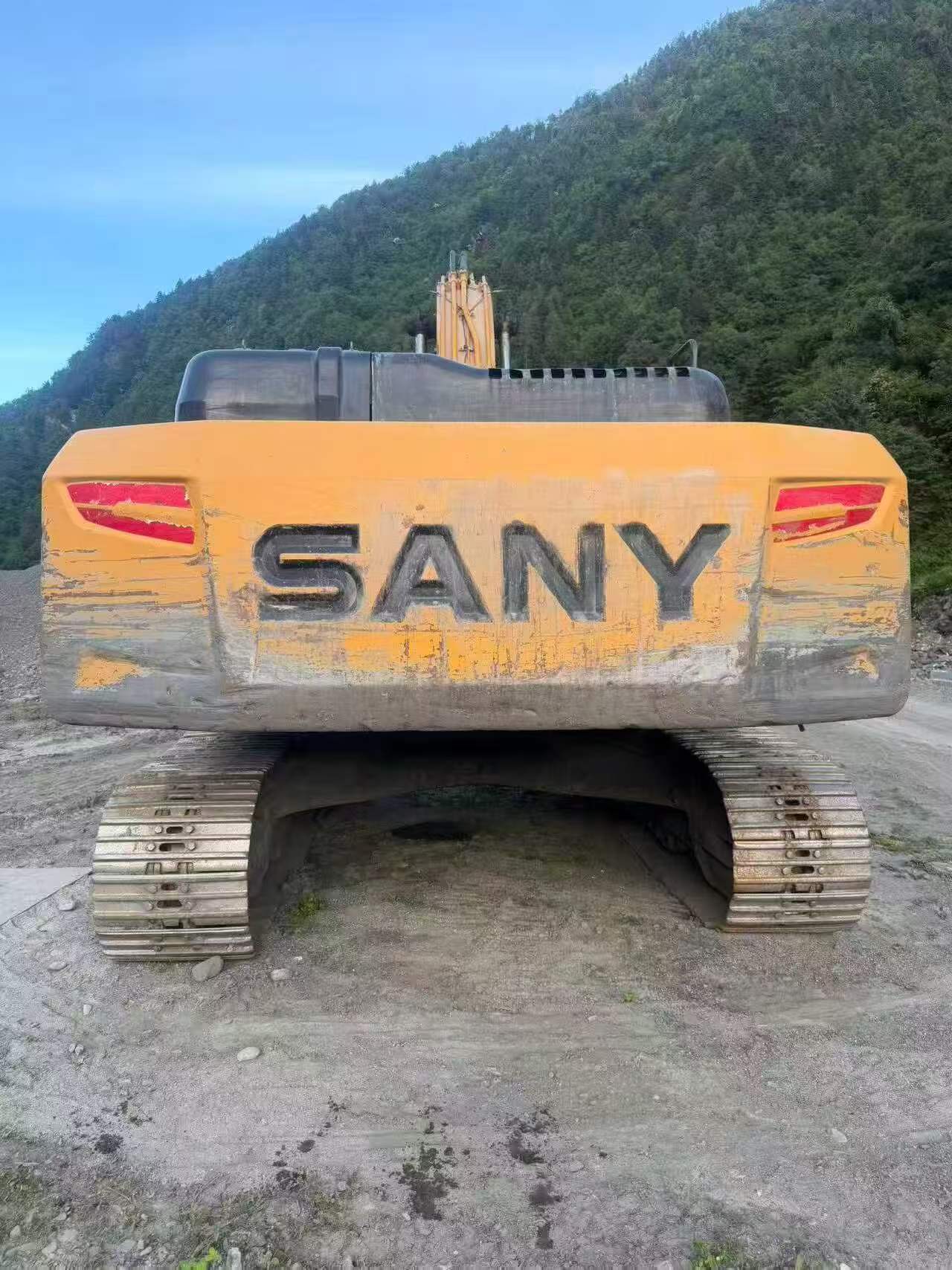

This 2020 Sany SY245H hydraulic excavator represents a reliable mid-size solution for construction, mining, and earthmoving operations. Manufactured by Sany Heavy Industry, one of China's leading equipment producers, this model combines proven engineering with practical performance in a 24-ton class machine.
Currently located in Guizhou Province, China, this unit offers straightforward operational capability for contractors and fleet operators seeking dependable equipment. The SY245H is known for its balanced combination of digging force, reach, and fuel efficiency in demanding work environments.
- Year: 2020
- Model: Sany SY245H
- Location: Guizhou, China
- Equipment class: Medium hydraulic excavator
- Suitable for: Construction, mining, and earthmoving applications
Available for immediate purchase and delivery. Contact us for detailed inspection reports, operating hours verification, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1106715 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

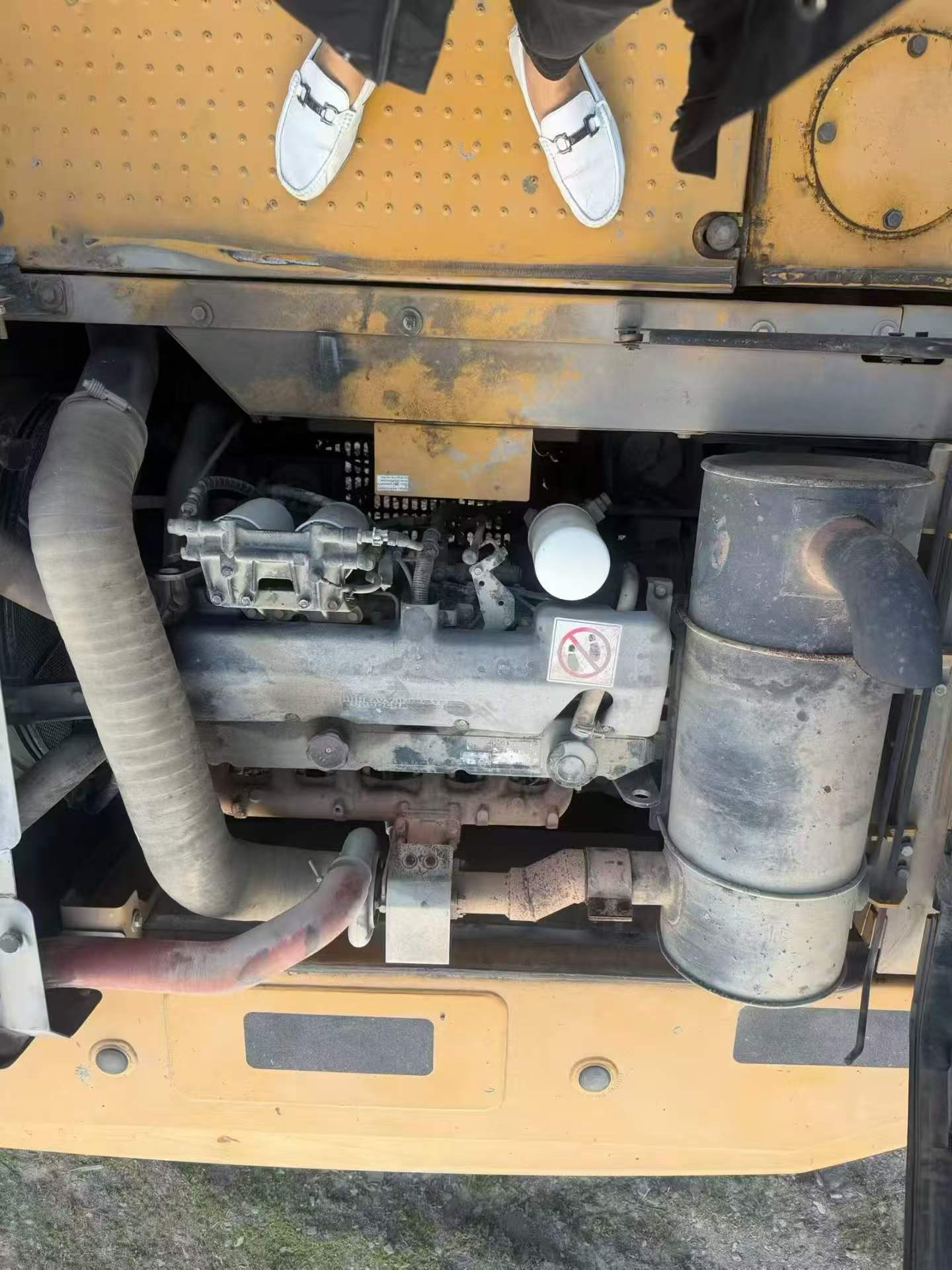

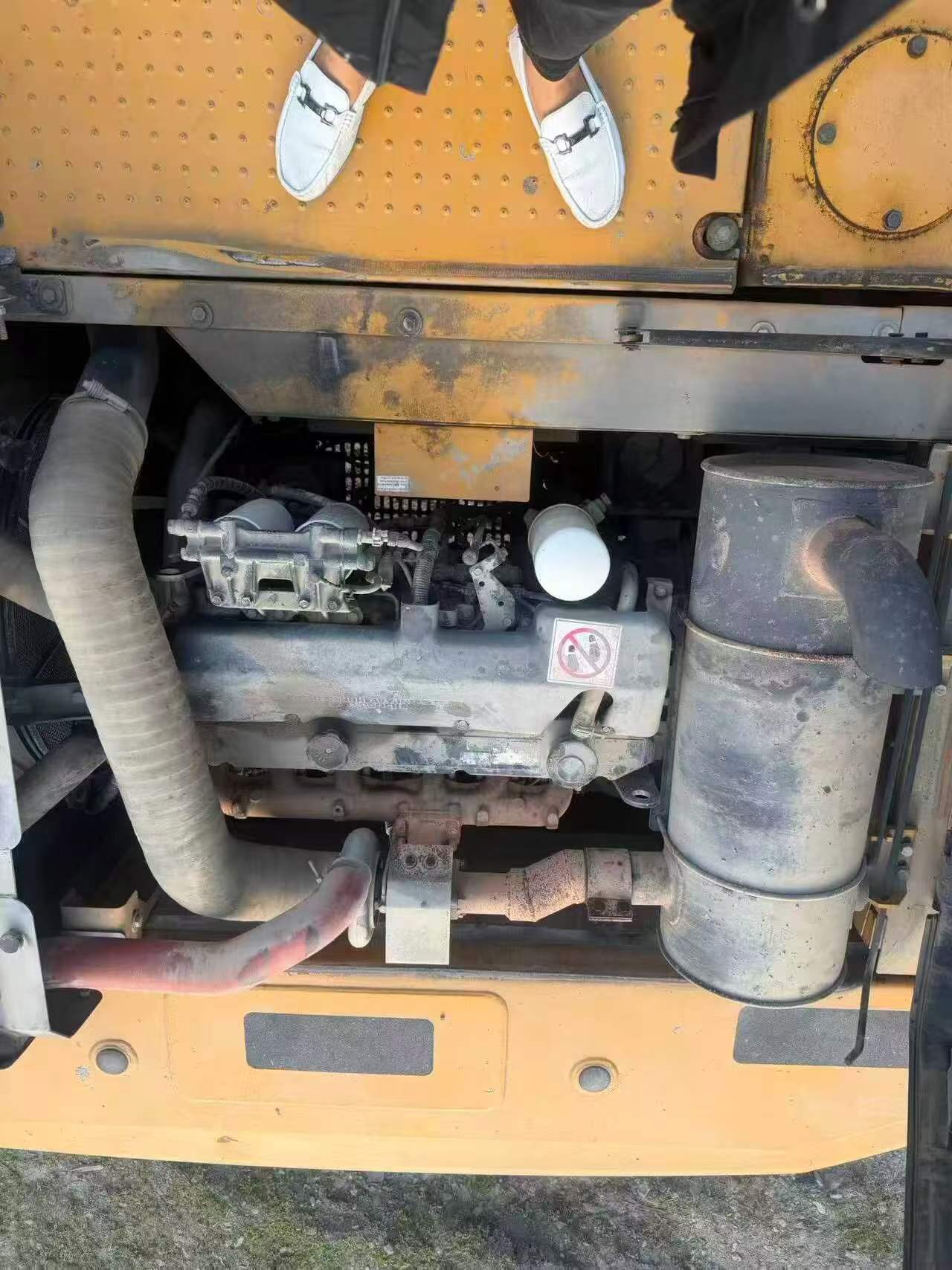

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
