Product Description
This 2020 Sany SY245H hydraulic excavator offers reliable performance for medium to heavy-duty construction and earthmoving applications. Currently located in Shanghai, China, this machine represents excellent value in the used equipment market at a competitive price point of 230,000 RMB.
The SY245H is part of Sany's proven excavator lineup, engineered for demanding job sites requiring efficient digging, loading, and material handling capabilities. With its 2020 manufacture year, this unit provides modern operational features while maintaining the cost advantages of pre-owned equipment.
- Year of Manufacture: 2020

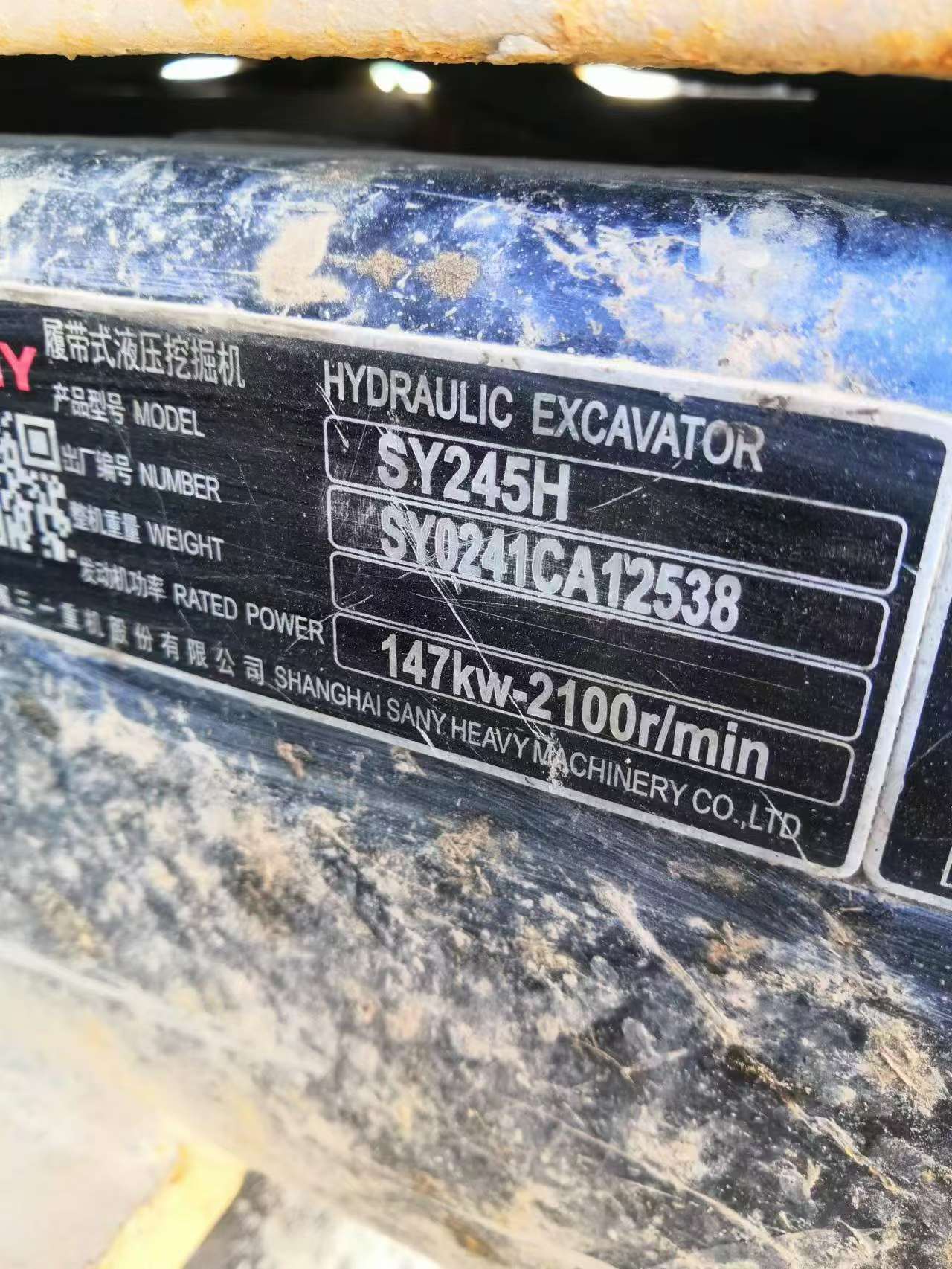

- Model: Sany SY245H
- Category: Hydraulic Excavator
- Location: Shanghai, China
- Price: 230,000 RMB
Ideal for contractors and operators seeking dependable excavation equipment with established parts availability and service support throughout the Asia-Pacific region.
| Specifications | Value |
|---|---|
| No. | 1115094 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
