2020 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1

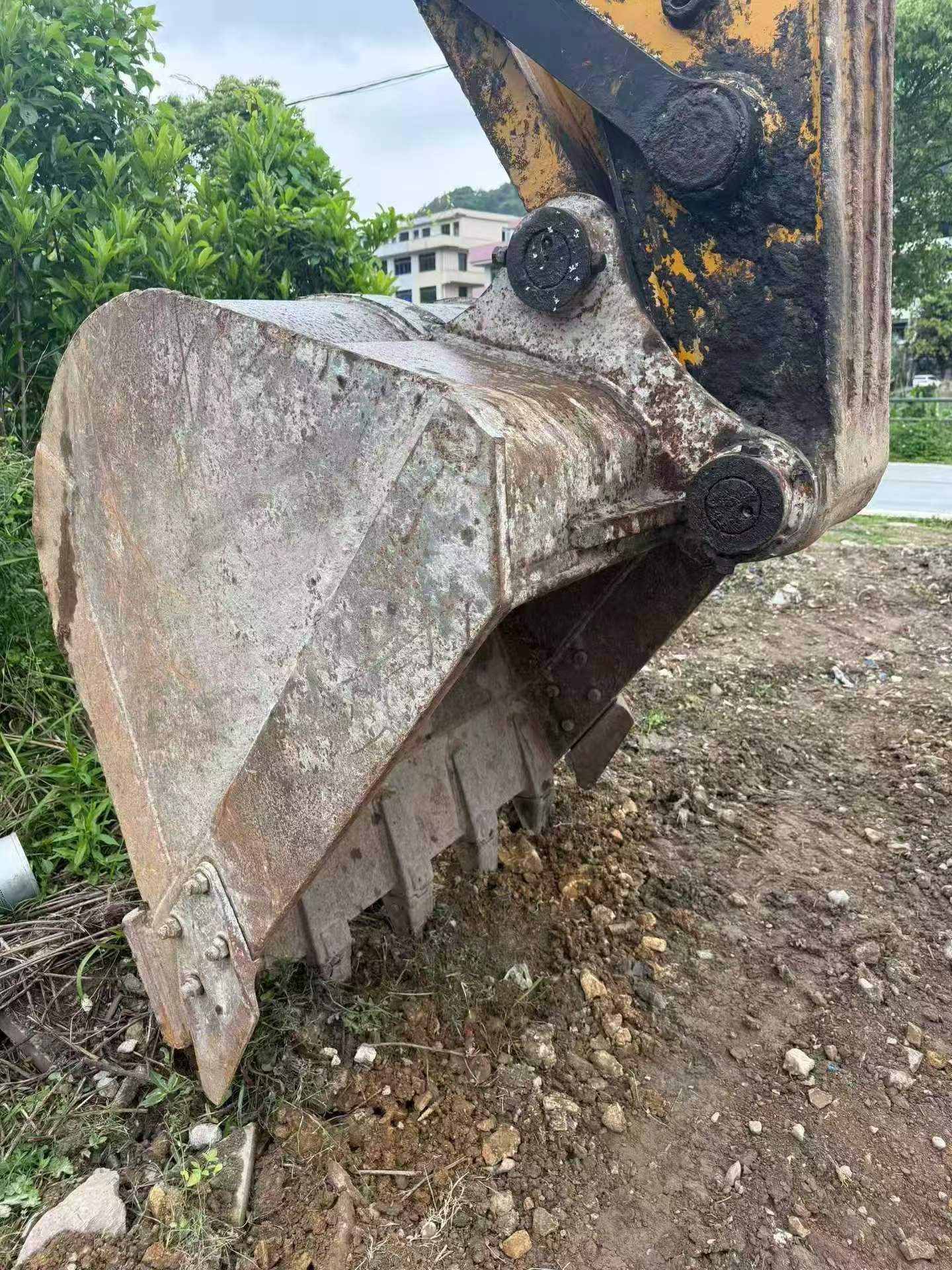

Buy Sany SY245H Used Excavator / 2

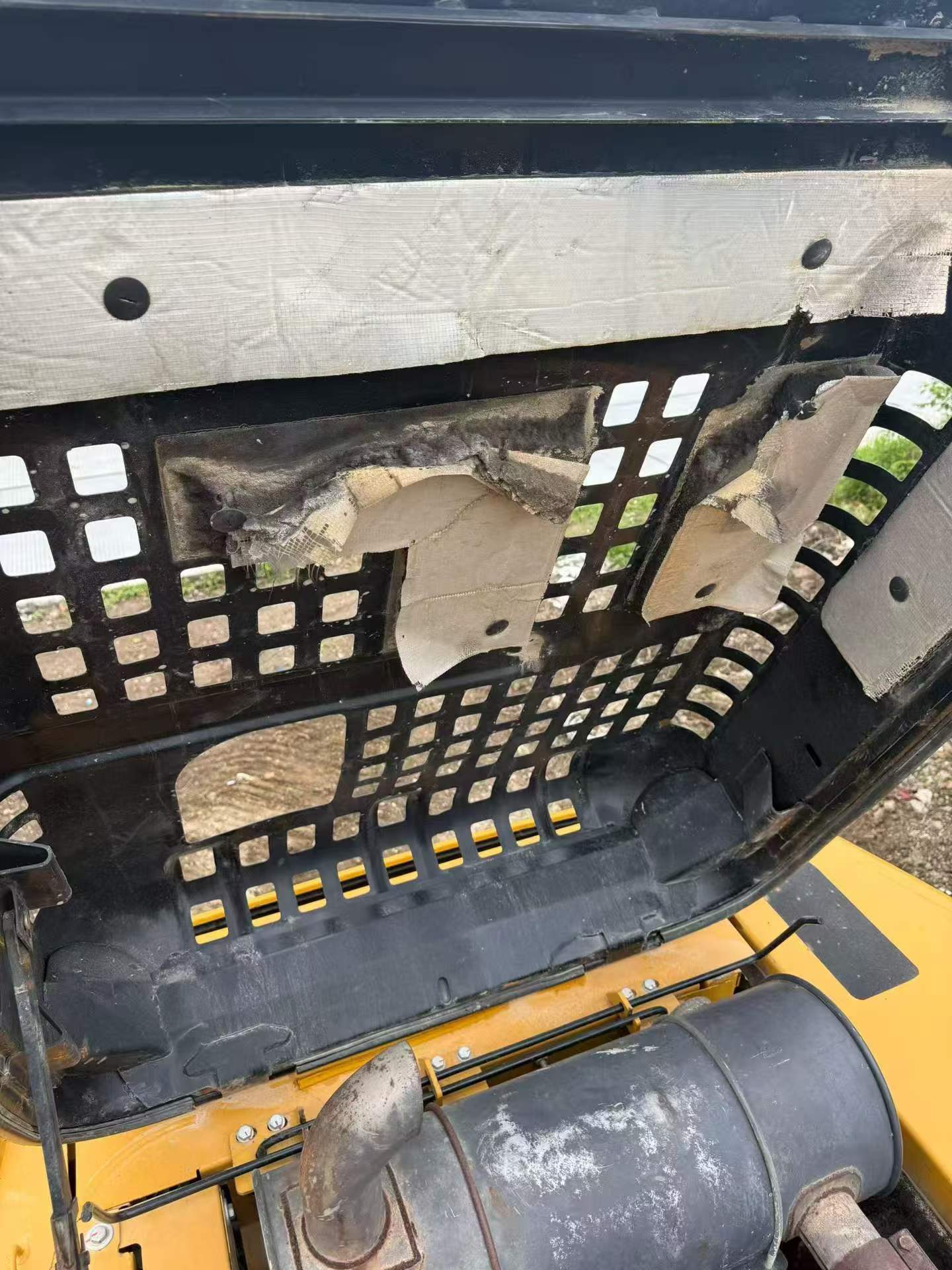

Buy Sany SY245H Used Excavator / 3

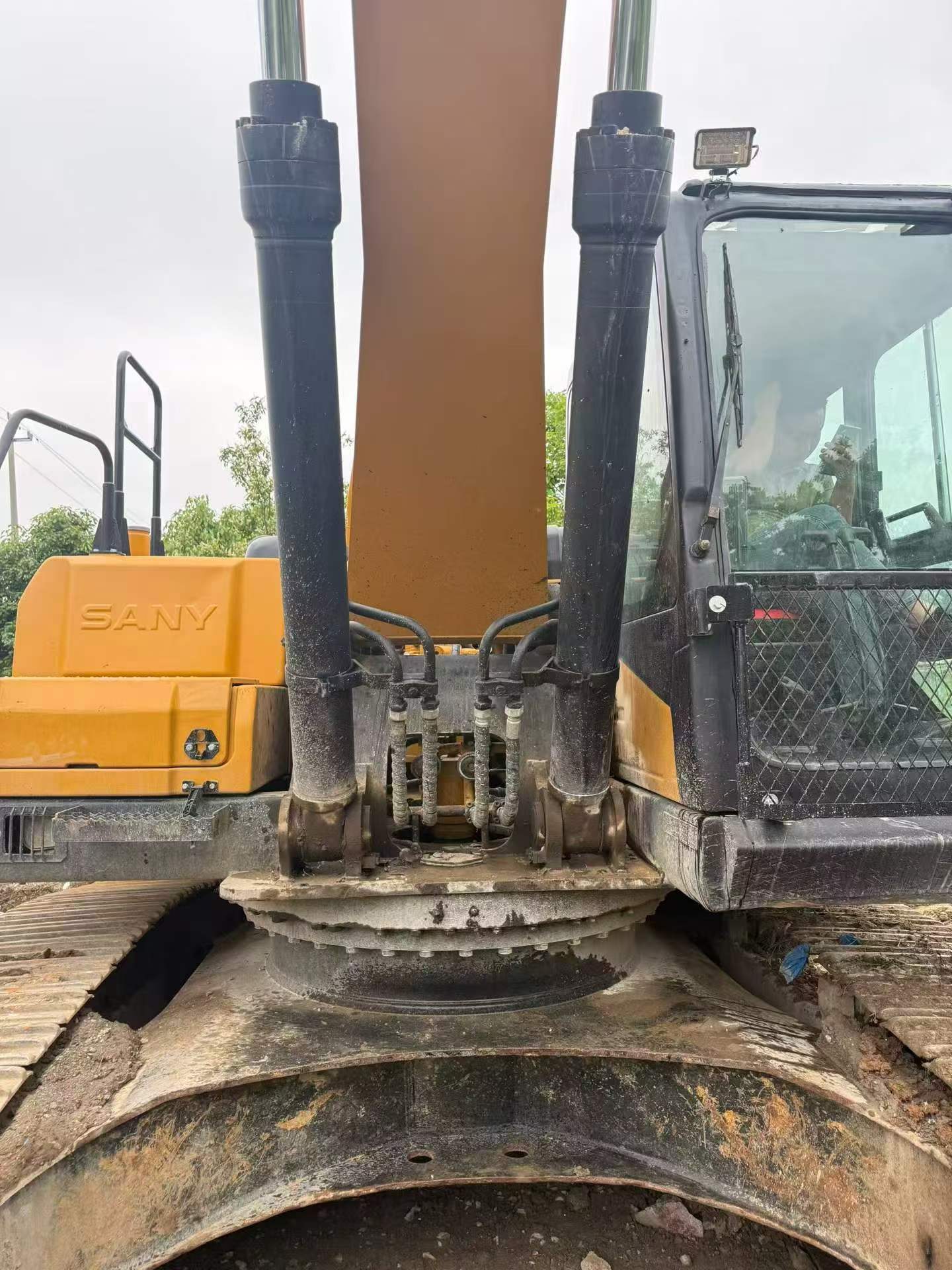

Buy Sany SY245H Used Excavator / 4

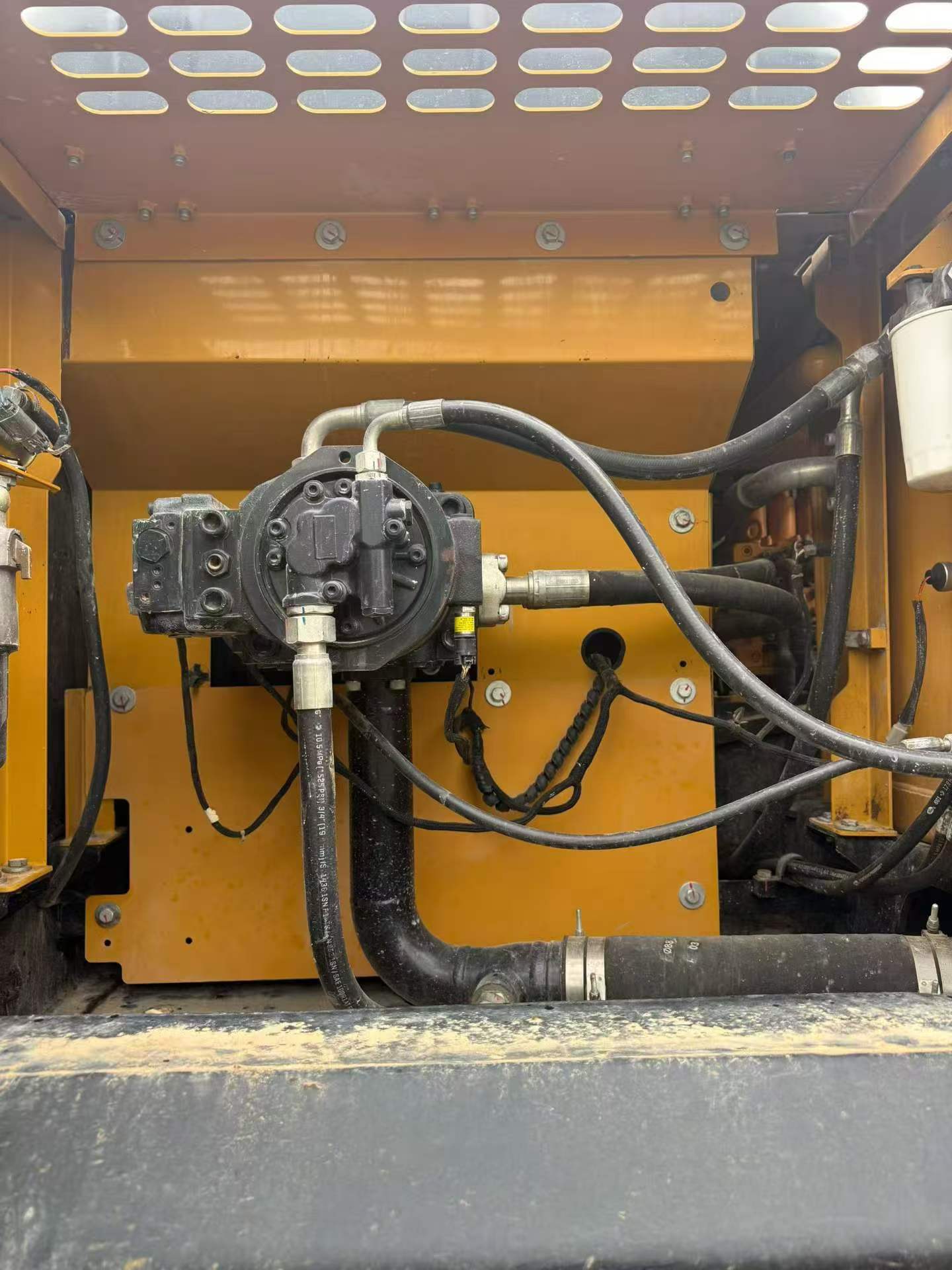

Buy Sany SY245H Used Excavator / 5

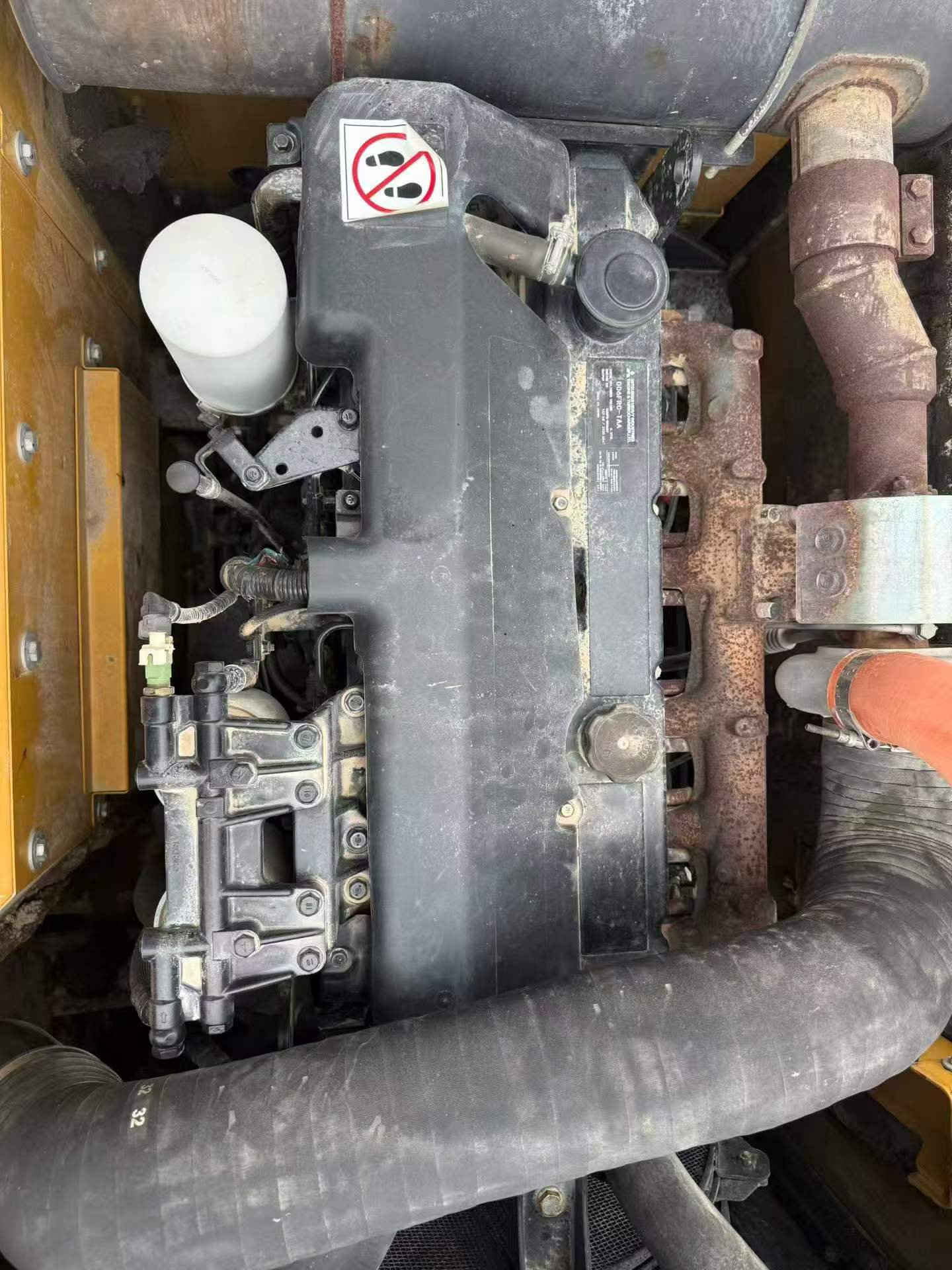

Buy Sany SY245H Used Excavator / 6

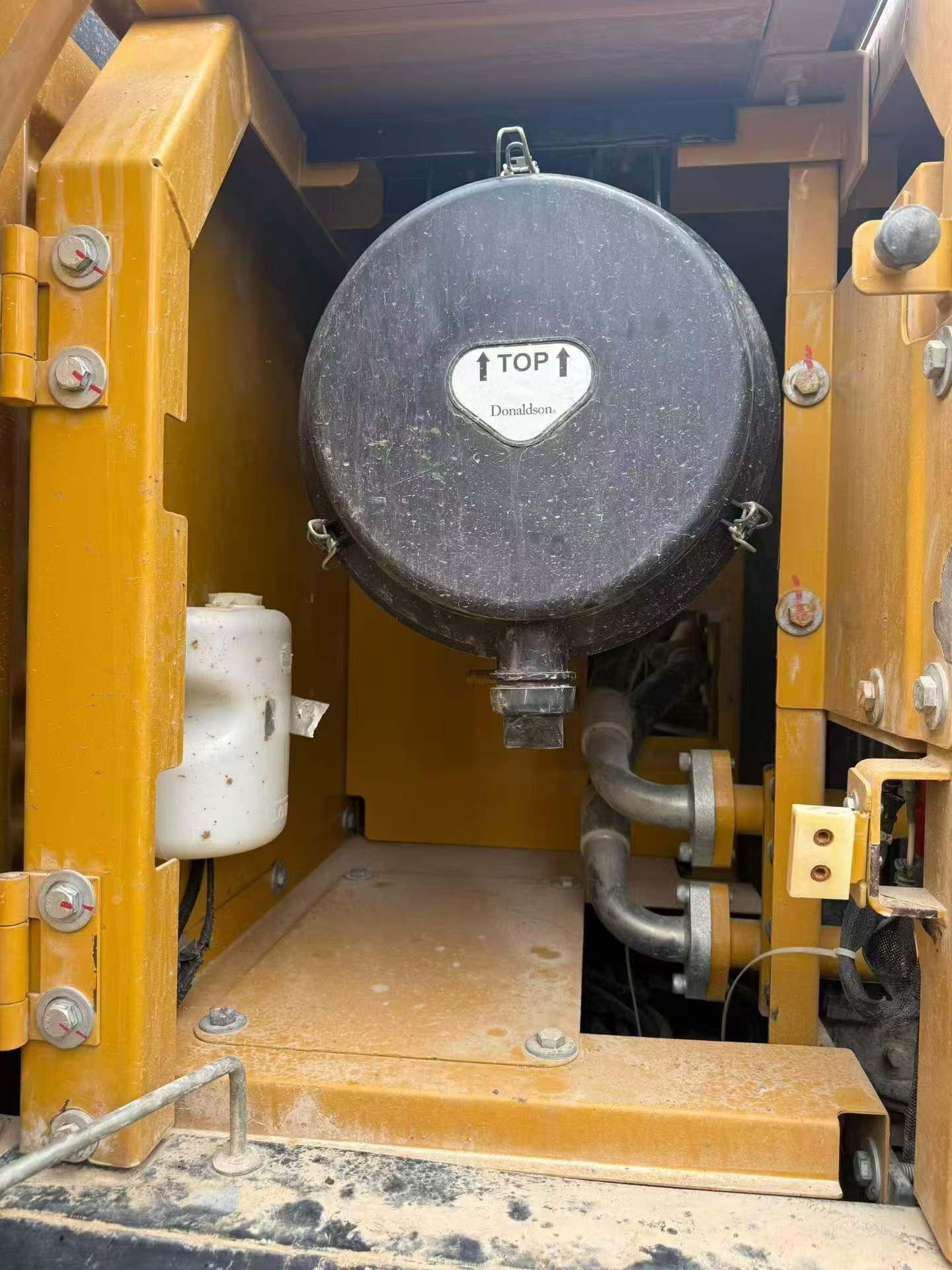

Buy Sany SY245H Used Excavator / 7

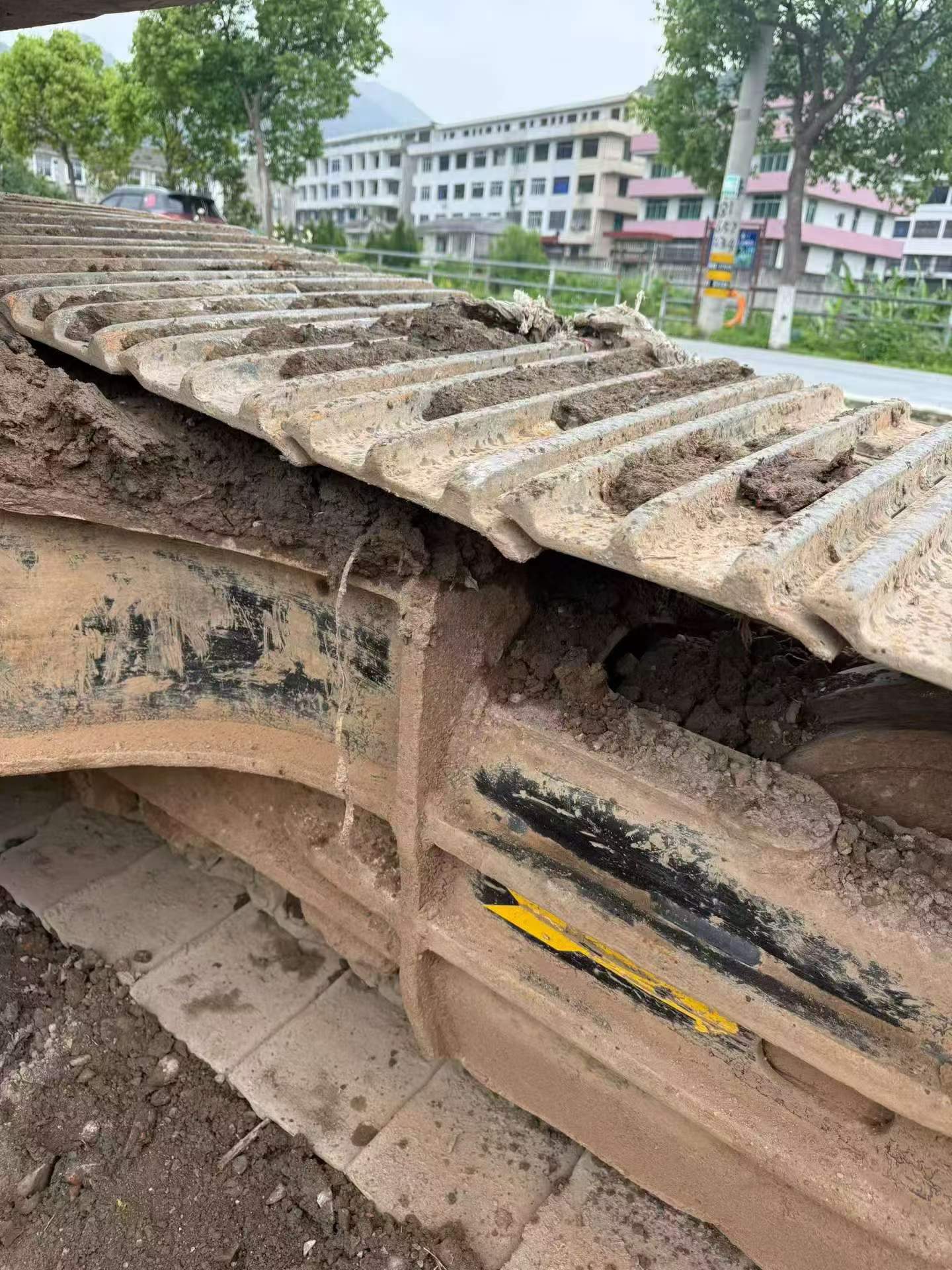

Buy Sany SY245H Used Excavator / 8

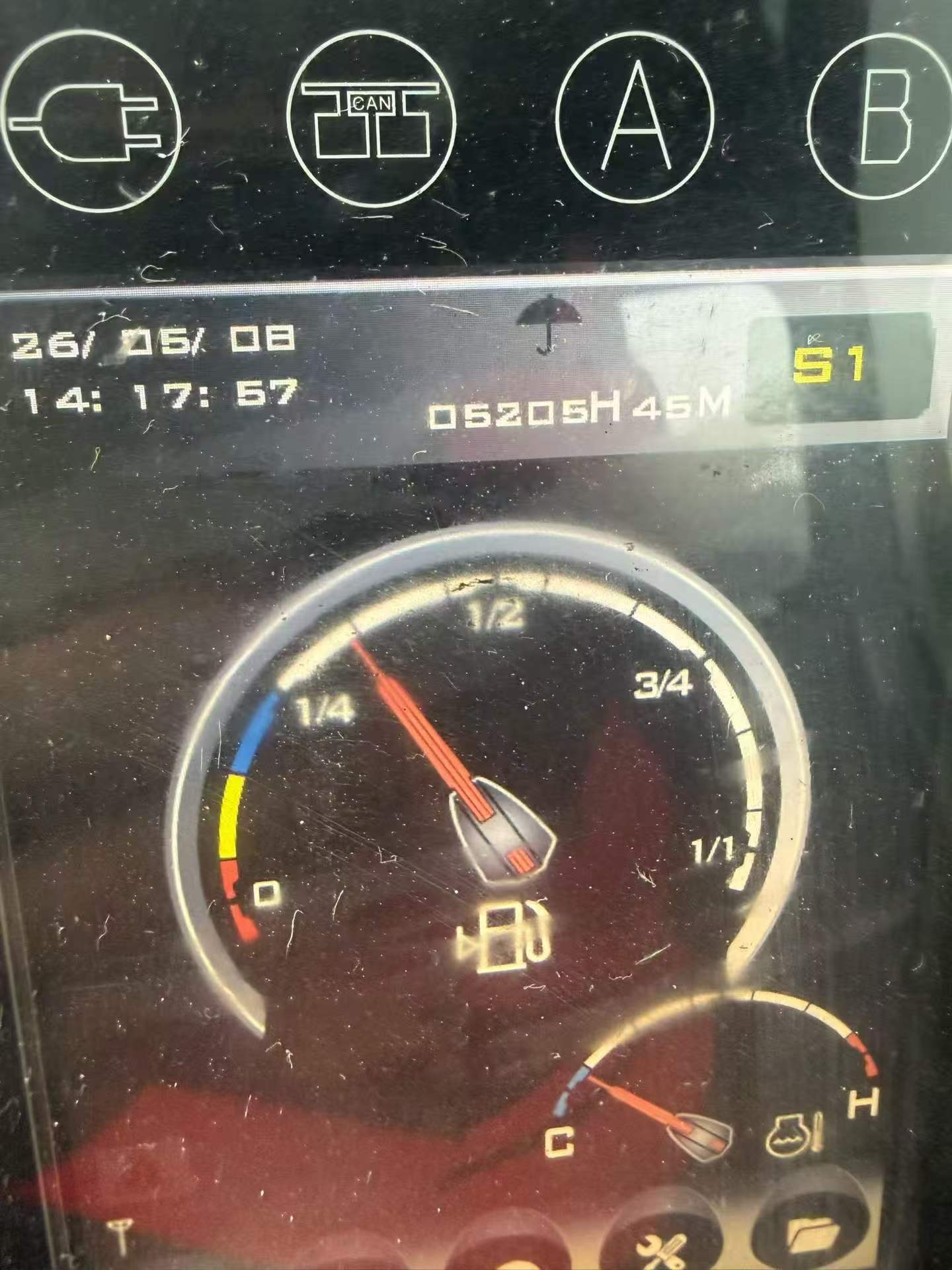

Buy Sany SY245H Used Excavator / 9

Product Description

This 2020 Sany SY245H hydraulic excavator represents exceptional value in the 20-ton class. Originally deployed for earthmoving operations, the machine demonstrates well-maintained major components with clean, dry assemblies throughout. Currently located in Zhejiang, China, this unit exemplifies the reliability Sany's 245 series is known for in demanding excavation work.

Key highlights include:

  • Late 2020 production year with documented earthwork history
  • 20-ton operating weight suitable for medium to heavy-duty applications
  • Efficient hydraulic system capable of smooth operation at idle speed
  • Well-preserved major components including boom, arm, and undercarriage
  • Proven performance in soil excavation and material handling

The SY245H offers contractors a dependable platform for construction, mining, and infrastructure projects. Inspection welcome. Contact us for detailed specifications and viewing arrangements.

SpecificationsValue
No.1140122
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1140122

Brand Name:

Sany

Model Number:

SY245H

Year:

2020

Location:

Zhejiang China

Pub Date
