Product Description

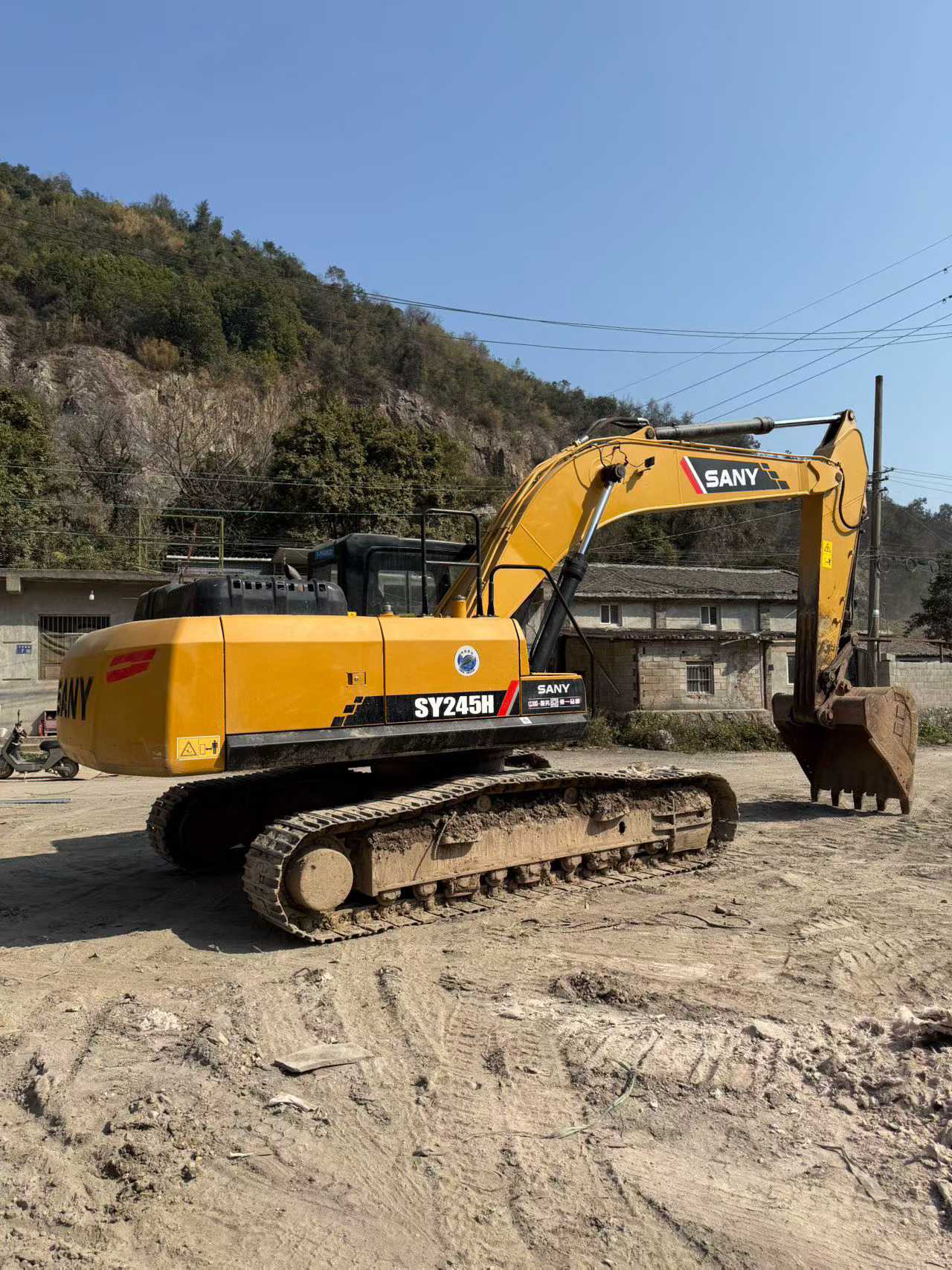

Engineered with precision hydraulics and a robust National IV emission standard engine, this 2021 Sany SY245H delivers exceptional performance in demanding excavation environments. Advanced hydraulic systems provide superior flow control and responsive operation, enabling operators to execute complex tasks with remarkable efficiency. The powertrain combines fuel economy with substantial digging force, making this model a reliable choice for heavy-duty construction projects.
- Model: SY245H (国四) with National IV compliant engine technology
- Hydraulic System: Optimized flow distribution for enhanced productivity
- Operating Weight: Mid-size class with maximum stability
- Current Location: Wenzhou, Zhejiang Province
- Manufacturing Year: 2021
Sany's engineering excellence is evident throughout this excavator's design, from reinforced structural components to precision-machined hydraulic cylinders. Built for the rigors of continuous operation, the SY245H represents proven technology backed by comprehensive quality control standards. Currently available in Wenzhou, this machine offers immediate deployment capability for contractors seeking dependable equipment with documented perfor
| Specifications | Value |
|---|---|
| No. | 1006401 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
