Product Description

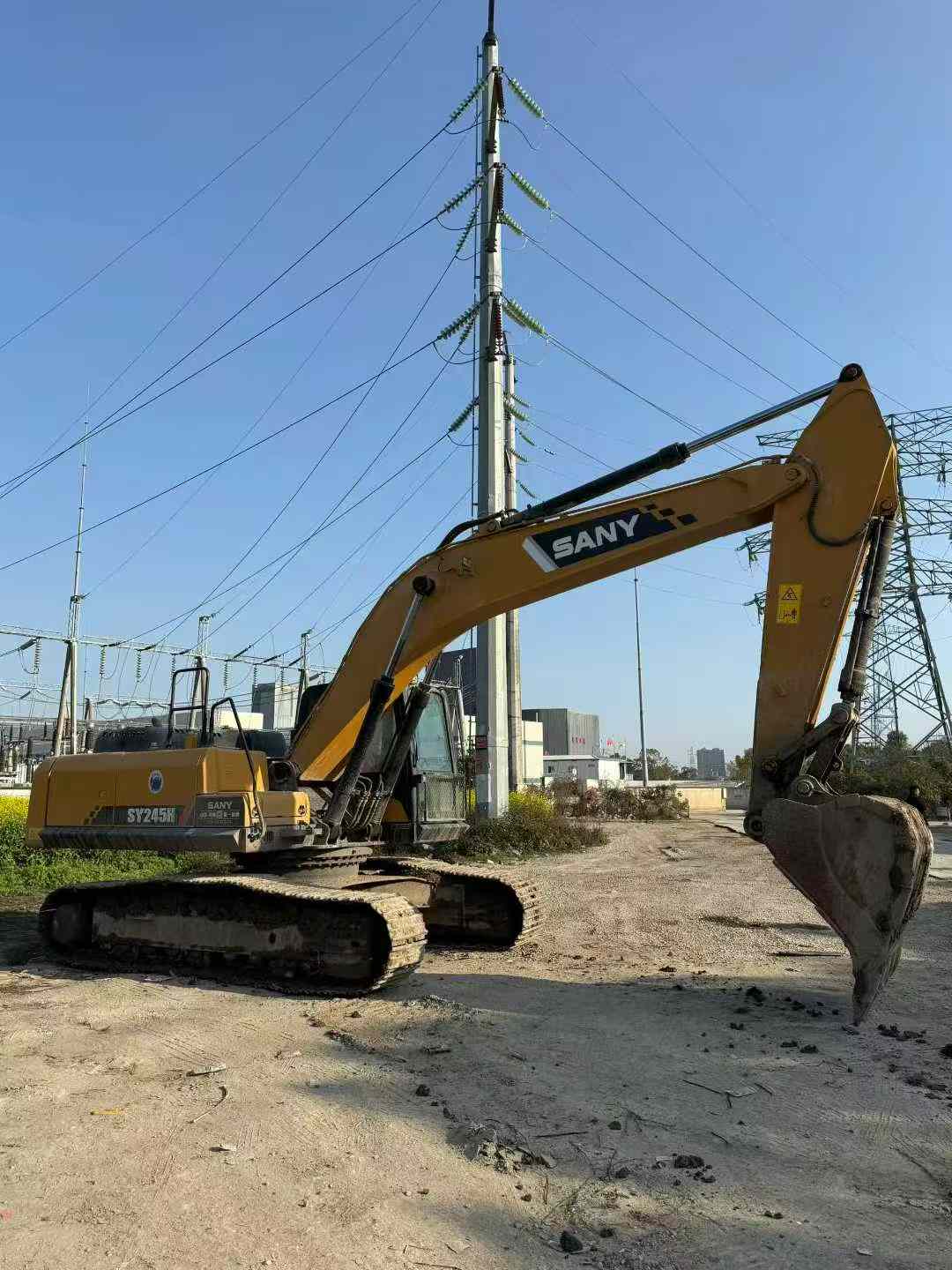

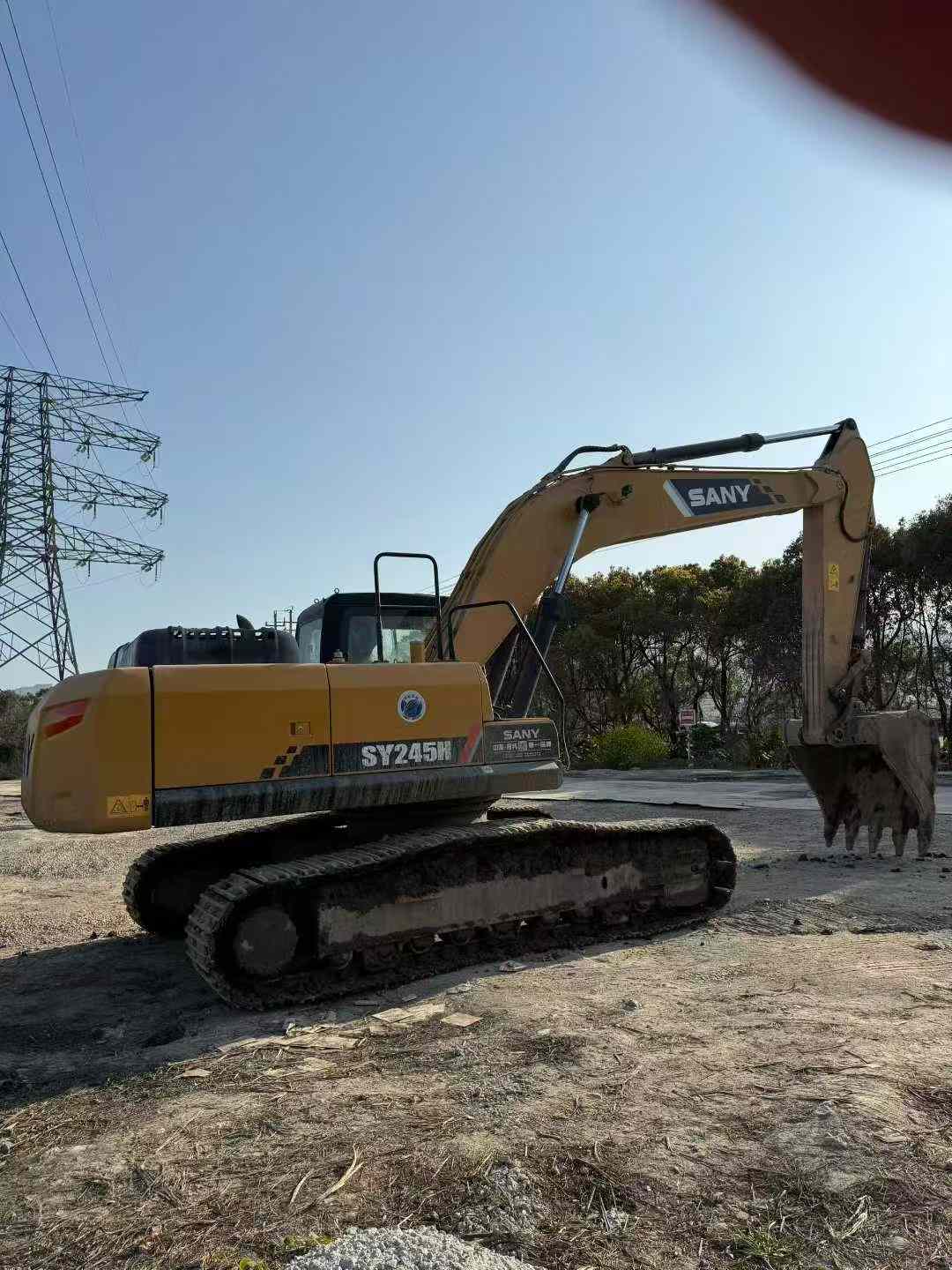

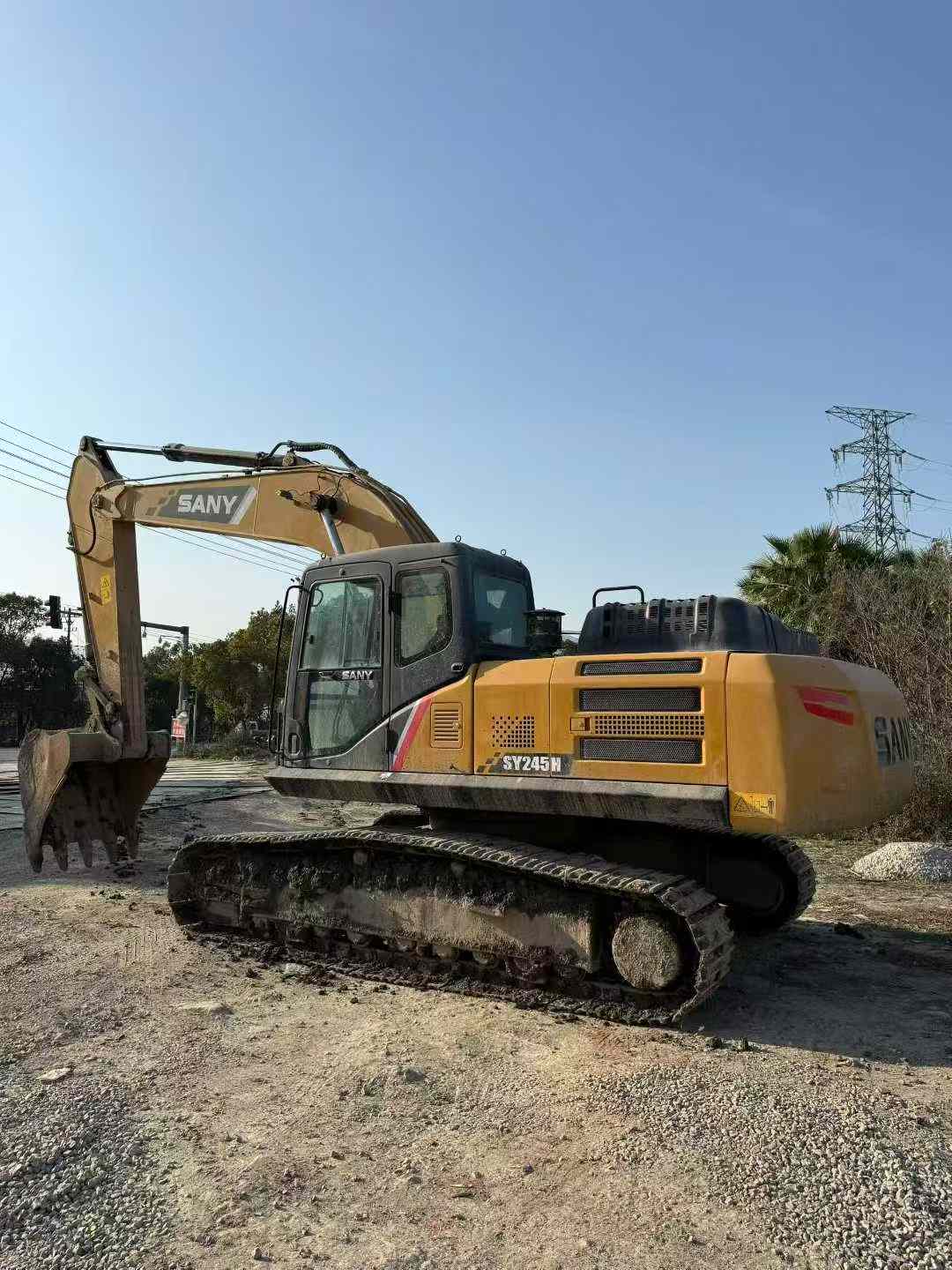

Maximize your operational budget with this 2021 Sany SY245H excavator—a proven 24-ton workhorse delivering premium performance without the premium price tag. Powered by a robust D06FRC engine generating 147kW at 2100 rpm and 750 N·m of torque, this machine tackles demanding excavation projects with professional-grade efficiency. With just minimal operating hours since manufacture, you're acquiring near-new capabilities at a fraction of replacement cost.
Key Performance Specifications:
- Operating weight: 25,500 kg with 1.3-1.5 m³ bucket capacity
- Superior reach: 10,225 mm maximum digging radius, 6,705 mm digging depth
- Powerful excavation: 175 kN bucket digging force, 120 kN arm force
- Water-cooled 6-cylinder engine (6.373L displacement) for extended durability
- 475L fuel tank and 277L hydraulic reservoir support long operational shifts
- 70% gradeability and 10.6 rpm rotation speed enhance productivity
Currently located in Wenzhou, Zhejiang, this Chinese-manufactured excavator represents intelligent capital allocation for contractors seeking reliable medium-class excavation capacity. Invest strategically in proven equipment that protects your
| Specifications | Value |
|---|---|
| No. | 1032162 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
