2021 Sany SY245H

1/9

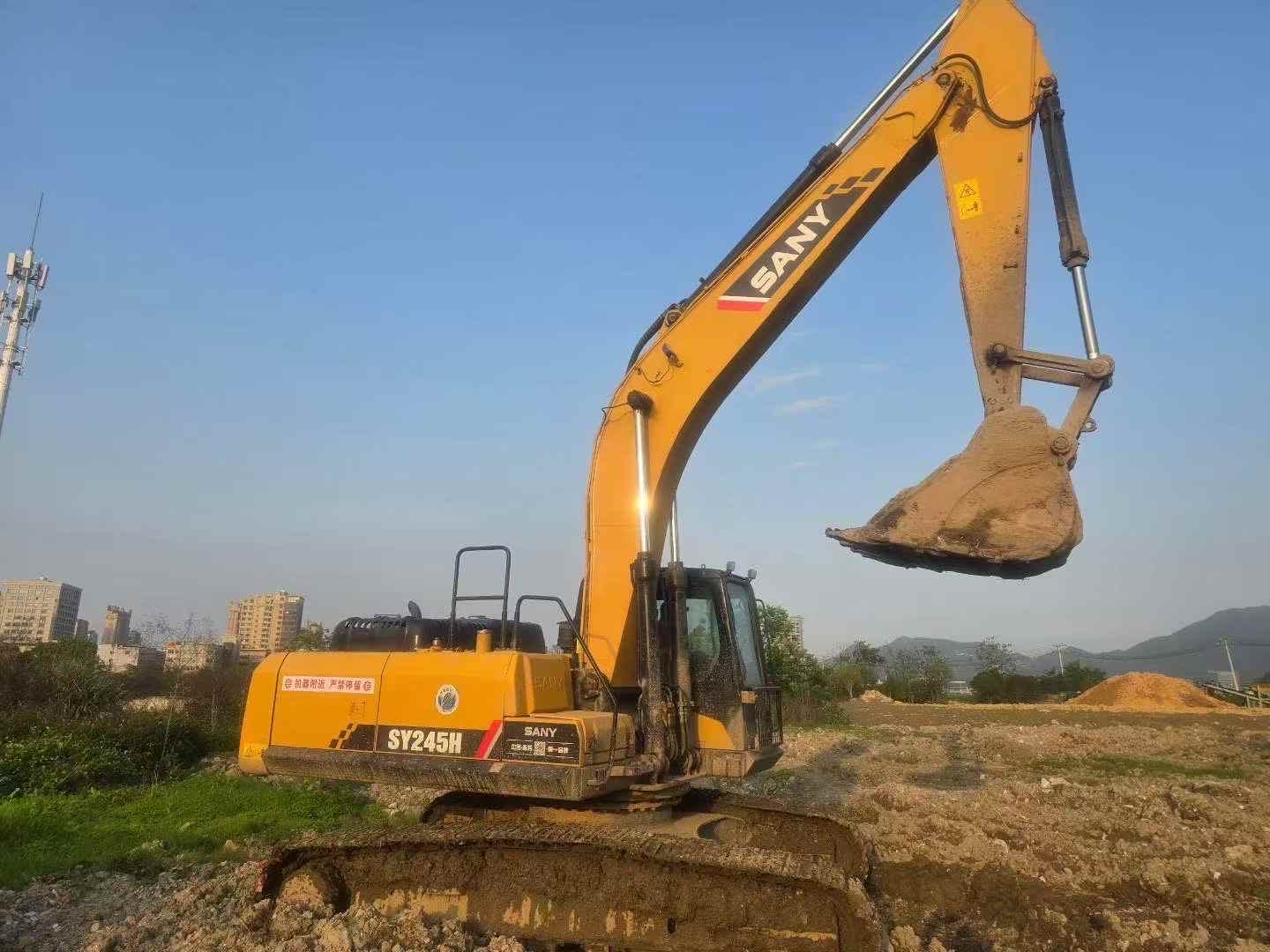

Buy Sany SY245H Used Excavator / 1

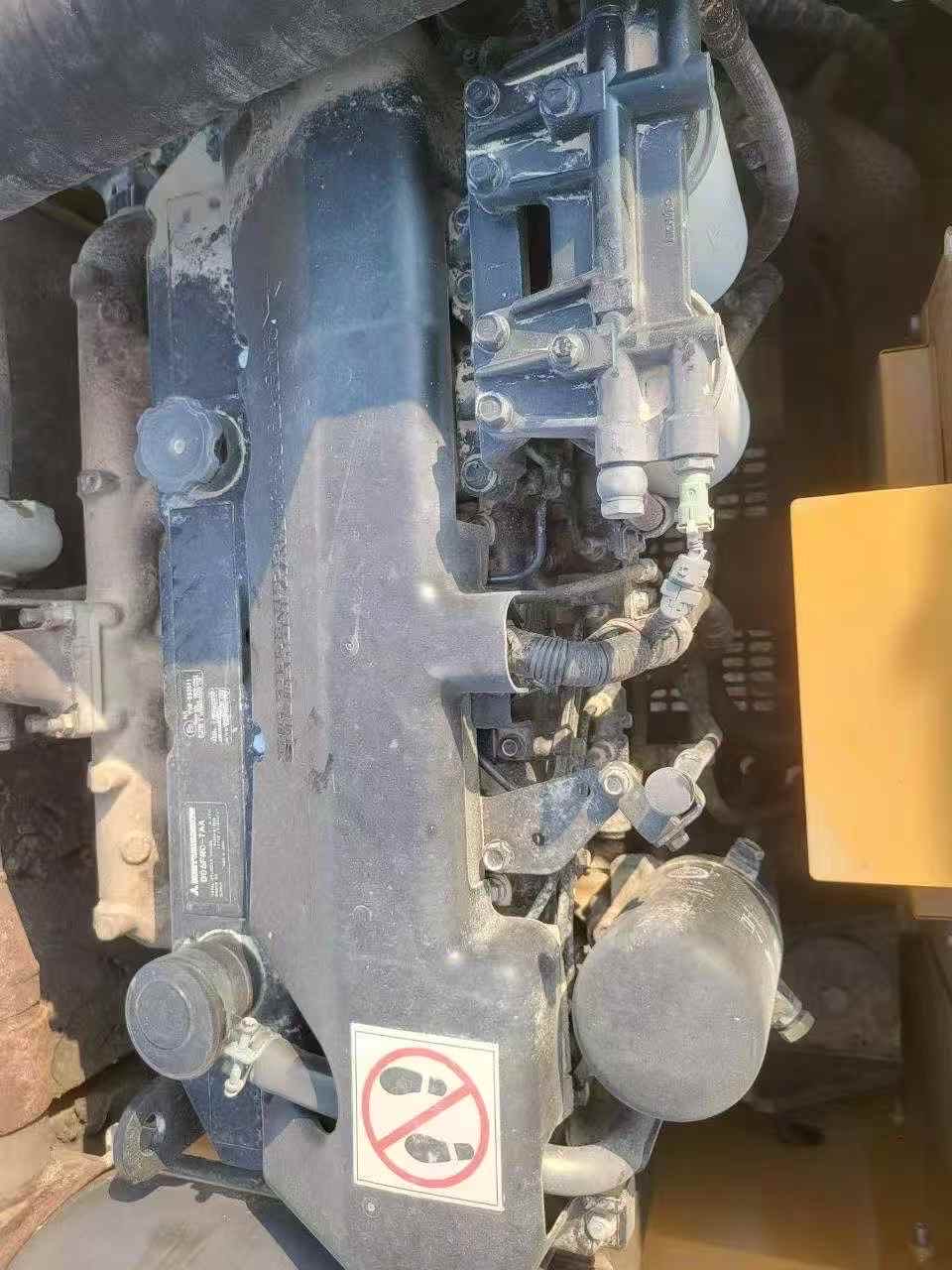

Buy Sany SY245H Used Excavator / 2

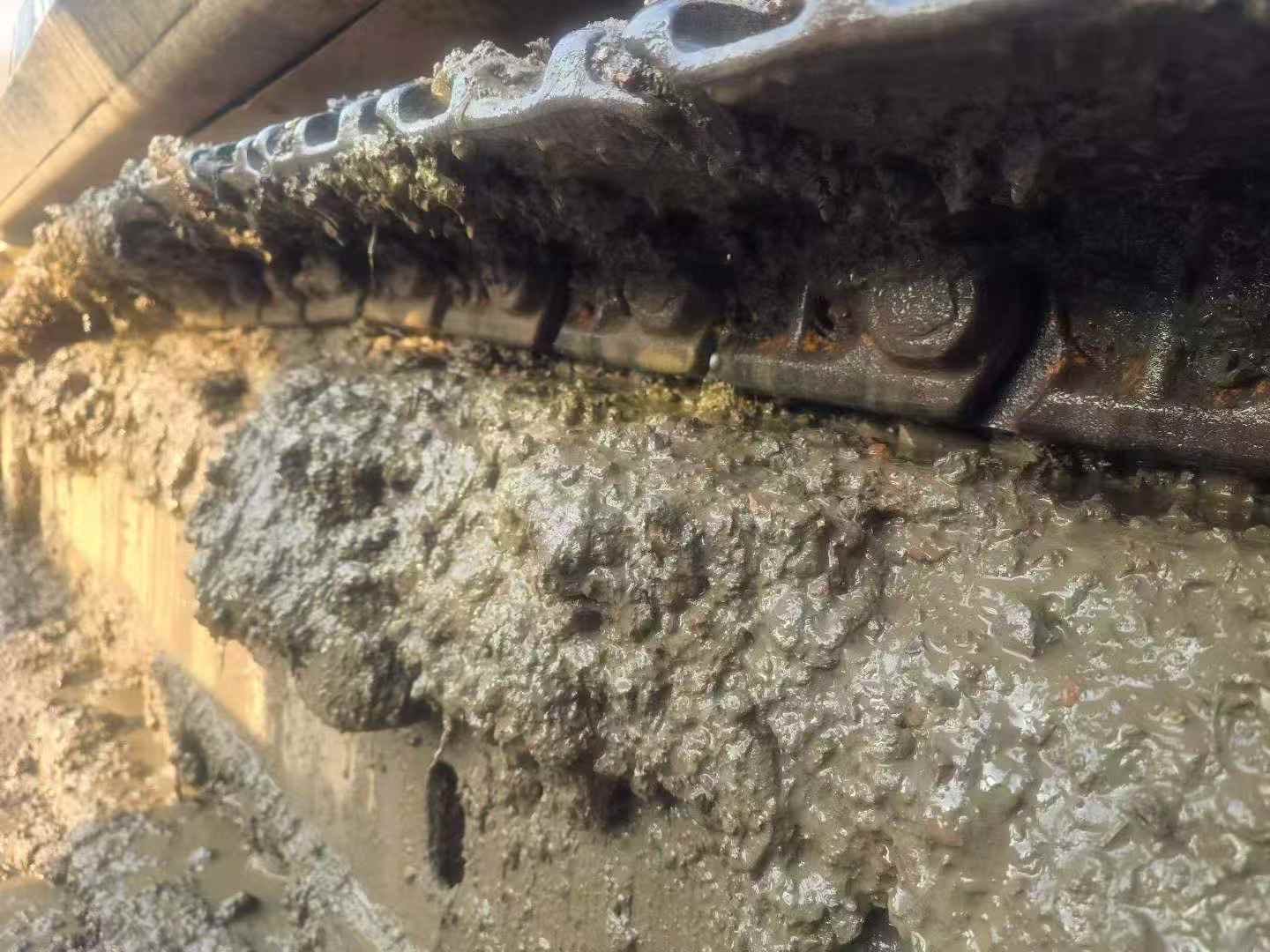

Buy Sany SY245H Used Excavator / 3

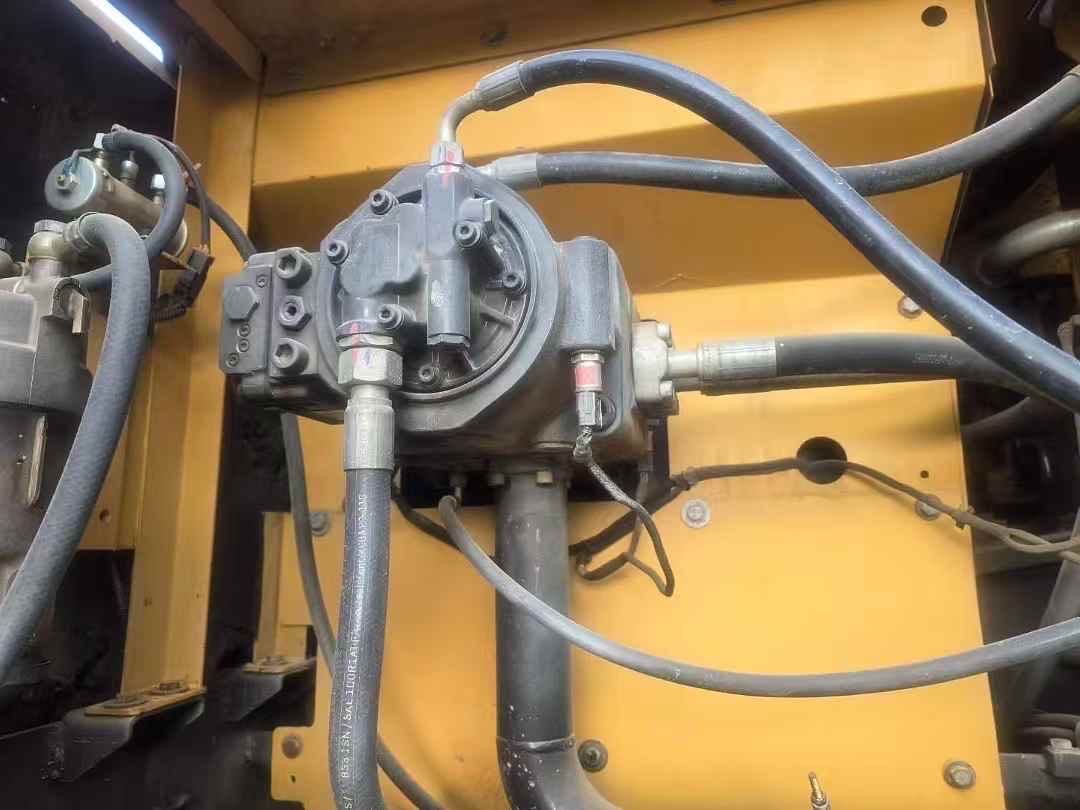

Buy Sany SY245H Used Excavator / 4

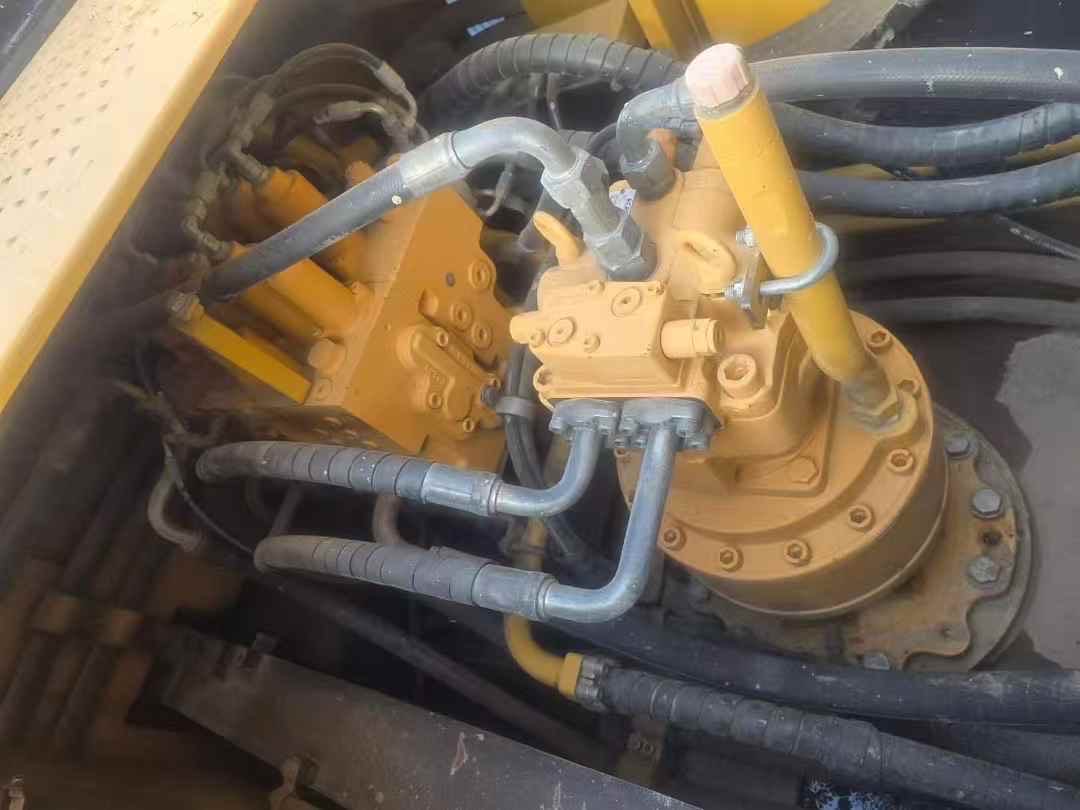

Buy Sany SY245H Used Excavator / 5

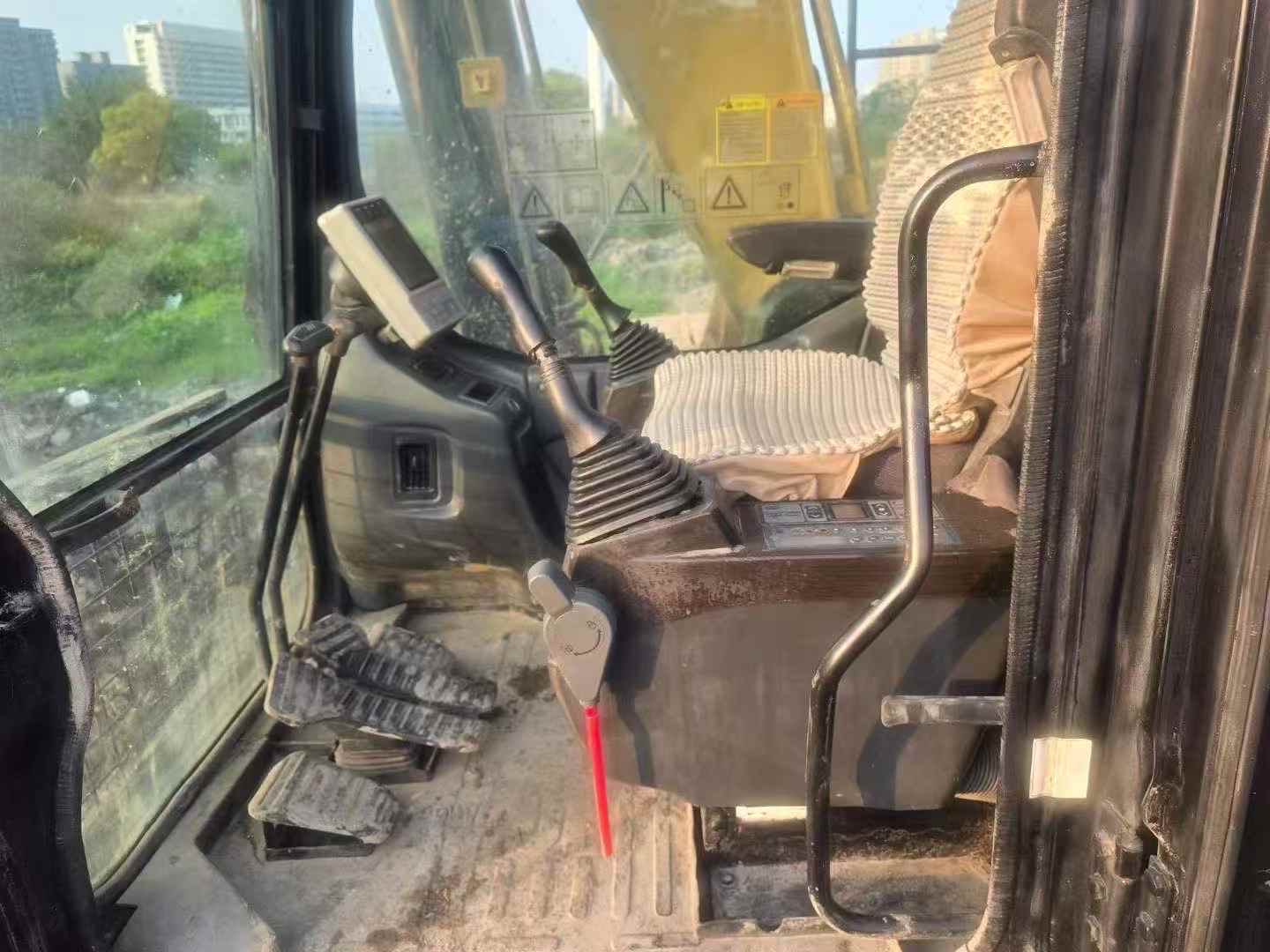

Buy Sany SY245H Used Excavator / 6

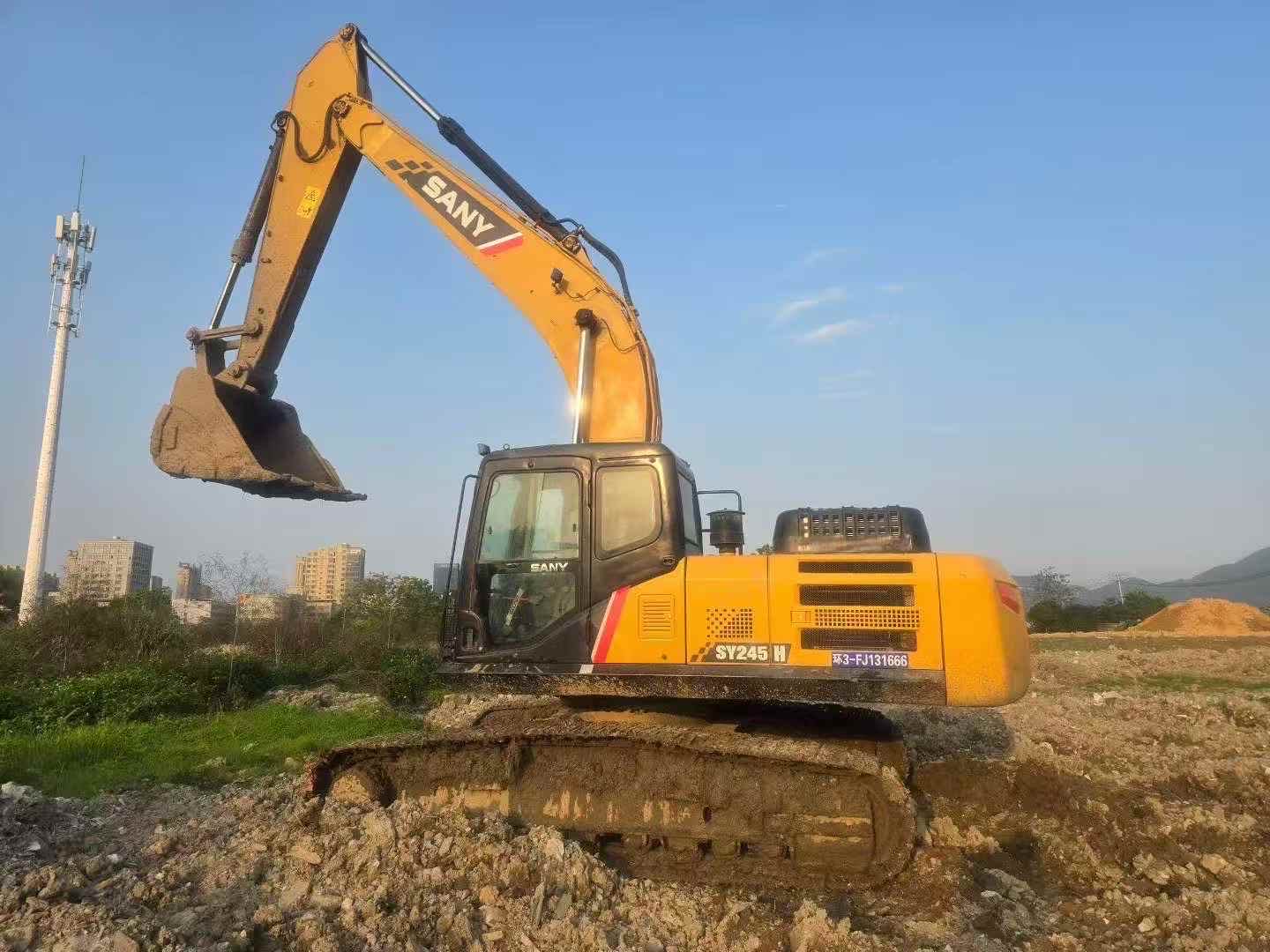

Buy Sany SY245H Used Excavator / 7

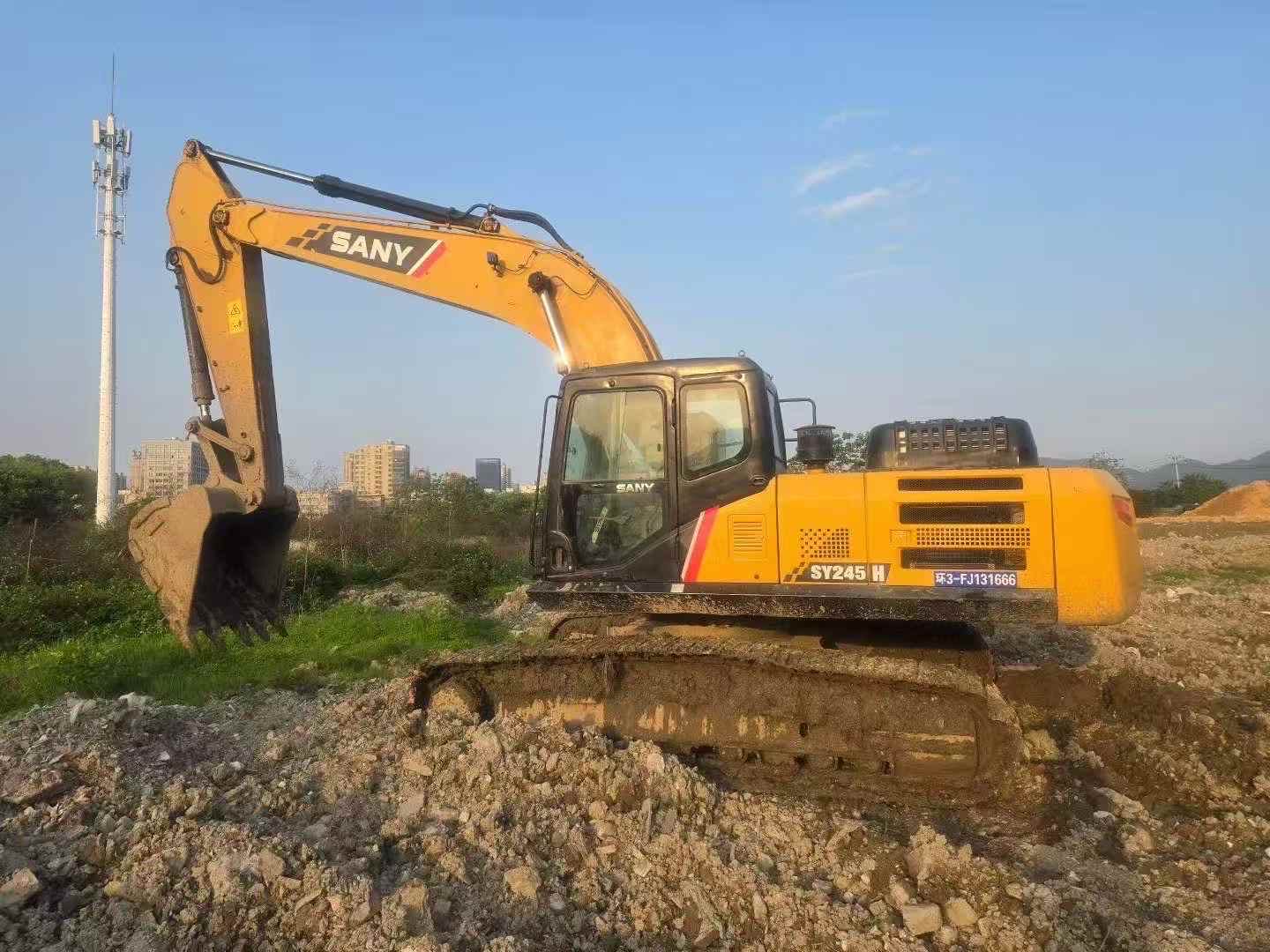

Buy Sany SY245H Used Excavator / 8

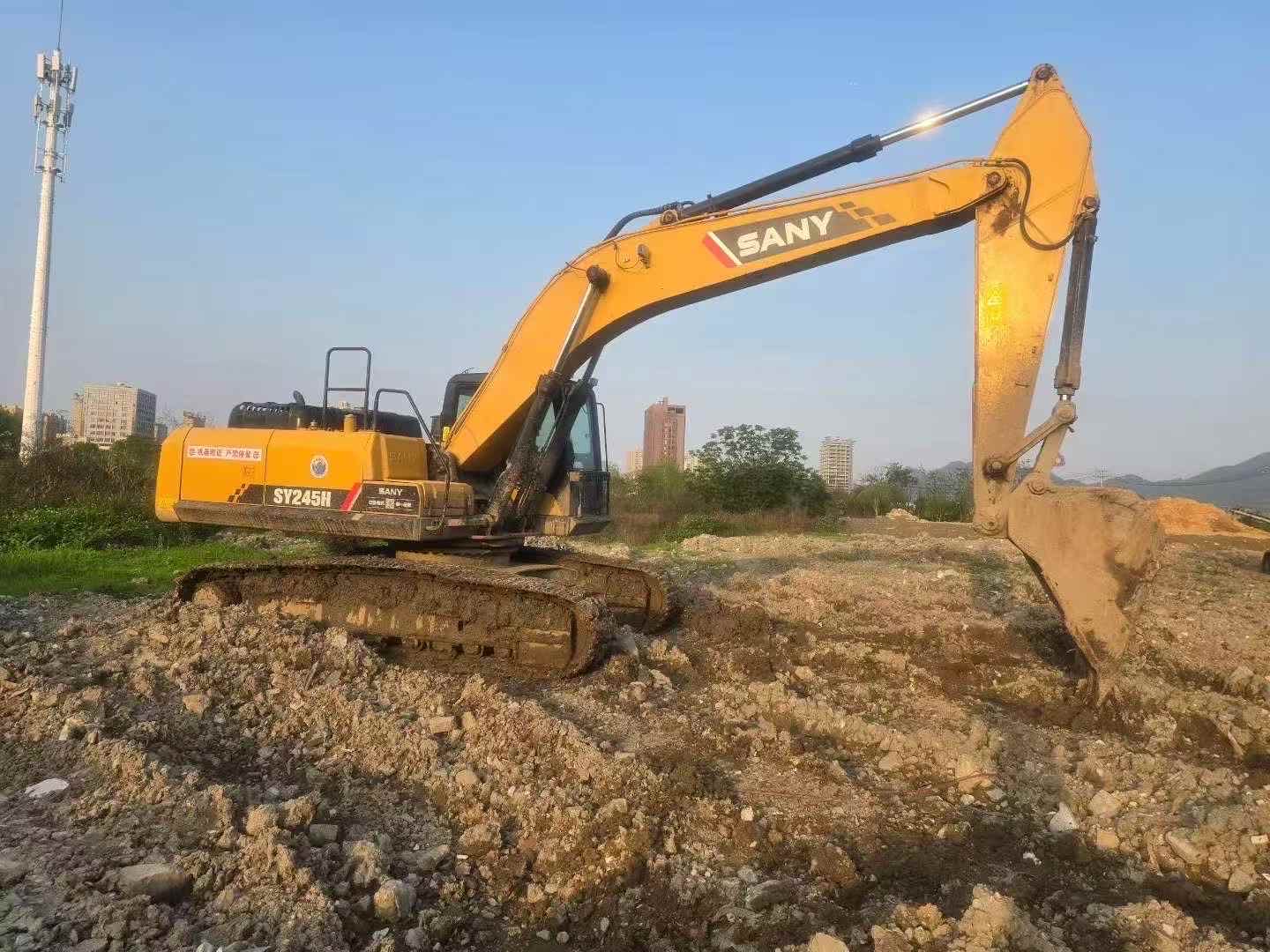

Buy Sany SY245H Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2021 Sany SY245H, a robust excavator designed for demanding construction and excavation tasks. Located in Zhejiang, China, this machine is in excellent condition, with its key components (engine, hydraulic system, and transmission) performing flawlessly without any leaks. Ideal for contractors and construction firms, the SY245H offers a blend of power and precision, ensuring optimal performance on any job site. This model is known for its durability and ease of maintenance, making it a cost-effective solution for your heavy machinery needs.

  • Year: 2021
  • Brand: Sany
  • Model: SY245H
  • Location: Zhejiang, China
SpecificationsValue
No.1055767
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1055767

Brand Name:

Sany

Model Number:

SY245H

Year:

2021

Hour:

4000h

Location:

Zhejiang China

Pub Date
