2021 Sany SY245H

1/9
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7

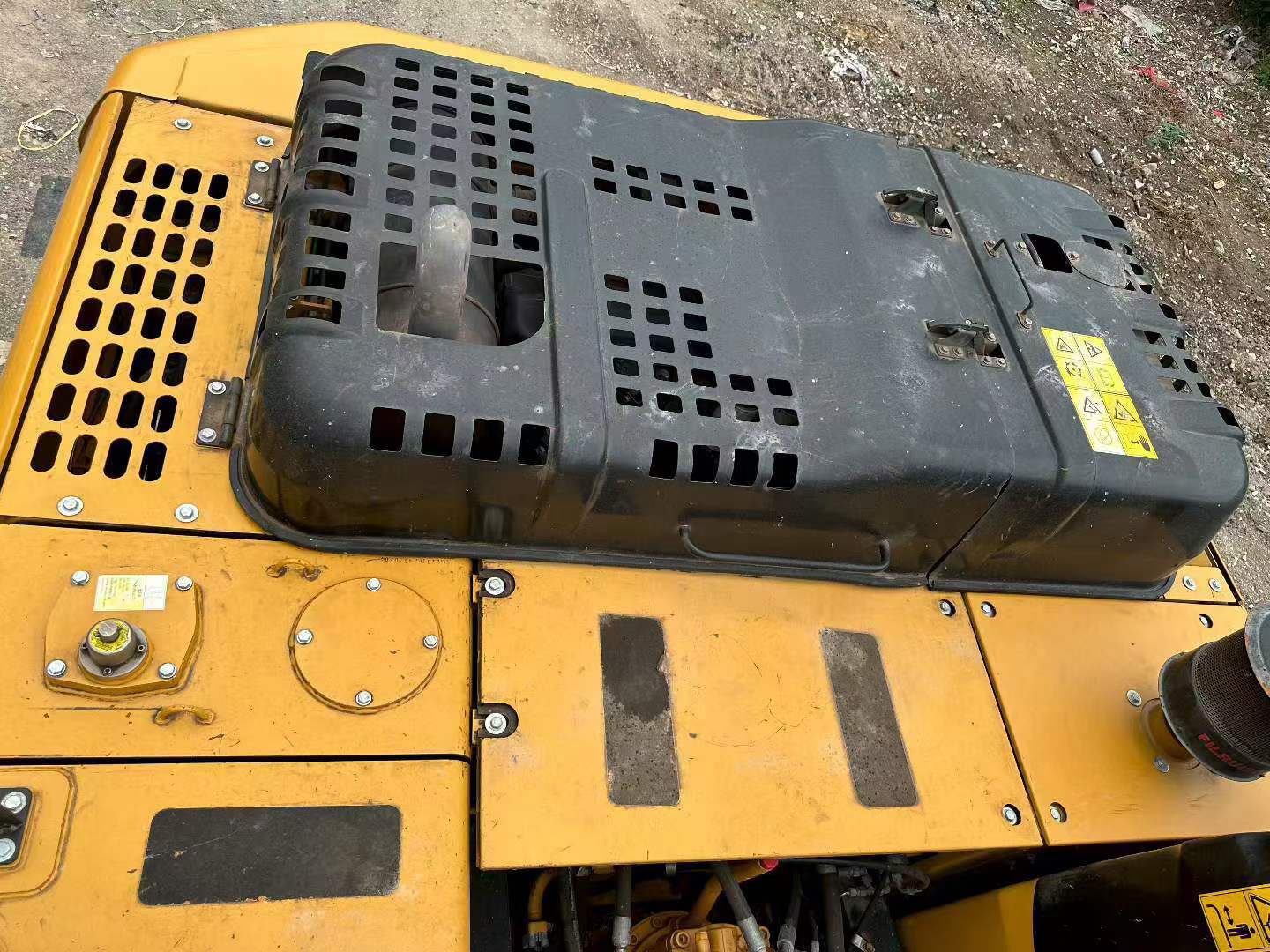

Buy Sany SY245H Used Excavator / 8
Buy Sany SY245H Used Excavator / 9

Product Description

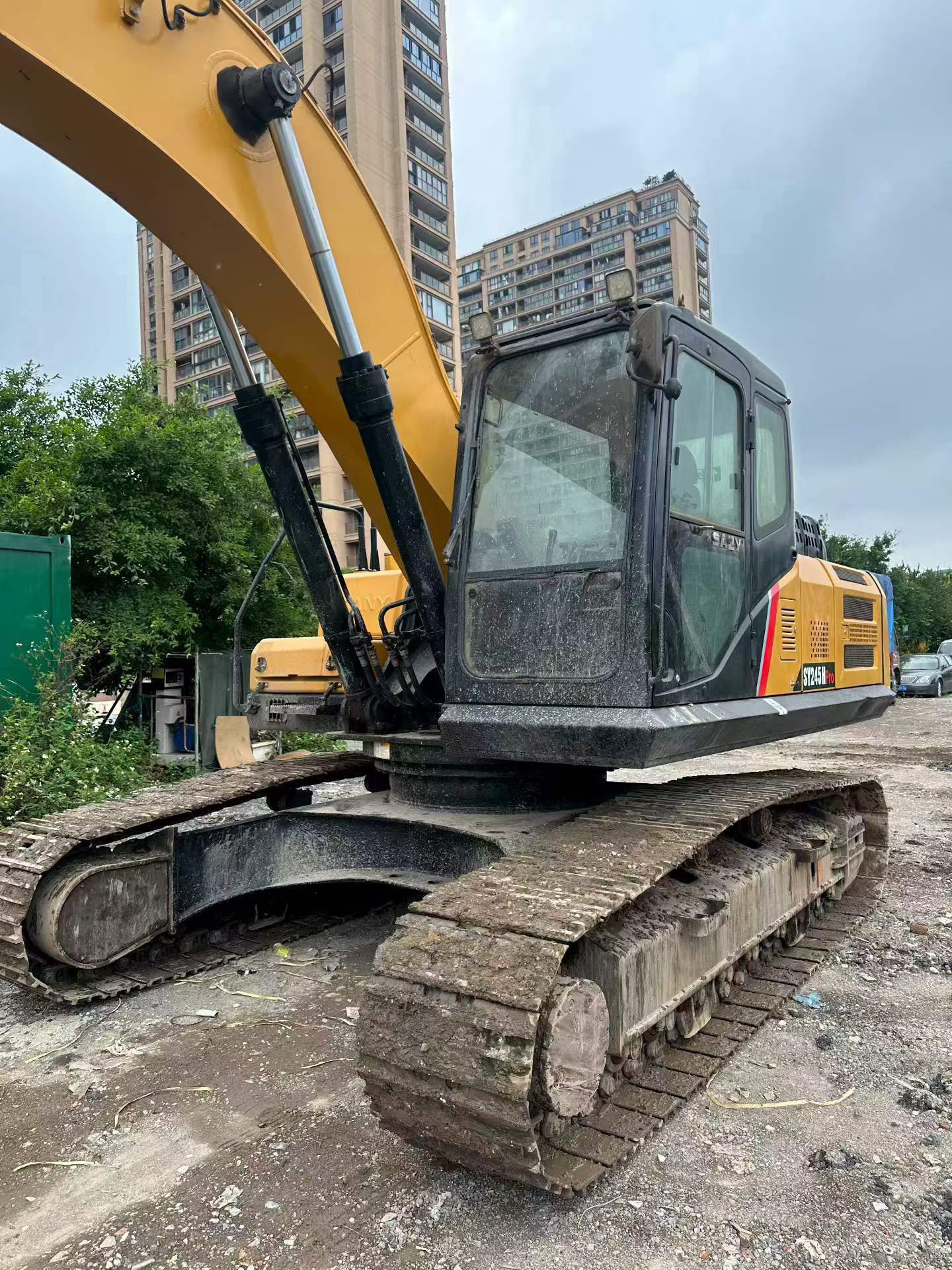

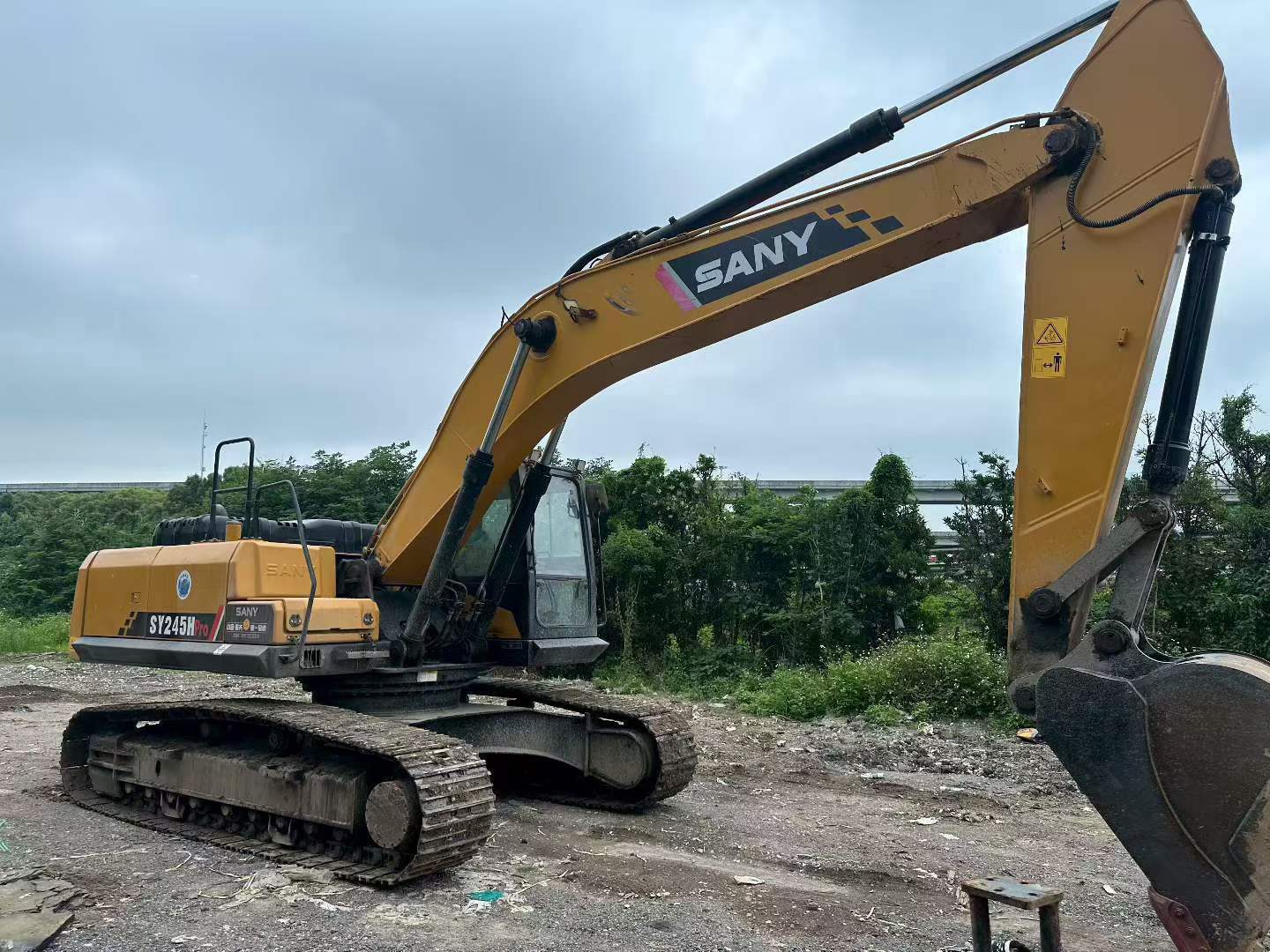

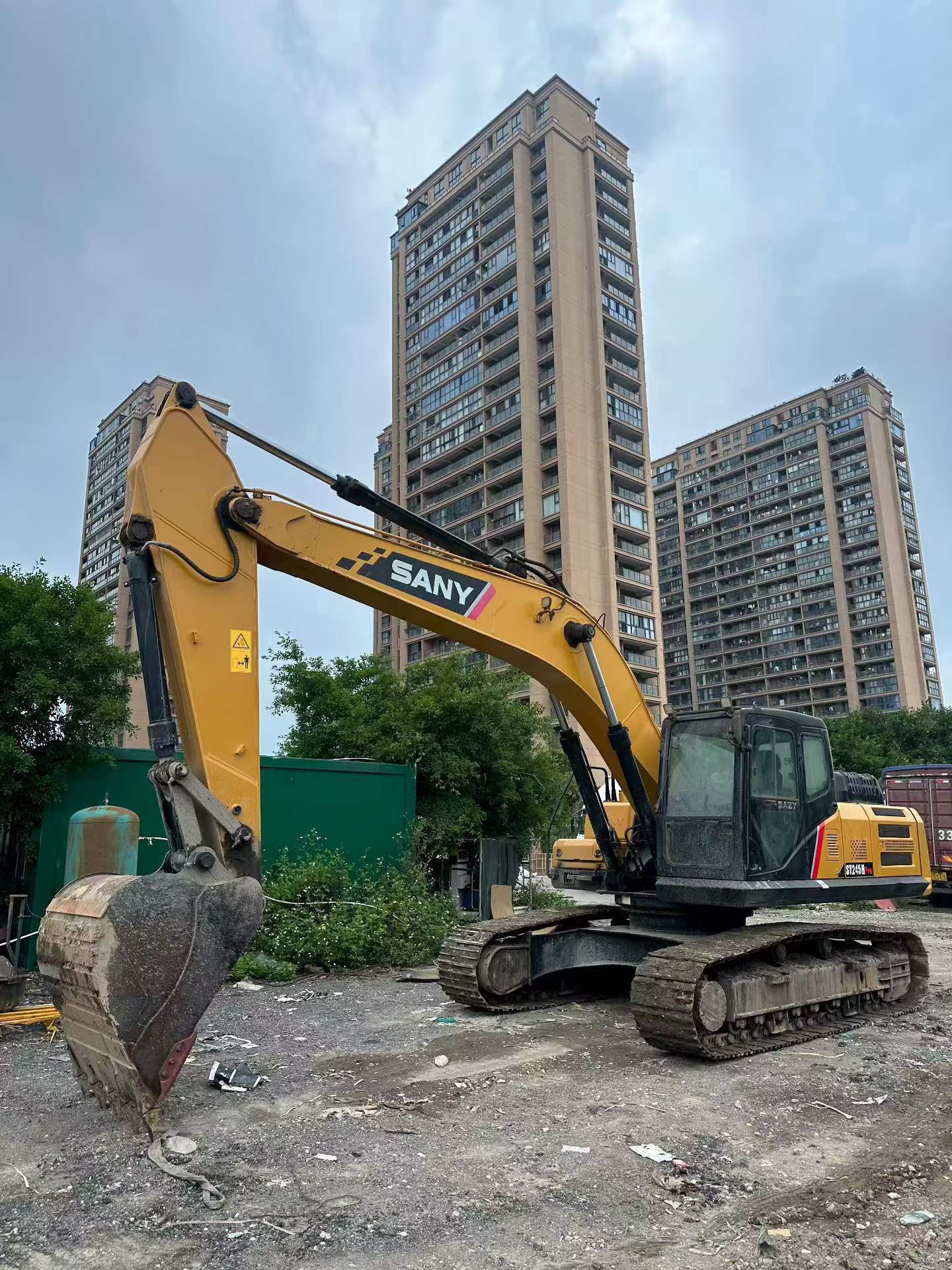

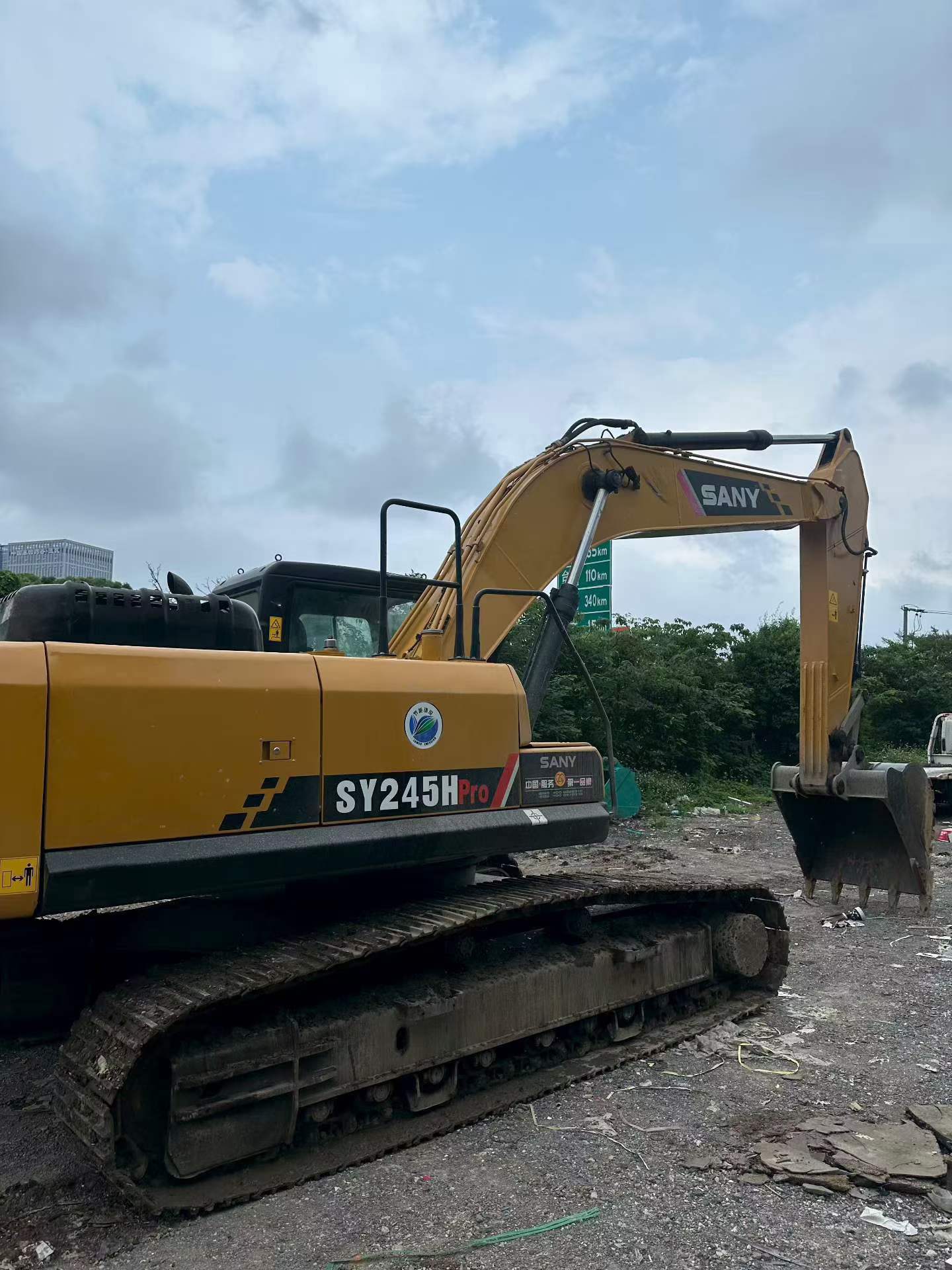

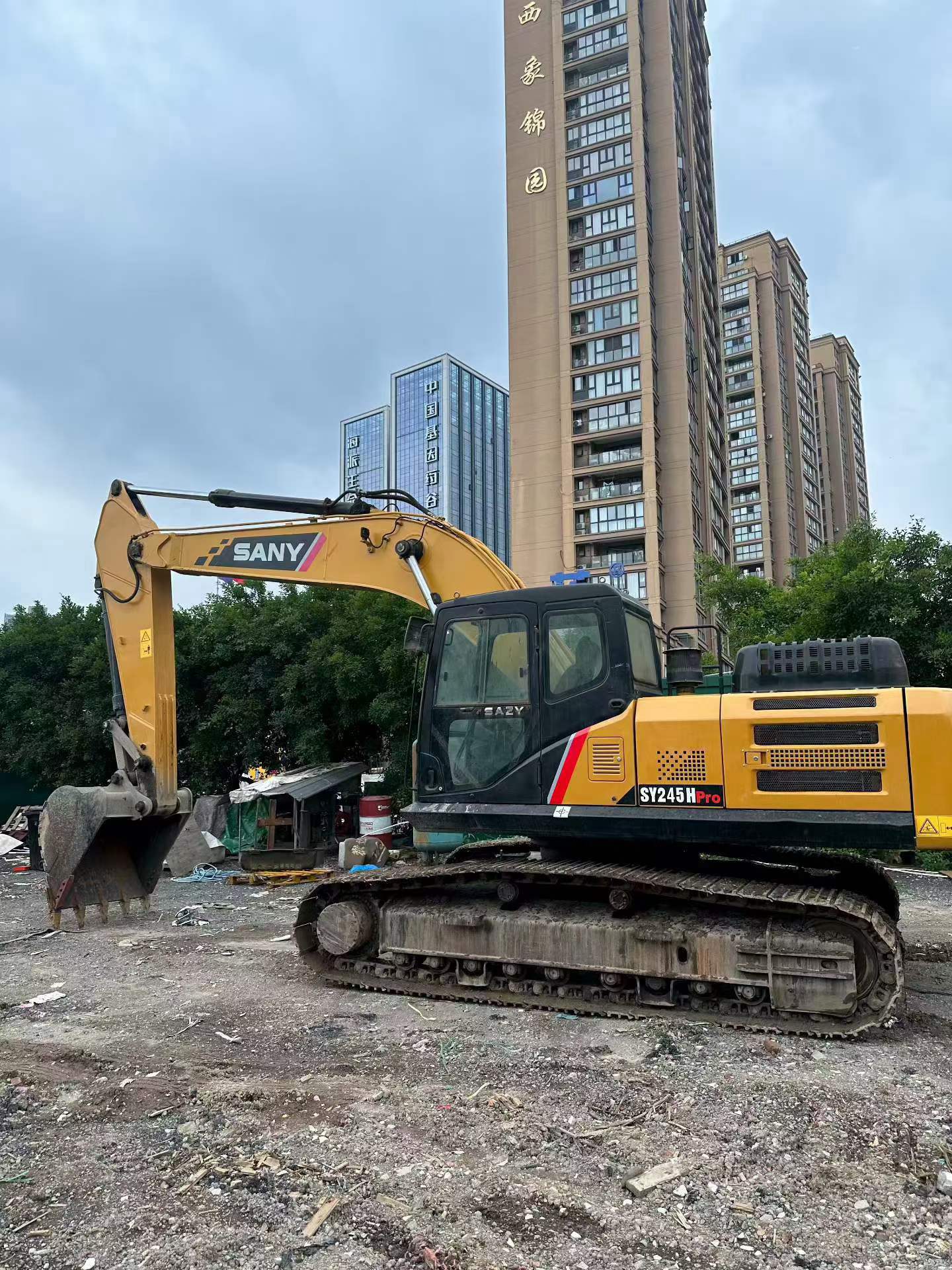

This 2021 Sany SY245H hydraulic excavator is available from Zhejiang, China. The machine comes with complete documentation and features an exceptionally well-maintained undercarriage bearing original Sany branding throughout. With approximately 3 years of service, this mid-size excavator delivers reliable performance for earthmoving and loading operations.

The SY245H is engineered for demanding excavation and material handling tasks. Its robust construction and proven hydraulic system make it particularly effective for bulk earthwork and truck loading applications in construction, mining, and infrastructure projects.

  • Year: 2021
  • Model: Sany SY245H
  • Location: Zhejiang Province, China
  • Condition: Complete documentation, excellent undercarriage
  • Application: Earthmoving, loading operations

This excavator represents a cost-effective solution for contractors seeking proven Sany reliability with low operating hours and verified maintenance history.

SpecificationsValue
No.1073980
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe

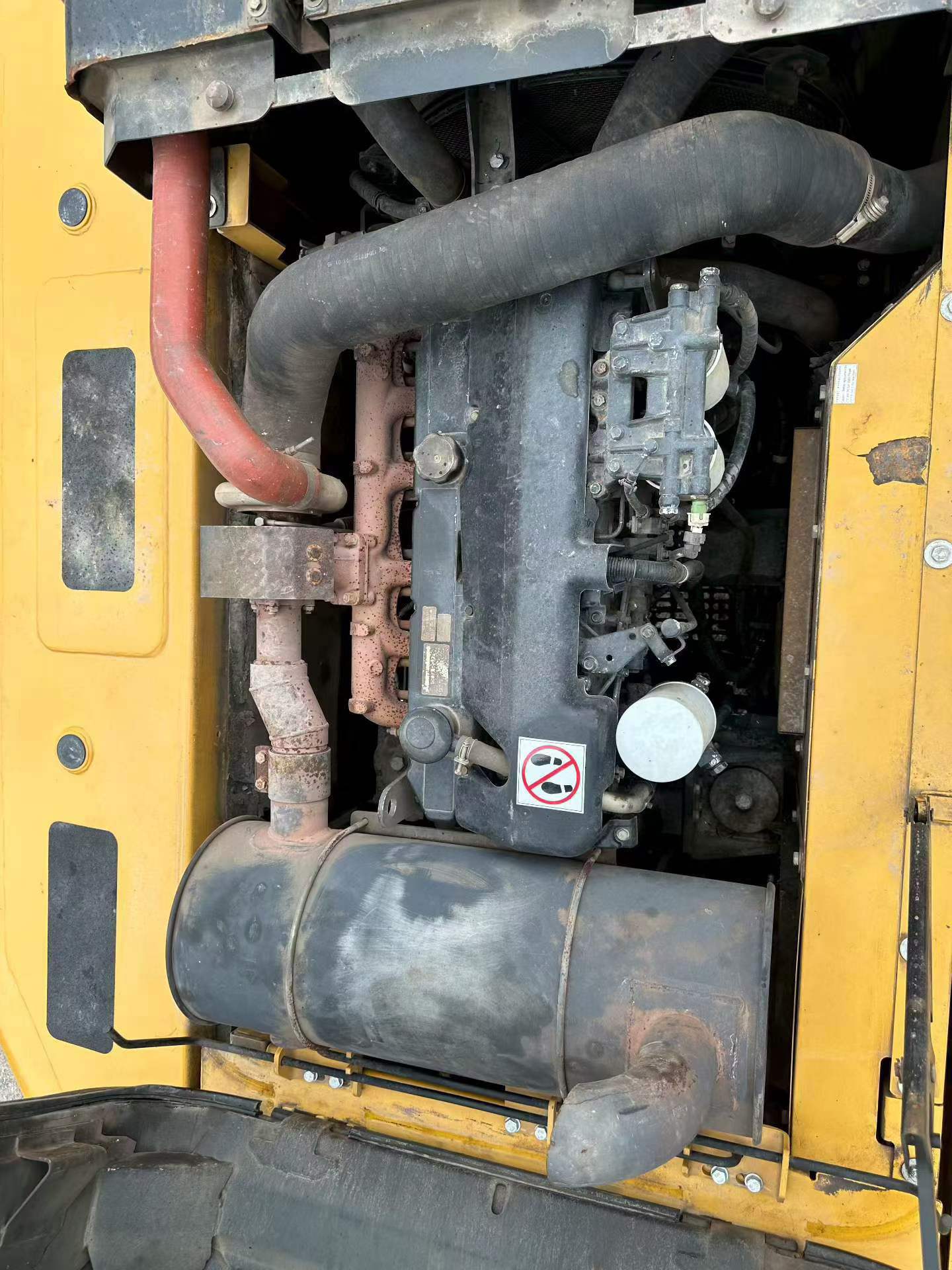

Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1073980

Brand Name:

Sany

Model Number:

SY245H

Year:

2021

Location:

Zhejiang China

Pub Date
