Product Description

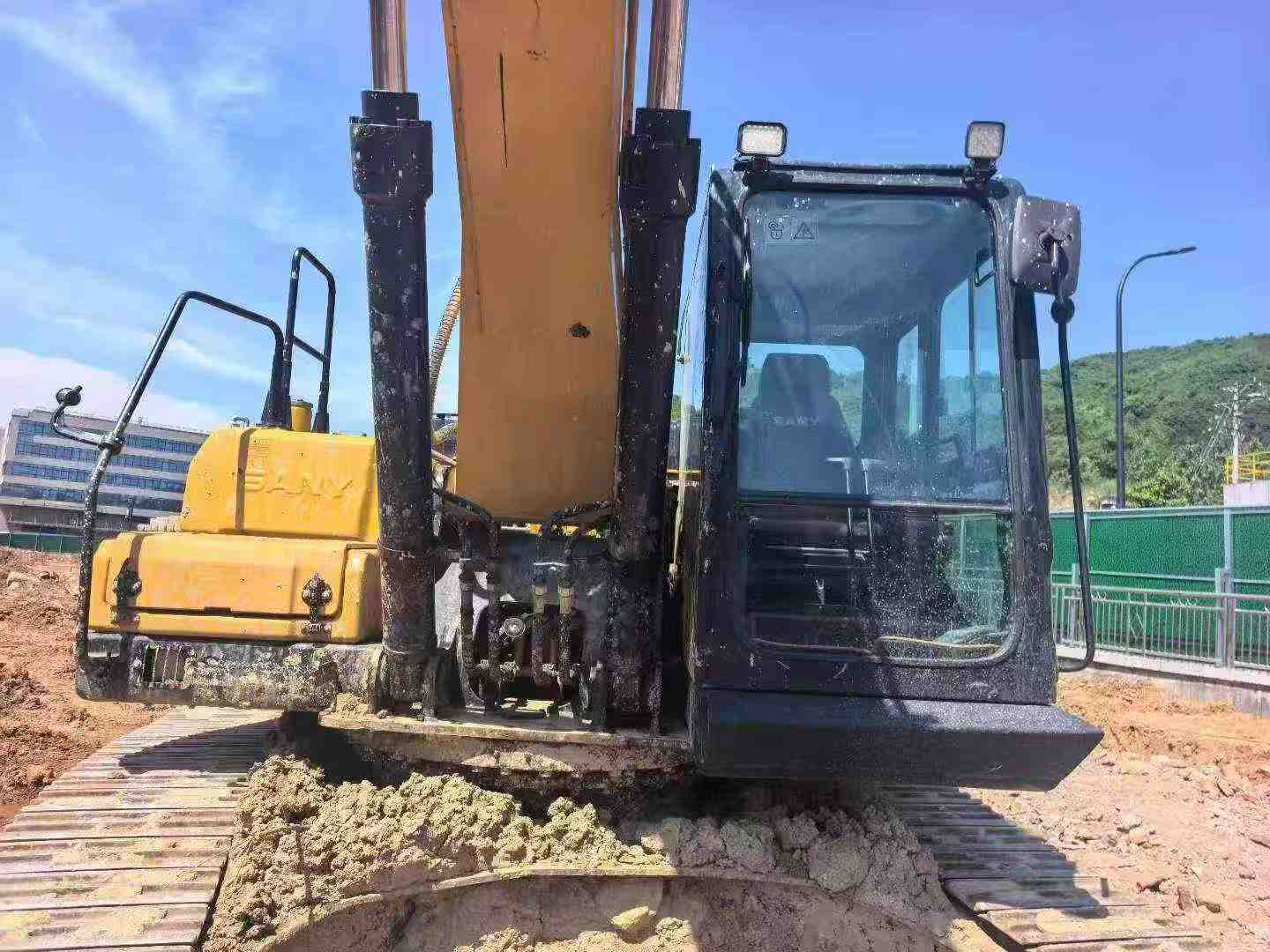

This 2021 Sany SY245H hydraulic excavator is available from Zhejiang, China, with 6,800 operational hours recorded on the original meter. The machine represents a practical option for contractors seeking proven mid-size excavator capacity at competitive pricing.
The SY245H is Sany's 24-ton class excavator, designed for general earthmoving, trenching, and site development applications. This unit has been maintained in working condition and is priced to reflect its current operational status and hour meter reading.
- Year of Manufacture: 2021

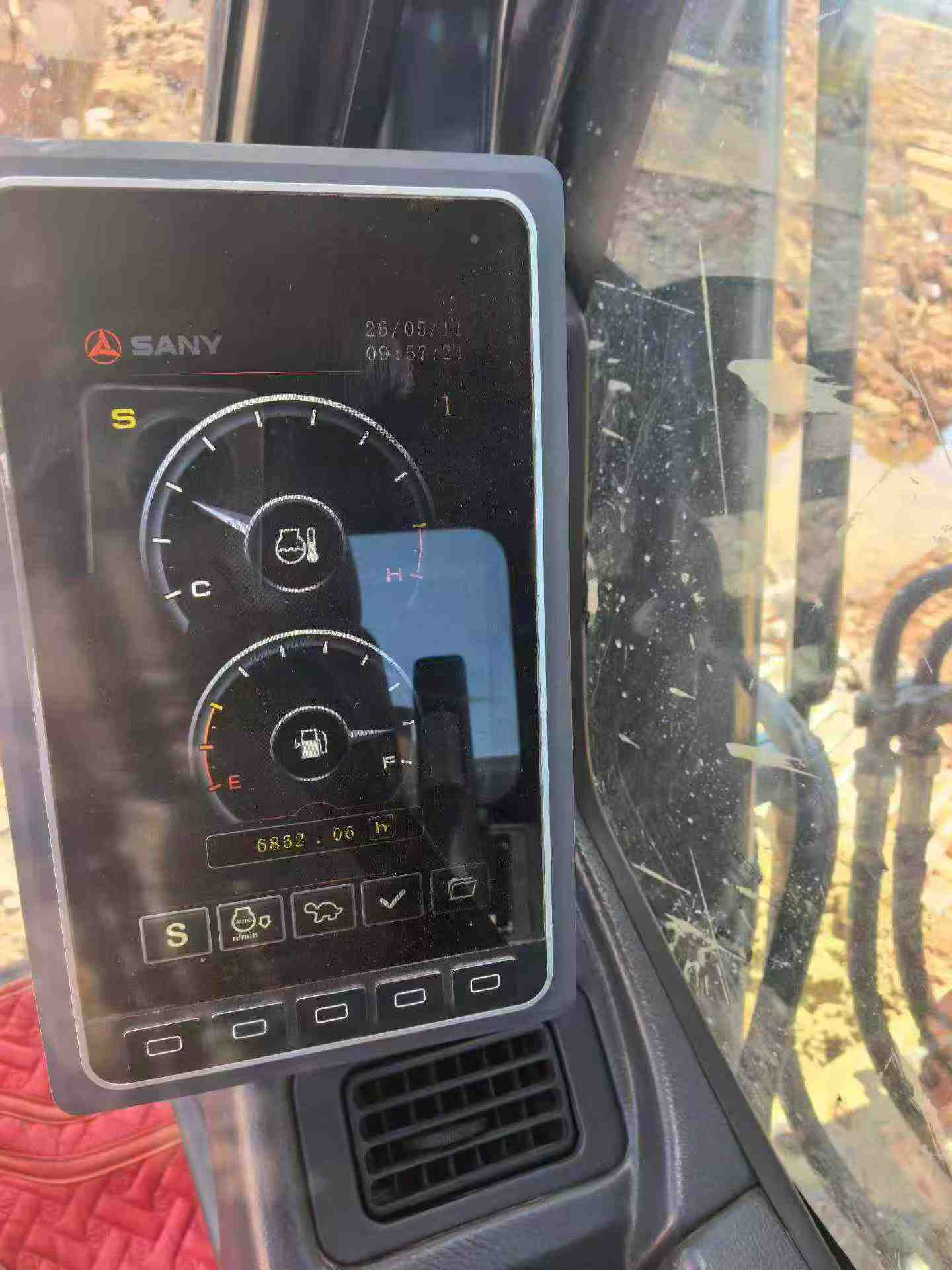

- Operating Hours: 6,800 hours (original meter)
- Operating Weight: Approximately 24,500 kg
- Location: Zhejiang Province, China
- Condition: Used, operational
Inspection is recommended prior to purchase. Pricing reflects as-is condition. Contact us for current availability and delivered pricing to your location.
| Specifications | Value |
|---|---|
| No. | 1074056 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

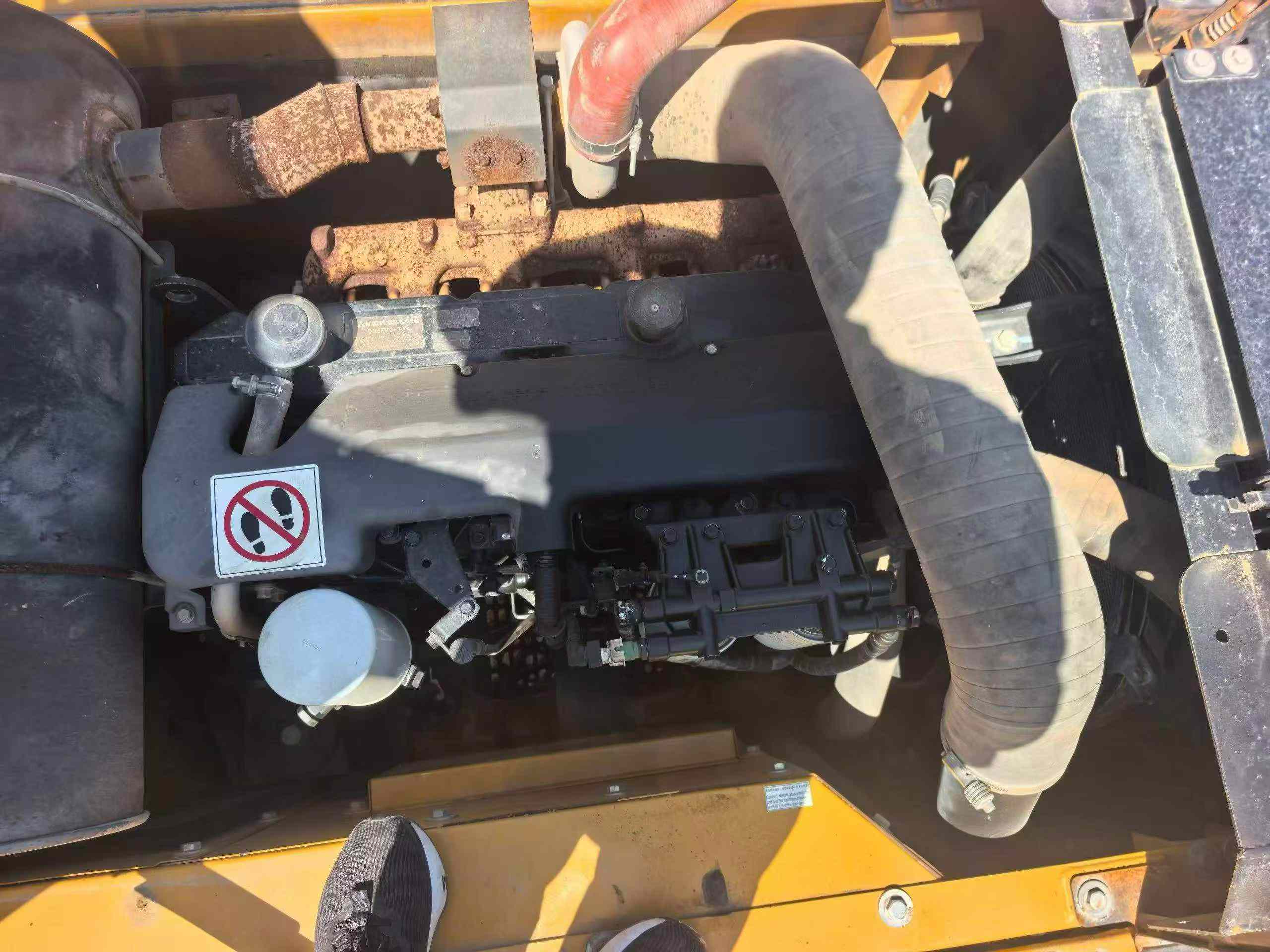

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
