Product Description

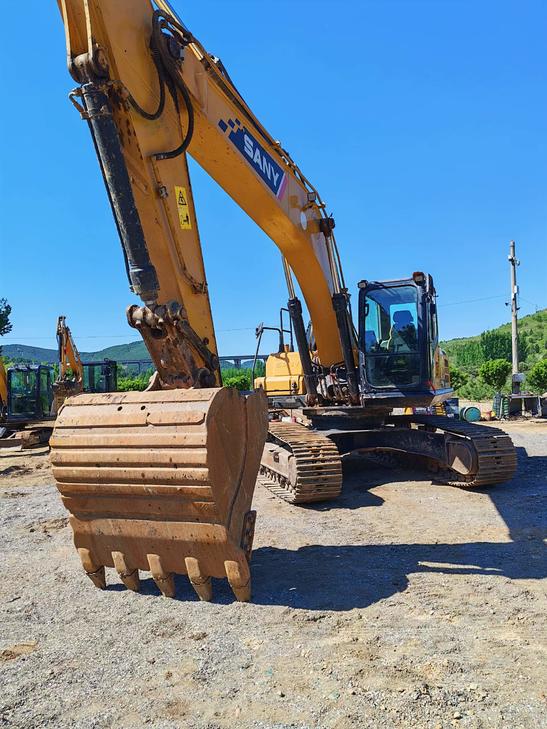

Well-maintained 2021 Sany SY245H hydraulic excavator available from Shandong, China. This 24-ton class machine has logged approximately 3,000 operating hours, indicating light commercial use with significant service life remaining. The SY245H features Sany's proven hydraulic system and robust undercarriage designed for demanding earthmoving applications.
Key specifications:
- Operating weight: ~24,500 kg
- Engine power: ~133 kW
- Bucket capacity: 1.0-1.2 m³ (standard)
- Max digging depth: ~6,700 mm
- Low hour meter reading: ~3,000 hours
This unit represents an opportunity to acquire late-model equipment at a competitive price point. Suitable for construction contractors, quarry operators, and civil engineering projects requiring reliable mid-size excavation capacity. Inspection welcome prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1082531 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
