Product Description

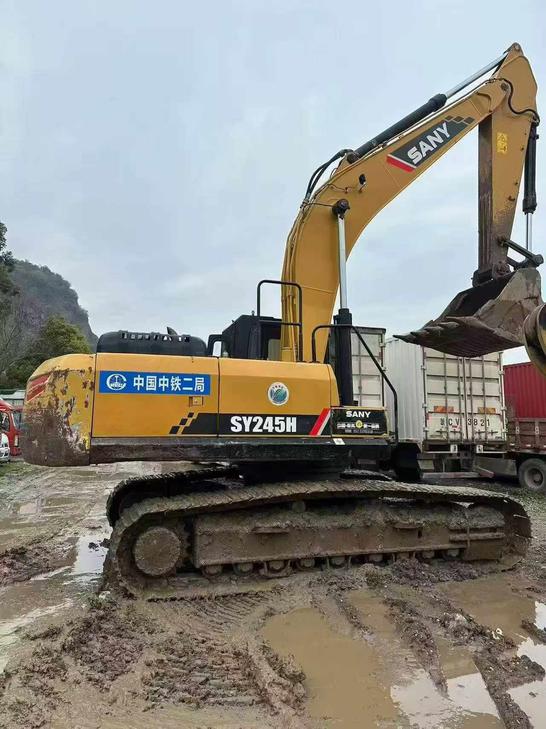

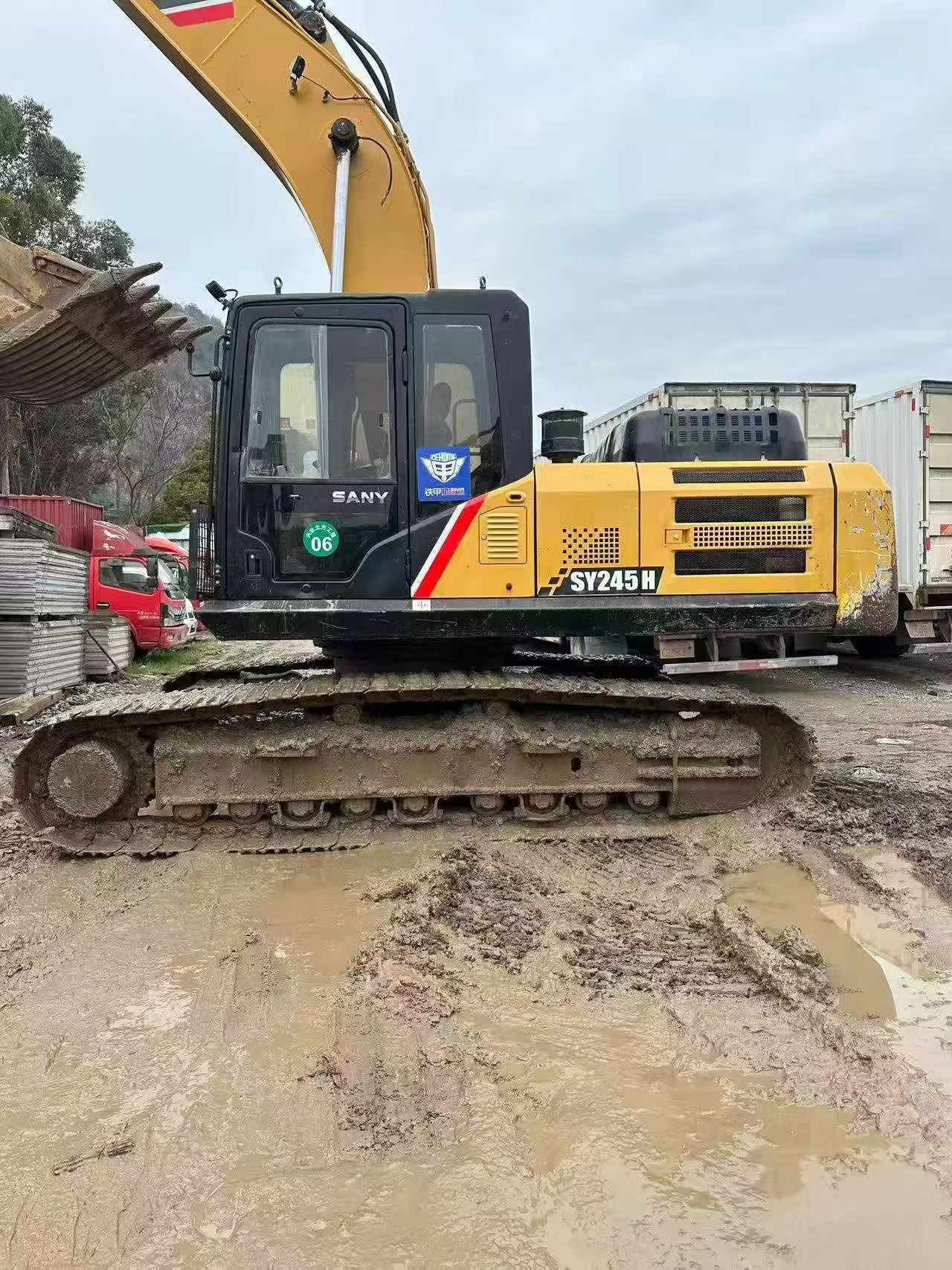

This 2021 Sany SY245H hydraulic excavator represents a reliable mid-size solution for construction and earthmoving operations. As part of Sany's proven H-series lineup, this machine combines operational efficiency with robust performance capabilities suitable for demanding job sites.

Currently located in Zhejiang, China, this unit offers buyers access to Sany's well-established 24-ton class excavator platform. The SY245H is engineered for versatility across excavation, loading, and material handling applications in construction, infrastructure development, and general contracting environments.

  • Manufacturing Year: 2021
  • Model: SY245H mid-size hydraulic excavator
  • Brand: Sany Heavy Industry
  • Location: Zhejiang Province, China
  • Category: Tracked hydraulic excavator

This equipment is available for inspection and represents an opportunity to acquire recent-vintage machinery from one of China's leading heavy equipment manufacturers. Contact us for detailed specifications, current condition assessment, and export arrangements.

SpecificationsValue
No.1085681
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
