2021 Sany SY245H

1/8
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7
Buy Sany SY245H Used Excavator / 8

Product Description

Discover the robust Sany SY245H excavator, a 2021 model currently available in Zhejiang, China. This machine has been meticulously maintained and is ready to tackle your most demanding projects. With over 8,000 operational hours, it continues to deliver reliable performance, making it an excellent choice for construction and excavation tasks. The Sany SY245H is known for its durability and efficiency, ensuring that you can meet project deadlines with ease. Ideal for businesses looking to enhance their fleet with a dependable and cost-effective solution.

  • Year: 2021
  • Brand: Sany
  • Model: SY245H
  • Location: Zhejiang, China

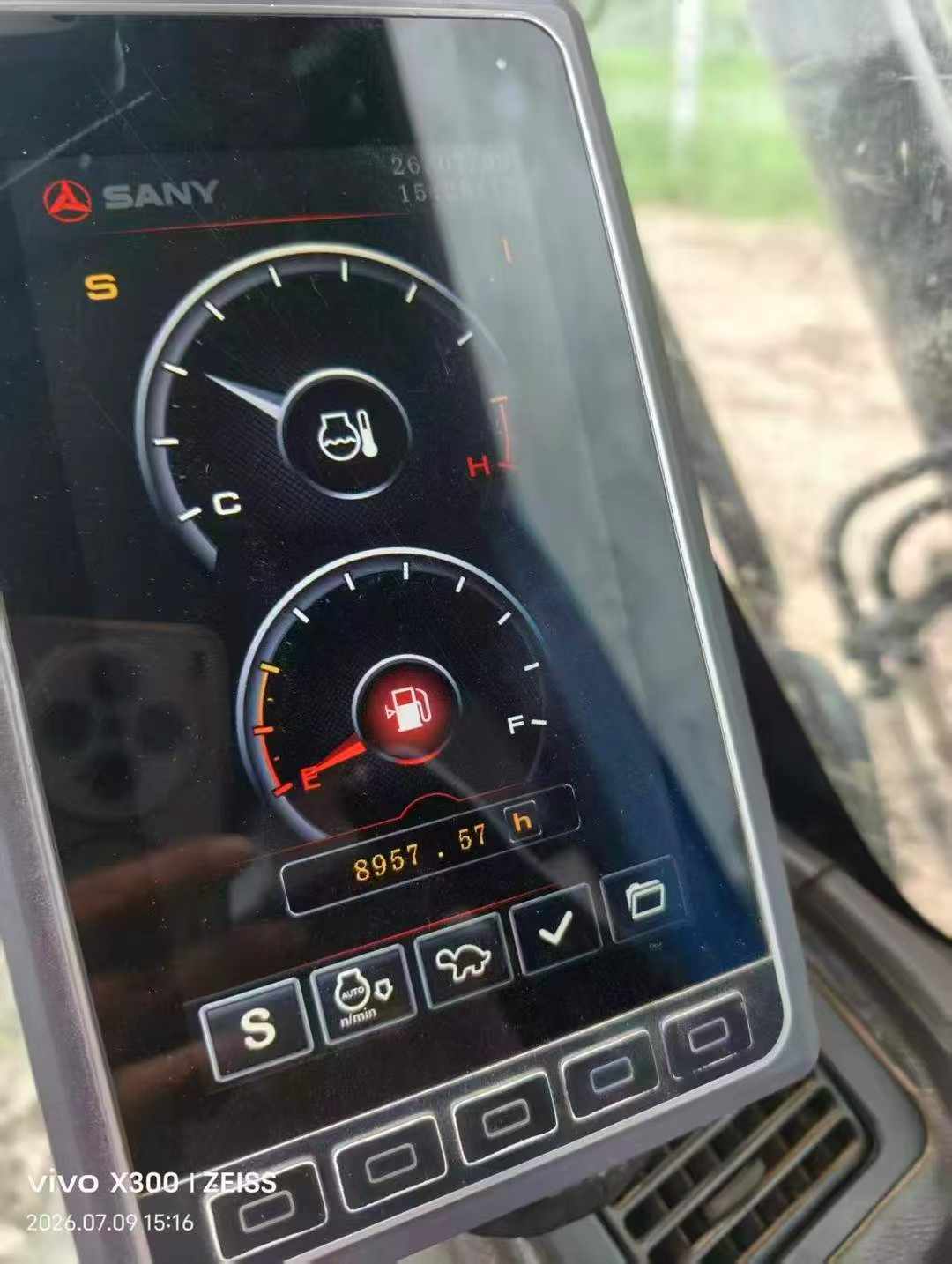

  • Operational Hours: Over 8,000
SpecificationsValue
No.1103109
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe

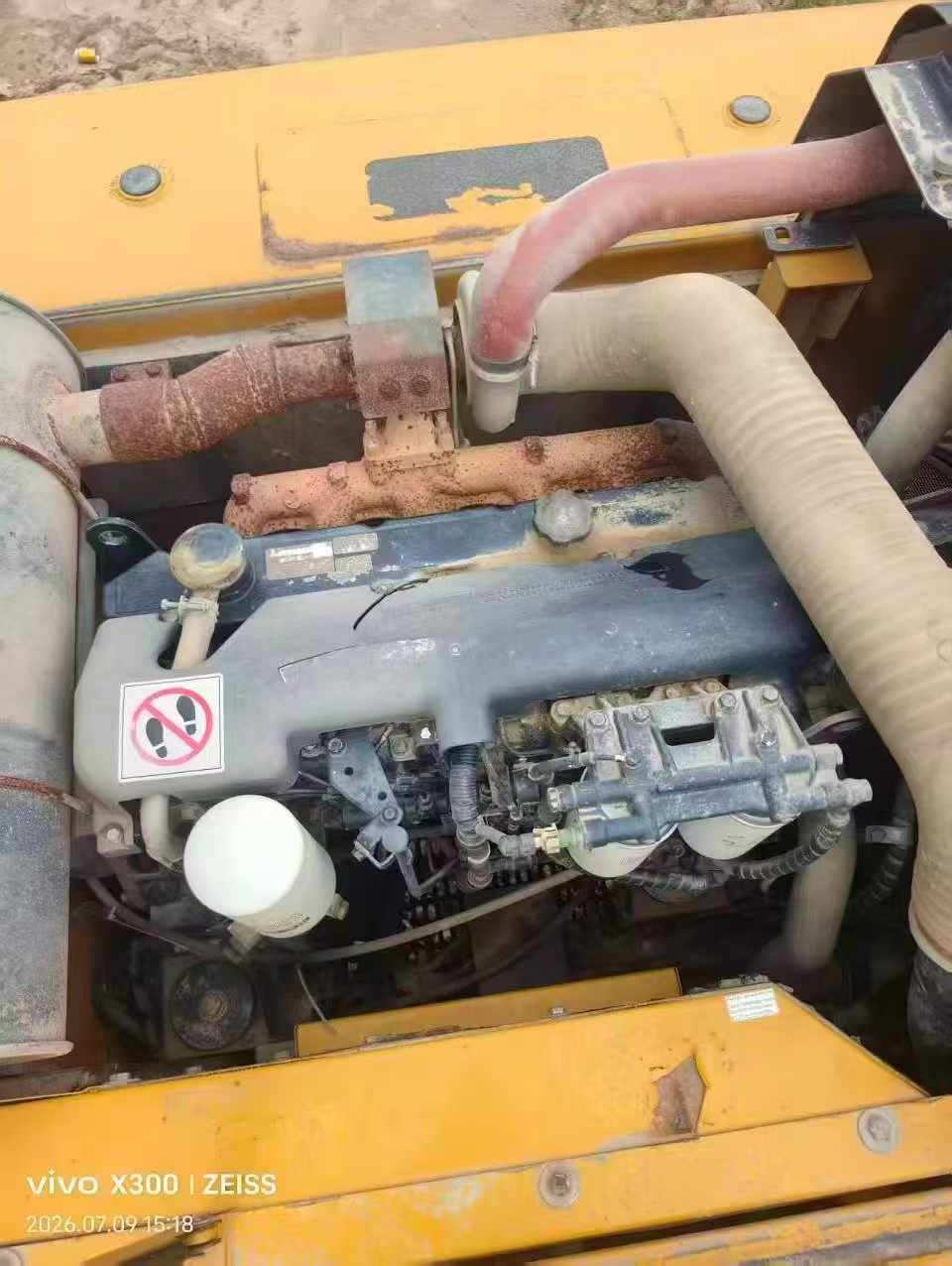

Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1103109

Brand Name:

Sany

Model Number:

SY245H

Year:

2021

Location:

Zhejiang China

Pub Date

Are you interested in this machine?

Please contact us
