2021 Sany SY245H

1/8

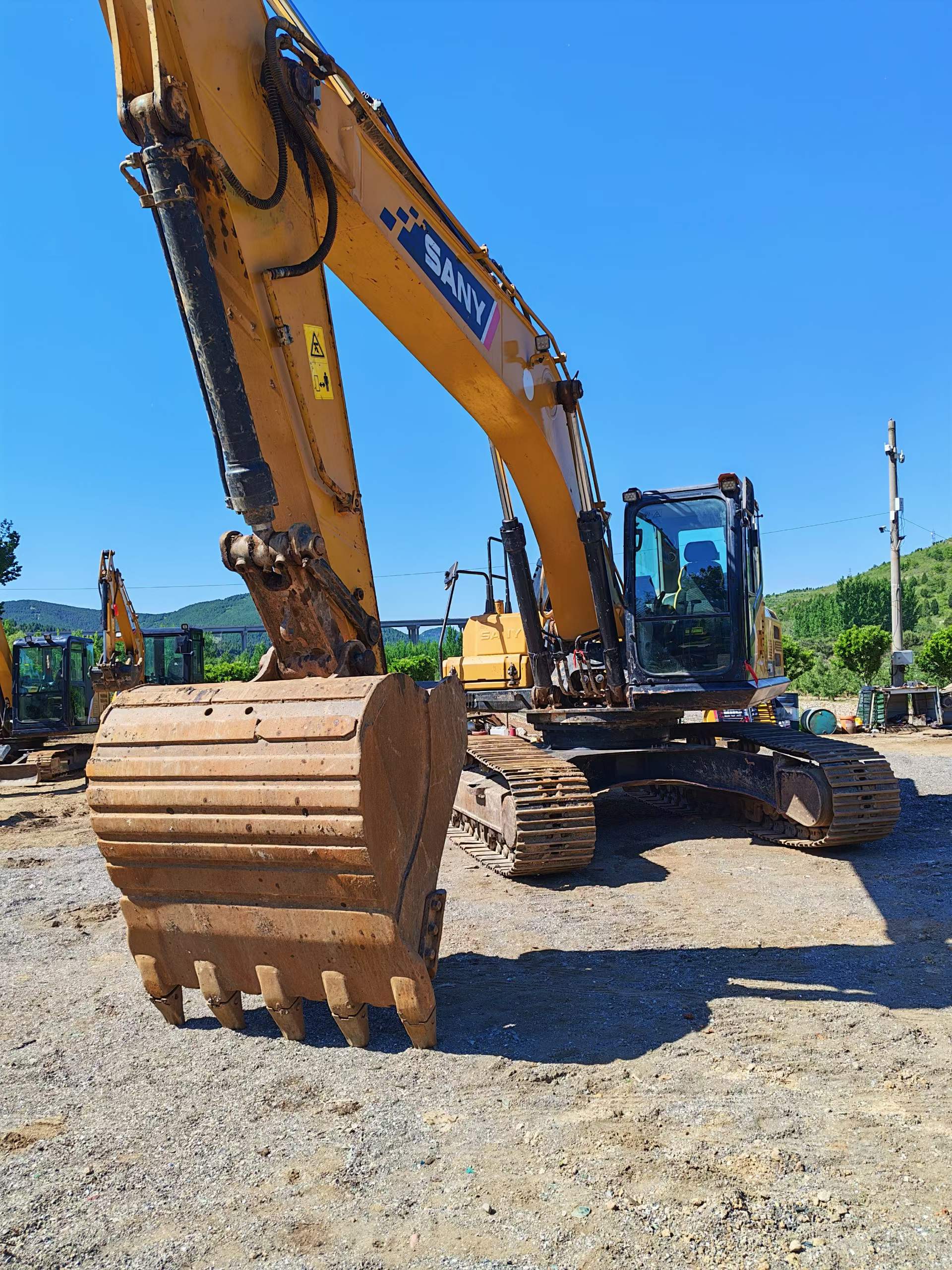

Buy Sany SY245H Used Excavator / 1

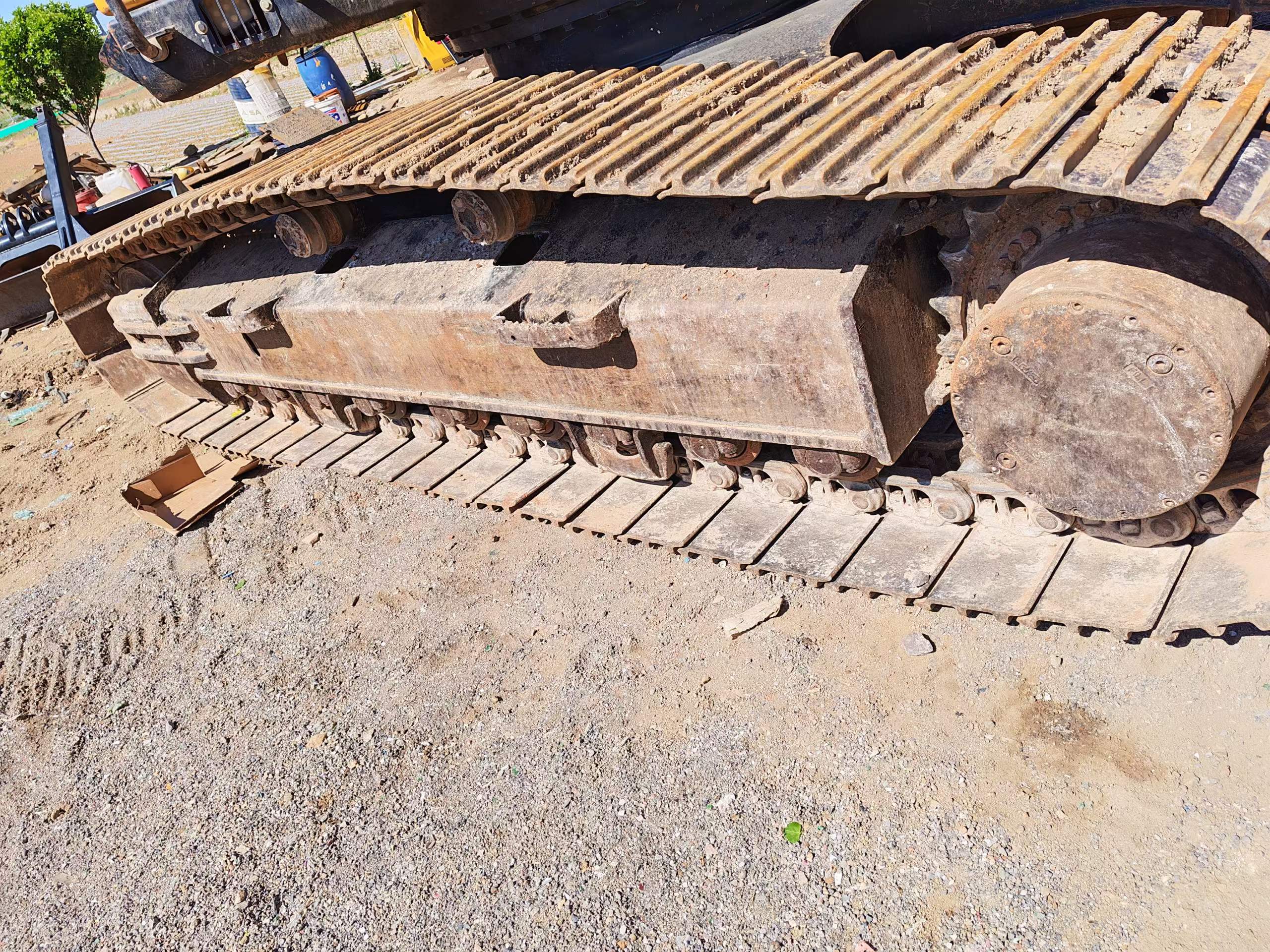

Buy Sany SY245H Used Excavator / 2

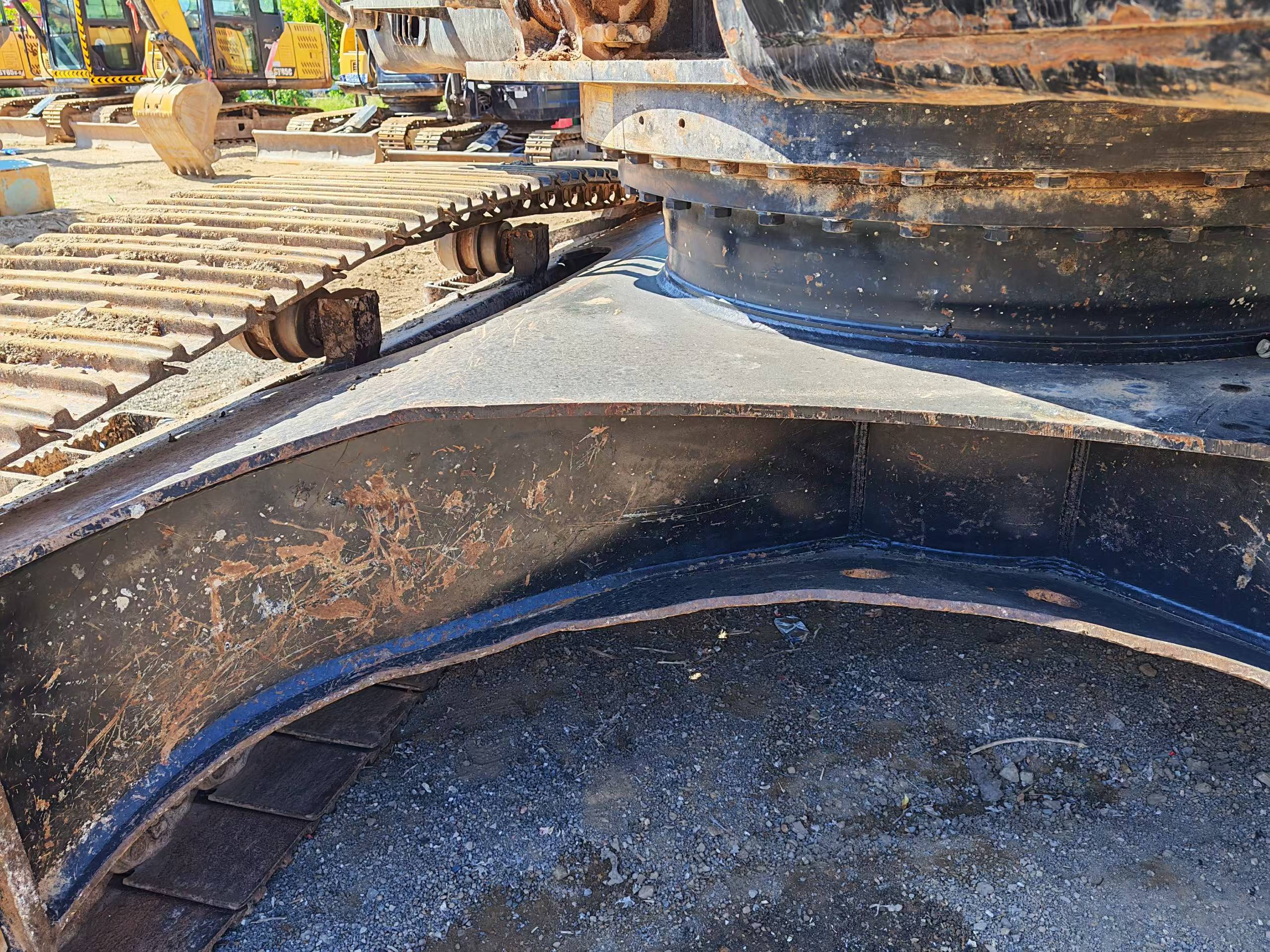

Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4

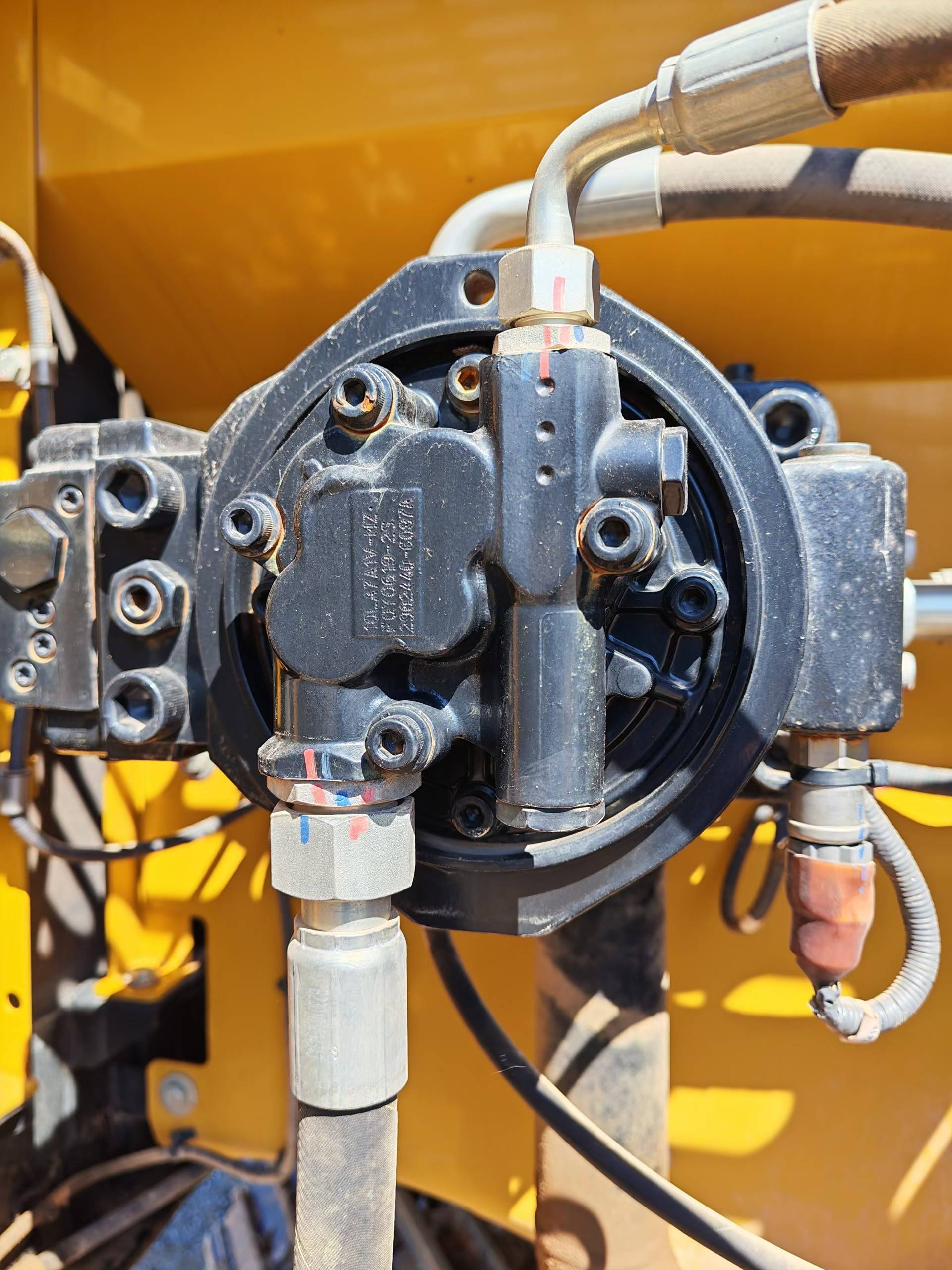

Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6

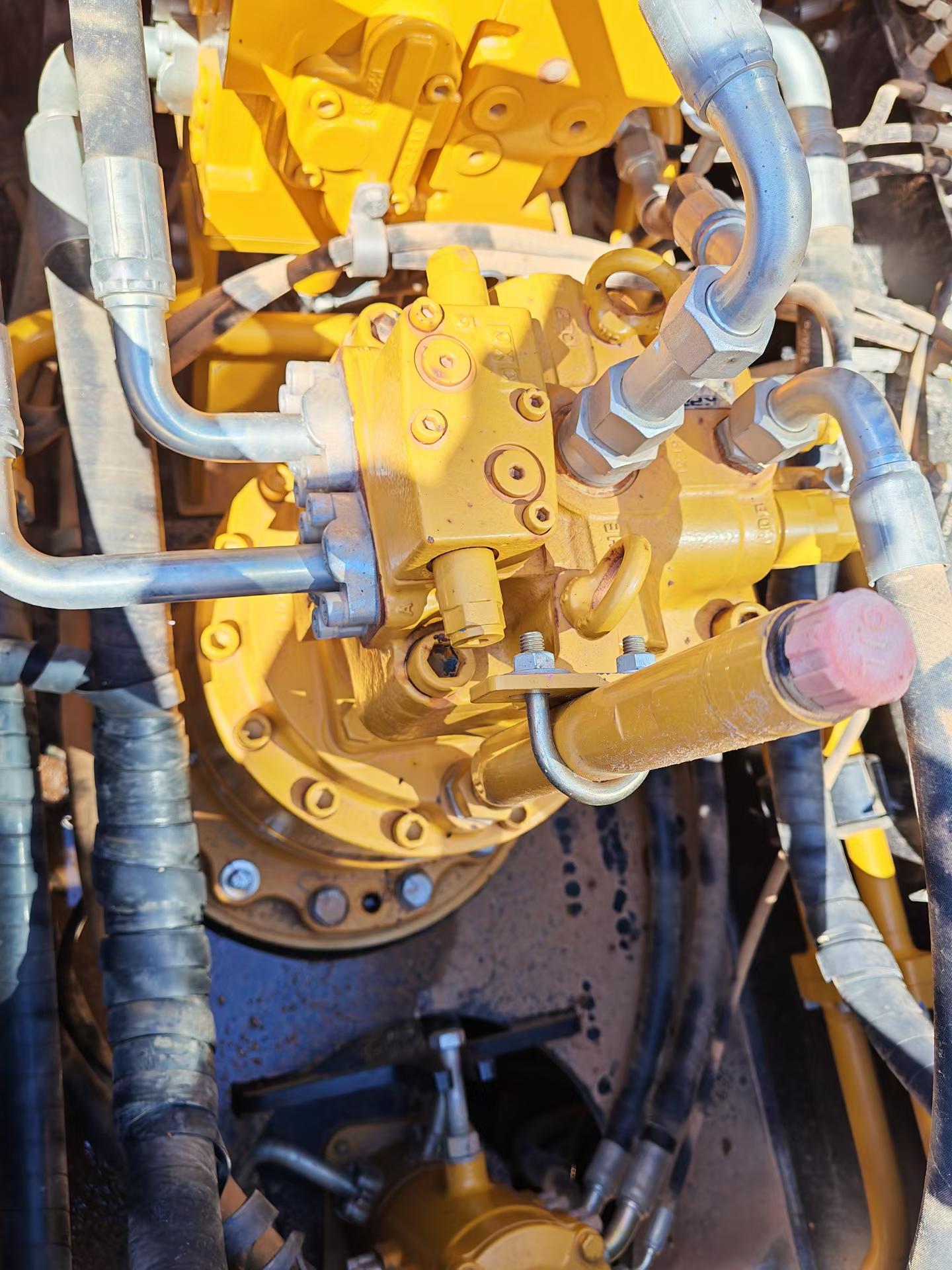

Buy Sany SY245H Used Excavator / 7

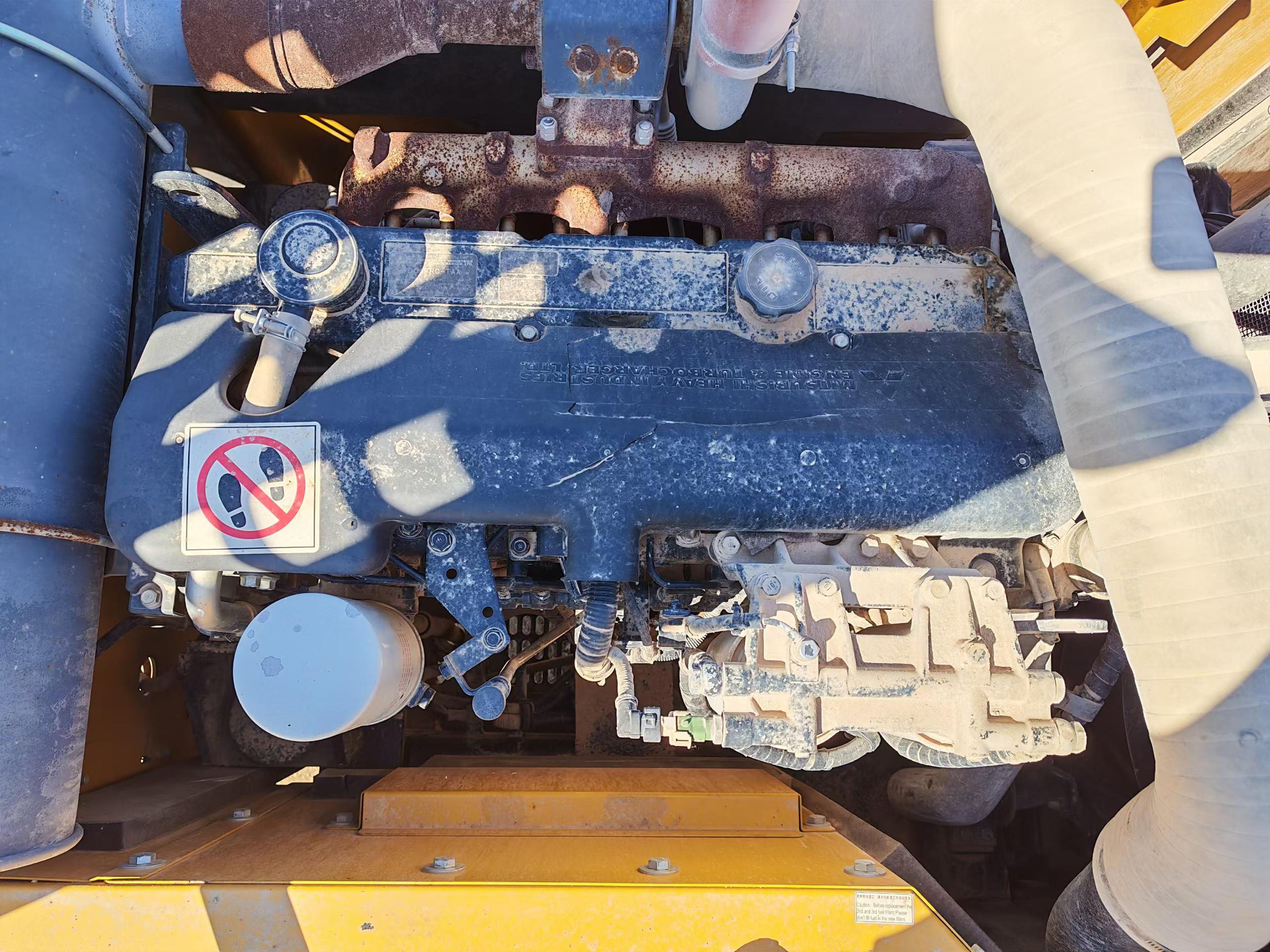

Buy Sany SY245H Used Excavator / 8

Product Description

This 2021 Sany SY245H excavator presents an exceptional opportunity for operators seeking reliable performance with minimal runtime. With only 3,500 operating hours, this machine remains in outstanding condition and offers substantial service life ahead.

The SY245H is a proven 24-ton class hydraulic excavator designed for demanding earthmoving, construction, and mining applications. Sany's robust build quality and efficient fuel management make this model a practical choice for contractors prioritizing uptime and operational costs.

  • Year: 2021
  • Hours: 3,500
  • Operating Weight: Approximately 24,500 kg
  • Engine: Isuzu diesel, meeting emission standards
  • Location: Shandong, China

Available for immediate inspection and delivery. Contact us for detailed technical specifications, service records, and export arrangements.

SpecificationsValue
No.1104979
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1104979

Brand Name:

Sany

Model Number:

SY245H

Year:

2021

Location:

Shandong China

Pub Date
