2021 Sany SY245H

1/7

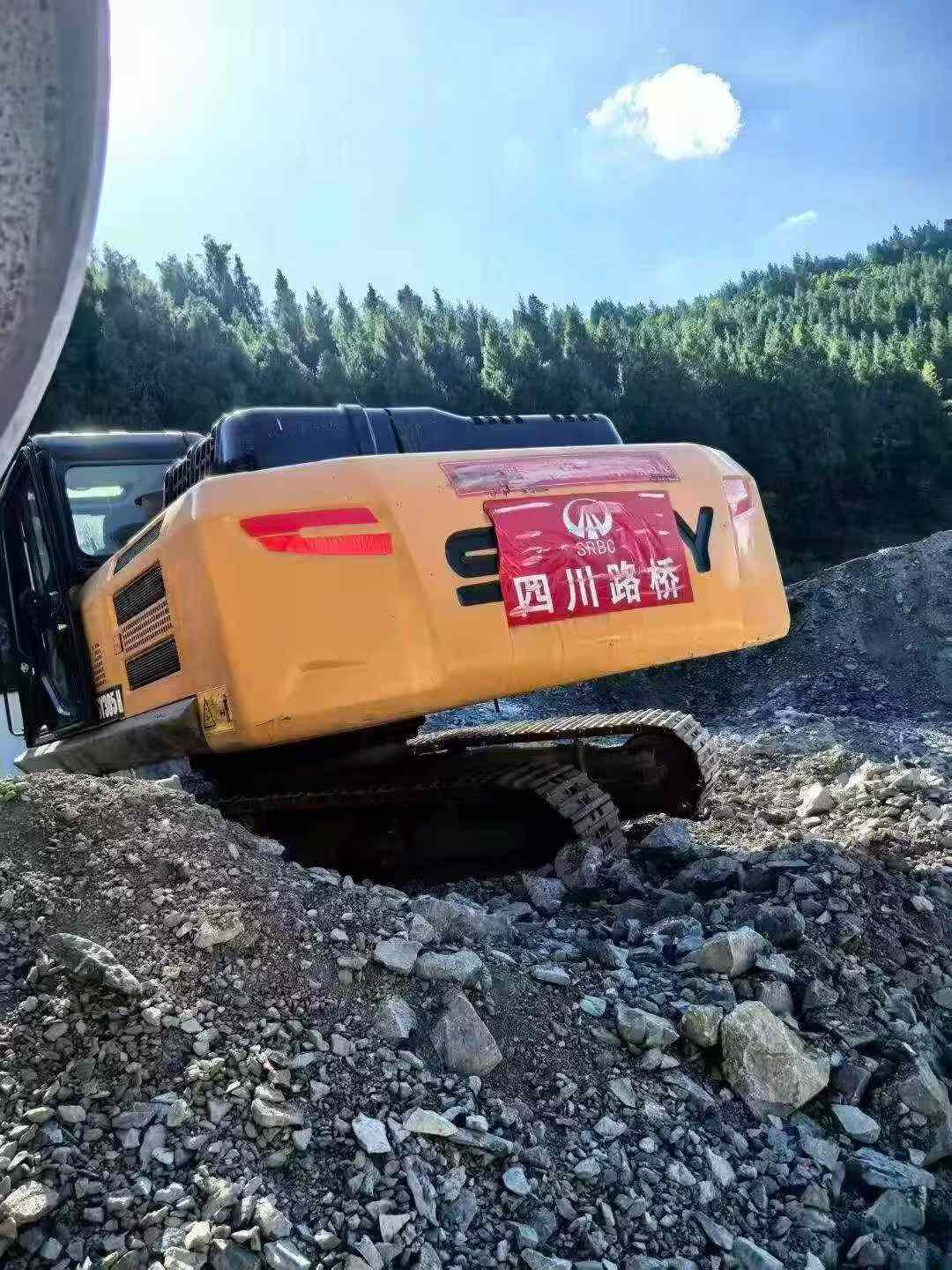

Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7

Product Description

This 2021 Sany SY245H hydraulic excavator offers reliable performance for construction and earthmoving operations. Located in Sichuan, China, this late-2021 unit provides a cost-effective solution for contractors seeking proven heavy equipment. The SY245H is part of Sany's mid-size excavator range, designed for durability and operational efficiency in demanding environments.

  • Year: 2021 (late production)
  • Brand: Sany
  • Model: SY245H
  • Location: Sichuan, China
  • Asking Price: 230,000+ RMB

Suitable for excavation, grading, and material handling applications. This machine represents an opportunity to acquire recent Sany equipment at competitive pricing. Inspection recommended prior to purchase. Contact us for detailed specifications, operating hours, and availability.

SpecificationsValue
No.1106227
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe

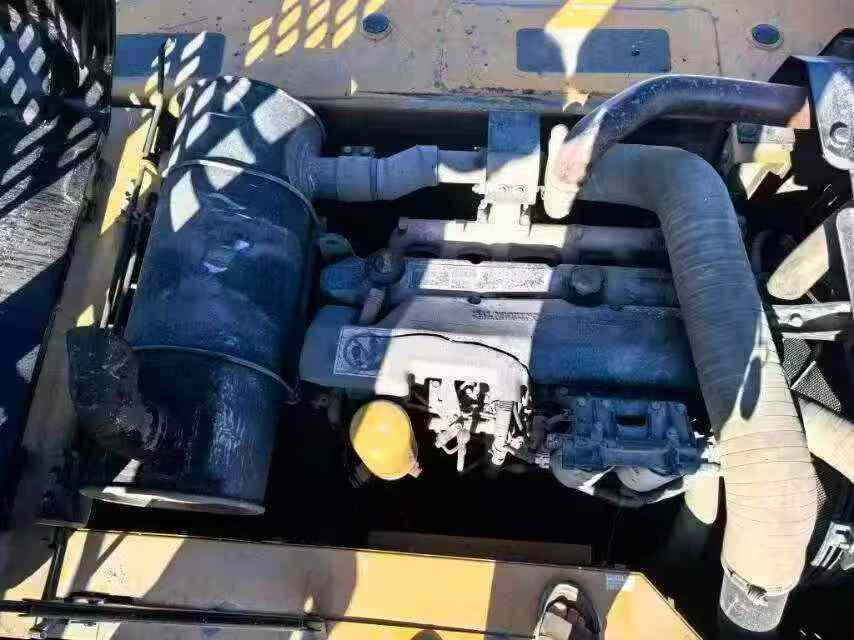

Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045

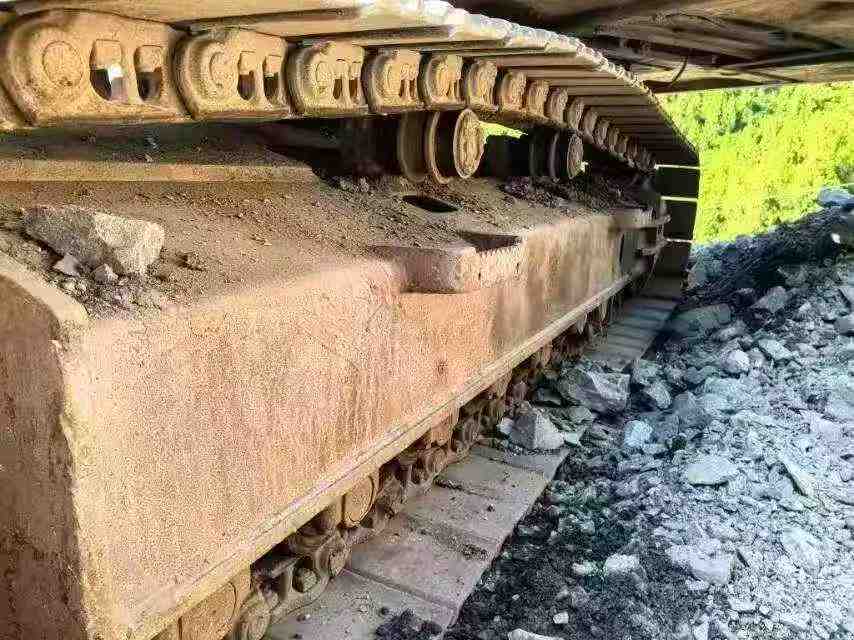

Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1106227

Brand Name:

Sany

Model Number:

SY245H

Year:

2021

Location:

Sichuan China

Pub Date

Are you interested in this machine?

Please contact us
