Product Description

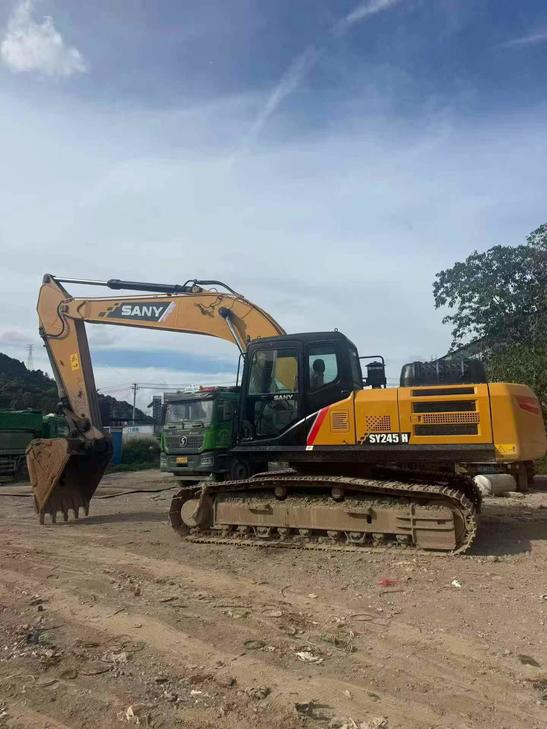

This 2021 Sany SY245H excavator represents an excellent opportunity for contractors seeking reliable heavy equipment. Located in Zhejiang, China, this machine has been well-maintained and is ready for immediate deployment on your next project.
The SY245H is part of Sany's proven medium excavator lineup, designed for versatility across construction, earthmoving, and infrastructure applications. This unit comes with complete documentation and service records, ensuring full transparency for your purchasing decision.
- Year of Manufacture: 2021
- Model: Sany SY245H Medium Excavator
- Current Location: Zhejiang Province, China
- Condition: Well-maintained with verified service history
- Documentation: Complete paperwork available
This low-hour machine offers an cost-effective alternative to new equipment while delivering the performance and reliability expected from Sany's engineering standards. Contact us today for detailed specifications and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1114674 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
