HOME>>Sany>>Sany SY245H

2021 Sany SY245H

1/9

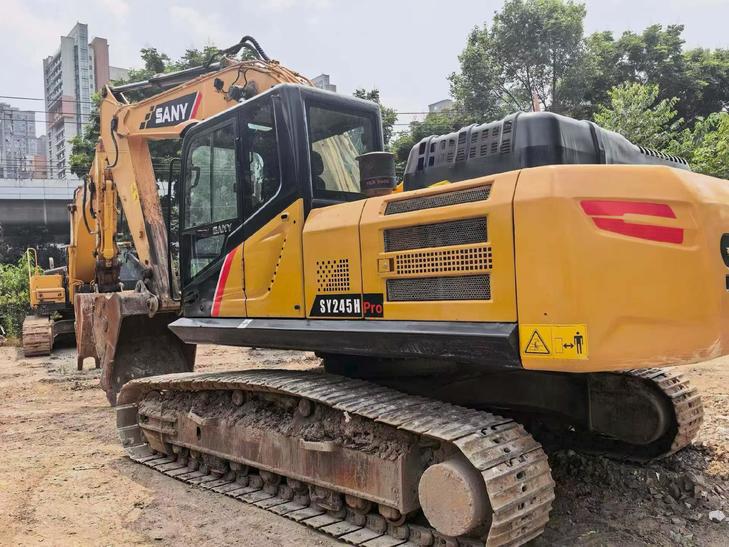

Buy Sany SY245H Used Excavator / 1

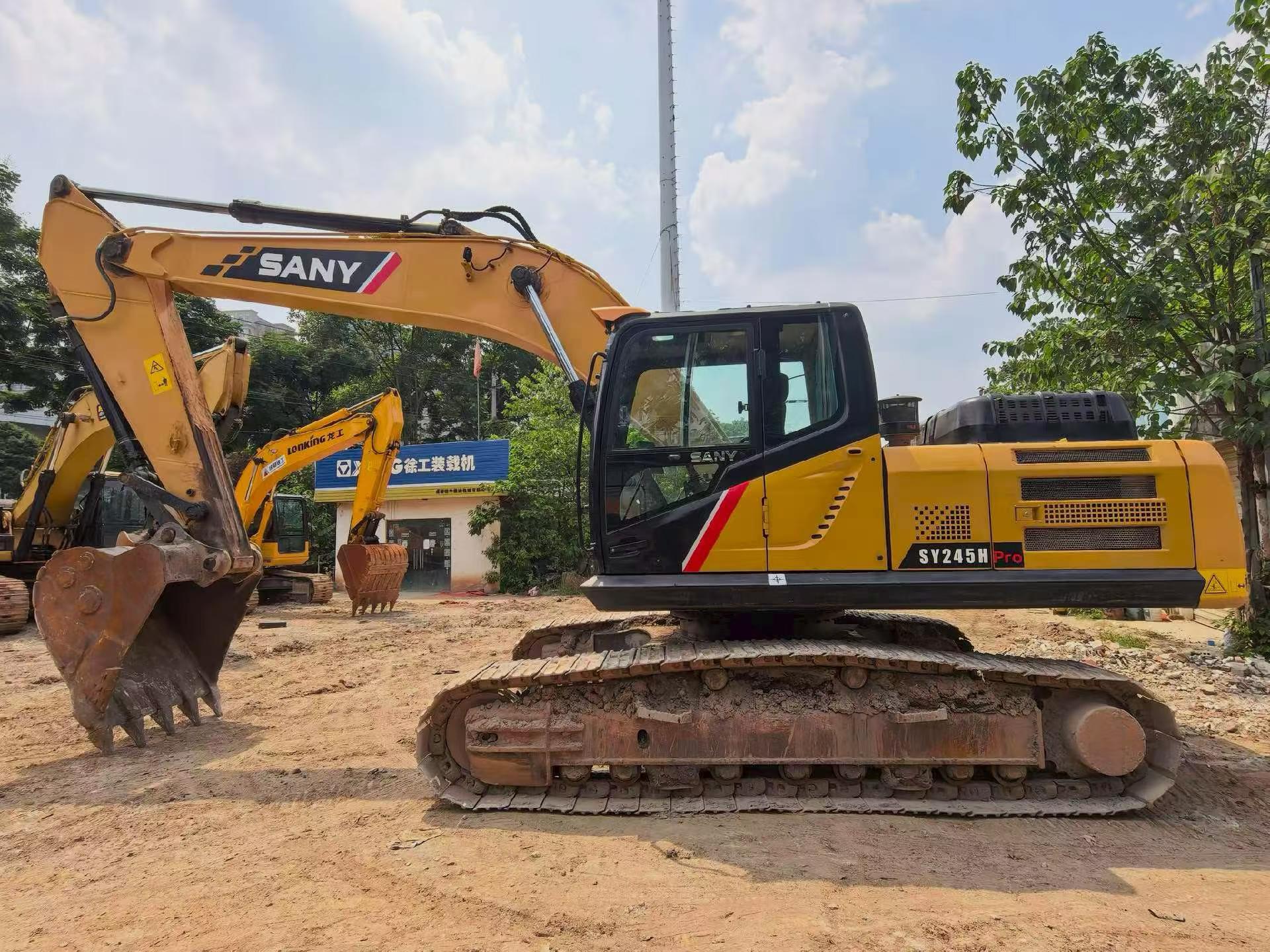

Buy Sany SY245H Used Excavator / 2

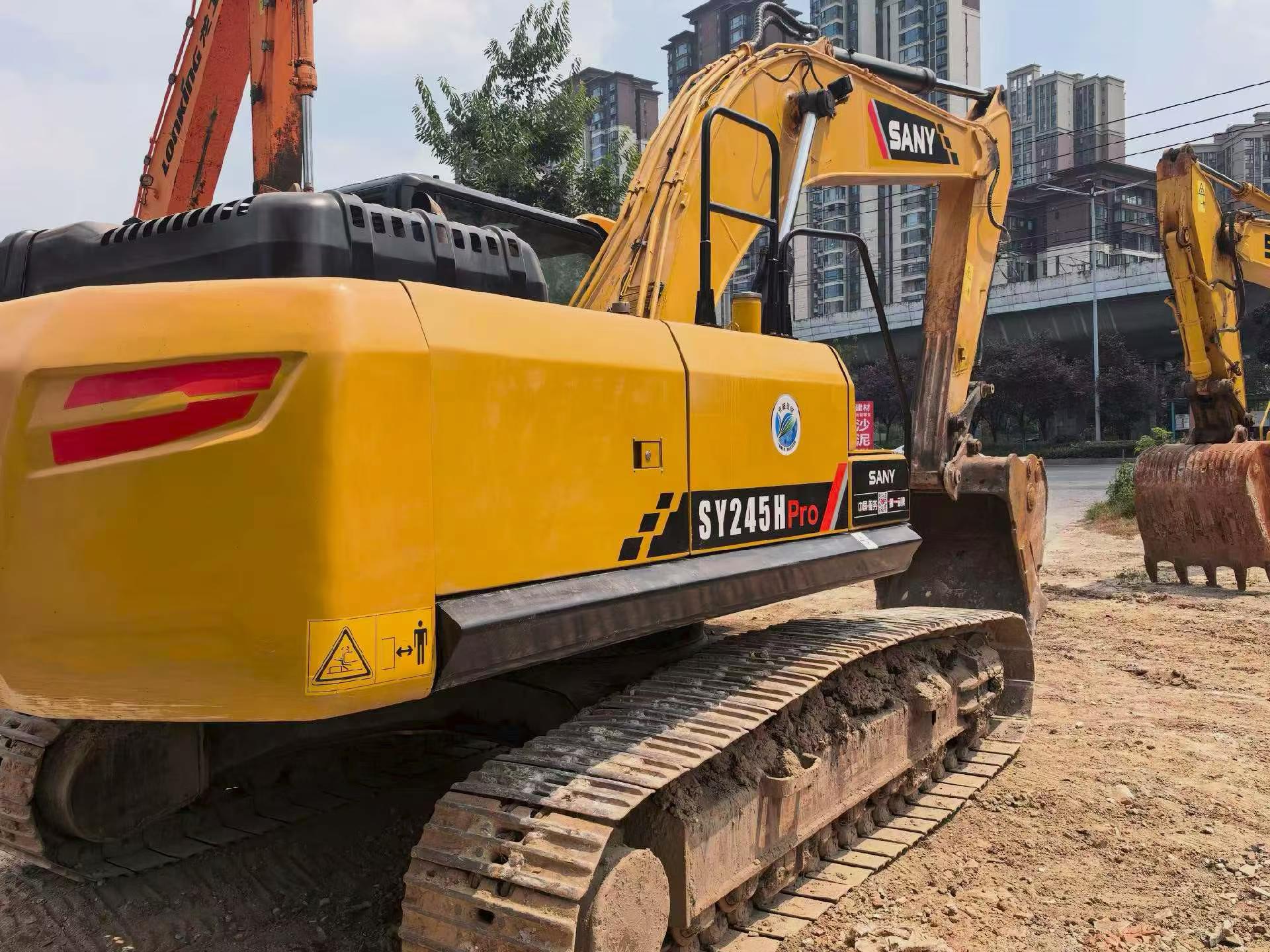

Buy Sany SY245H Used Excavator / 3

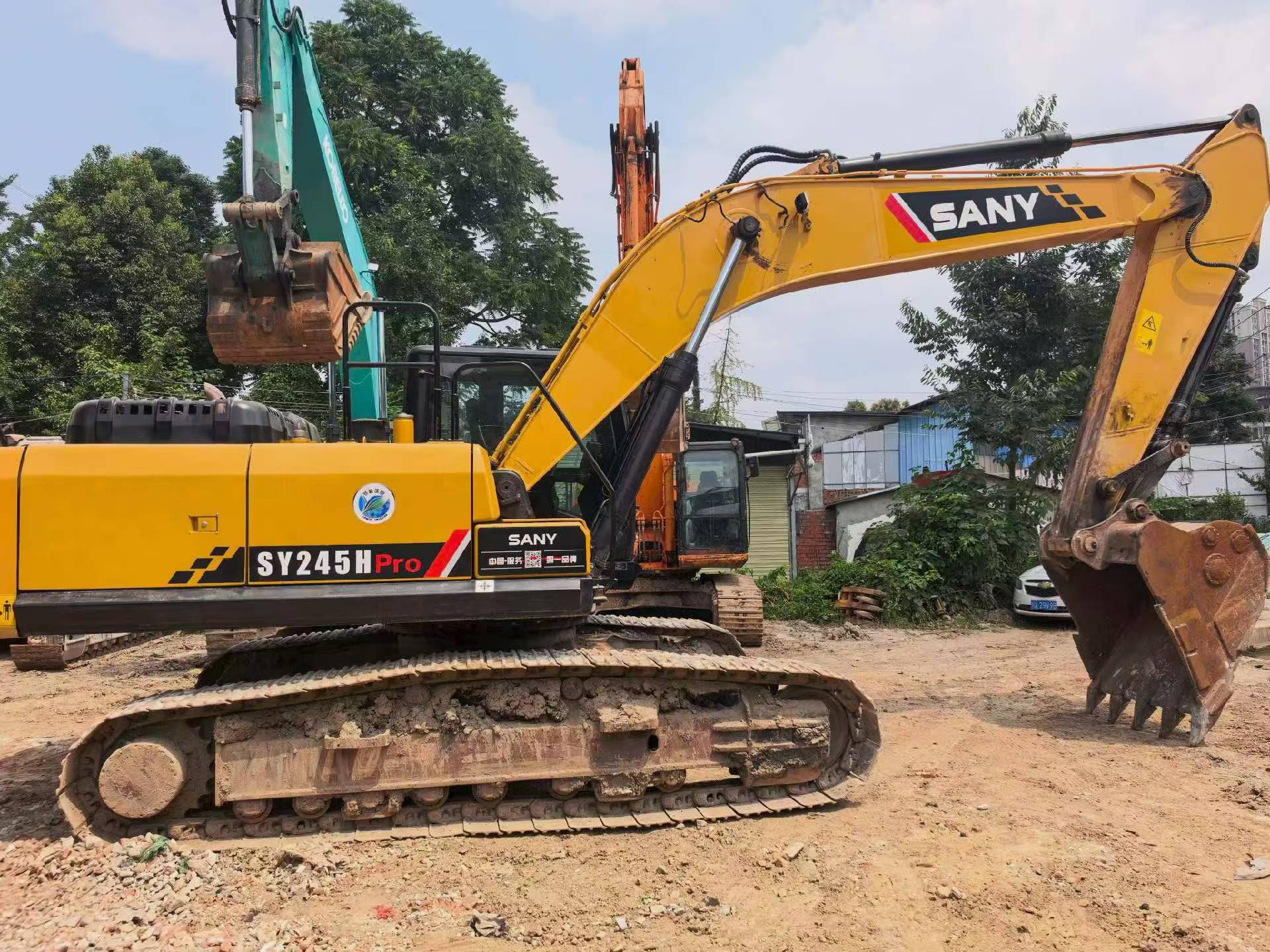

Buy Sany SY245H Used Excavator / 4

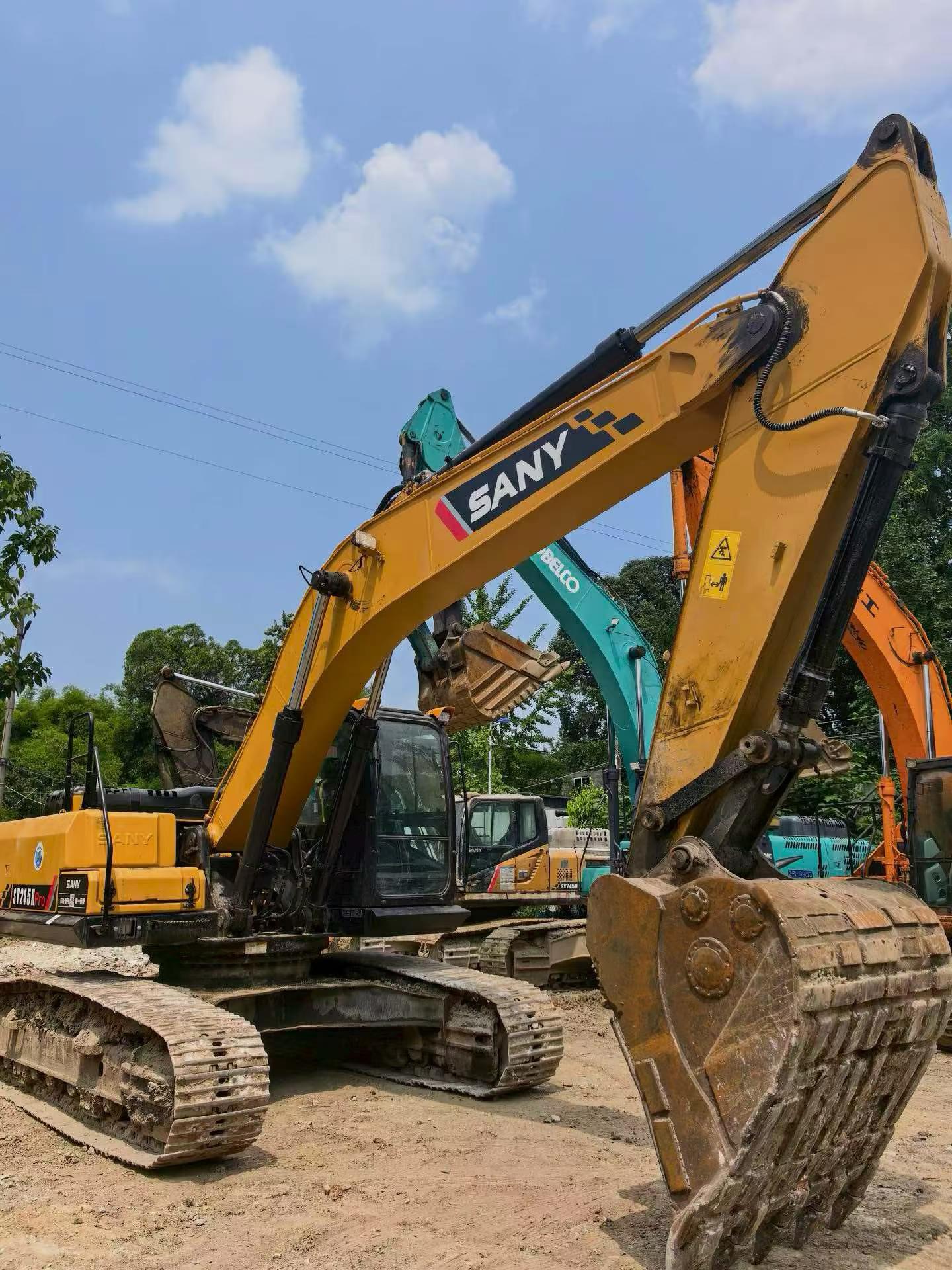

Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7
Buy Sany SY245H Used Excavator / 8

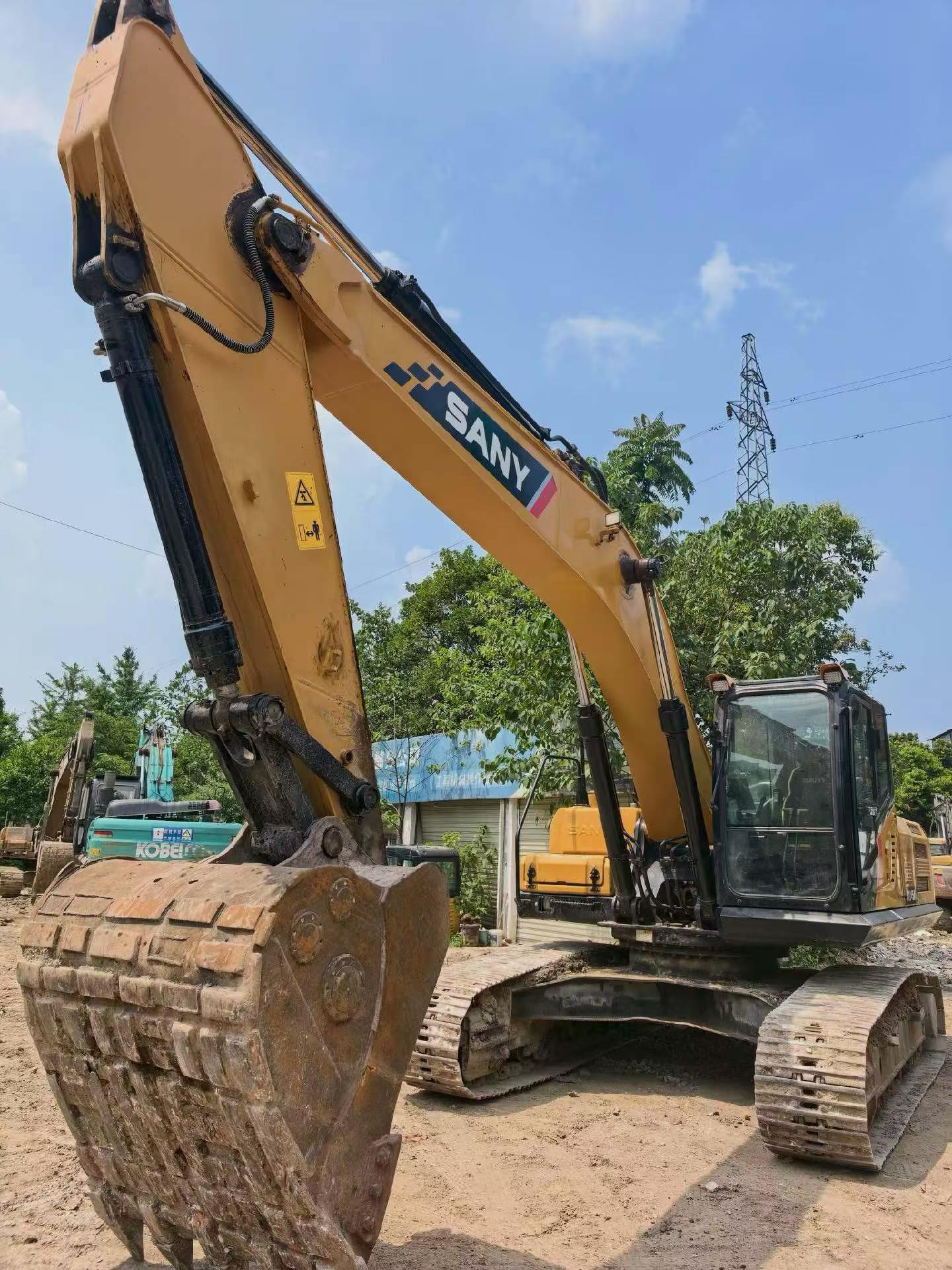

Buy Sany SY245H Used Excavator / 9

Product Description

This 2021 Sany SY245H hydraulic excavator represents a well-maintained mid-size machine ideal for contractors seeking reliable performance in earthmoving and construction applications. Currently located in Sichuan, China, this late-2021 unit offers buyers access to Sany's proven engineering at competitive used equipment pricing.

The SY245H is designed for versatility across demolition, trenching, and material handling operations. Sany's reputation for robust hydraulic systems and fuel efficiency makes this model a practical choice for operations requiring dependable daily productivity.

  • Year of Manufacture: 2021
  • Brand: Sany
  • Model: SY245H
  • Current Location: Sichuan, China
  • Condition: Well-maintained

Prospective buyers are encouraged to arrange inspection and request detailed service records. International shipping coordination available upon request.

SpecificationsValue
No.1120280
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
