Product Description

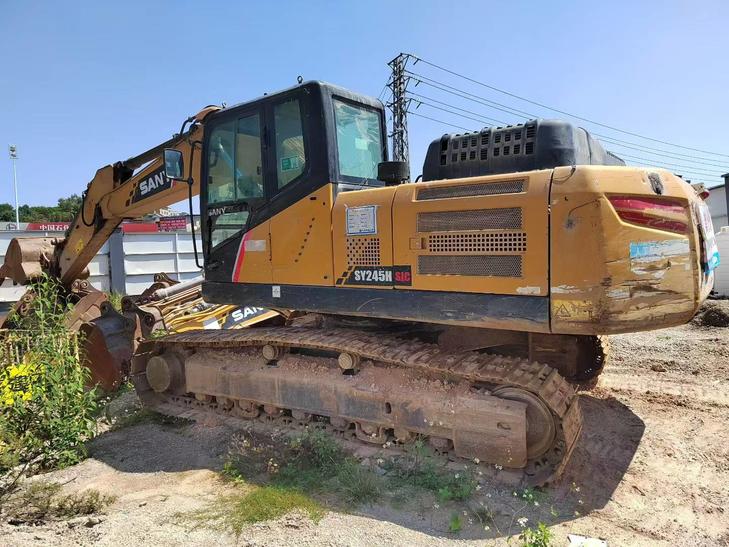

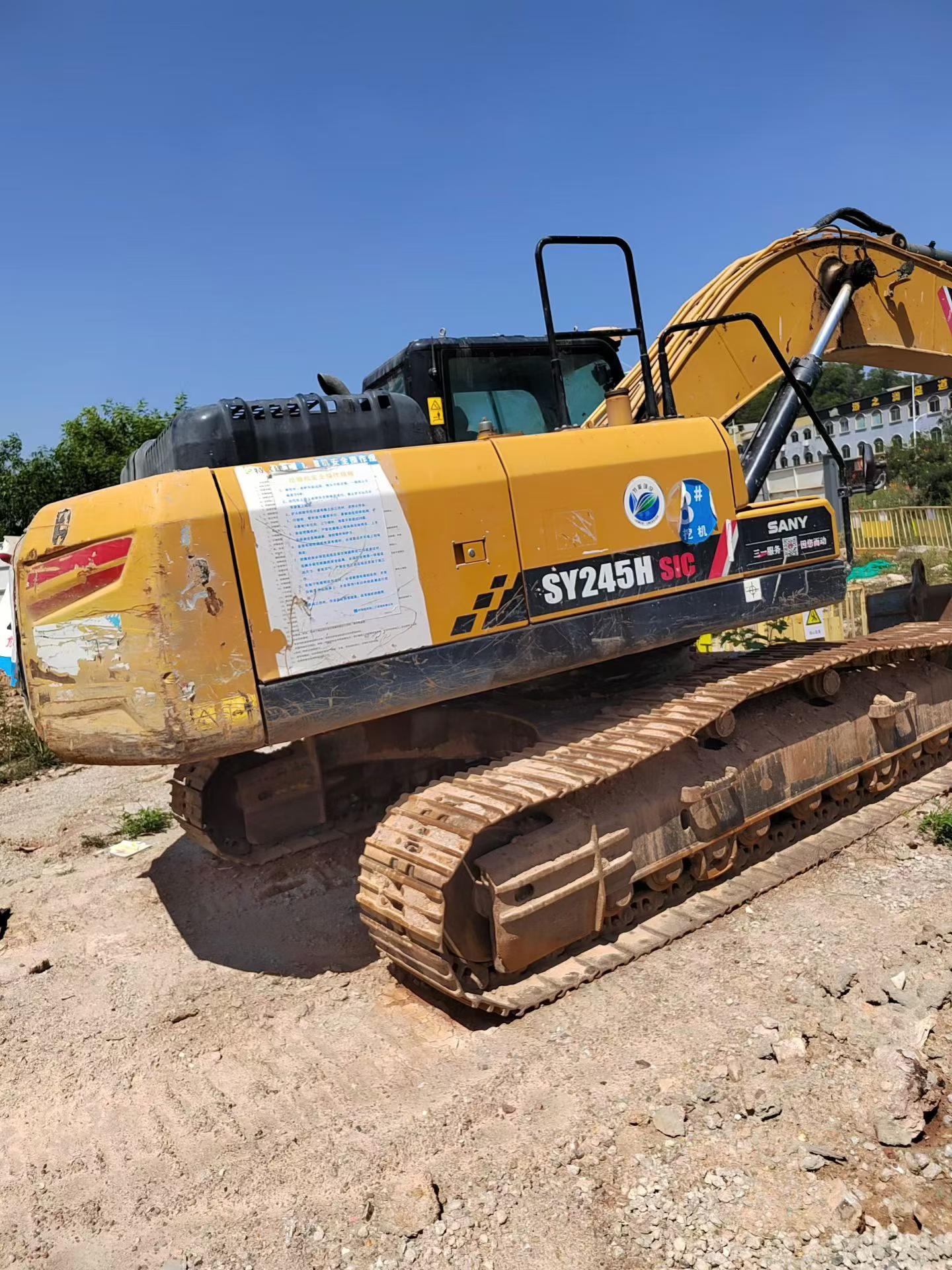

Available now in Shenzhen, Guangdong, this 2022 Sany SY245H medium excavator delivers 24-ton performance without factory wait times. Powered by a reliable D06FRC engine producing 147kW at 2100 rpm, this machine combines proven hydraulics with efficient water-cooled operation for demanding earthmoving projects across Asia and beyond.
Equipped with a 1.3–1.5 m³ backhoe bucket, the SY245H generates 175 kN bucket digging force and reaches 10,225 mm maximum digging radius. Its 25,500 kg working weight and 600 mm track plates ensure stability on soft ground (53.2 kPa ground pressure), while the 5.4 km/h travel speed enables rapid site repositioning. With 475 L fuel capacity and 277 L hydraulic tank, you'll maintain productivity through extended shifts.
Skip the factory lead times—fast deployment to your site:
- Ready to ship from Guangdong Deep Water Port
- Full factory specifications: 10,290 mm transport length, 3,190 mm width
- 6-cylinder turbocharged diesel, 750 N·m torque at 1,350 rpm
- 70% gradeability and 10.6 rpm swing speed for versatile applications
- Comprehensive dimensions verified for immediate container loading
Secure this turnkey 2022 unit
| Specifications | Value |
|---|---|
| No. | 1030534 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
