Product Description

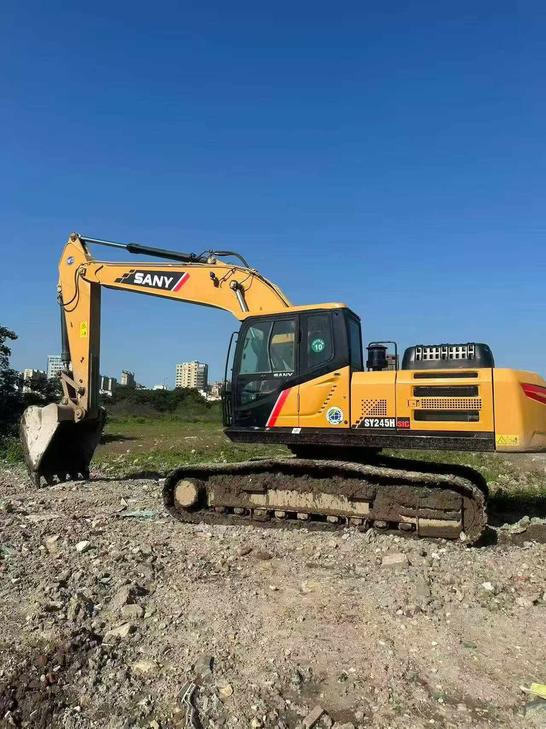

This 2022 Sany SY245H hydraulic excavator represents an exceptional opportunity for contractors seeking reliable mid-size equipment. Located in Zhejiang, China, this machine has been meticulously maintained under a comprehensive corporate service program throughout its operational life. All documentation and paperwork are complete and in order, ensuring a seamless acquisition process.
Key highlights include:
- Low operating hours with verified maintenance history
- Corporate fleet maintenance—no deferred service
- Complete documentation package ready for transfer
- Inspection-ready condition with no known mechanical issues
- Competitive pricing for immediate sale
The SY245H is known for its robust hydraulic system and fuel efficiency in the 24-ton class. This unit is available for immediate inspection and delivery. Serious inquiries from qualified buyers are encouraged to act quickly, as equipment of this caliber moves fast in the current market.
| Specifications | Value |
|---|---|
| No. | 1075602 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
